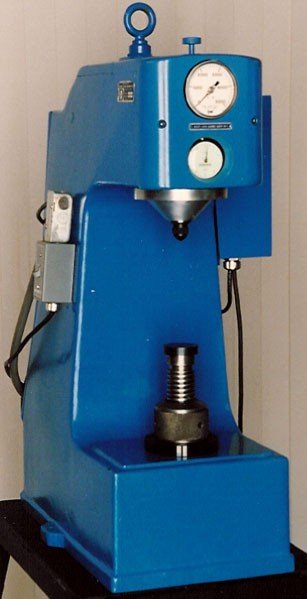

Detroit DH-1 Hydraulic Brinell Hardness Tester

(1) USED Detroit, Model DH-1, Hydraulic Brinell Hardness Tester. S/N 784

Detroit Model DH-1

SPECIFICATIONS:

Major Brinell Loads (Kgs.): 500 – 3000

Standard Vertical Work Height: 6"

Throat Depth: 6"

Maximum Test Stroke: 7/16"

Approximate Overall Dimensions (W x D x H): 16" x 38" x 40"

Approximate Weight (lbs.): 850

Electrical Requirements (V,Hz,Ph): 120/240, 60, 1

EQUIPPED WITH:

• 10mm Diameter Ball Indentor
• Flat Anvil
• Hand Operated Control/Switch
• New Hydraulic Pump & Motor

FOB Warren, MI

Reconditioned & Certified
