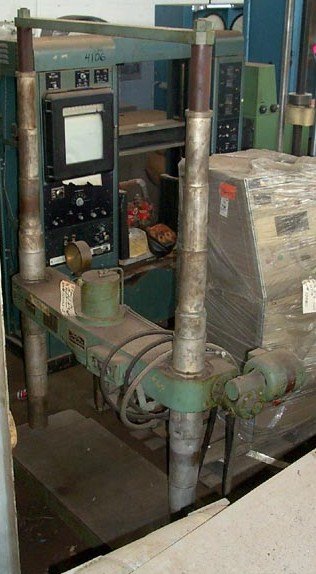

Wilson Model A-4 Hydraulic Brinell Hardness Tester

Wilson A-4 Hydraulic Brinell Hardness Tester

(1) USED Wilson Model A-4 Two Screw Motorized Hydraulic Brinell Hardness Tester. S/N 11352

SPECIFICATIONS:

Major Brinell Loads (Kgs.): 500 – 3000

Standard Vertical Work Height:  0" – 48" Motorized

Distance Between Screws: 40”

Throat Depth: N/A

Maximum Test Stroke: .5"

Approximate Overall Dimensions (W x D x H): Frame: 60" x 20" x 80"

Approximate Weight (lbs.): 3,000

Electrical Requirements (V,Hz,Ph): 120/240, 60, 1

Air Requirement (Psi): N/A

EQUIPPED WITH:

  • 10mm Diameter Ball Indentor
  • Hand Operated Control/Switch
  • Work piece Table (W x D): 36" x 20"
  • New Hydraulic Pump & Motor

FOB Warren, MI

Reconditioned & Certified
