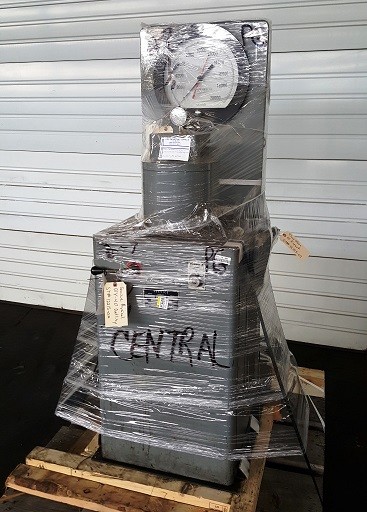

Louis Small DTY 20 Testing Machine

(1) USED 20,000 lbf Capacity Louis Small, Model DTY-20, Sheet Metal Ductility Testing Machine.  S/N 2009

Louis Small Model DTY-20

SPECIFICATIONS:

Capacity (Lbs): 20,000

Range (s) (Lbs): 0 – 20,000

Maximum Specimen Thickness: 0.125"

Approximate Dimensions (WxDxH): 14" x 24" x 60"

Approximate Weight (Lbs): 675

Electrical Requirements (V,Hz,Ph): 120, 60, 1

EQUIPPED WITH:

  • One (1) Standard Bottom Die and one (1) Upper Die
  • One (1) 0.875" Diameter Ball Indenter
  • Cup Height Dial Indicator
  • Single Dial Load Indicator in 100 lbf increments

FOB Warren, MI

Reconditioned With Warranty
