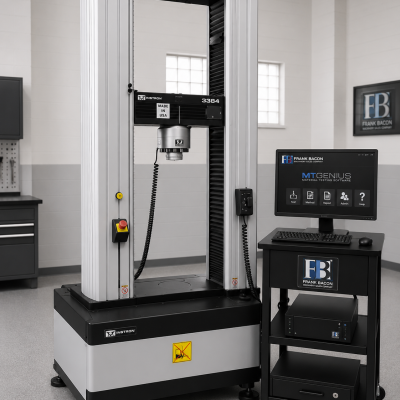

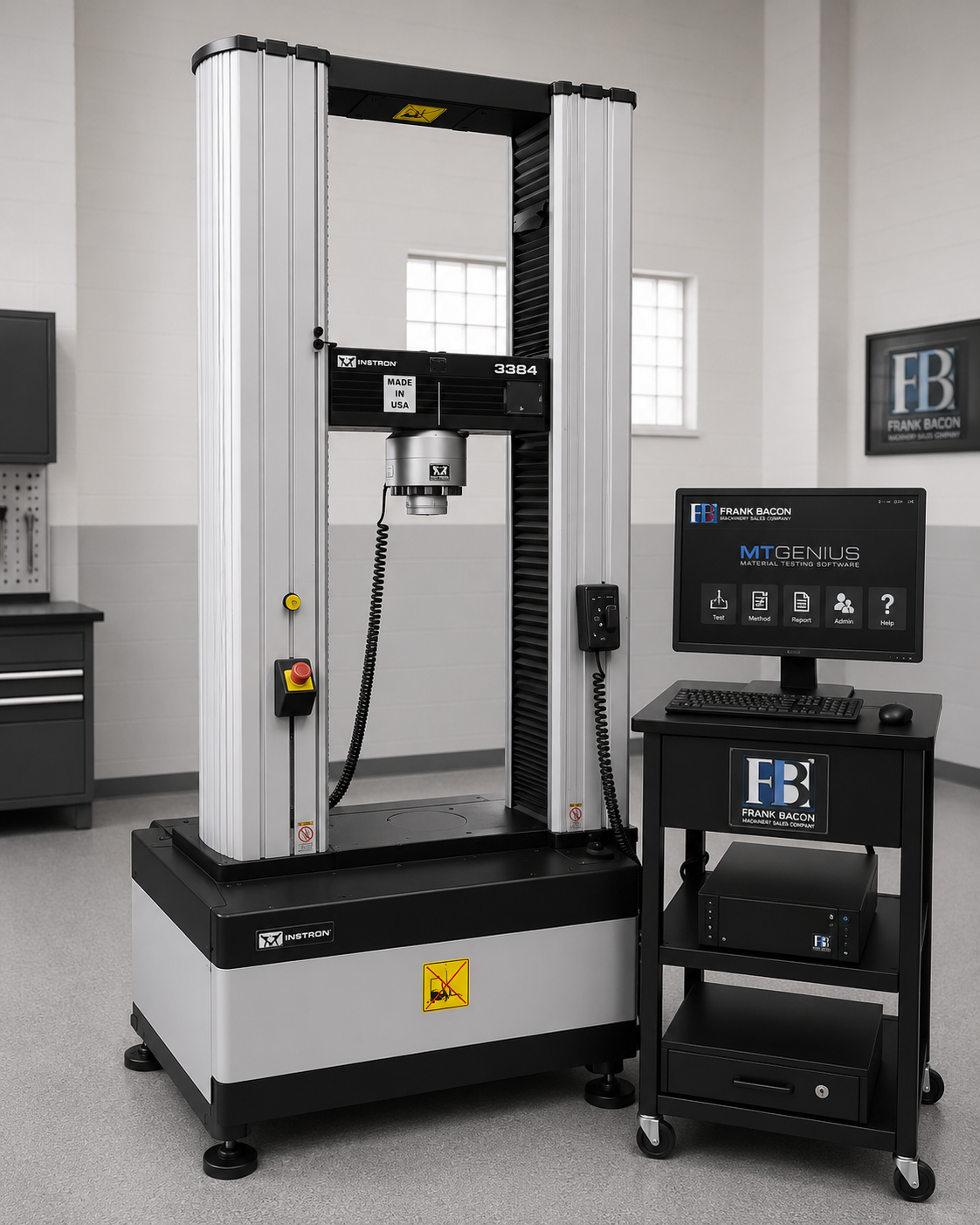

30K (150kN) Instron 3384

Instron Model 3384

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 52" Compression Testing Opening (Less Tooling): 52" Distance Between Columns/Screws: 22"
Testing Stroke: 52"

Testing Speed (IPM): .00002 – 20 Crosshead Adjusting Speed (IPM): 20 Approximate Overall Dimensions: Load Frame (W x D x H): 48" x 32 x 98" Weight (lbs.): 1,850

Electrical Requirements (V, Hz, PH): 230, 60, 3

EQUIPPED WITH:

  • Computer System with Keyboard & Mouse

  • 24" LED-backlit LCD Color Monitor

  • Microsoft Windows 10 Professional, Workstation.

  • MTGenius, Material Testing Software for Data Acquisition (Load, Position, 2 Strain & AUX),

    Analysis and Computer Controlled Testing with Manual.

  • MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB cable.

  • Electronic Material Testing Control System in Custom Cabinet/Desk with PC/Manual Controls.

  • New AC Servo Motor with Incremental Encoder and Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).

  • 150kN Tension & Compression Load Cell

    FOB Warren, MI Reconditioned/Retrotted & Certied 1 Year Parts and Labor Warranty

*Actual Images Before Reconditioning
