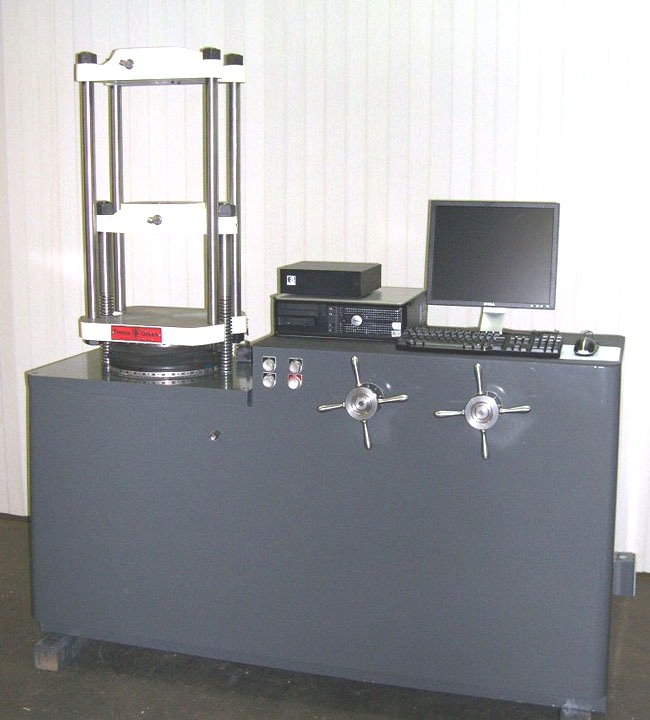

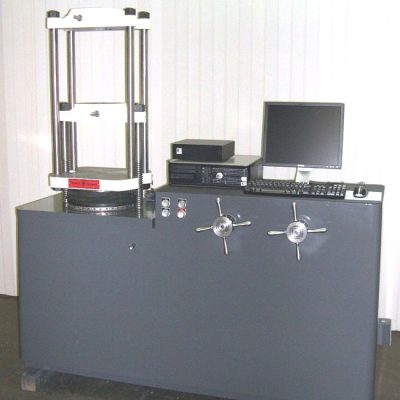

60K (300kN) Tinius Olsen Super L (MTQ DA)

Tinius Olsen, Model Super L

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 24"
Compression Testing Opening (Less Tooling): 22"
Distance Between Columns/Screws: 14"
Testing Stroke: 6"
Table Size (WxD): 14" x 15"
Testing Speed (IPM): 0 – 3
Crosshead Adjusting Speed (IPM): 12
Approximate Overall Dimensions:
Standard Console (WxDxH): 69" x 32" x 72"
Approximate Weight (Lbs): 2,300
Electrical Requirements (V,Hz,PH,Amps): 230 3

EQUIPPED WITH:
  • Computer with Keyboard & Mouse
  • 24" LED-Backlit LCD Color Monitor or Better & Manual
  • Microsoft Windows 10 Professional, Workstation
  • MTGenius, Material Testing Software for Data Acquisition (load, position, 2 strain & aux), Analysis and Manually Controlled Testing.
  • MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB Cable.
  • Reconditioned Tinius Olsen Manually Controlled Hydraulic Power Supply

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty

#12951-02 | Click for quote

DOWNLOAD SPEC SHEET
