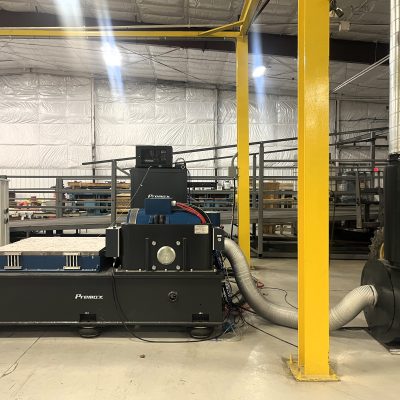

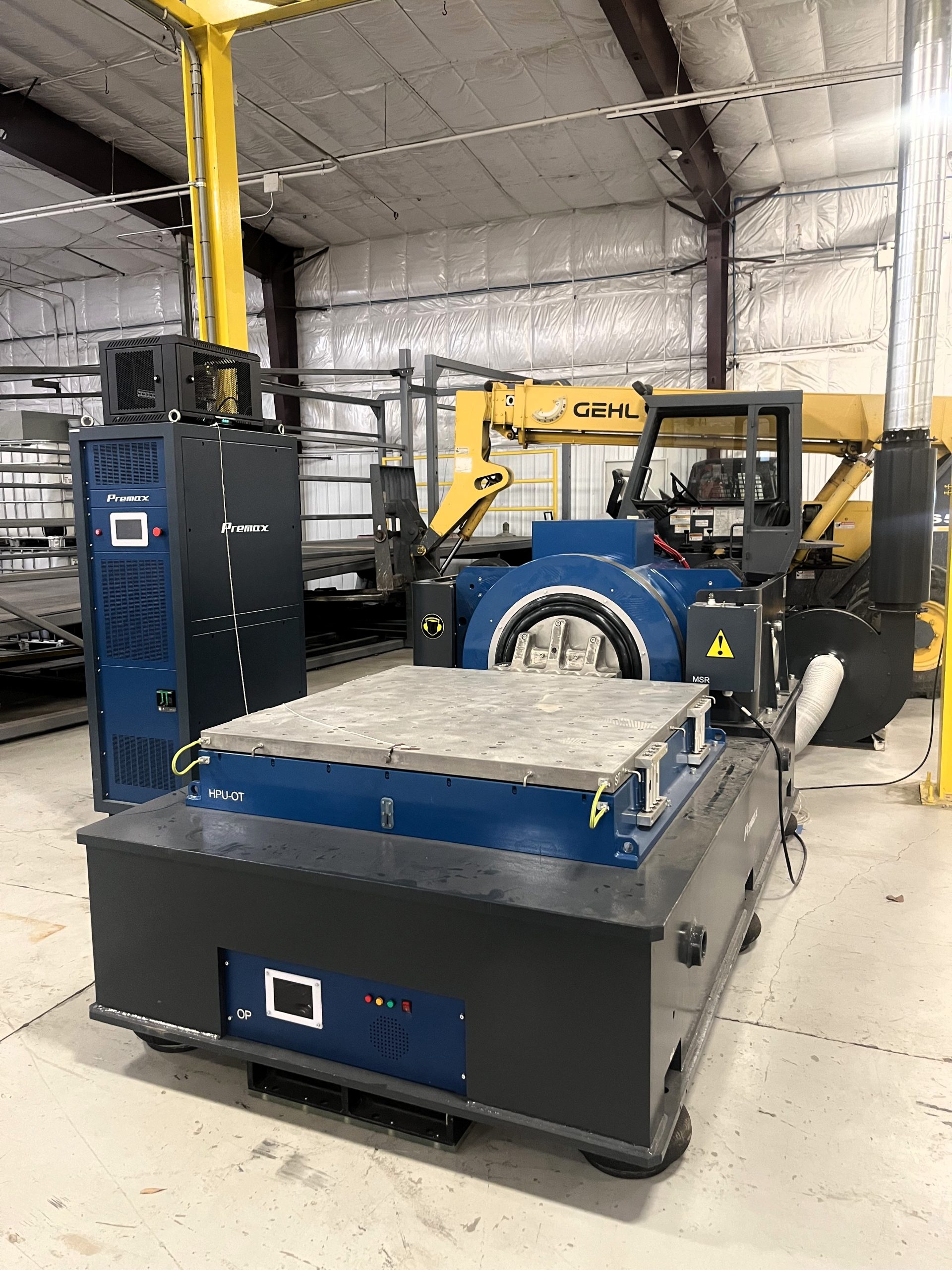

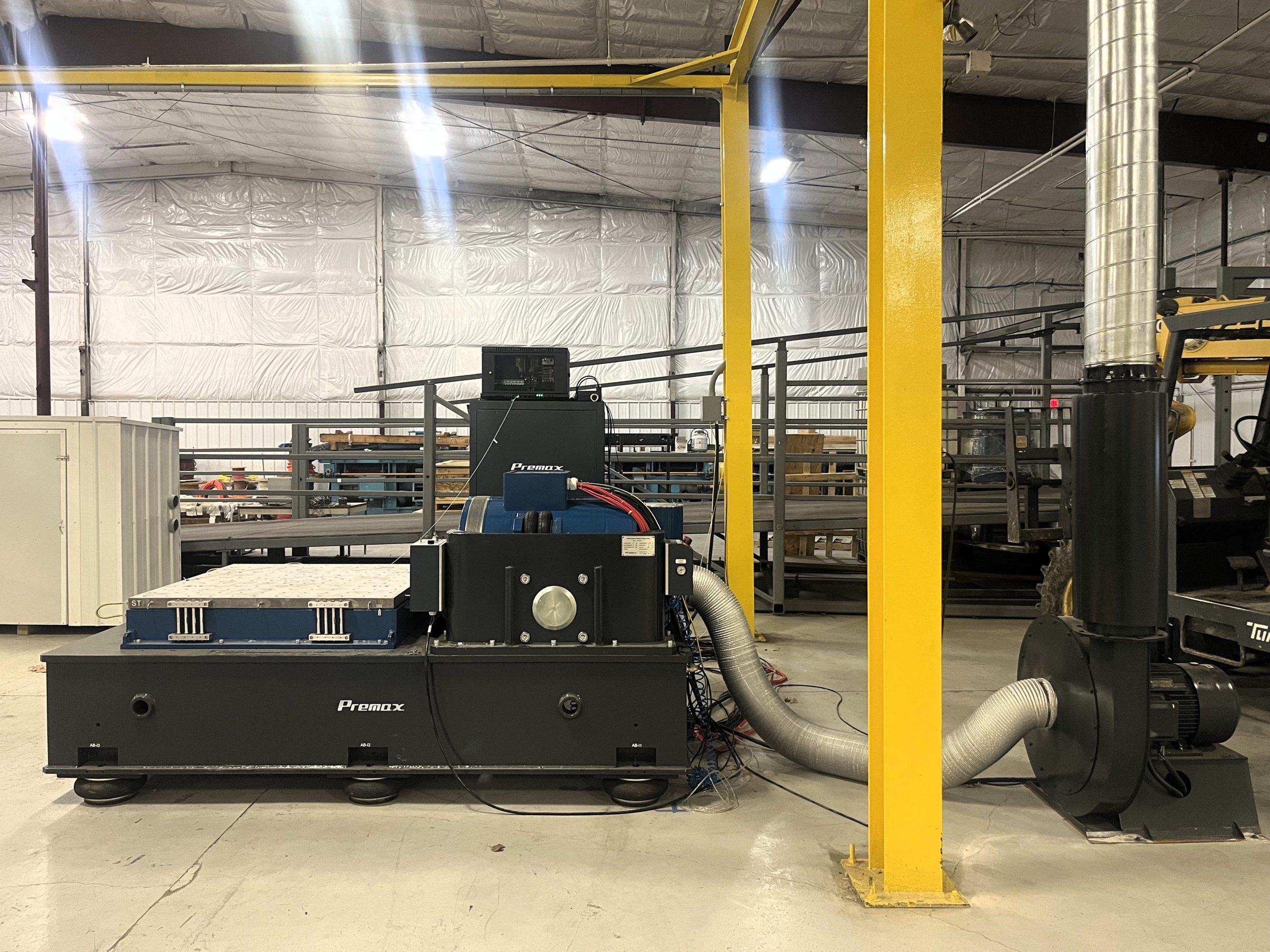

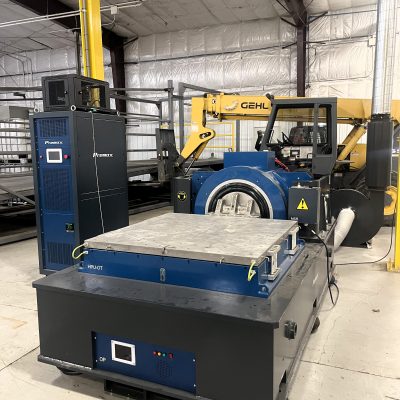

12 KIP (53.4 kN) ITS-5400-ST Vibration System with Slip Table

(1) New Frank Bacon Model ITS-5400-ST, 12,000 lbf (53.4 kN) Electrodynamic Vibration Test System with Power Amplifier and Slip Table.

Frank Bacon Model ITS-5400 Vibration System

SPECIFICATIONS:

Sine Force Rating: 53.4 kN (12,000 lbf)

Random Force Rating: 53.4 kN (12,000 lbf)

Shock Peak Force Rating: 19.6 kN (24,000 lbf)

Peak to Peak Displacement: 51 mm (2.00”)

Frequency Range (Hz): 2 – 2,500 Max

Armature Diameter: 445 mm (17.5”)

Armature Mass (lbs.): 55 kg (121.2 lbs.)

Sine Peak Acceleration (Bare Table): 981 m/s^2 (100 g)

Max Payload: 998 kg (2,200 lbs.)

Voltage Requirements (V, Hz, Ph): 480, 60, 3, 135A

Utility Requirements: 87 PSI Compressed Air

Weight (Unpacked): 17,196 lbs.

Dimensions (Unpacked): 102.4 "L x 63"W x 52.4"H

EQUIPPED WITH:

• ITS-54ST-800M: 800 mm W x 800 mm L Magnesium Slip Table System with Base (Weight: 260 lbs.) Frequency Limit: 2,000 Hz
• ITS-54HE-800SM: 800 mm W x 800 mm L Magnesium Head Expander (Weight: 143 lbs.) Frequency Limit: 1,200 Hz
• ITS-H563A: 56 kVA Air Cooled Power Amplifier
• ITS-W20: 15 kW Blower
• Signal Input for Closed-Loop Control (Vibration Controller Required)

Link to video on New Frank Bacon ITS-5400-ST Electrodynamic Vibration Test System

FOB Warren, MI

1 Year Parts and Labor Warranty
