ASTM D7078 Test Method for Shear Properties of Composite Materials by V-Notched Basics
Frank Bacon Machinery has new and used testing machines and extensometers available to do ASTM D7078 testing:
- Frank Bacon NEW Tensile Machines capacities from 10N to 2,000k
- V Notched Rail Shear Test Fixture ASTM D7078 HERE

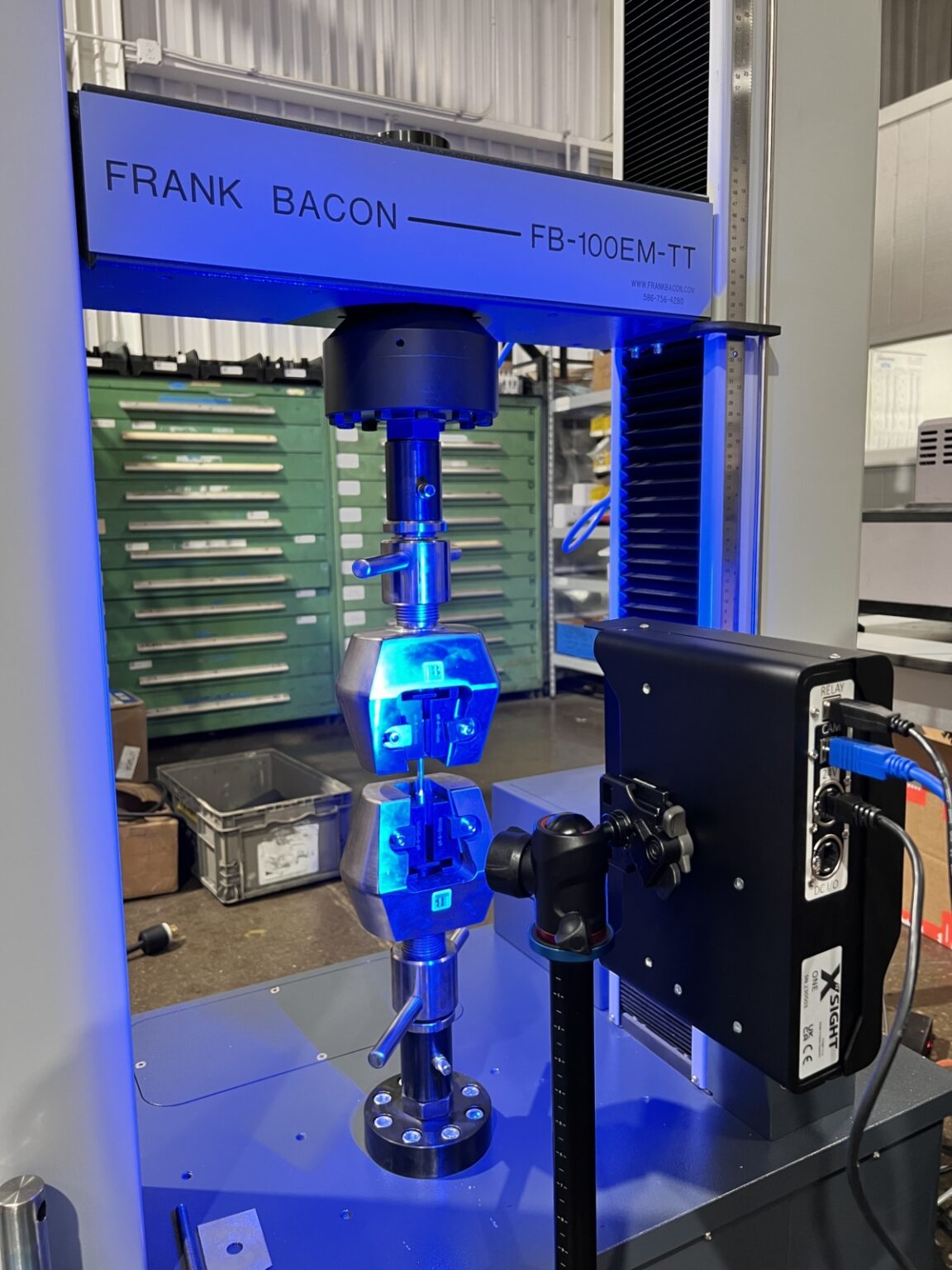

- New Precision Universal Optical Video Extensometer Systems with Universal Base Mount HERE
Contact us today to get set up with the right testing system for your needs!
586-756-4280
Ever wonder how engineers measure the shear strength of composite materials? Today, we’re breaking down ASTM D7078 the V-Notched Rail Shear Test one of the most reliable methods to evaluate shear properties of fiber-reinforced plastics.
ASTM D7078 is designed to measure shear strength and shear modulus of composite laminates. The test uses a rectangular specimen with two opposing V-notches, typically made of steel or aluminum, that help create a uniform shear plane during loading. It clamps the specimen between opposing V notches, which apply tensile force evenly across the notched region.
The fixture is mounted in a servo-hydraulic or electromechanical test frame equipped with a load cell and extensometers or strain gauges to measure shear strain.
During the test, the machine applies tensile force until failure occurs along the shear plane between the notches. The stress–strain data is recorded throughout the test
From that data, engineers calculate shear stress, shear strain, and shear modulus, helping them understand how the composite will perform under real-world loads.
The result? A clean, consistent shear failure that accurately reflects the material’s in-plane shear behavior. ASTM D7078 gives manufacturers and designers confidence in their composite material data.
