Tension Testing Opening (Less Tooling): 38"
Compression Testing Opening (Less Tooling): 38"
Distance Between Columns/Screws: 22"
Testing Stroke: 38"
Table Size (W x D): 22" x 8"
Testing Speed (IPM): .0002 – 20 (2-Speed Clutched System)
Crosshead Adjusting Speed (IPM): 20
Approximate Overall Dimensions:
New Electronic Control Console (W x D x H): 27.5" x 27" x 35"
Load Frame (W x D x H): 40" x 22" x 80"
Approximate Weight (Lbs): 1750
Electrical Requirements (V,Hz,PH): 230, 60, 1

EQUIPPED WITH:
• Computer System with Keyboard & Mouse
• 24" LED-Backlit LCD Color Monitor
• Microsoft Windows 10 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis
and Computer Controlled Testing with Manual.
• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB
Cable.
• Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and
Crosshead Jog Controller.

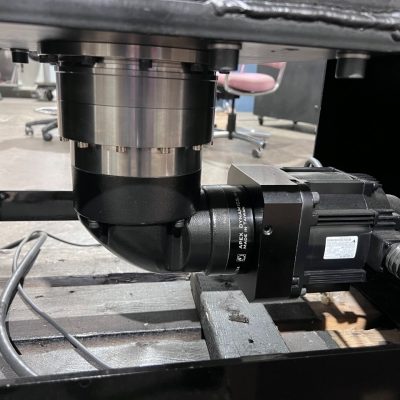

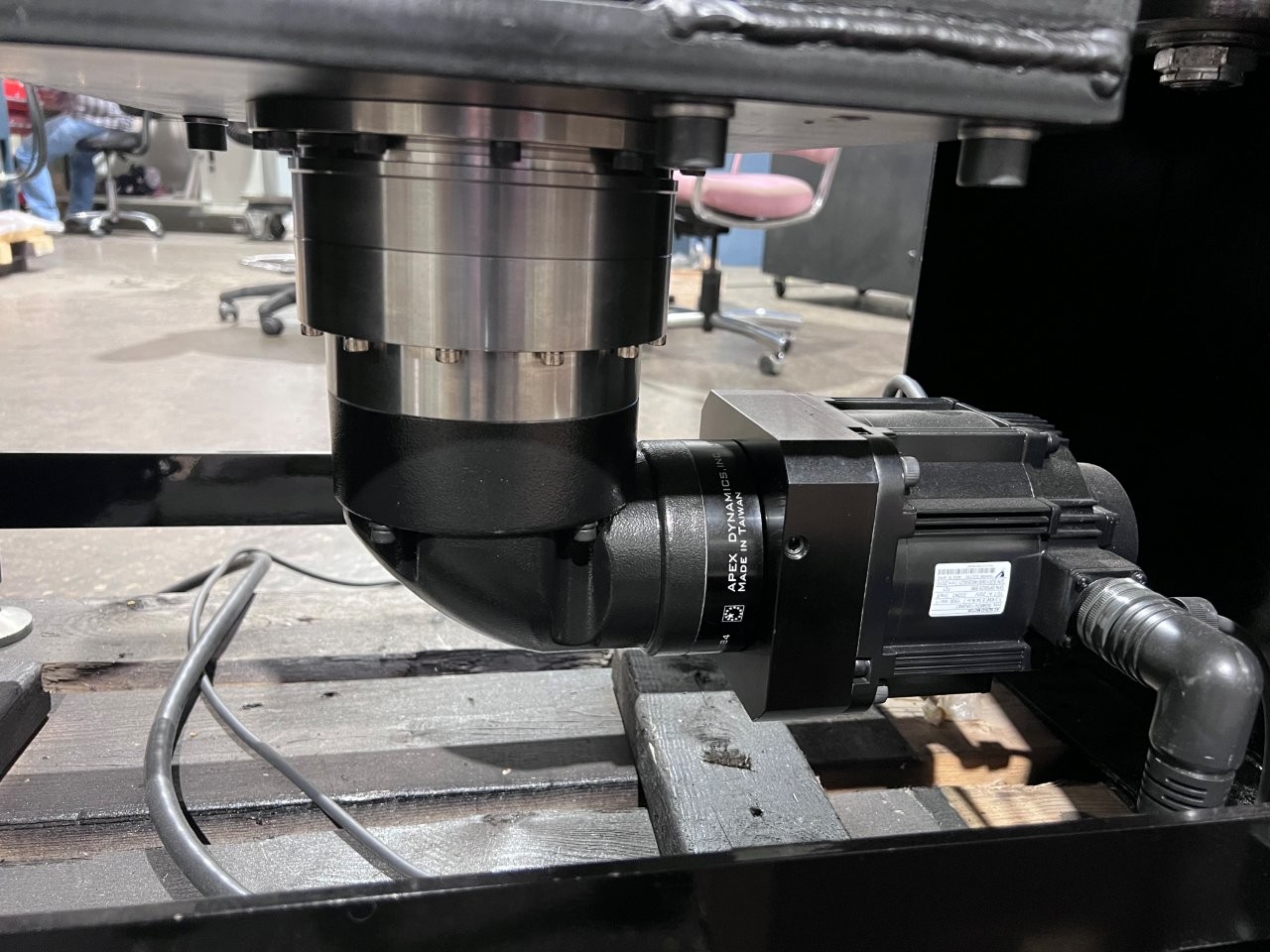

• New Yaskawa AC Servo Motor with Incremental Encoder and Yaskawa Solid State Drive
Controller for Precision Control of Testing Rates (Load, Position & Strain).
• 100kN Tension & Compression Load Cell
