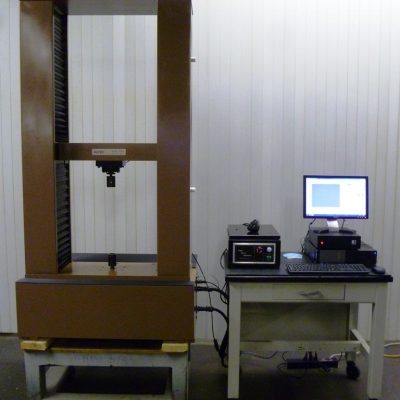

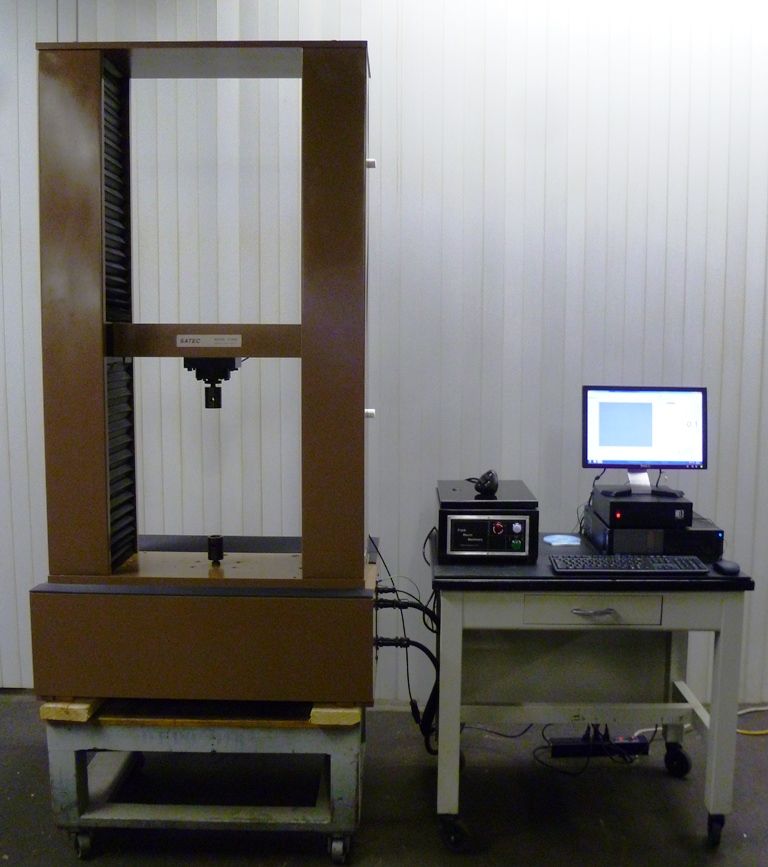

Satec APEX T10000

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 48"

Compression Testing Opening (Less Tooling): 48"

Distance Between Columns/Screws: 22"

Testing Stroke: 48"

Table Size (W x D): 22" x 12"

Testing Speed (IPM): .001 to 20

Crosshead Adjusting Speed (IPM): 20

Approximate Overall Dimensions:

New Electronic Console (W x D x H): 27" x 27" x 36"

Load Frame (W x D x H): 39" x 29" x 92"

Approximate Weight (lbs): 1,300

Electrical Requirements (V,Hz, PH,A): 230, 60, 3,

EQUIPPED WITH:

• New Computer System with Monitor, Mouse and Keyboard
• 24" LED-Backlit LCD Color Monitor or Better & Manual
• Microsoft Windows 11 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
• Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
• AC Servo Motor with Incremental Encoder and Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
• 150kN Tension & Compression Load Cell
• Upper and Lower Quick Release Hubs
