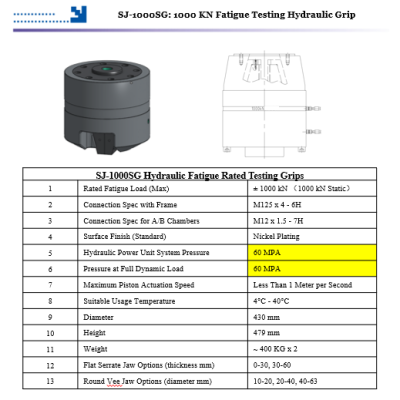

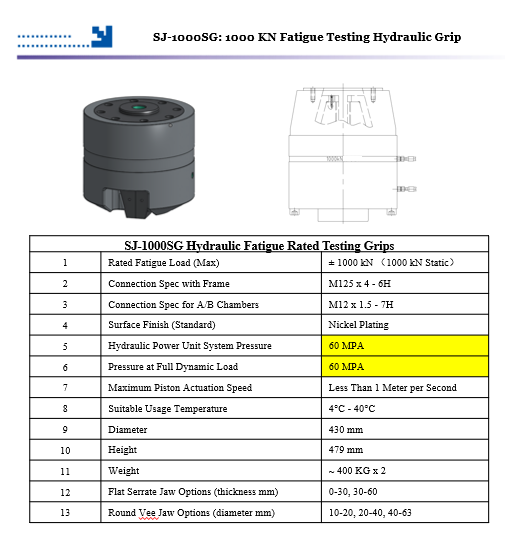

New 220KIP (1000kN) Frank Bacon SJ-1000SG Fatigue Hydraulic Wedge Grips
SPECIFICATIONS:
Model: G-FB1000KNHWG
Fatigue Force Capacity: 220 KIP (1000 kN)
Max. Hydraulic Supply Pressure: 9000 PSI
Stud Size: M125 x 4-6H
Weight Per Grip: 880 lbs.
Temperature Range (Celsius): 4 to 40
(2) Sets of Flat Wedges Width: 50 mm
Maximum Thickness: 60mm
Minimum Thickness: 0 mm
(3) Sets of Vee Wedges Width: 50 mm
Maximum Diameter: 64 mm
Minimum Diameter: 10 mm
Hydraulic Pressure Required: 60 MPA (8,700 PSI) (Grip Controllers Available)
FOB: Warren, MI 48091
Click for quote | G-FB1000KNHWG
