1,125lbf (5kN) Instron 3365
Instron Model 3365
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 47"
Compression Testing Opening (Less Tooling): 47"
T-slotted Table Size (W x D): 16"x19.5"
Distance Between Columns/Screws: 16.5"
Testing Stroke: 47"
Testing Speed (IPM): 0004 - 40
Crosshead Adjusting Speed (IPM): 20
Approximate Overall Dimensions:
Load Frame(W x D x H): 30" x 28" x 63"
Approximate Load Frame and Console Weight (Lbs): 265
Electrical Requirements: 120/230V 1Phase
EQUIPPED WITH:
-
Computer with Keyboard & Mouse
-
24" LED-Backlit LCD Color Monitor or Better & Manual
-
Microsoft Windows 11 Professional, Workstation
-
Frank Bacon MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
-
Frank Bacon MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
-
Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
-
New Precision AC Servo Motor and Drive System for Load, Position and Strain Controlled Testing
-
5kN Tension & Compression Load Cell
-
Upper and Lower Quick Release Adaptor
FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty

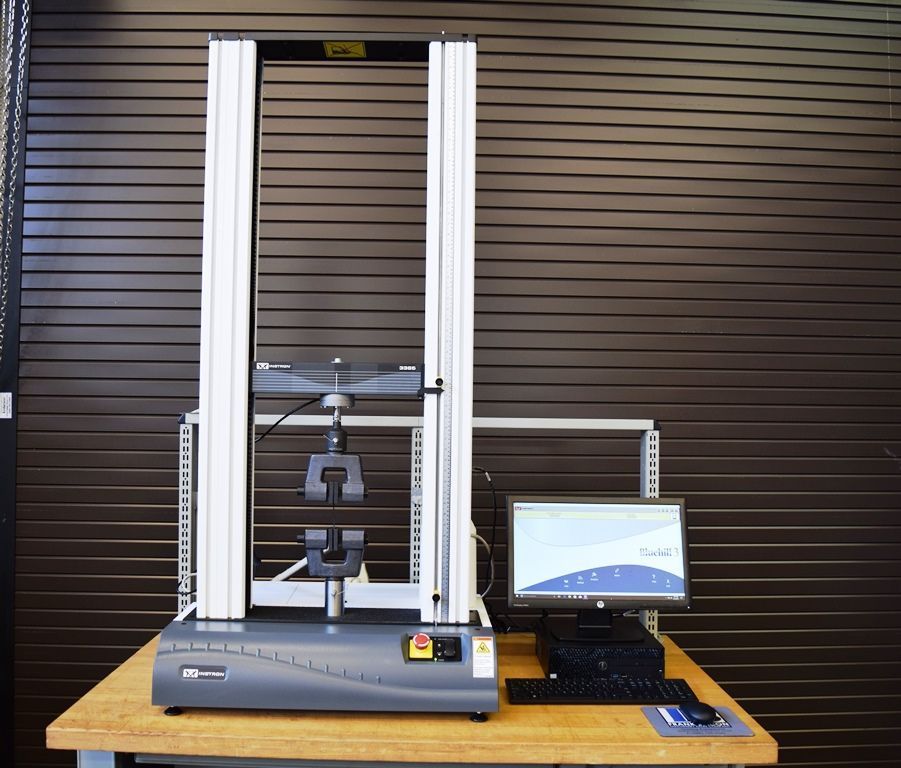

*Representative Image
Click for quote | Instron 3365
