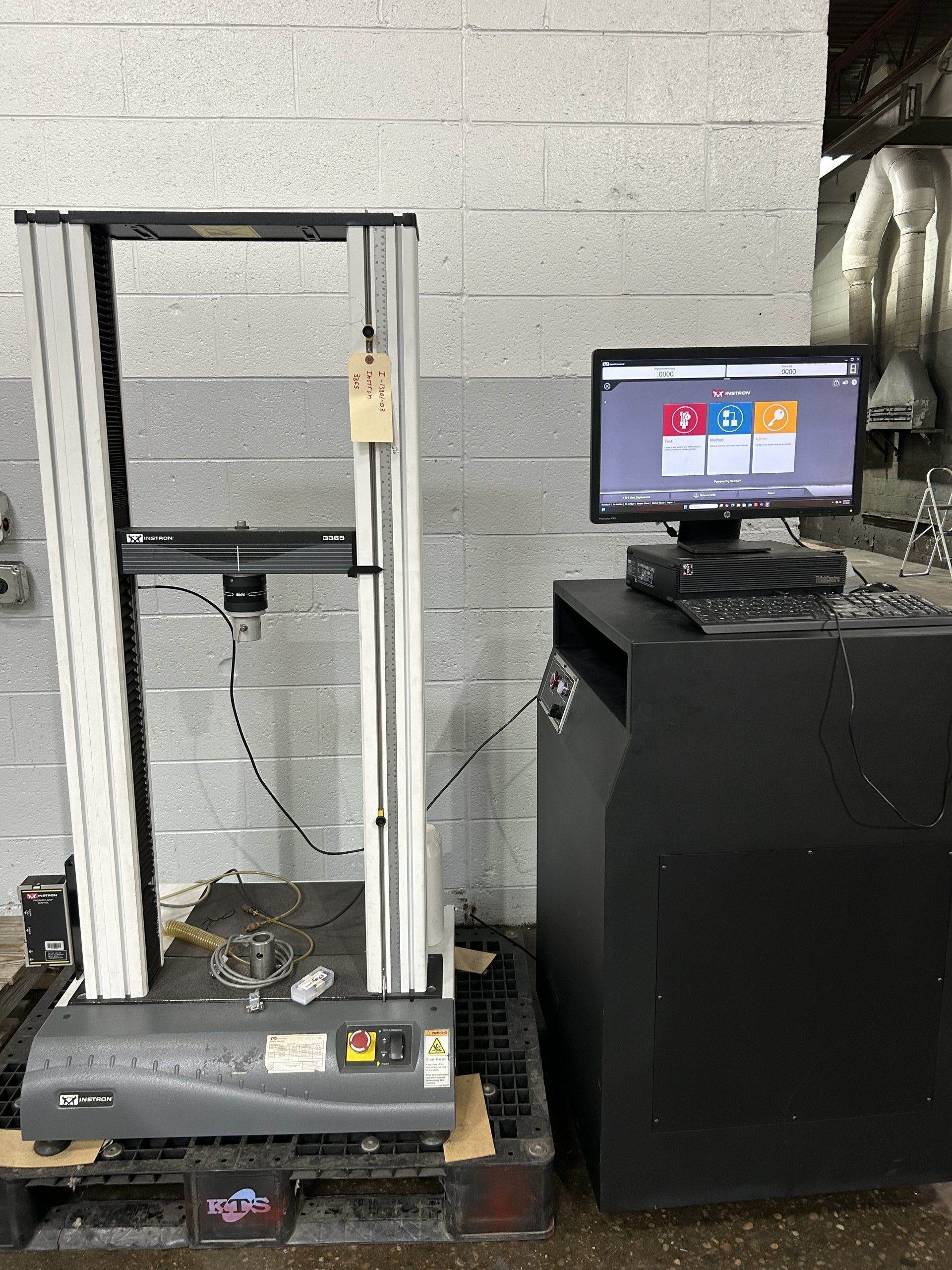

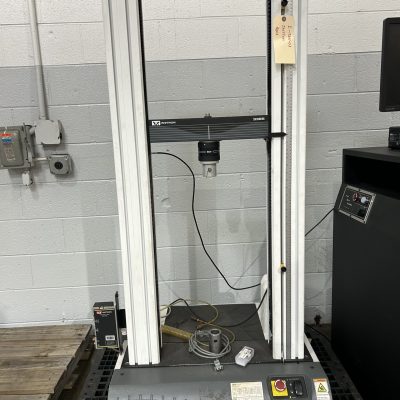

1,125lbf (5kN) Instron 3365 (Bluehill Universal Software)
5kN Instron 3365
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 47"
Compression Testing Opening (Less Tooling): 47"
Table Size (WxD): 16.5"x6"
Distance Between Columns/Screws: 16.5"
Testing Stroke: 47"
Testing Speed (IPM): .0004 - 20
Crosshead Adjusting Speed (IPM): 40
Approximate Overall Dimensions:
Load Frame(WxDxH): 30" x 28" x 63"
Approximate Load Frame and Console Weight (Lbs): 265
EQUIPPED WITH:
-
Instron Bluehill Universal Materials Testing Software for Data Acquisition, Analysis, & Control
-

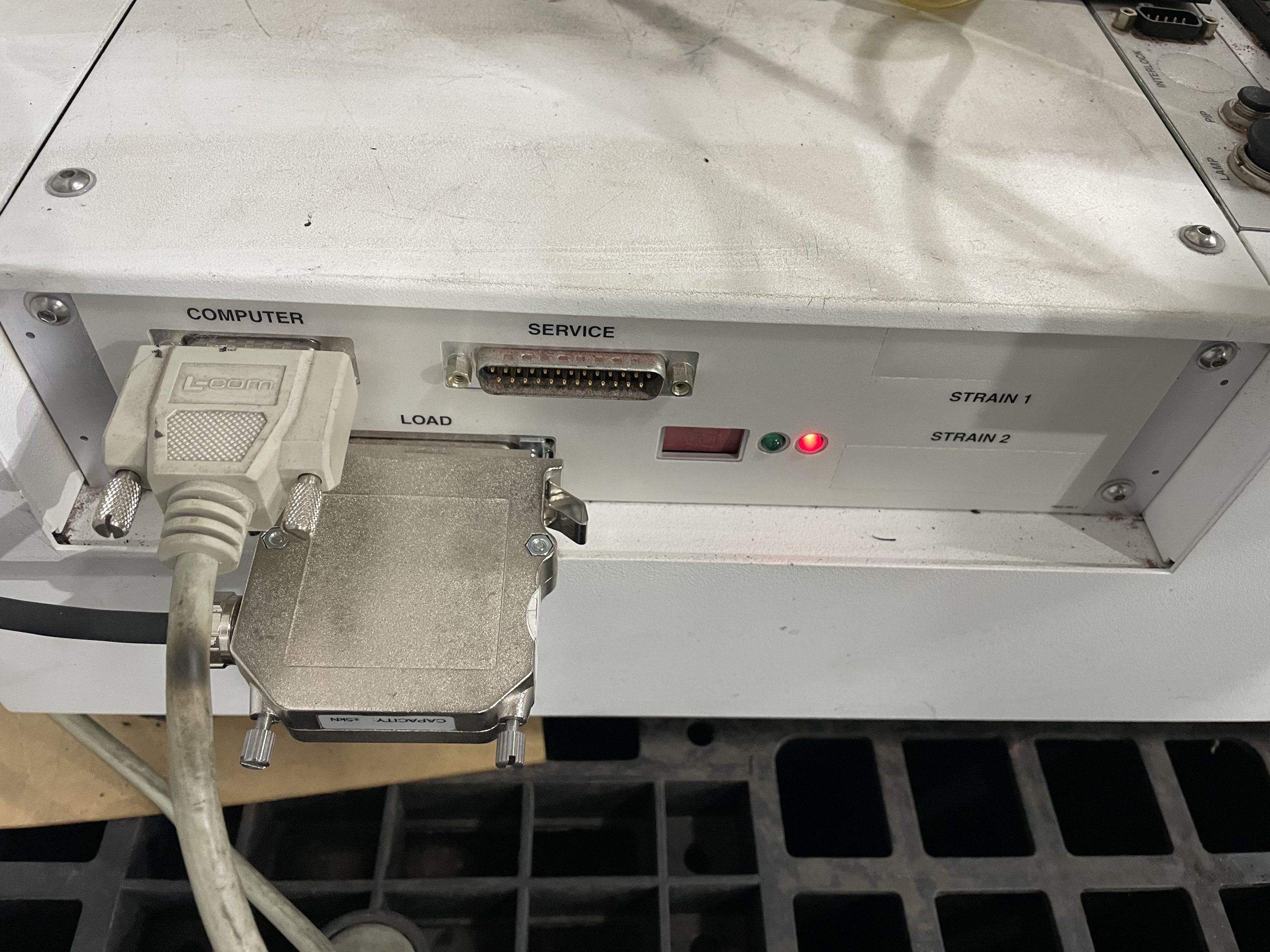

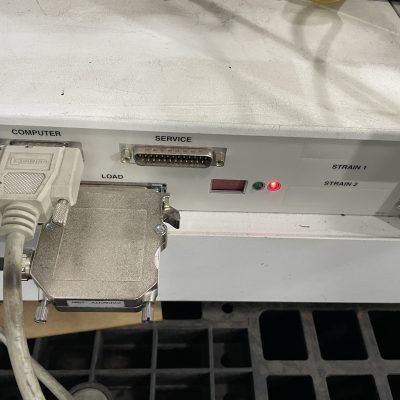

Instron Ethernet Frame Interface
-
Computer System with Windows 10 Operating System
-

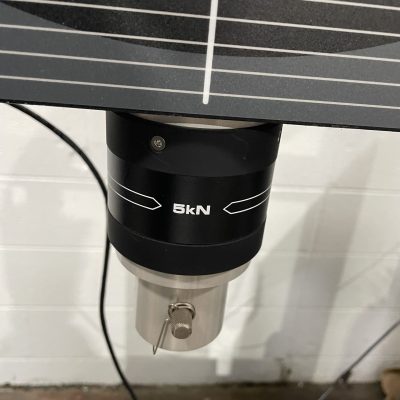

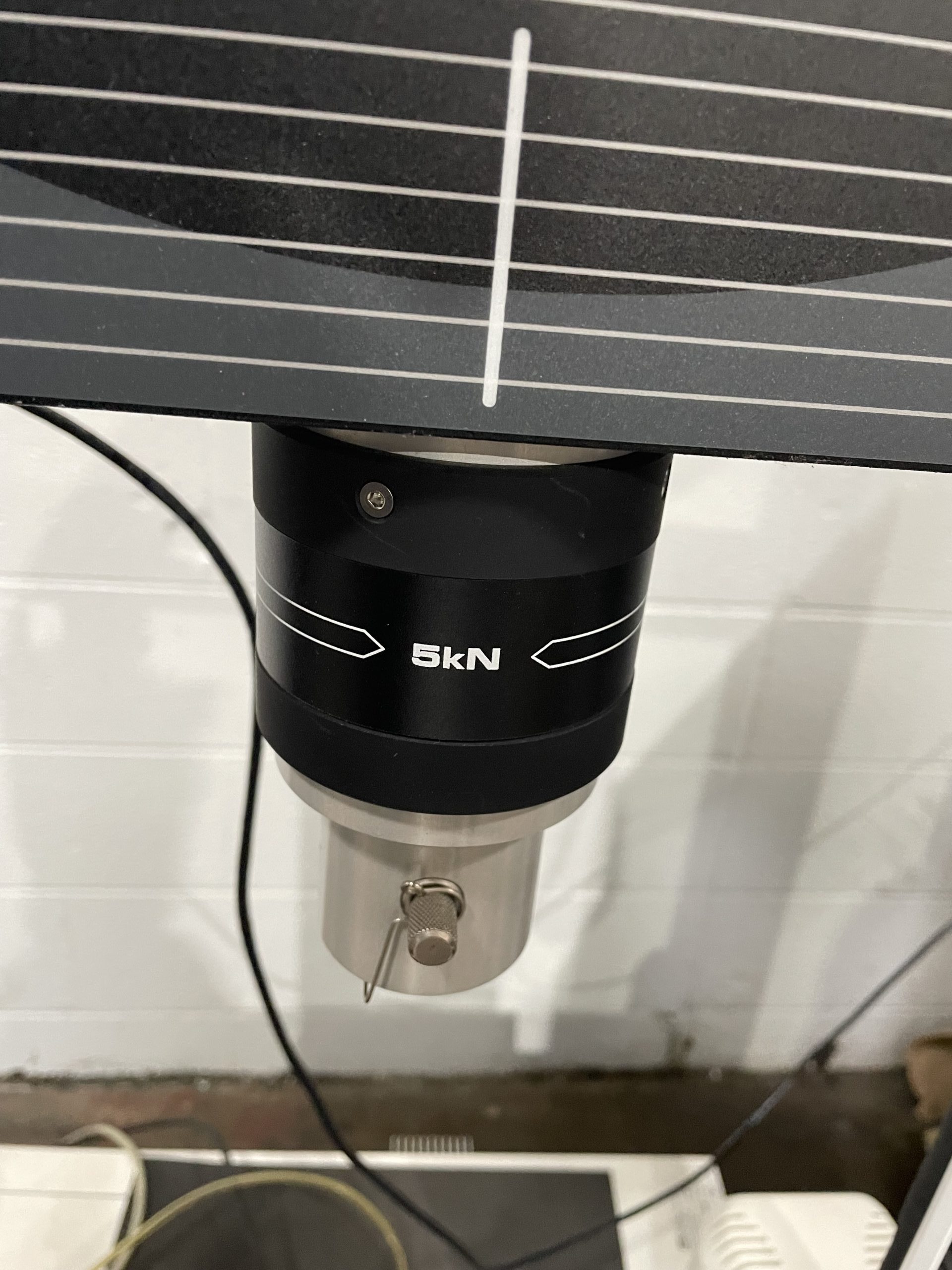

Instron 5 kN (1,125 lbf) Capacity Load Cell
-
Instron Pneumatic Interface Kit
*Grips and Fixtures Available for Additional cost
FOB Warren, MI
Cleaned, Serviced & Guaranteed
30 Day Satisfaction Guaranteed Return Privilege

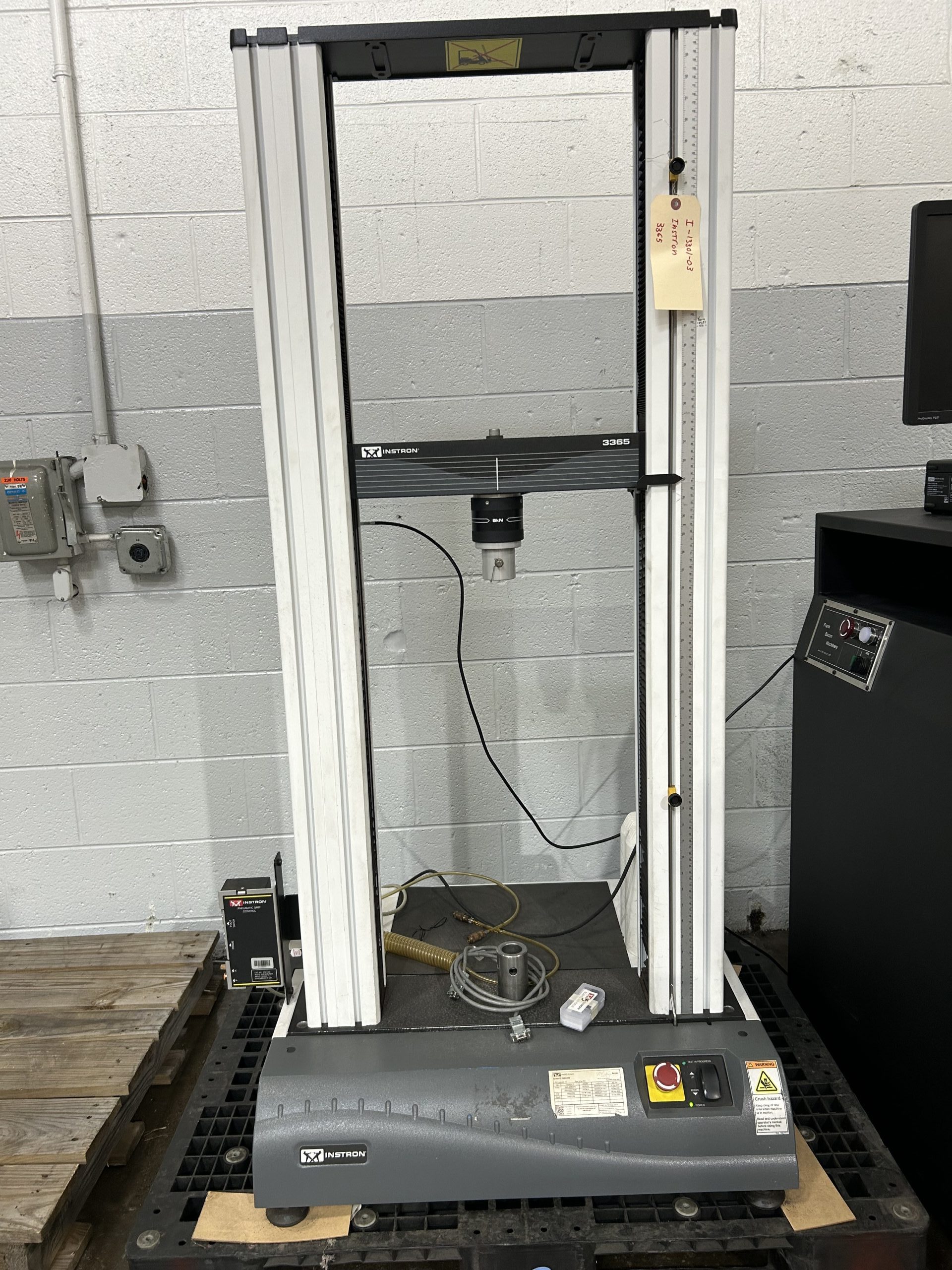

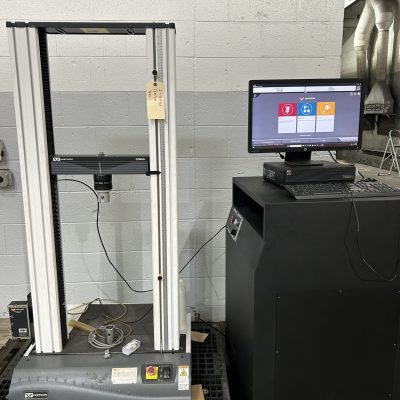

*Actual Images
Click for quote | #13301-03
