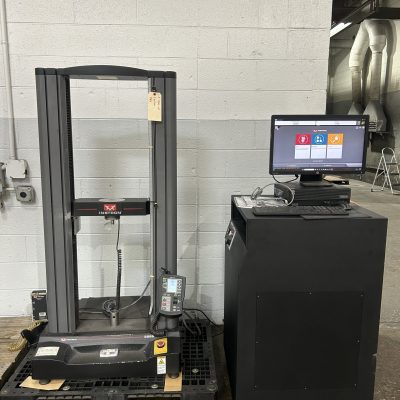

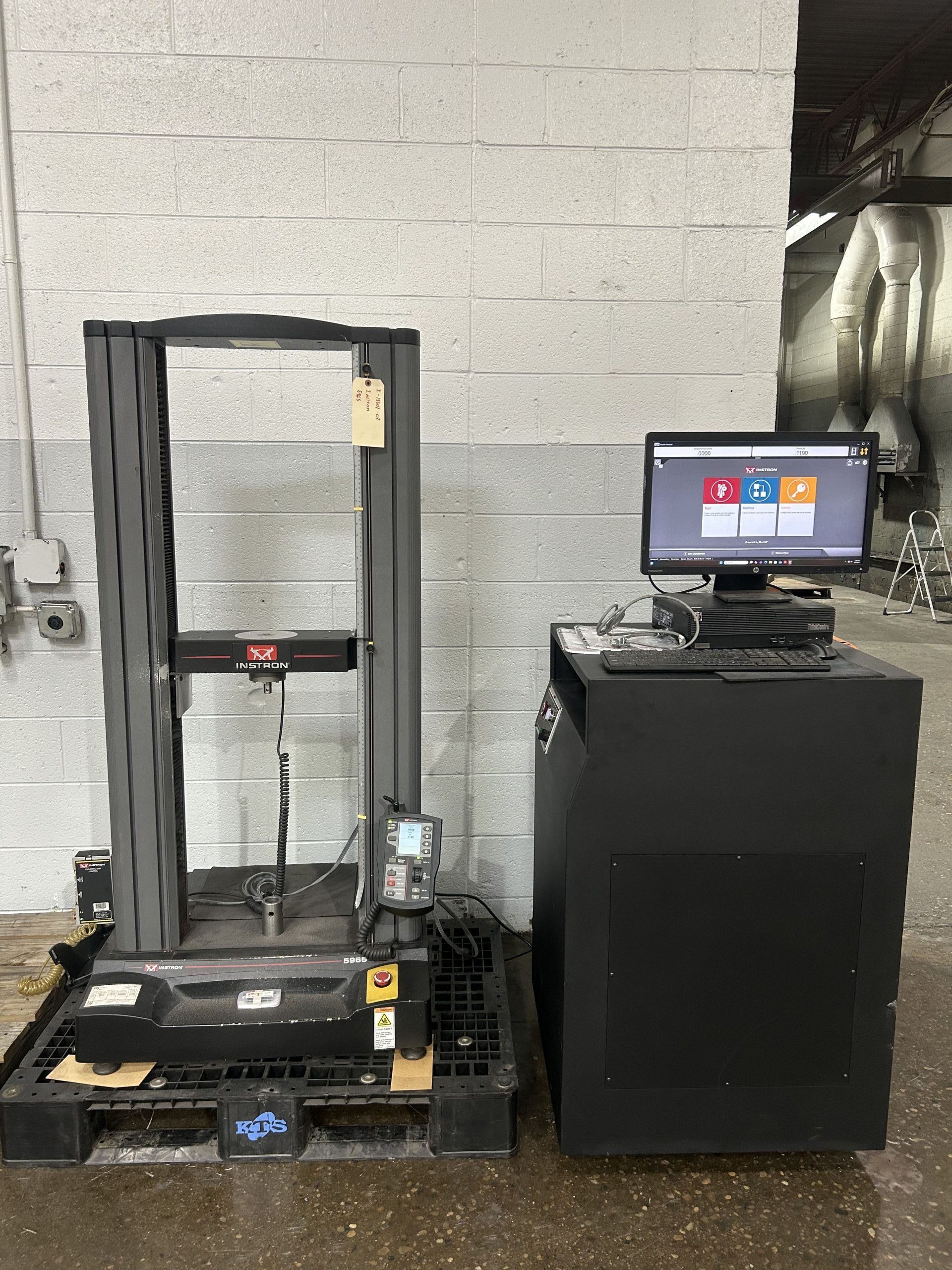

1,125lbf (5kN) Instron 5965

Click for OEM Brochure
5kN Instron 5965
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 44"
Compression Testing Opening (Less Tooling): 44"
Table Size (WxD): 16.5"x5"
Distance Between Columns/Screws: 16.5"
Testing Stroke: 44"
Testing Speed (IPM): .0004 - 20
Crosshead Adjusting Speed (IPM): 20
Approximate Overall Dimensions:
Load Frame(WxDxH): 31" x 29" x 65"
Approximate Load Frame and Console Weight (Lbs): 322

EQUIPPED WITH:
  • Instron Bluehill Universal Materials Testing Software for Data Acquisition, Analysis, & Controls

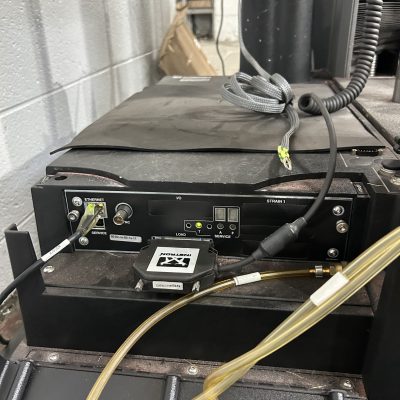

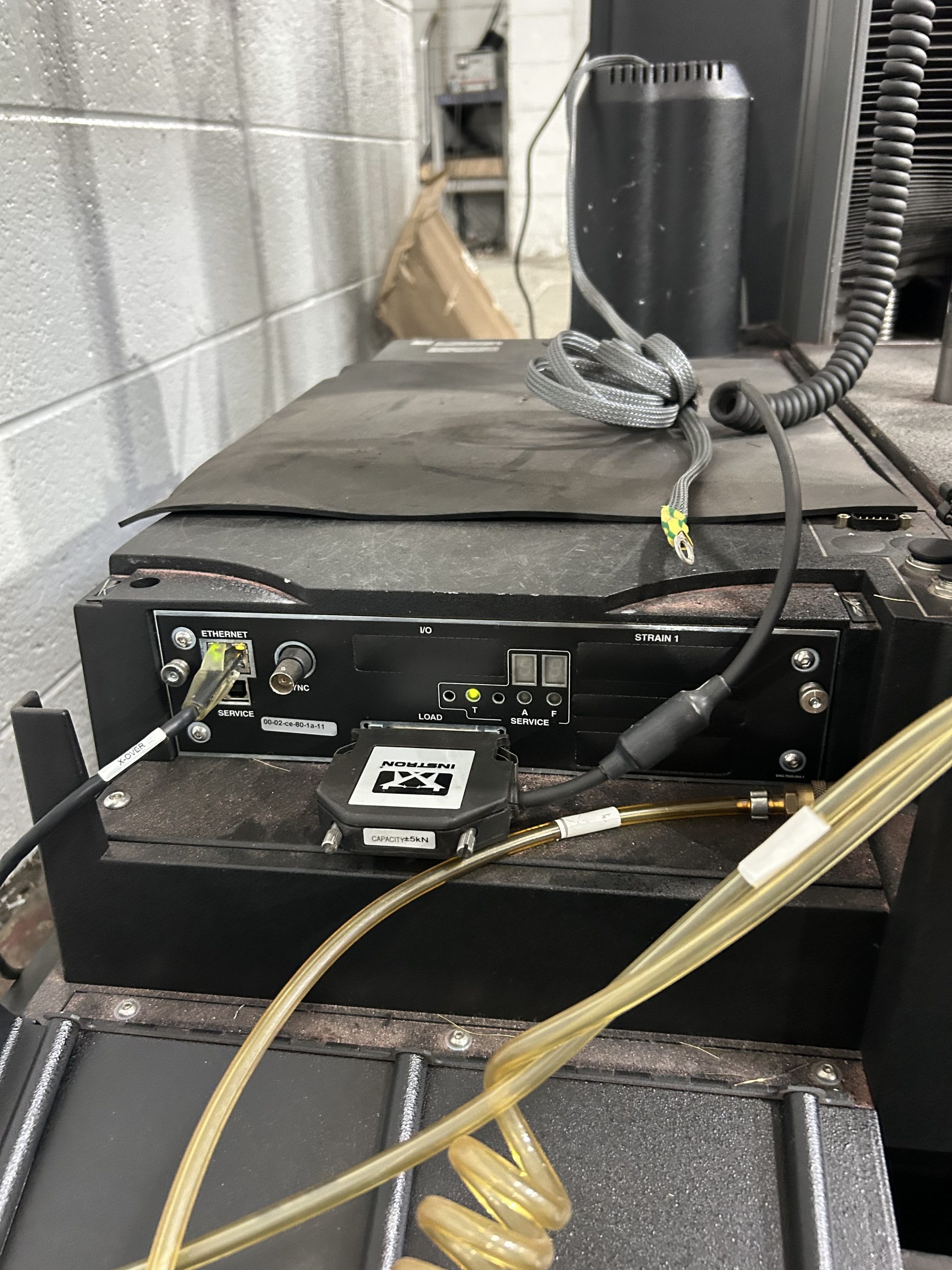

  • Instron Ethernet Frame Interface
  • Windows computer System with keyboard and mouse

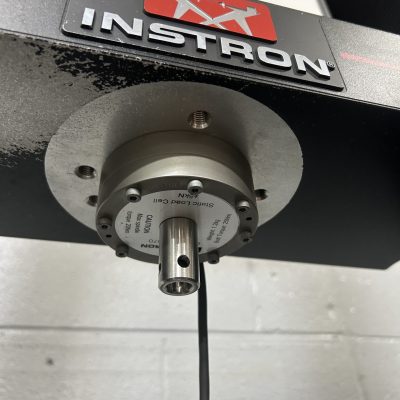

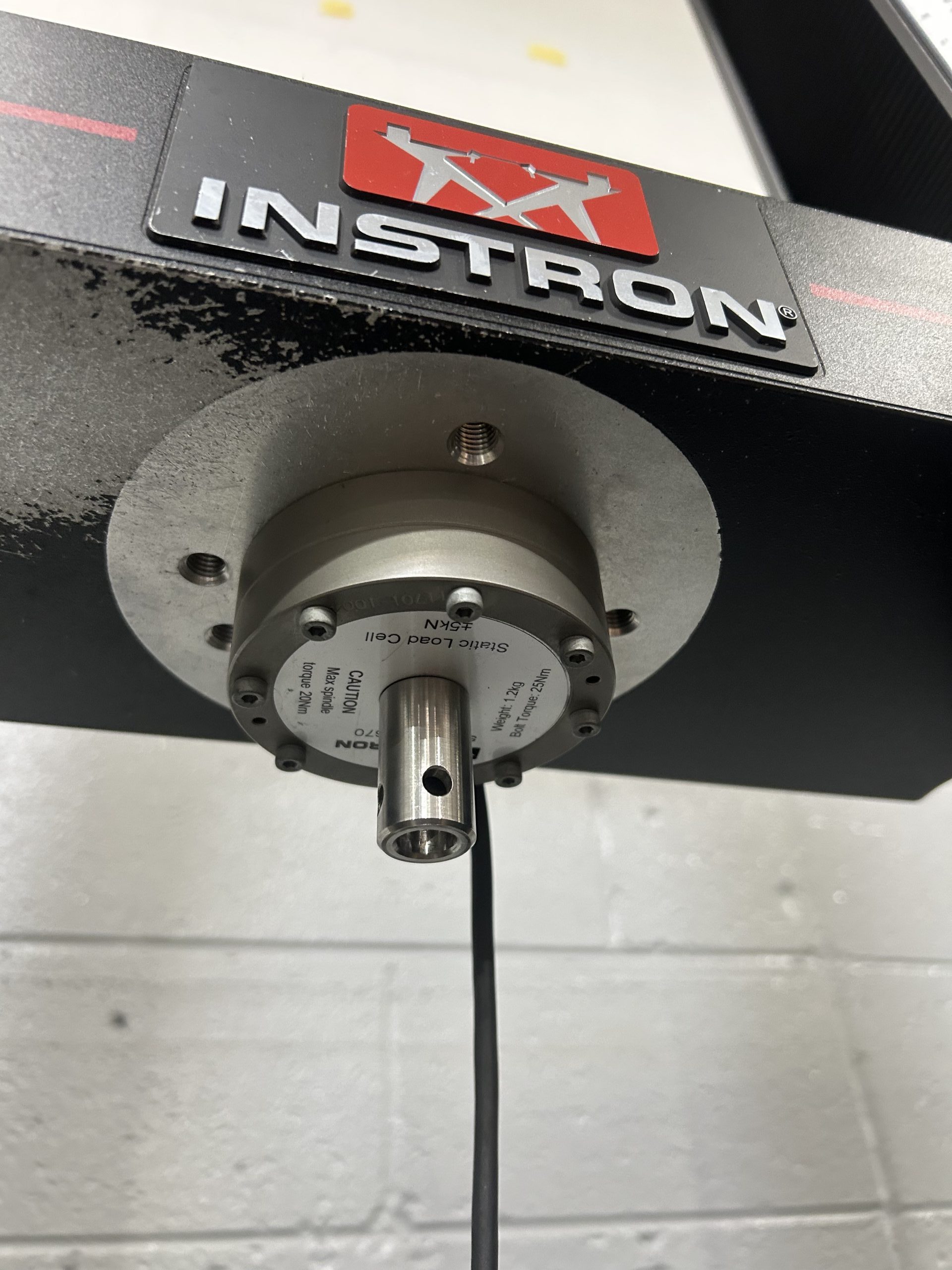

  • Instron 5 kN (1,125 lbf) Capacity Load Cell

*Grips Available for additional cost
FOB Warren, MI
Cleaned, Serviced & Guaranteed
30 Day Satisfaction Guaranteed Return Privilege
*Actual Images
