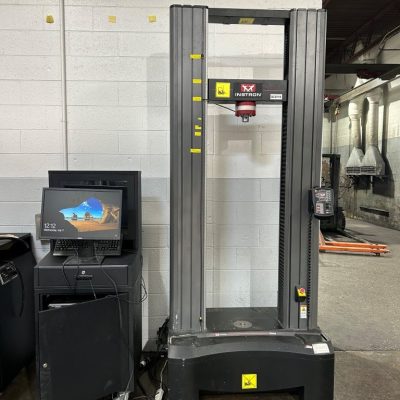

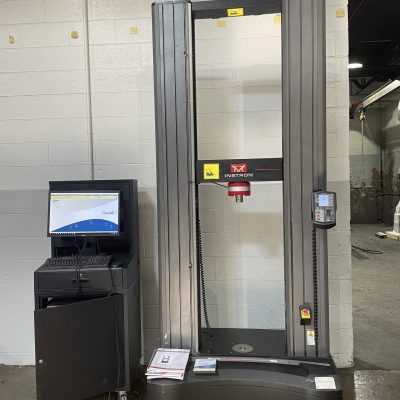

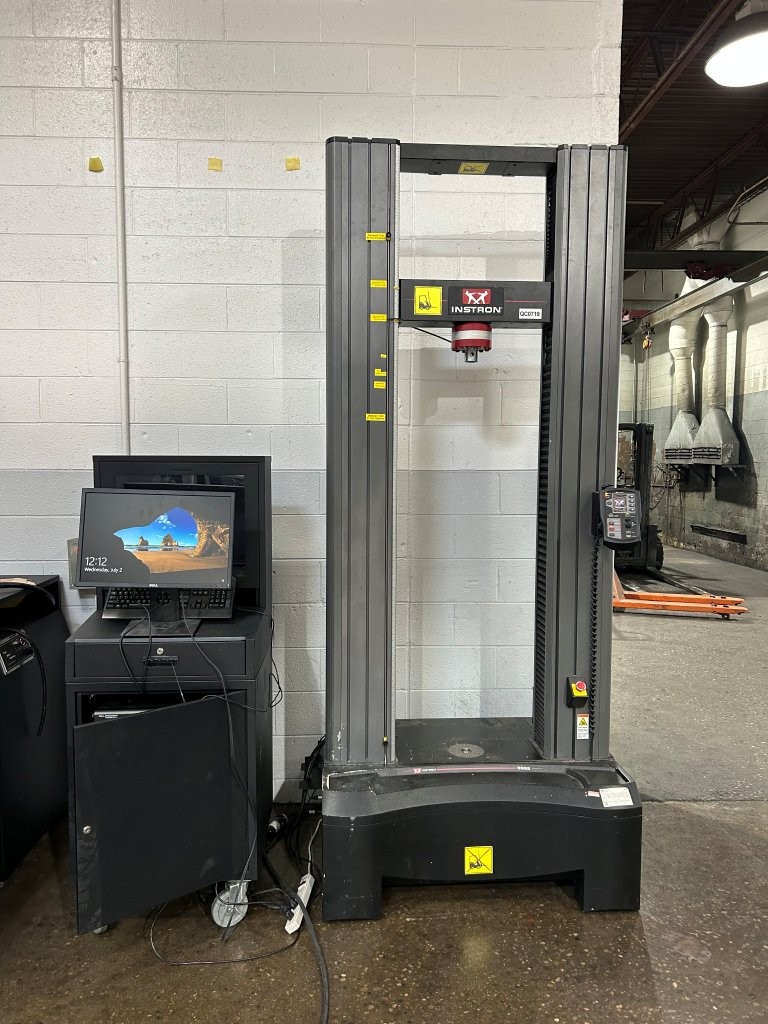

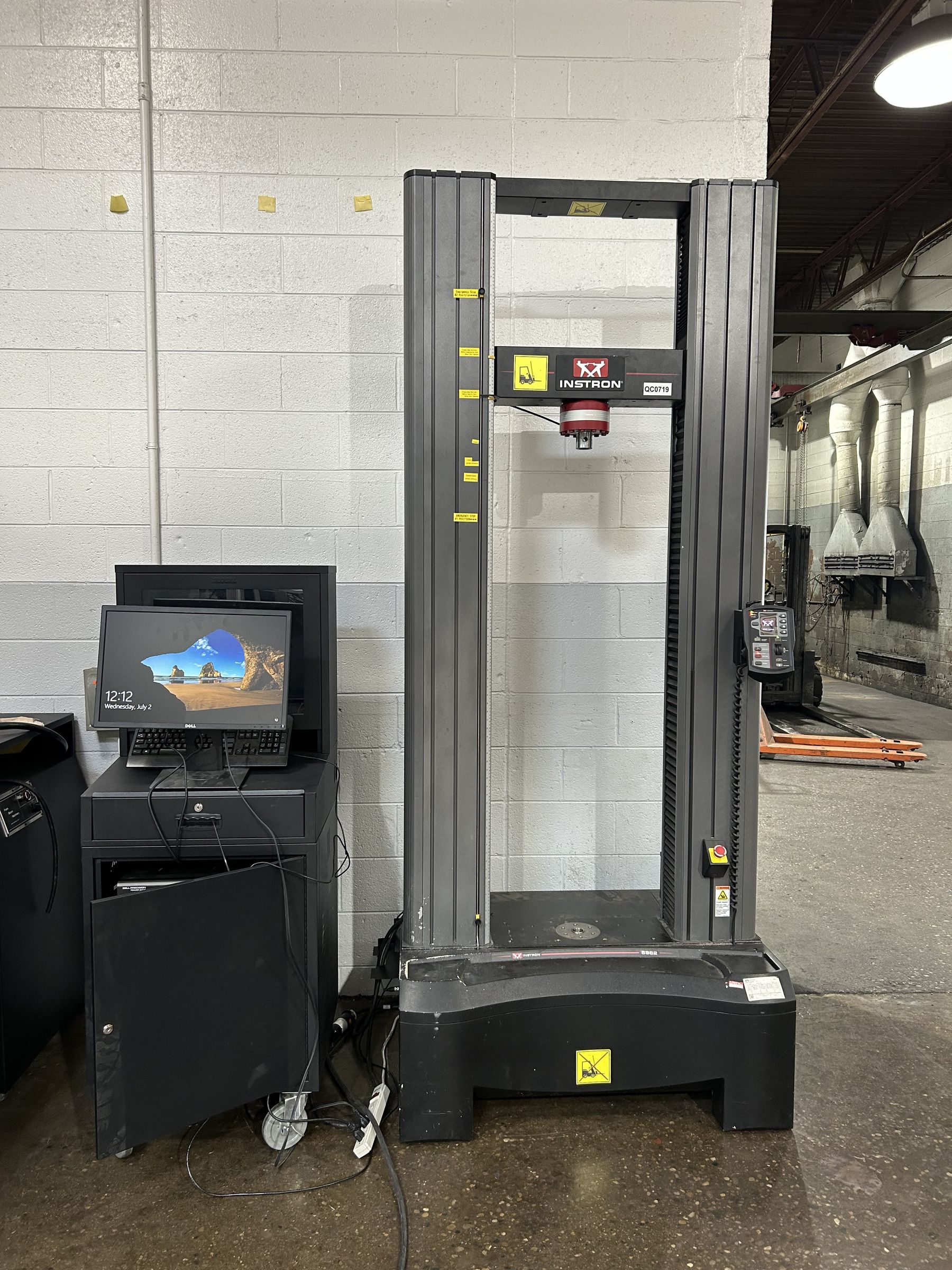

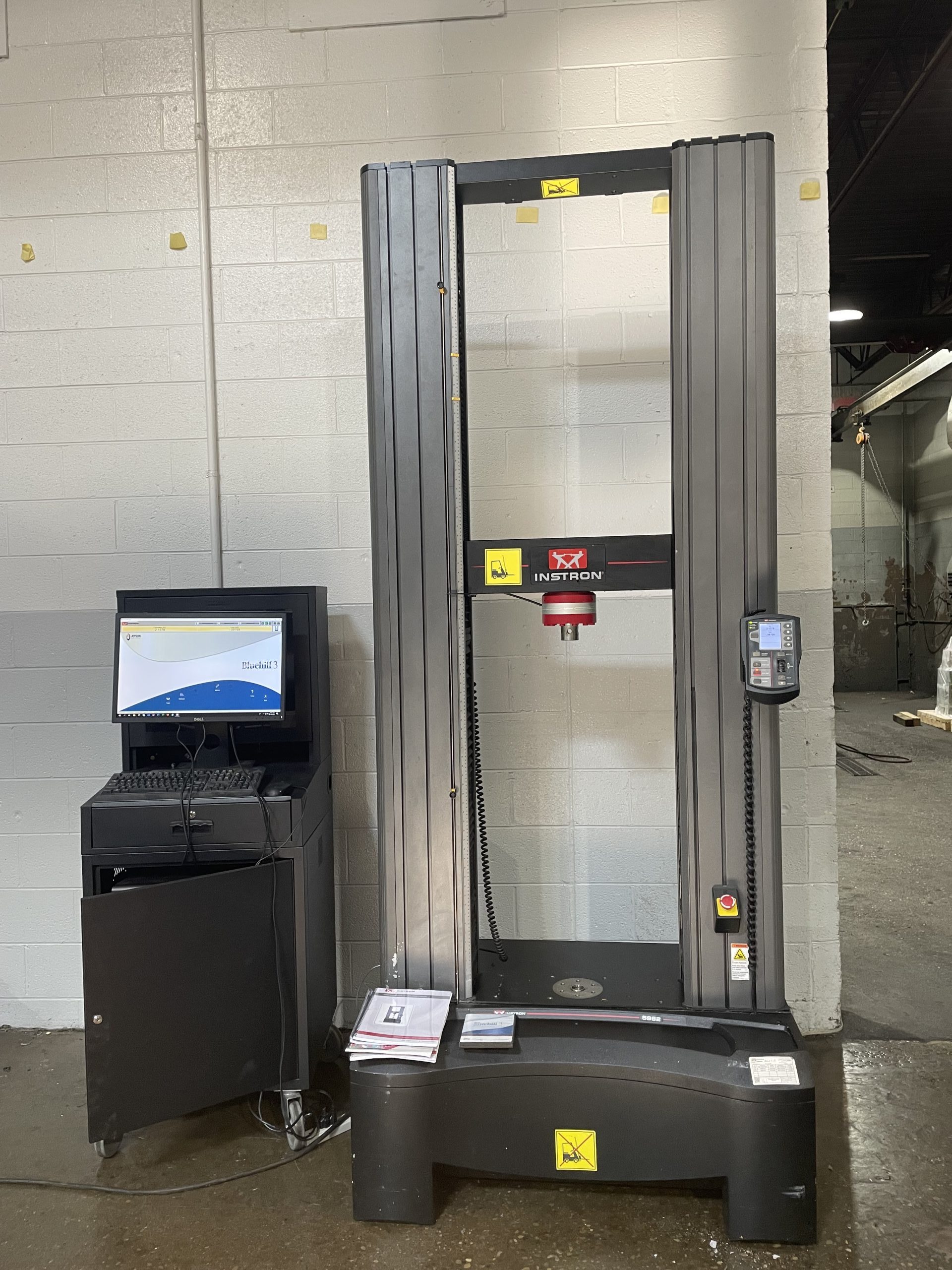

100kN Instron Model 5982 with BlueHill 3 Software

Instron 5982
SPECIFICATIONS:
Vertical Test Space(Less Tooling): 76”
Horizontal Test Space: 22.6"
Testing Stroke: 76”
Testing Speed (IPM): .000004 - 40
Crosshead Adjusting Speed (IPM): 40
Maximum Force at Full Speed: 75kN
Maximum Speed at Full Force: 30IPM
Load Frame Dimensions (W x D x H): 31" x 46" x 110"
Weight (lbs.): 1,725

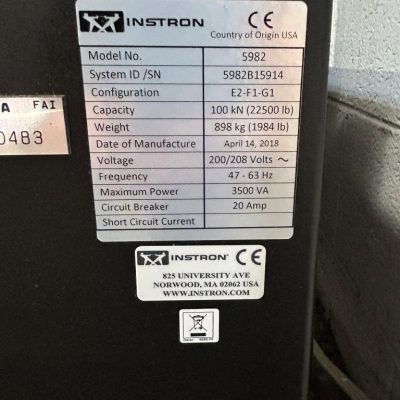

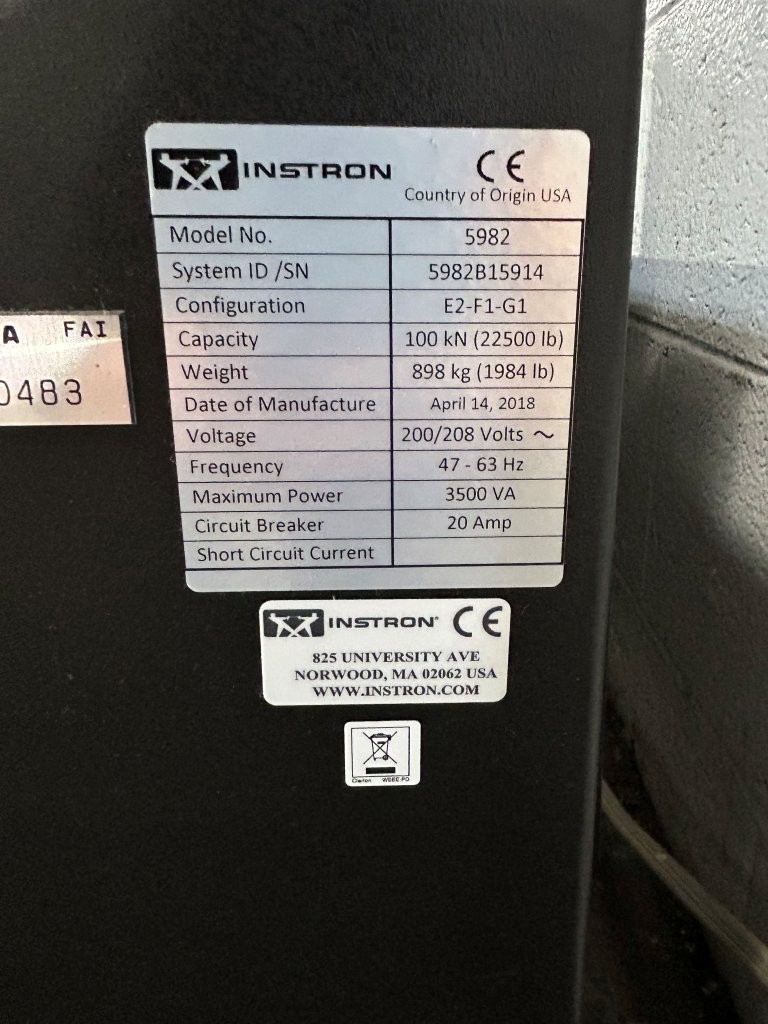

Electrical Requirements (V, Hz, PH): 200/208V, 47-63Hz, 1P

EQUIPPED WITH:

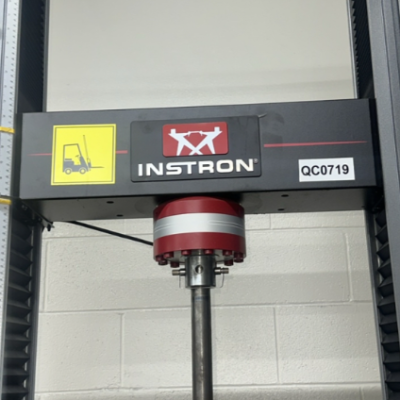

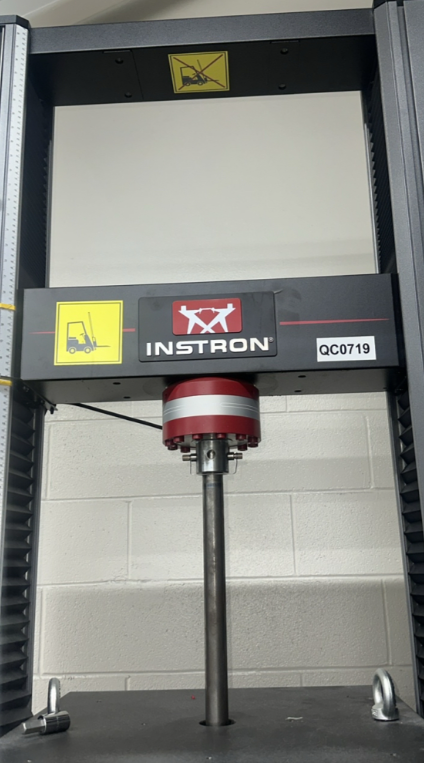

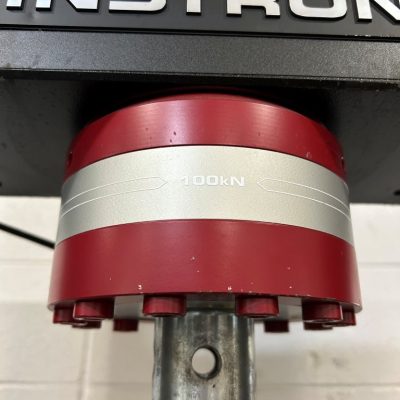

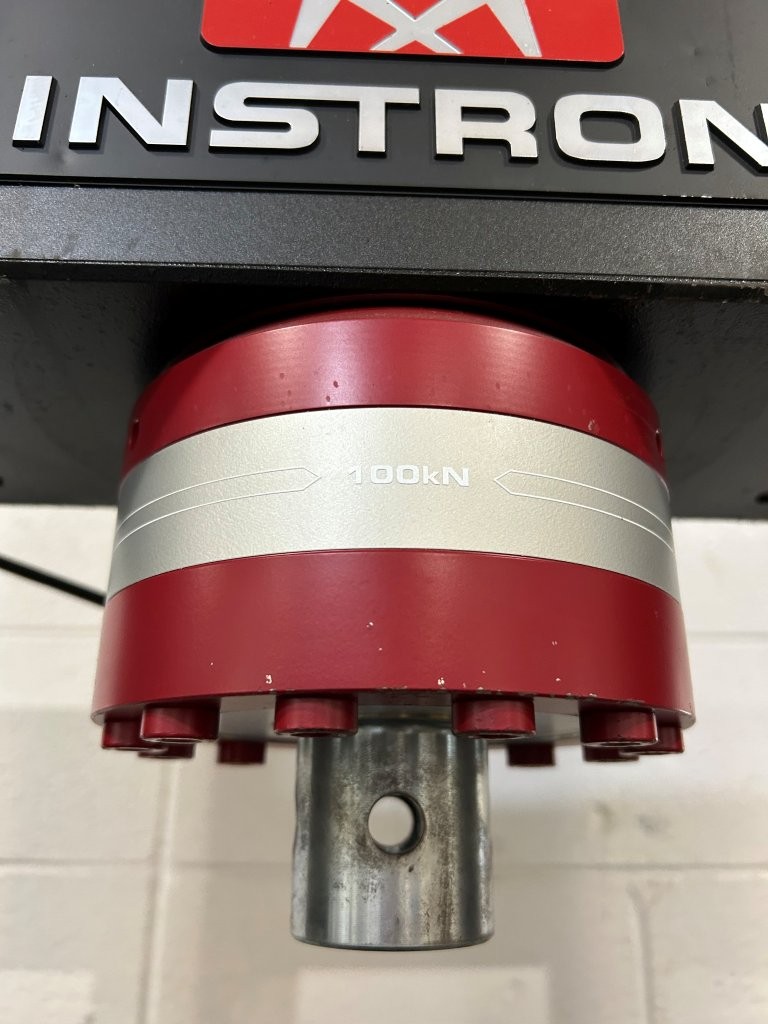

  • 100kN Instron 2580-301 Tension & Compression Load Cell S/N: 203005

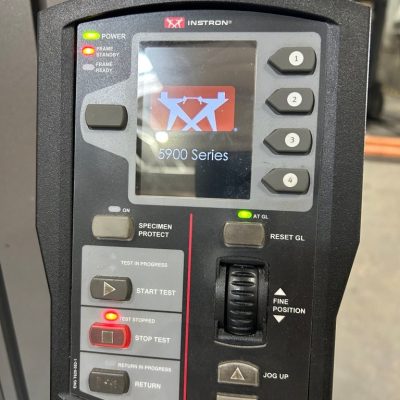

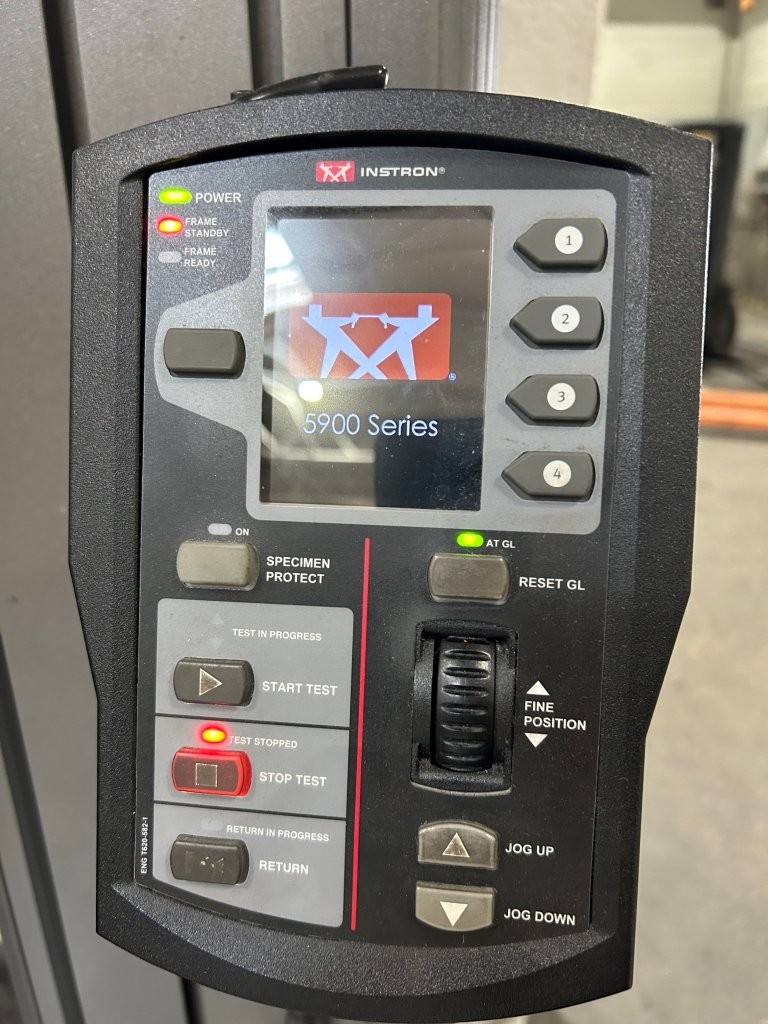

  • 5900 Handset Productivity Panel
  • Instron Bluehill 3 Materials Testing Software

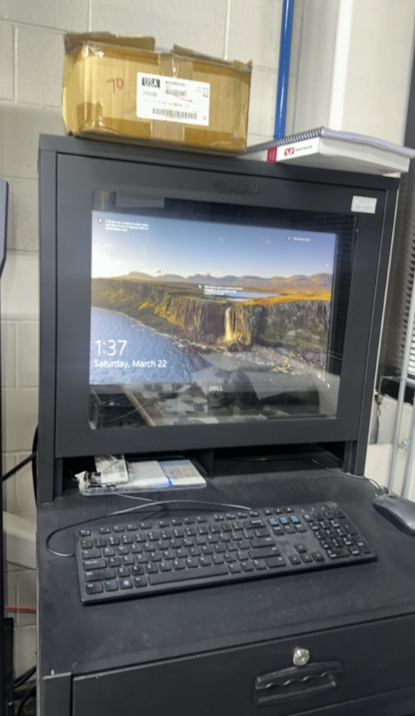

  • Dell Computer System with Keyboard, Mouse and Monitor
Click for Instron 5980 Dual Column Frames Manual
Note: Customer is to work directly with the OEM to setup and calibrate at their facility.
FOB Warren, MI
30 Day Satisfaction Guaranteed Return Privilege
* Actual Images

Click for quote | #13314-00
