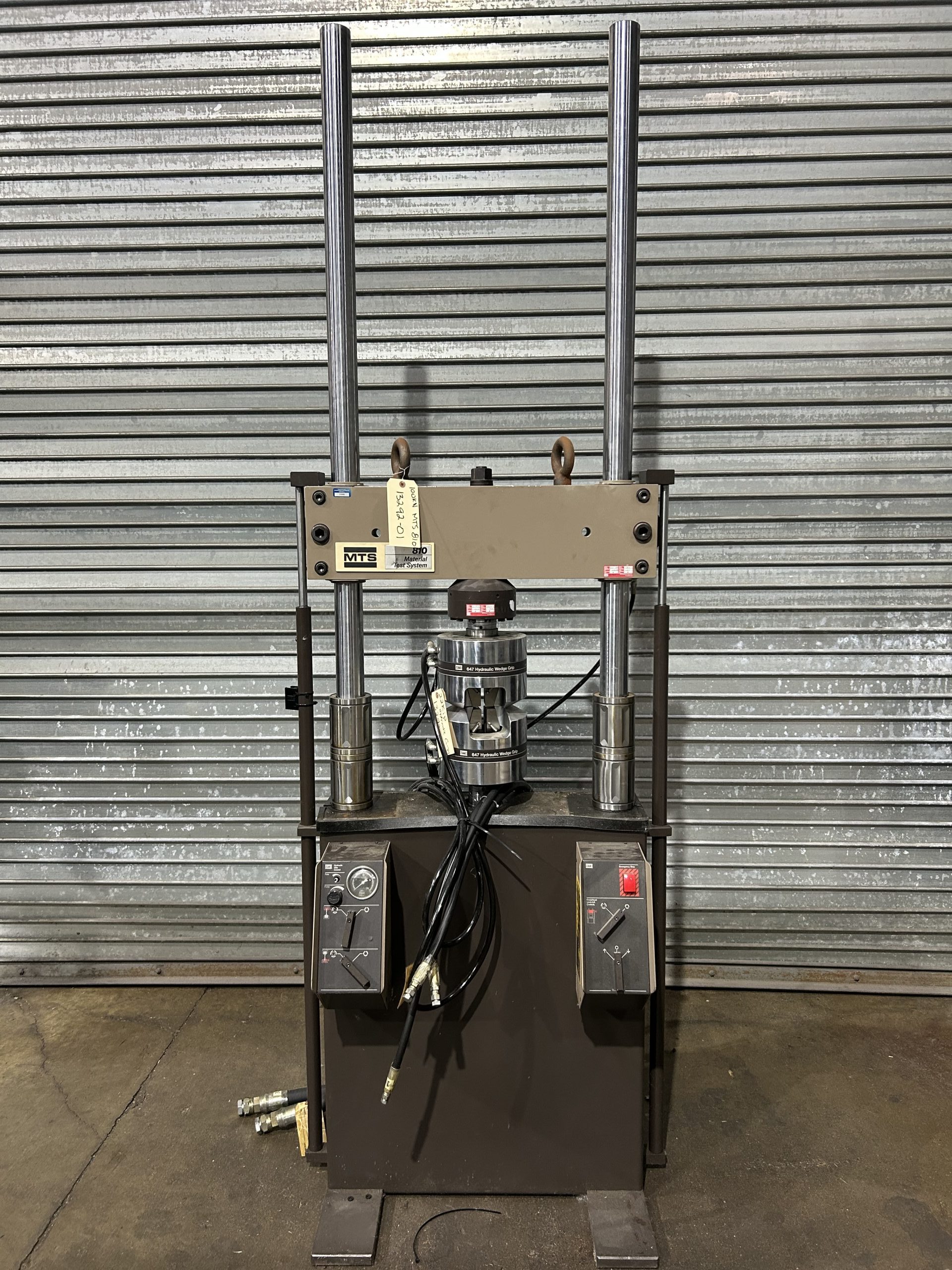

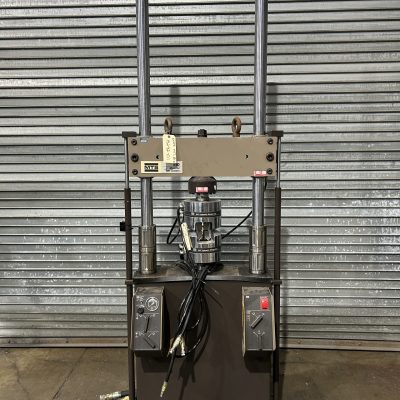

100kN MTS 810 Model 318.10 Fatigue Frame

MTS Model 810

SPECIFICATIONS:

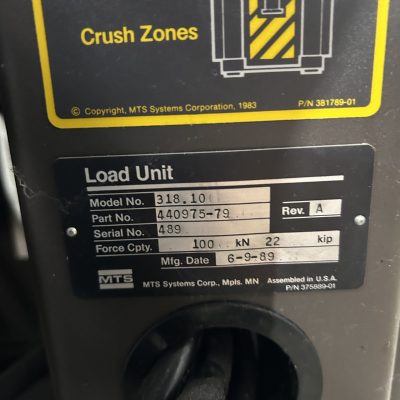

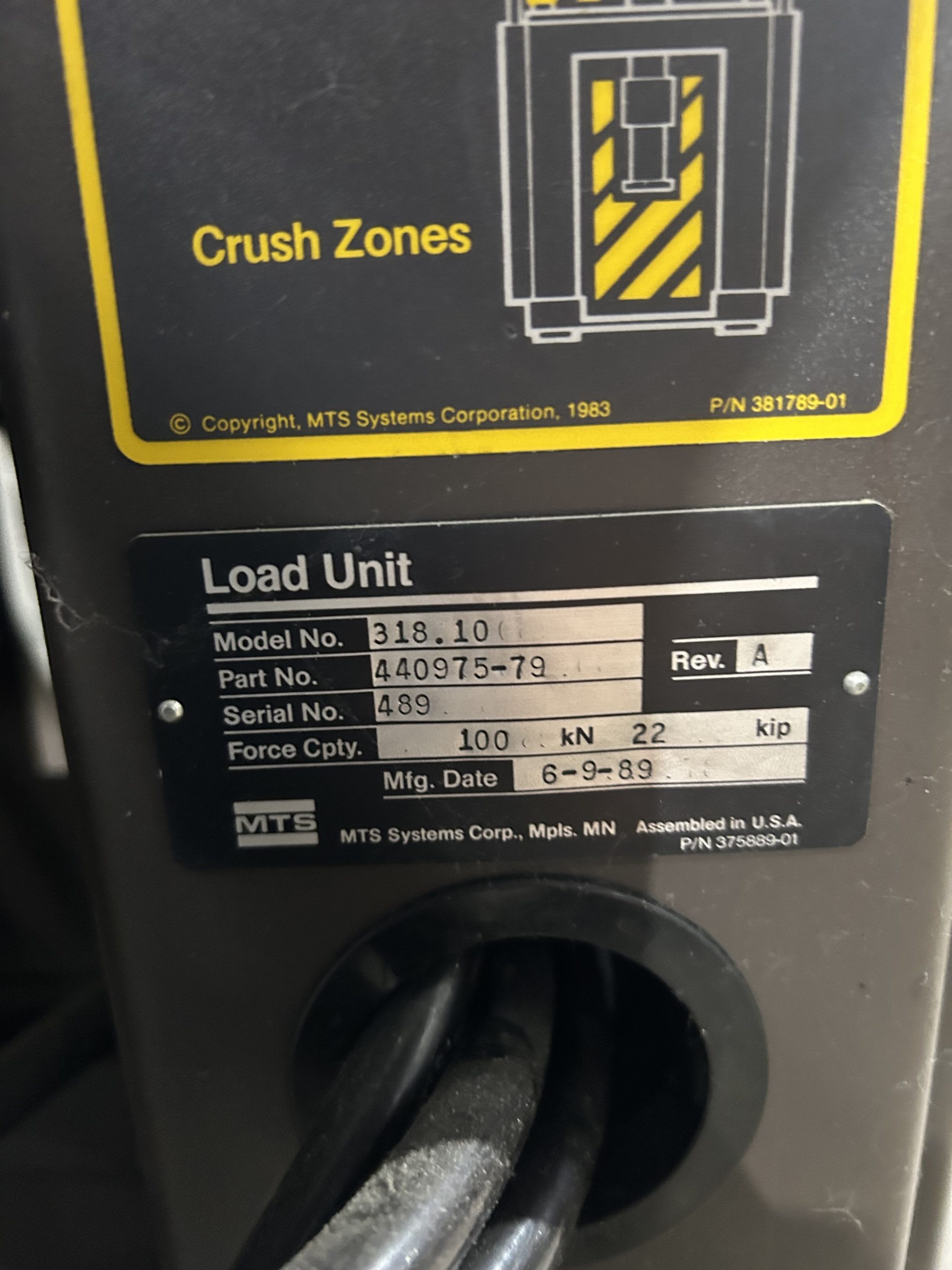

Model Number/Serial Number: 318.10/489

Capacity (KIP): 22

Number Of Columns: 2

Distance Between Columns: 20.75"

Test Opening: 54" (Less Tooling & Grips)

Table Size (W x D): 20.75" x 8.25"

Approximate Overall Dimensions (W x D x H): 36" x 24" x 104"

Approximate Weight (lbs.): 2,250

EQUIPPED WITH:

Hydraulic Crosshead Lifts and Hydraulic Crosshead Locks

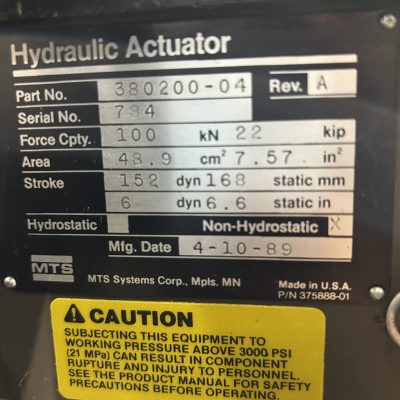

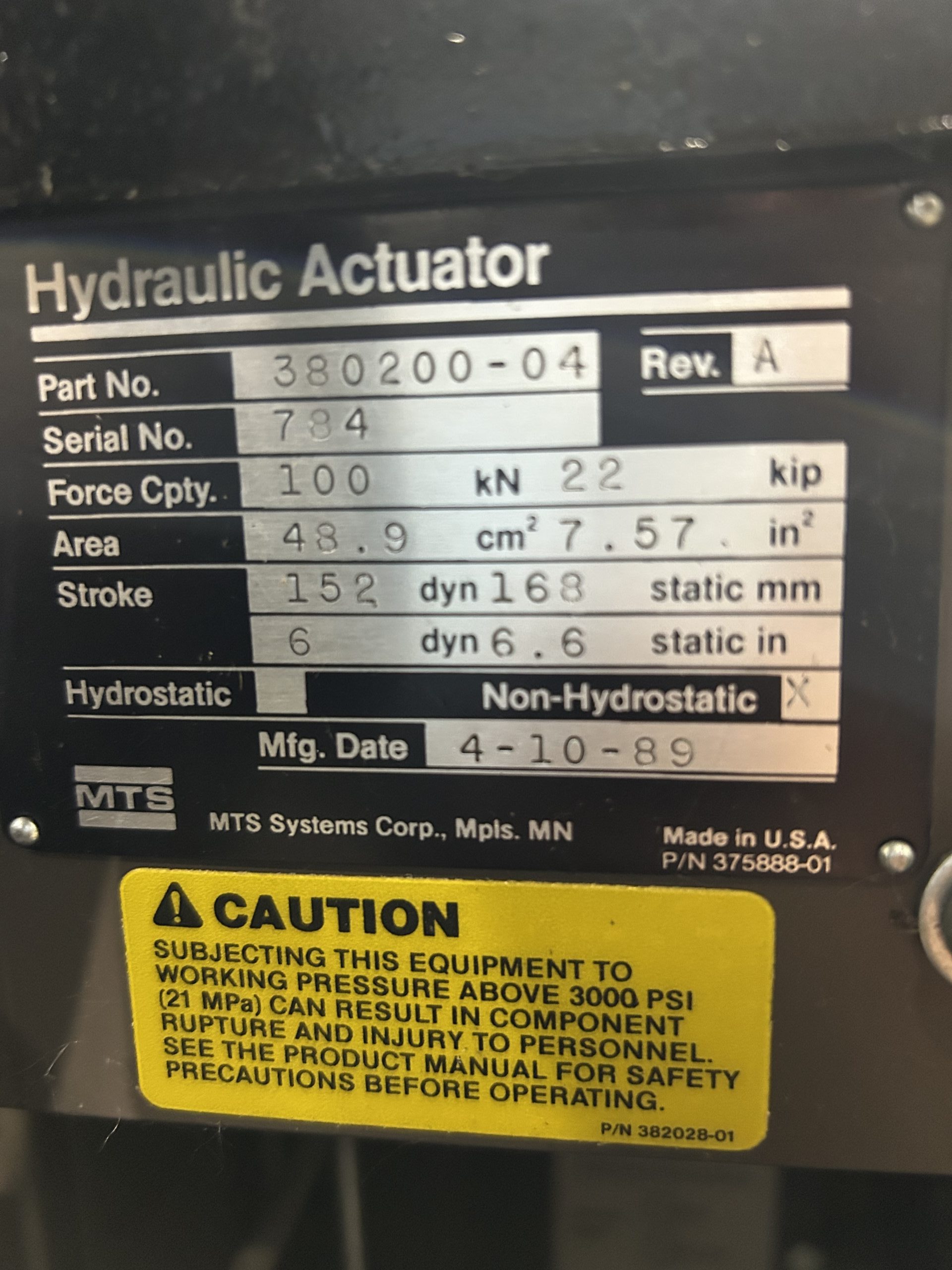

MTS 22 KIP 3,000 PSI 6" Stroke Actuator, Model 318.10, S/N 784 with LVDT & Area = 7.57 in.2

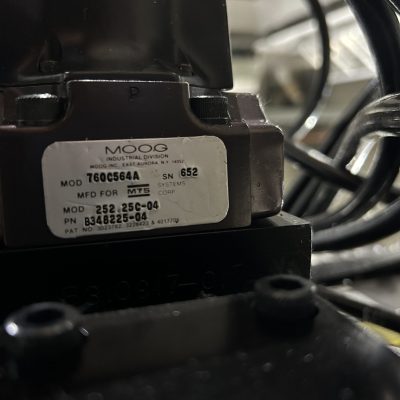

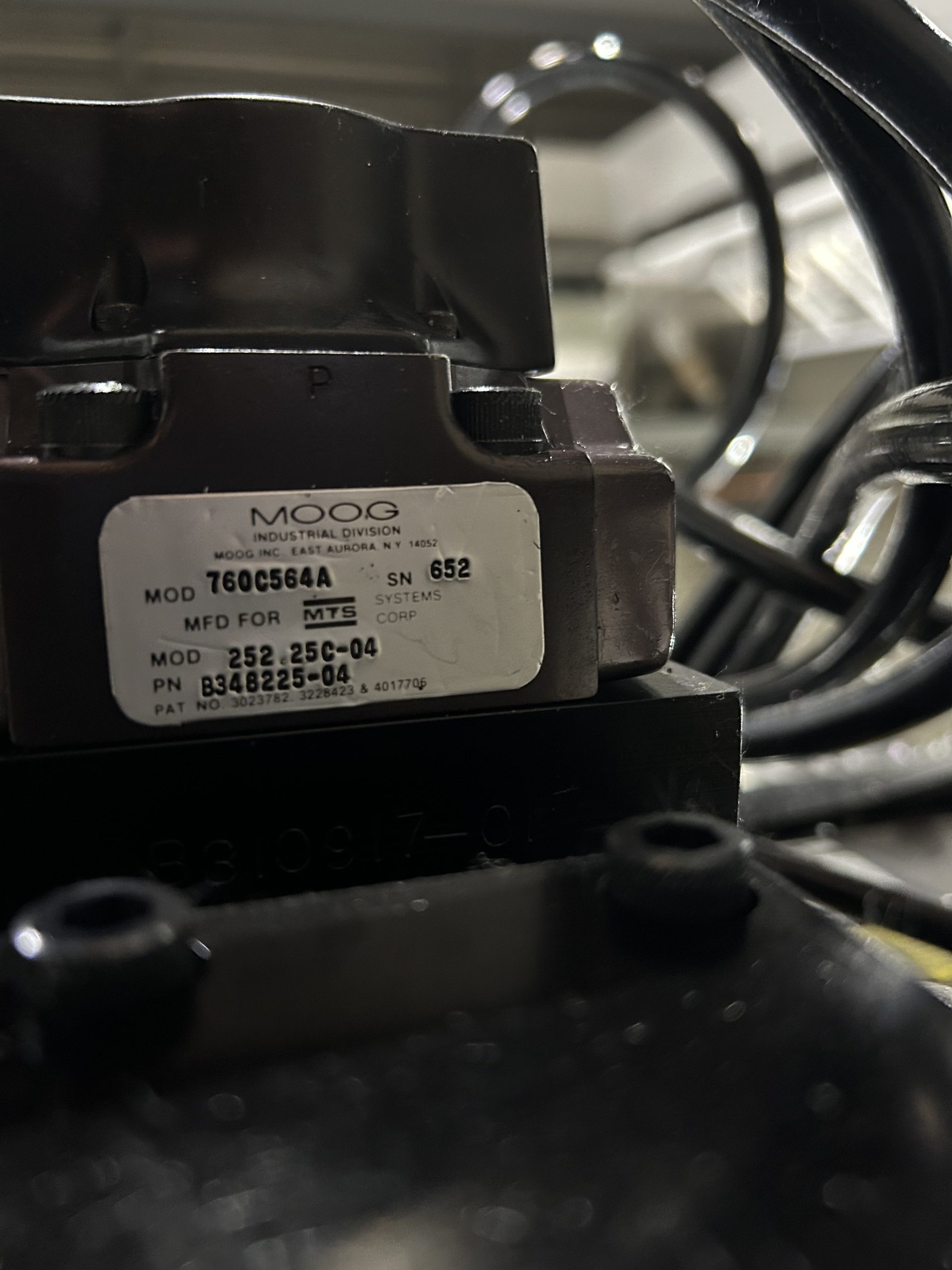

(1) 15 GPM MTS/MOOG Model 252.25C-04 Servo Valve

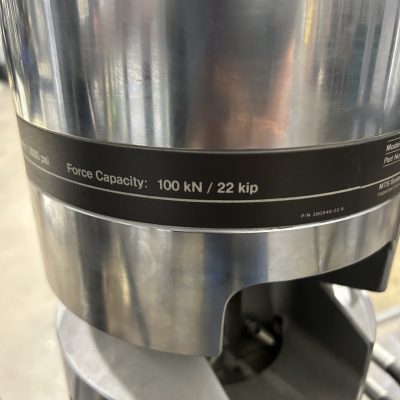

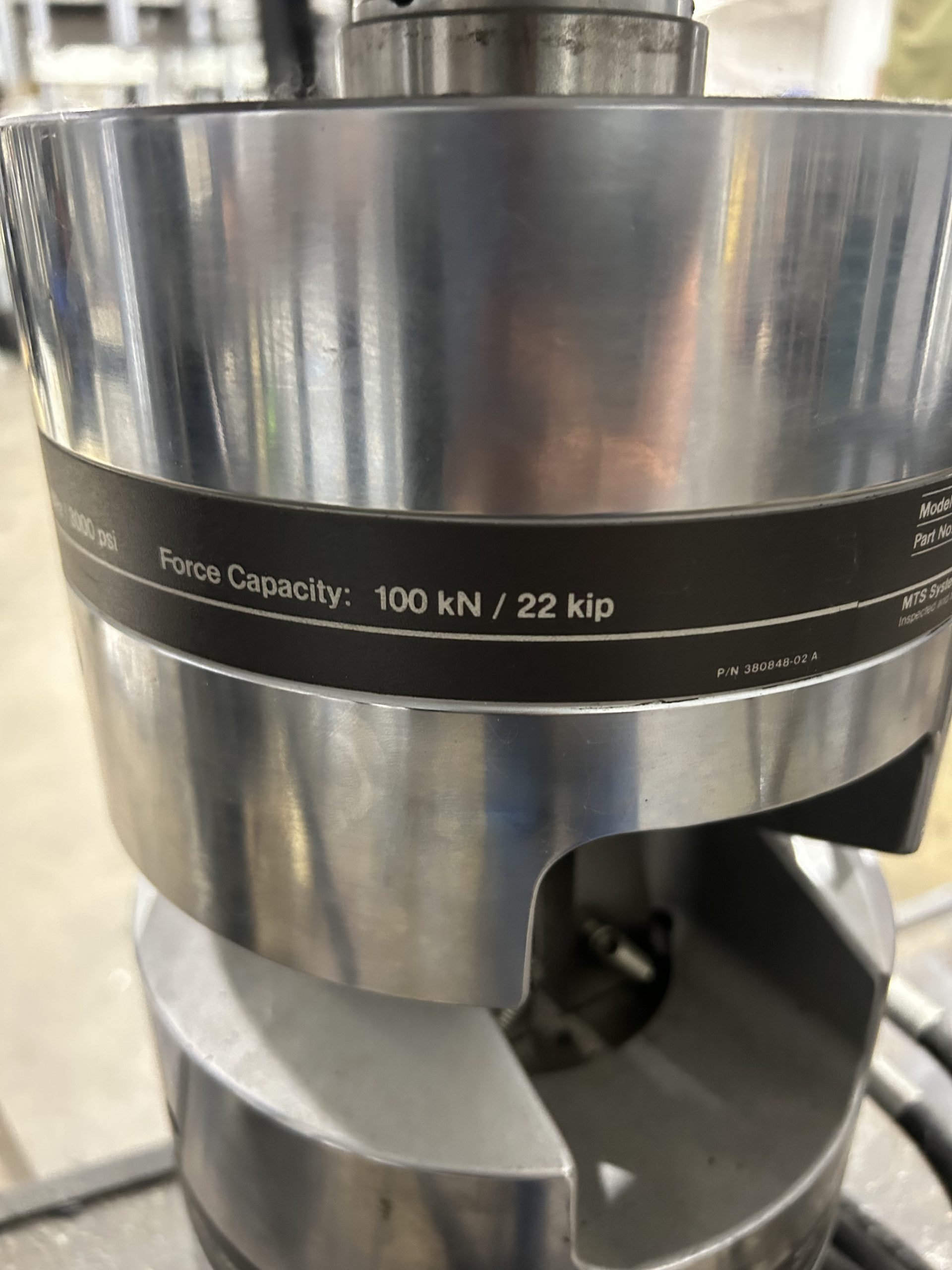

22KIP (100 kN) Fatigue Load Cell
MTS Frame Mounted Grip Controller

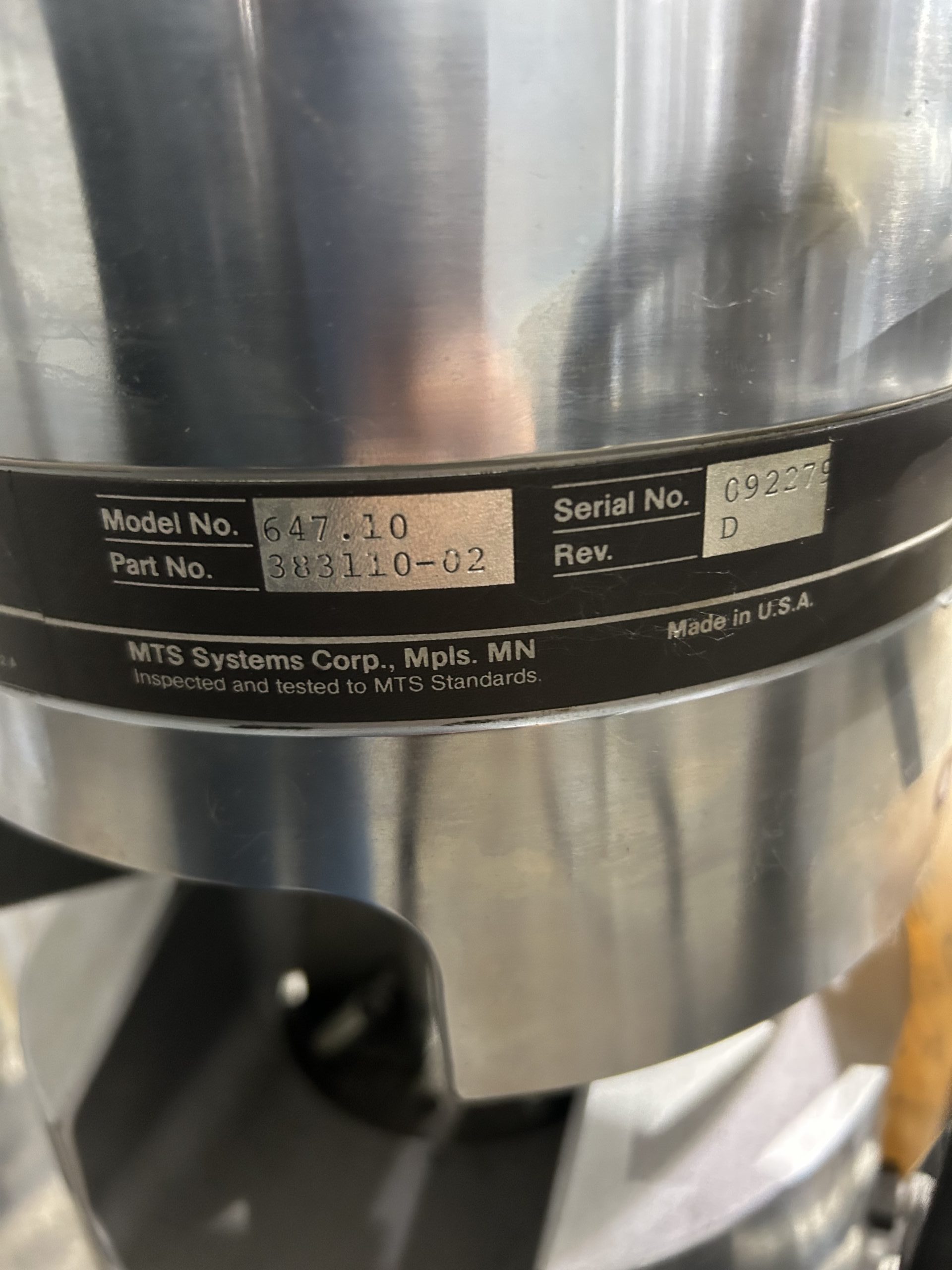

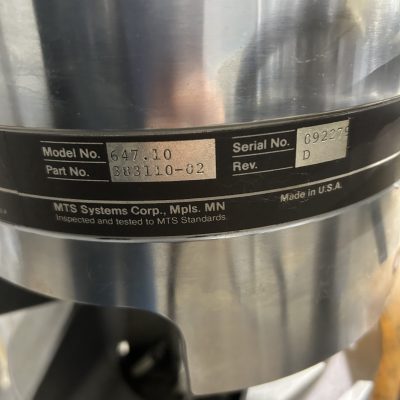

22KIP MTS Model 647.10 Hydraulic Fatigue Rated Wedge Grips

Note: Requires Servo Controller and Hydraulic Power Supply for Operation.

FOB Warren, MI

Reconditioned with 90 Day Parts and Labor Warranty

30 Day Satisfaction Guarantee Return Privilege

*Actual Image Before Reconditioning
