100kN MTS 810 Model 318.10 Fatigue Frame
100kN MTS 810 Model 318.10 Fatigue Frame
MTS Model 810
SPECIFICATIONS:
Model Number/Serial Number: 318.10/489
Capacity (KIP): 22
Number Of Columns: 2
Distance Between Columns: 20.75"
Test Opening: 54" (Less Tooling & Grips)
Table Size (W x D): 20.75" x 8.25"
Approximate Overall Dimensions (W x D x H): 36" x 24" x 104"
Approximate Weight (lbs.): 2,250
EQUIPPED WITH:
-
Hydraulic Crosshead Lifts and Hydraulic Crosshead Locks
-
MTS 22 KIP 3,000 PSI 6" Stroke Actuator, Model 318.10, S/N 10229585F with LVDT & Area = 7.57 in.2
-
(1) 10 GPM MTS/MOOG Model 252.24C-01 Servo Valve
-
22KIP (100 kN) Fatigue Load Cell
-
MTS Frame Mounted Grip Controller
FOB Warren, MI
Cleaned, Serviced and Cycled
90 Day Parts and Labor Warranty
30 Day Satisfaction Guarantee Return Privilege

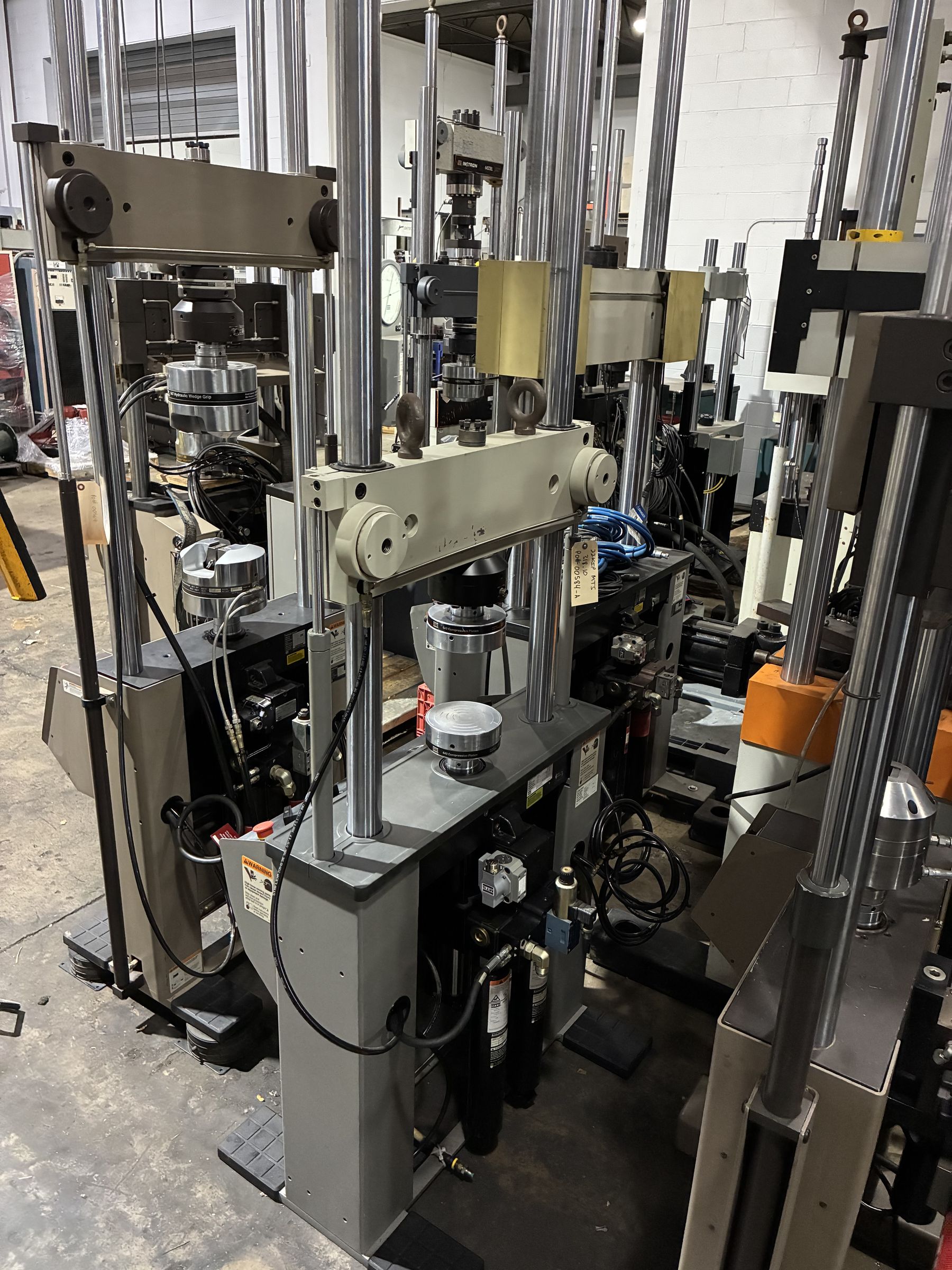

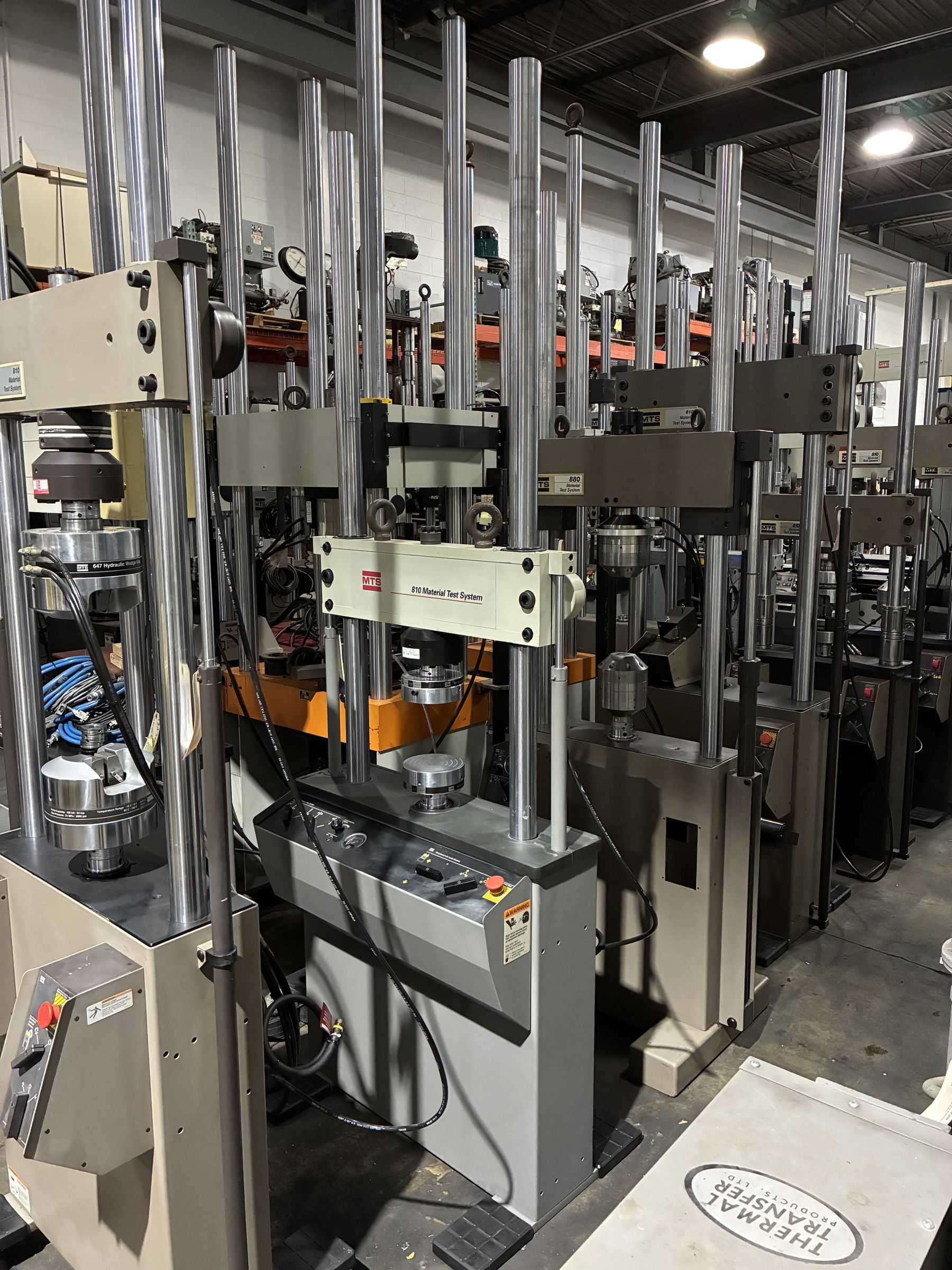

*Actual Images
Click for quote | #13326-00
