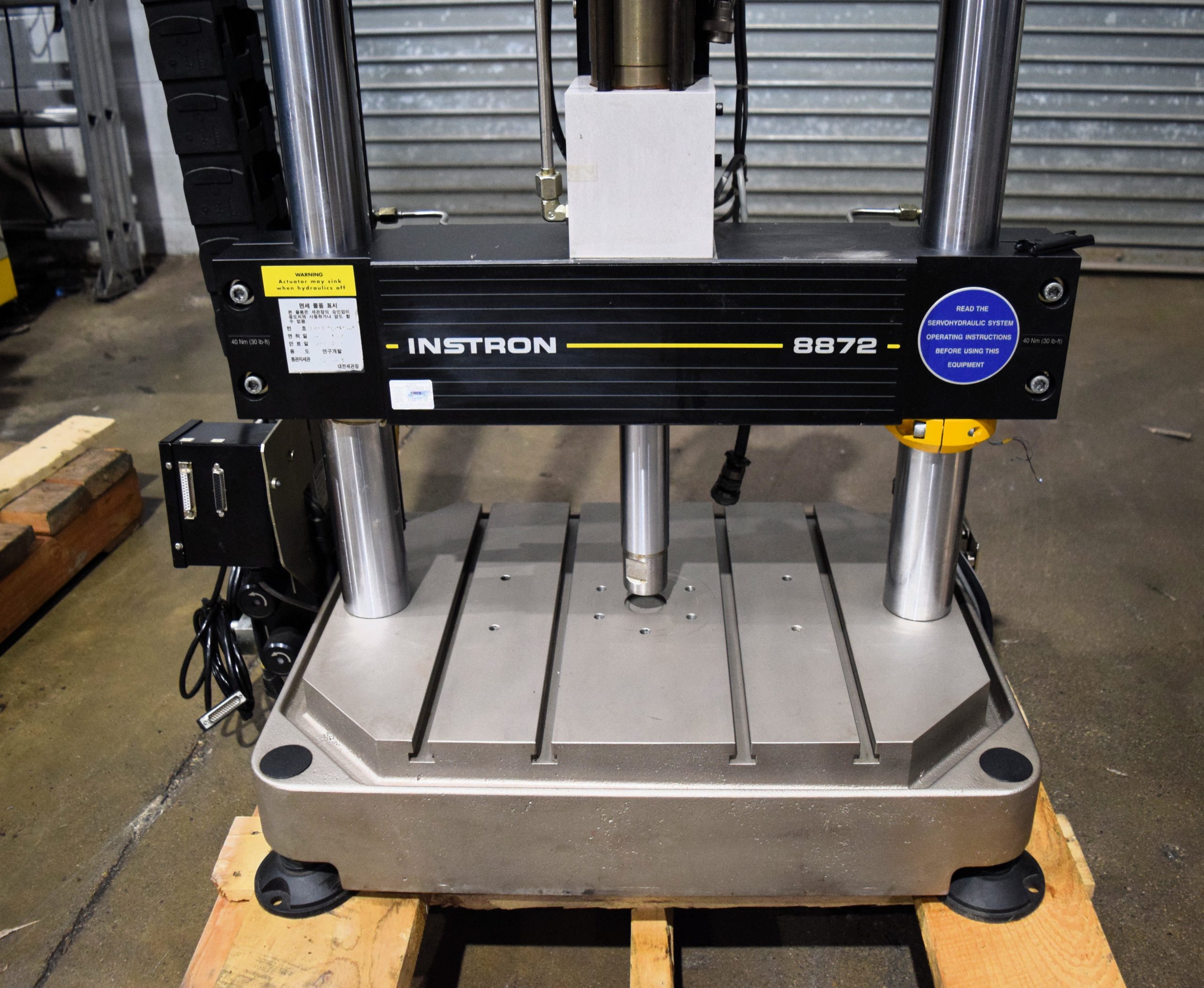

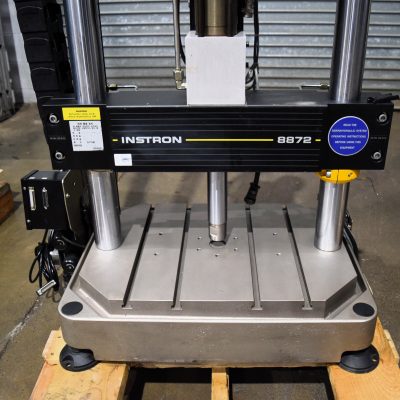

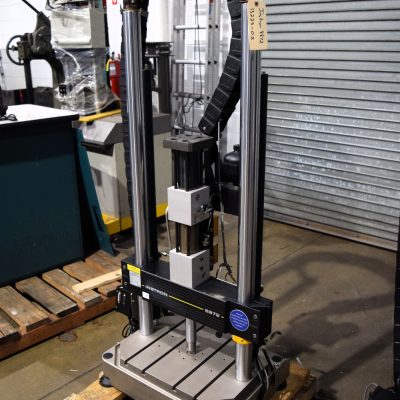

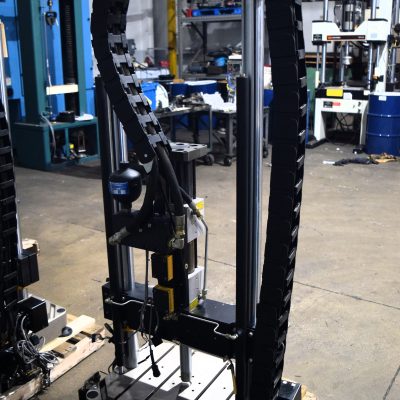

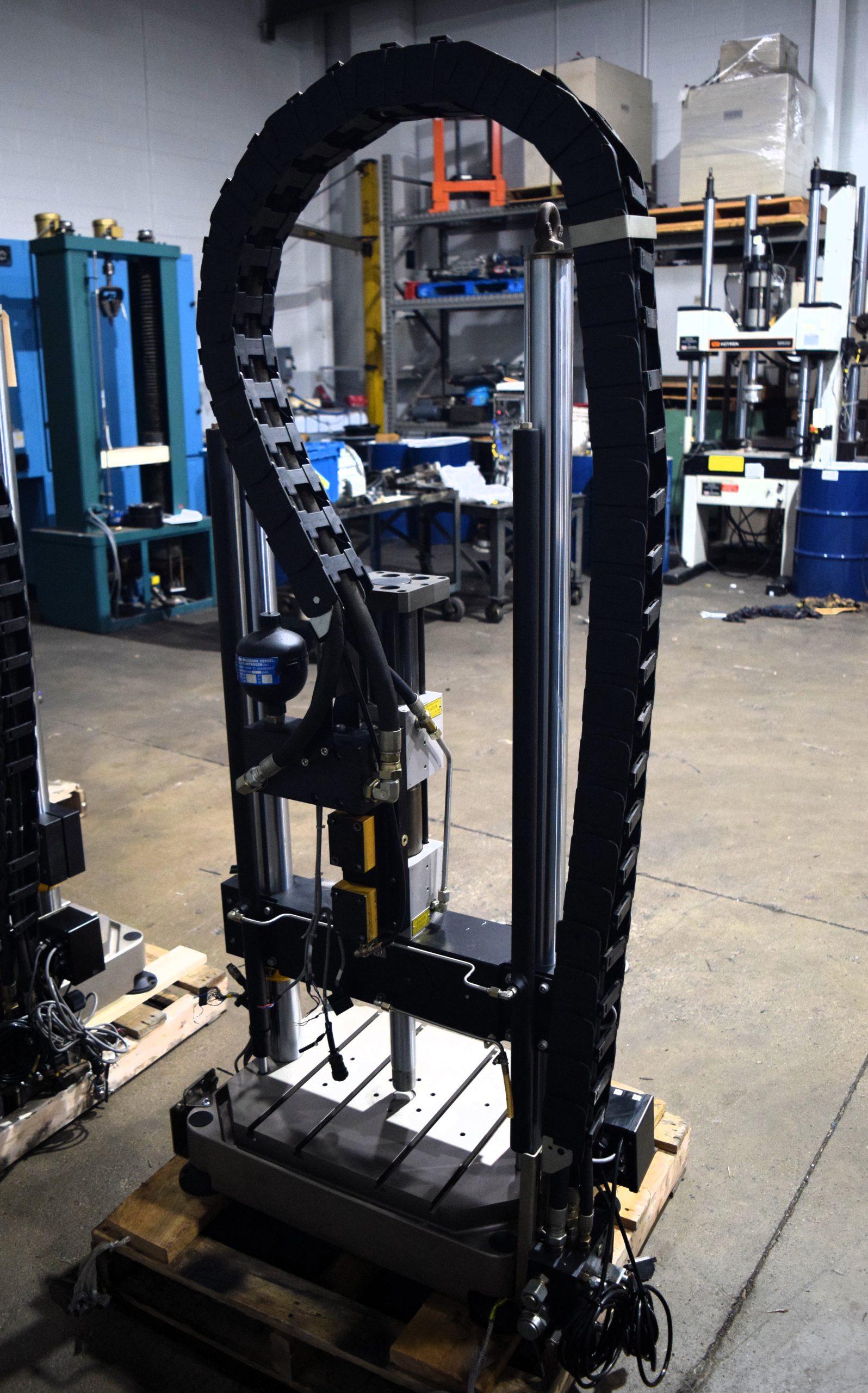

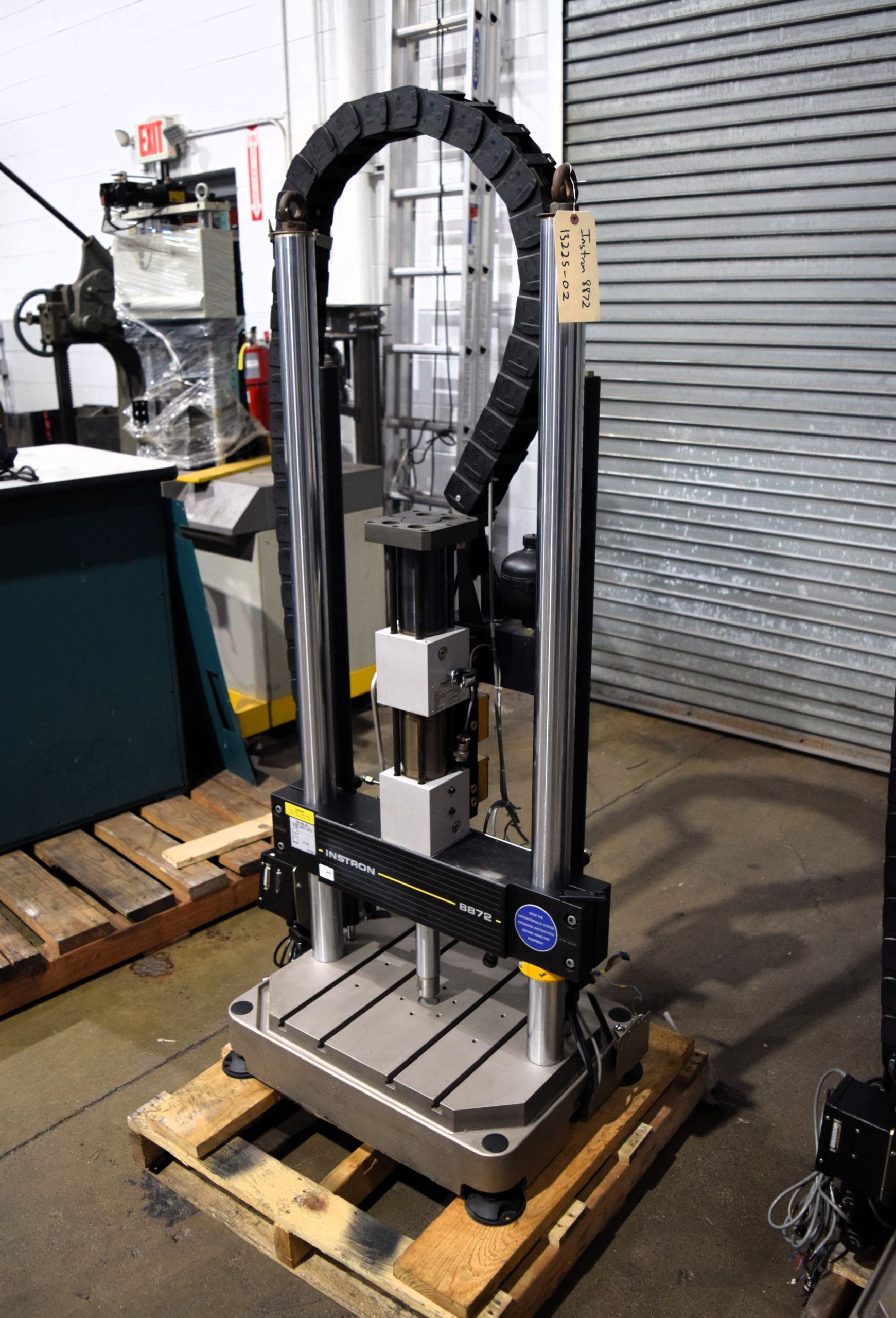

10kN Instron Model 8872 Fatigue Testing System
Instron Model 8872
SPECIFICATIONS:
System ID Number: 8872K2198
Force Capacity: 10 kN @ 3,000 PSI
Number of Columns: 2
Distance Between Columns: 18"
Maximum Distance Between Load Cell and Table: 28"
Overall Dimensions (W x D x H): 36" x 24" x 80"(MAX)
Weight: 750 lbs.(Load Frame)
EQUIPPED WITH:
-
Hydraulic Lifts and Controls
-

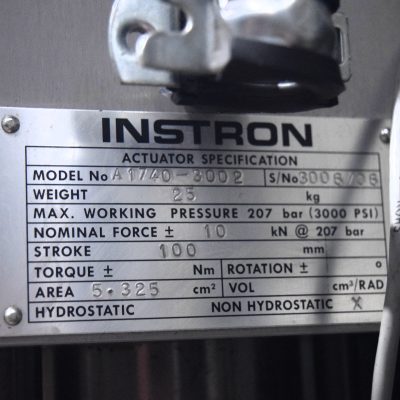

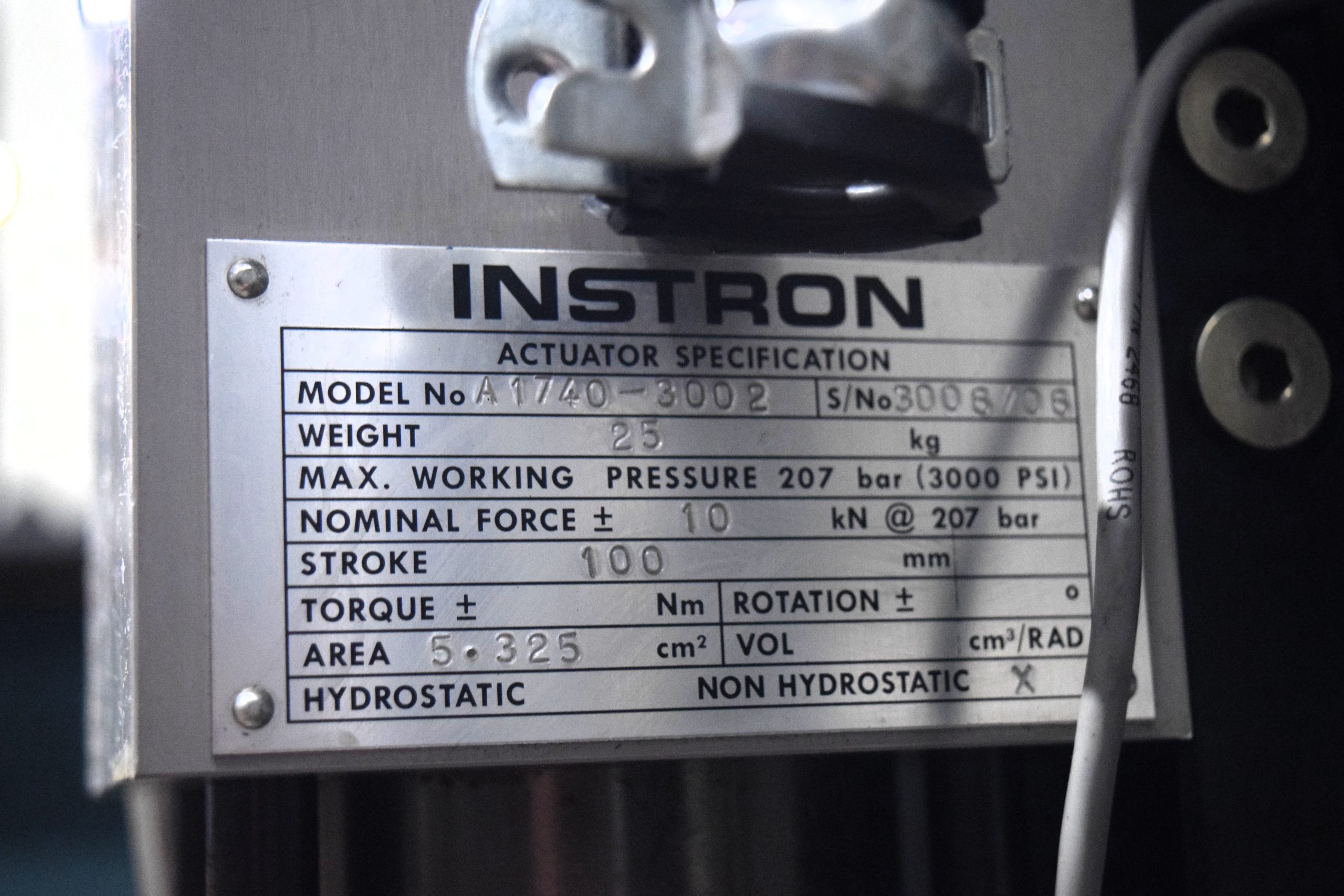

Instron 3000 PSI 10 kN, 100 mm Stroke, Hydrostatic Actuator, Model A1740-3002, Internal LVDT with Moog Servo Valve
-
10 kN Fatigue Rated Tension & Compression Load Cell
-
18"W x 16.5"D T-Slotted Table
-
3.4 GPM Instron Model 3521 3,000 PSI Hydraulic Power Supply with Water Cooled Heat Exchanger (230V, 60Hz, 3PH, 22A)
-
New FB-3500 Dynamic Fatigue Servo Controller with PC & Software (Two AC Conditioners, Two DC Conditioners, HPU and HSM Integration, 2 Analog Inputs)
FOB Warren, MI
Cleaned, Serviced and Cycled
90 Day Parts and Labor Warranty
30 Day Satisfaction Guaranteed Return Privilege
*Actual Images Before Reconditioning
Click for quote | #13225-02
