2,250lbf (10kN) MTS RT/10

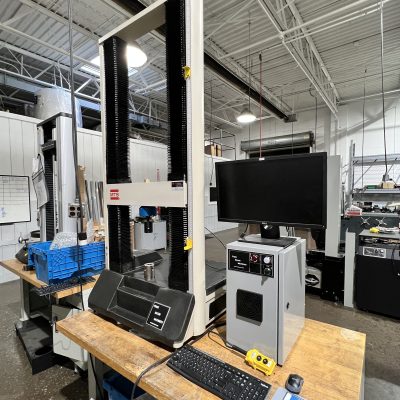

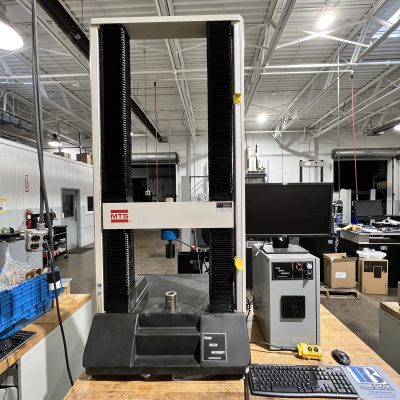

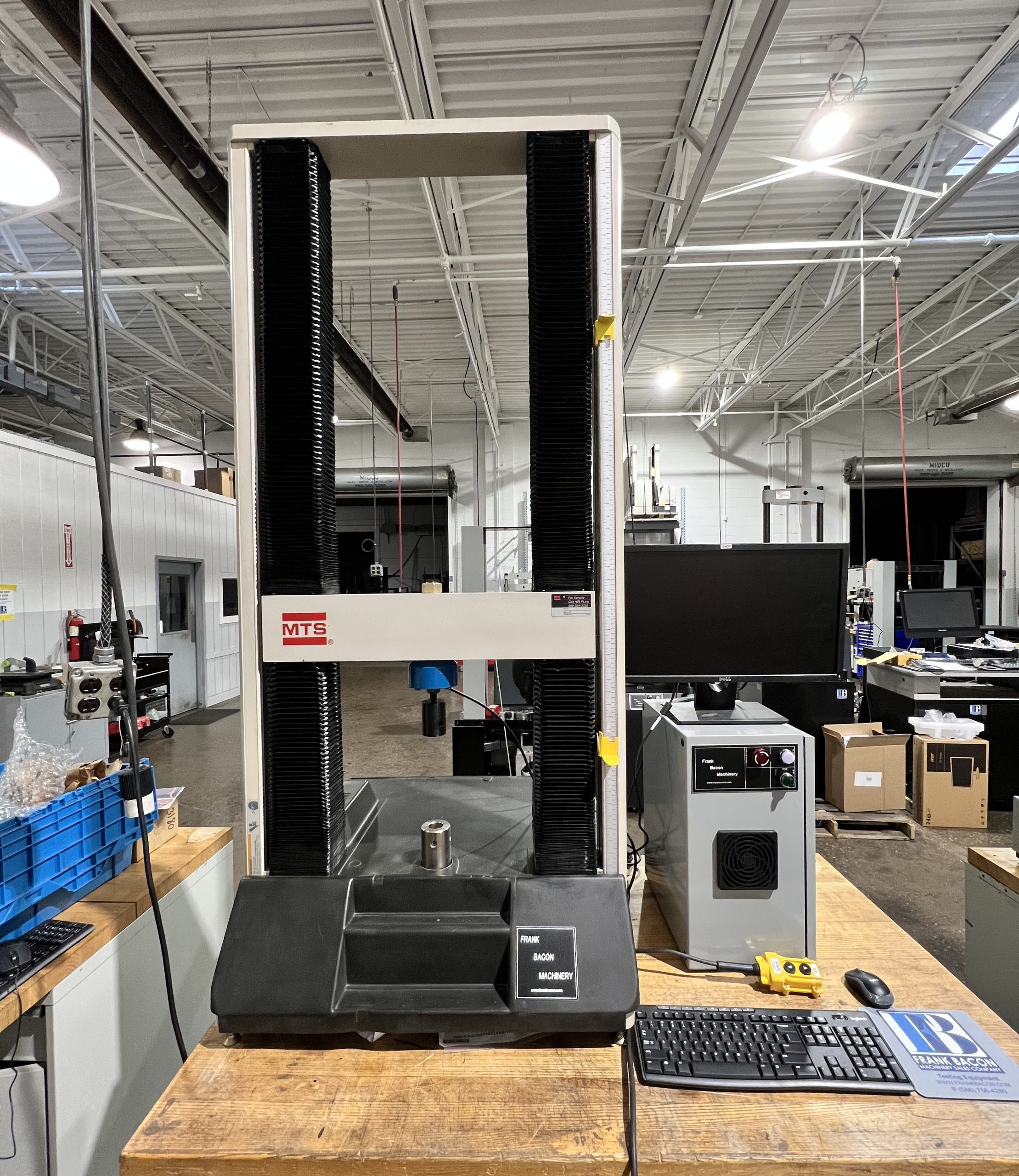

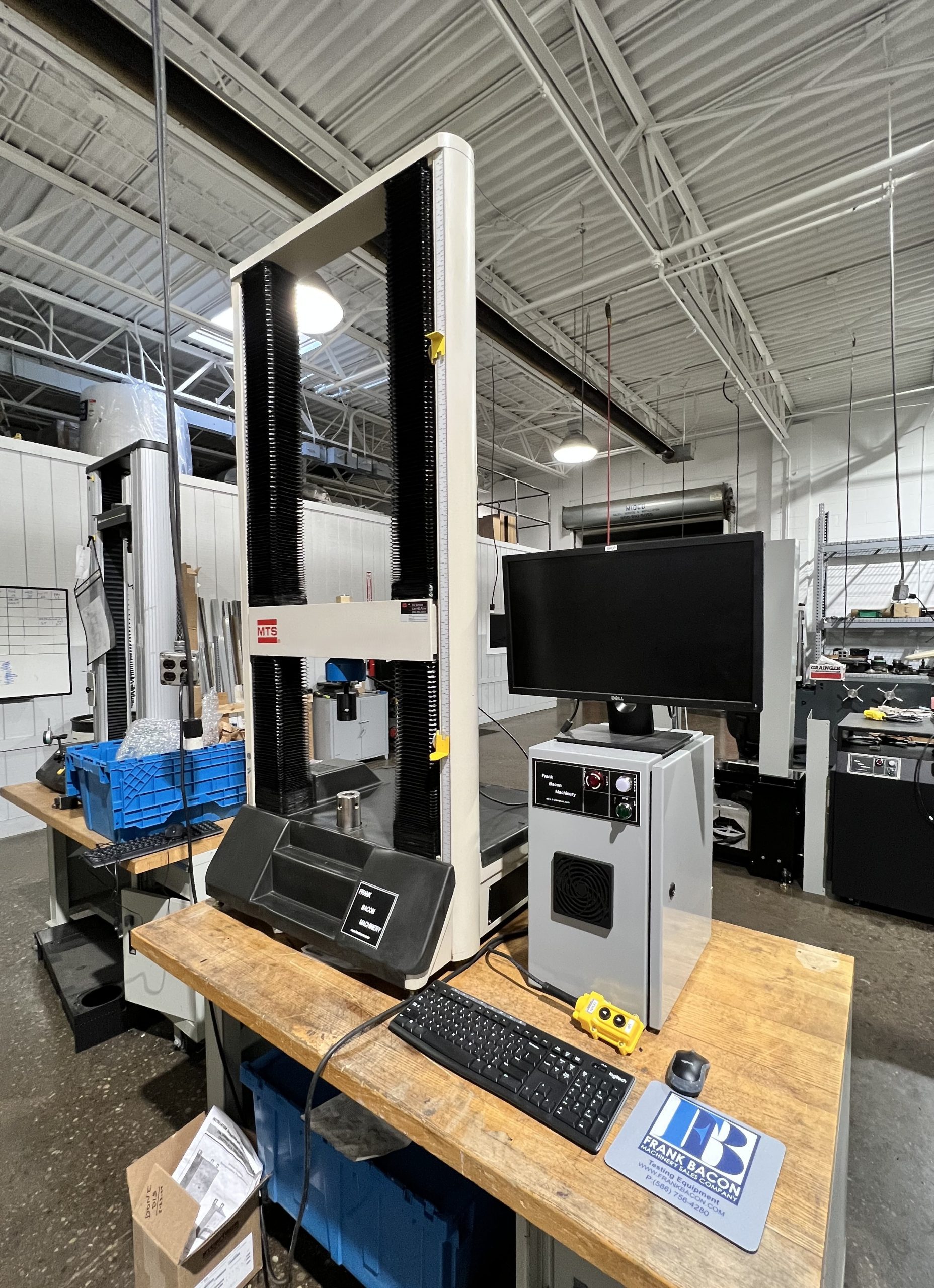

(1) Reconditioned 2,250 lbf (10kN) Capacity MTS, RT/10, Electro-Mechanical Unispace Tension and Compression Testing Machine updated with new AC Servo Motor and Load Cell.
MTS Model RT/10
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 52"
Compression Testing Opening (Less Tooling): 52"
Distance Between Columns/Screws: 12"
Testing Stroke: 52"
Table Size (W x D): 6" x 20"
Testing Speed (IPM): 20
Crosshead Adjusting Speed (IPM): 20
Approximate Overall Dimensions:
New Electronic Console (W x D x H): 27" x 27" x 36"
Load Frame (W x D x H): 27" x 27" x 77"
Approximate Weight (lbs): 360
Electrical Requirements (V,Hz,PH): 120, 60, 1
EQUIPPED WITH:
-Computer System with Keyboard & Mouse.
-24" LED-Backlit LCD Color Monitor
-Microsoft Windows 11 Professional, Workstation
-MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
-MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
-Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
-New Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
-10 kN Tension & Compression Load Cell
FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty
Click for quote | #MTS RT/10
