11.25k (50kN) Instron 4204

Instron Model 4204

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 46"

Compression Testing Opening (Less Tooling): 46"

Distance Between Columns/Screws: 22"

Testing Stroke: 46"

Table Size (W x D): 22" x 7.75"

Testing Speed (IPM): .02 – 20

Crosshead Adjusting Speed (IPM): 20

Approximate Overall Dimensions:

Load Frame (W x D x H): 39.5" x 26" x 93"

Approximate Load Frame Weight (lbs): 1000

Electrical Requirements (V,Hz,PH): 230, 60, 1

EQUIPPED WITH:

Computer System with Keyboard and Mouse.
Microsoft Windows 11 Professional, Workstation
MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
New AC Servo Motor with Incremental Encoder and Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
50kN Tensile & Compression Load Cell

FOB Warren, MI

30 Day Satisfaction Guarantee Return Privilege

1 Year Parts and Labor Warranty

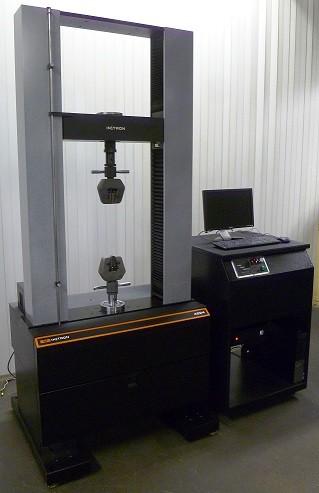

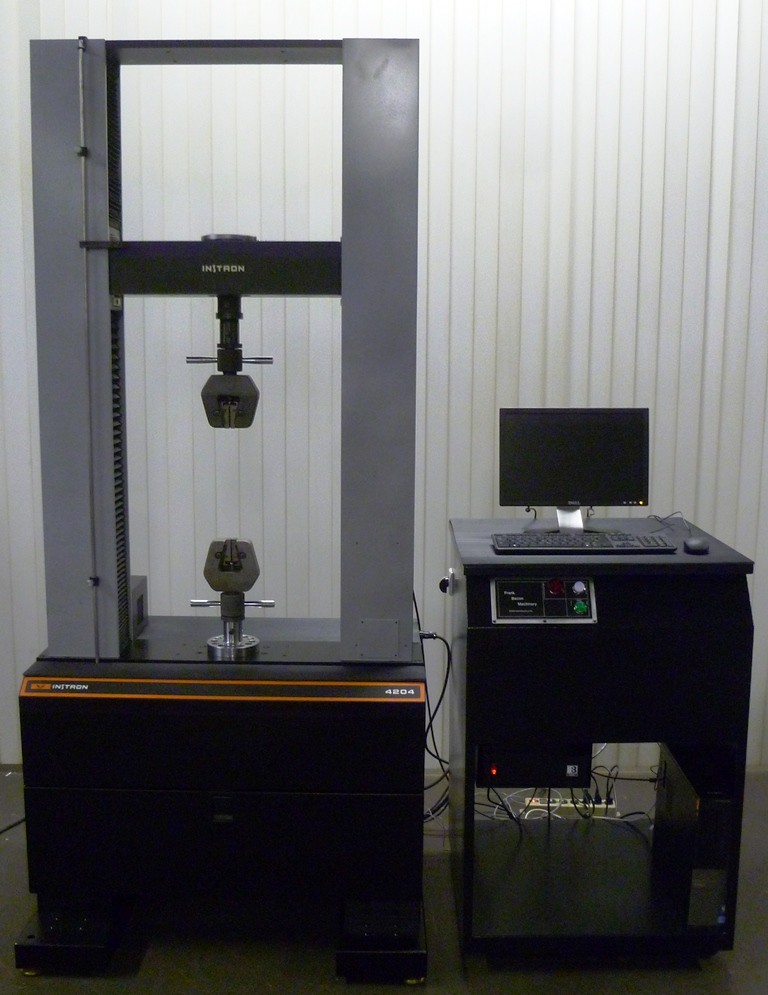

*Representative Image
