11.25K (50kN) Instron 5569 Tension and Compression Testing Machine
50 kN Instron 5569
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 48"
Compression Testing Opening (Less Tooling): 48"
Distance Between Columns/Screws: 16"
Testing Stroke: 48"
Table Size (W x D): 16" x 6"
Testing Speed (IPM): .00002-20
Crosshead Adjusting Speed (IPM): 20
Approximate Overall Dimensions:
Load Frame (W x D x H): 32" x 32" x 68"
Approximate Weight (lbs): 650
Electrical Requirements (V,Hz,PH): 200-230, 60, 1
EQUIPPED WITH:
-
New Computer System with Keyboard & Mouse
-
24" LED-Backlit LCD Color Monitor
-
Microsoft Windows 11 Professional, Workstation
-
MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
-
MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
-
Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
-
50kN Tension & Compression Load Cell
FOB Warren, MI
30 Day Satisfaction Guarantee Return Privilege
1 Year Parts and Labor Warranty

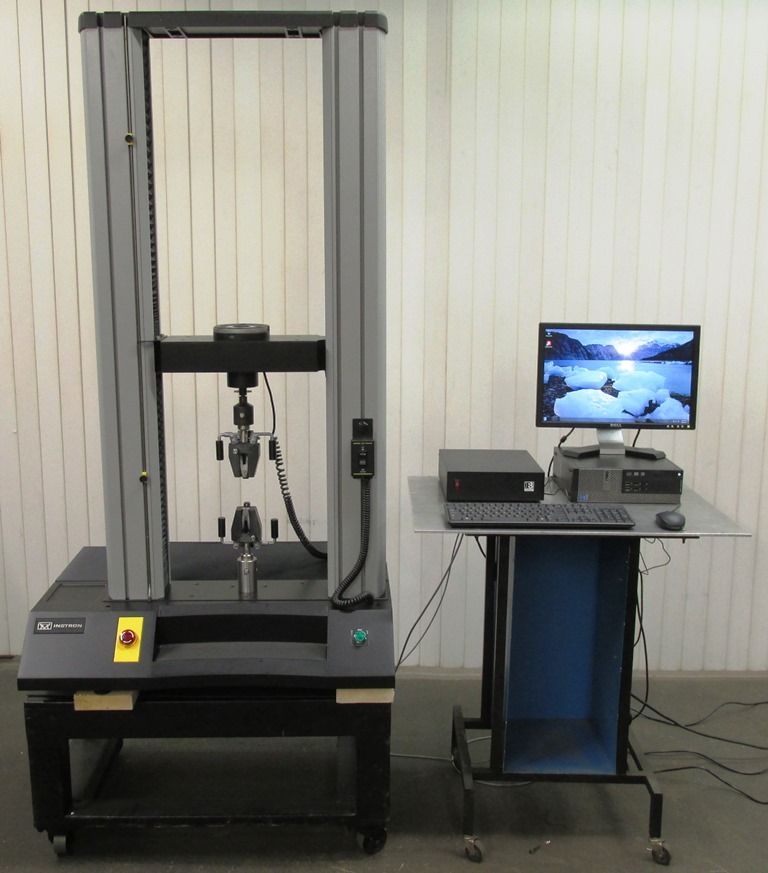

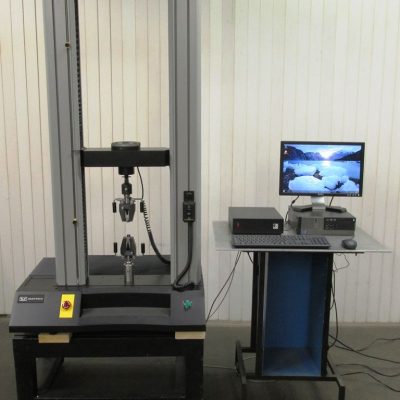

*Representative Image
Click for quote | #13237-09
