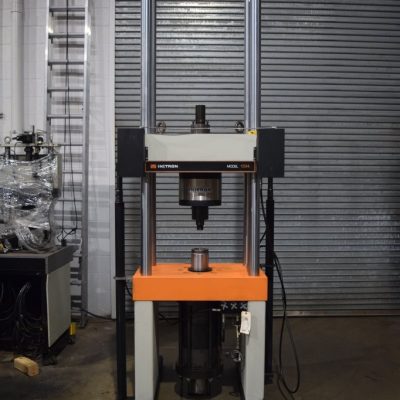

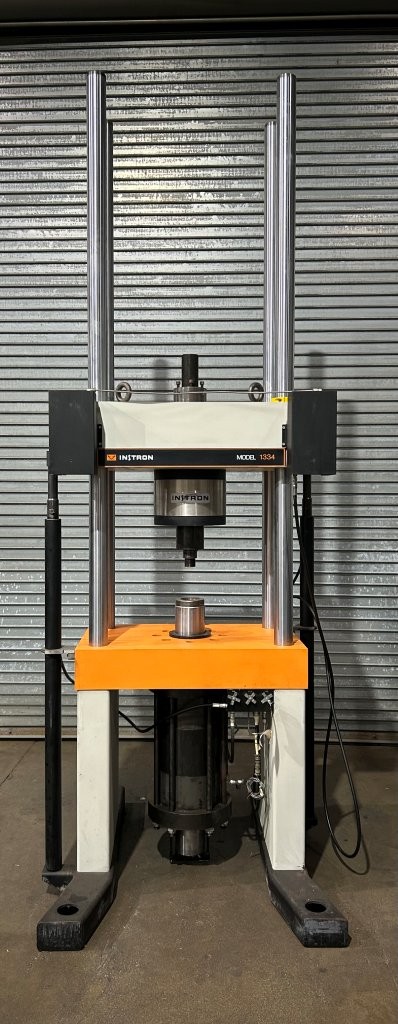

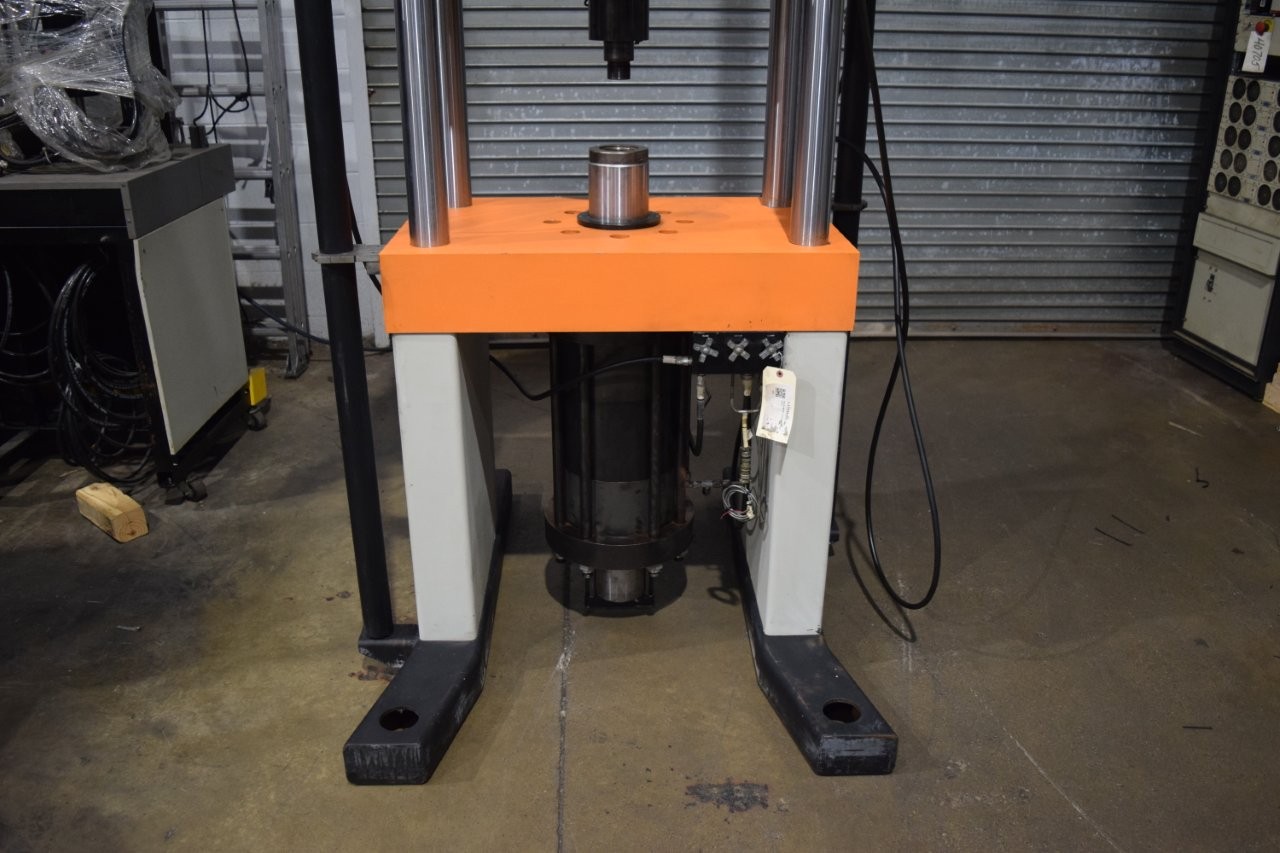

110KIP (500kN) Instron Model 1334 Fatigue Load Frame
Instron Model 1331
SPECIFICATIONS:

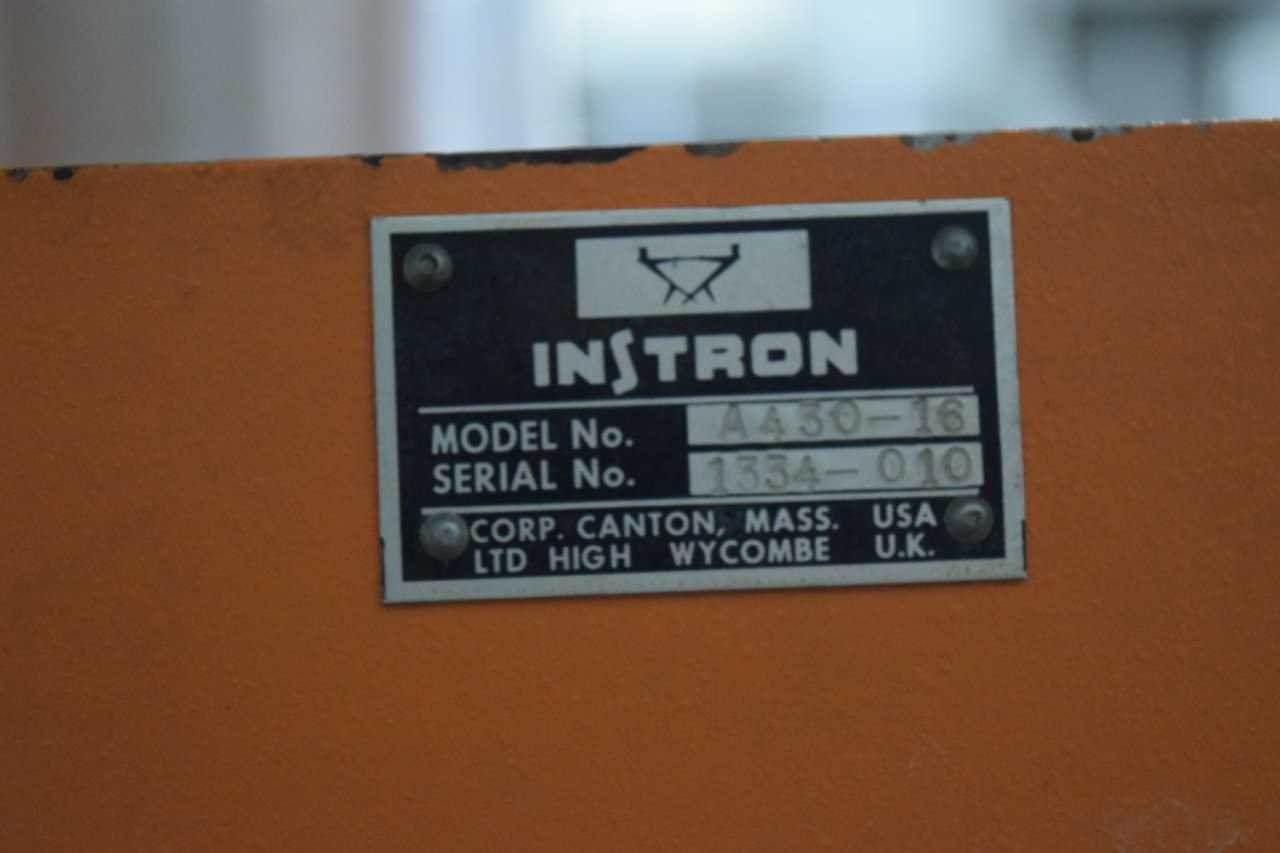

Serial Number: 1334-010
Load Frame Capacity (KIP): 220
Number Of Columns: 4
Distance Between Columns (W x D): 26" x 12"
Test Specimen Max. Length: 55"
Approximate Overall Dimensions (W x D x H): 48" x 50" x 126"
Weight (lbs.): 1,250
EQUIPPED WITH:
-
Hydraulic Crosshead Lifts and Locks with Controls
-

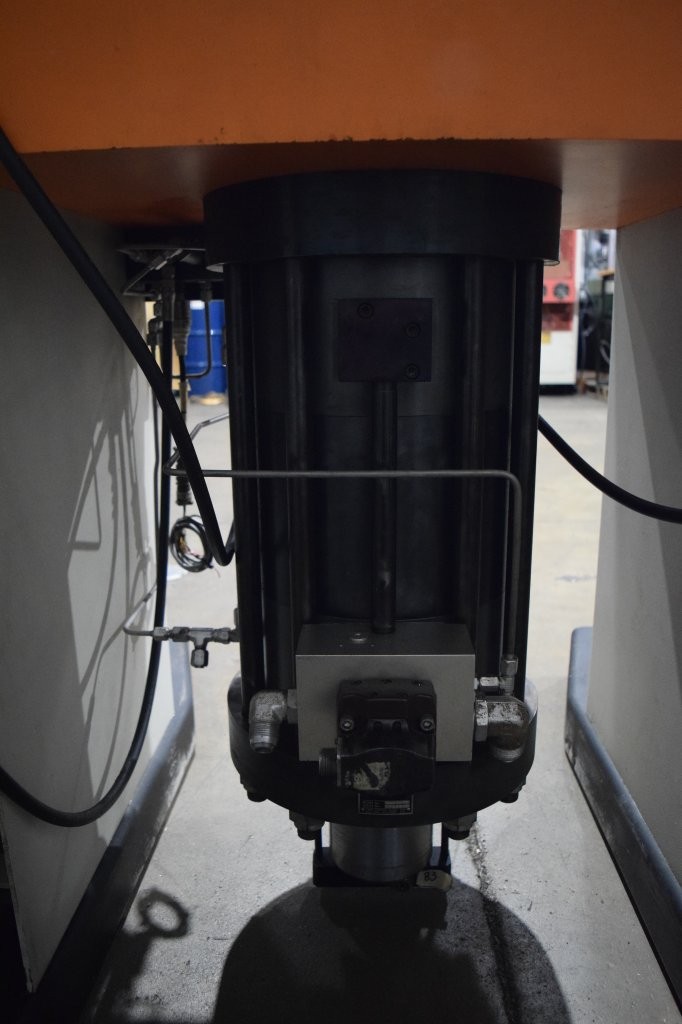

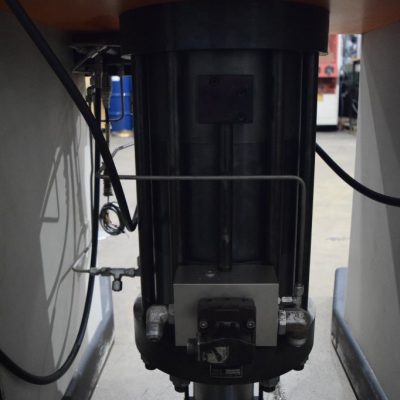

Instron 110 KIP Dynamic 220 KIP Hydrostatic Bearing Actuator, Model A488-76, 4" Stroke, 3,000 PSI, LVDT, S/N 463
-
MOOG Servo Valve, Model A076-553 SN: 215
-

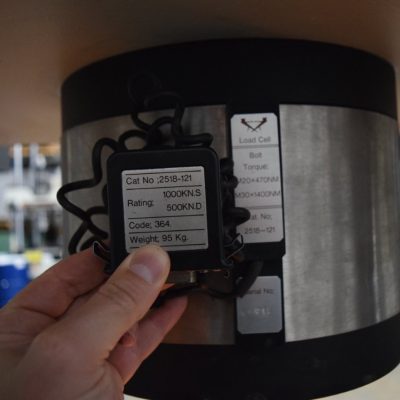

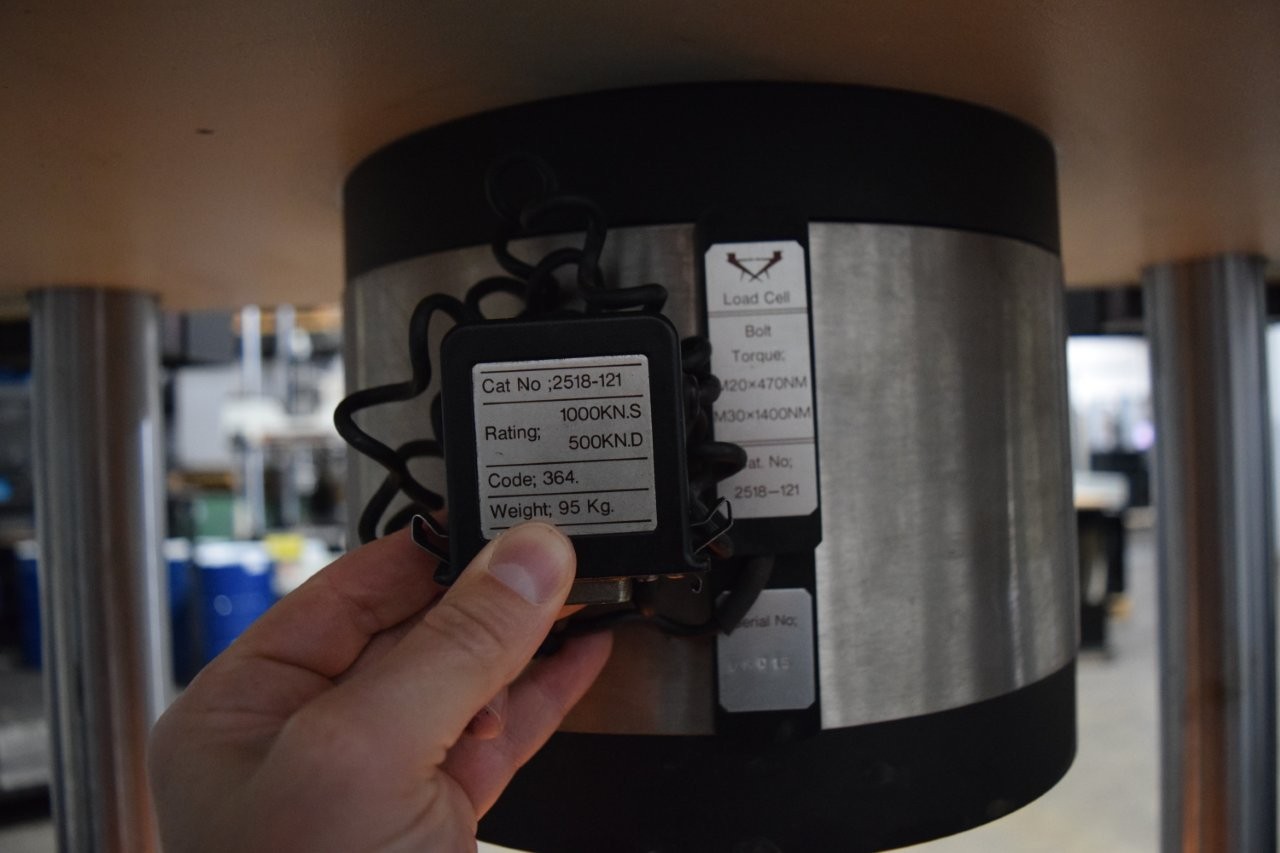

Instron 500 kN Dynamic 1000 kN Static Fatigue Rated Load Cell Model 2518-121
FOB WARREN, MI 48091
Reconditioned with 90 Day Warranty
30 Day Satisfaction Guarantee Return Privilege

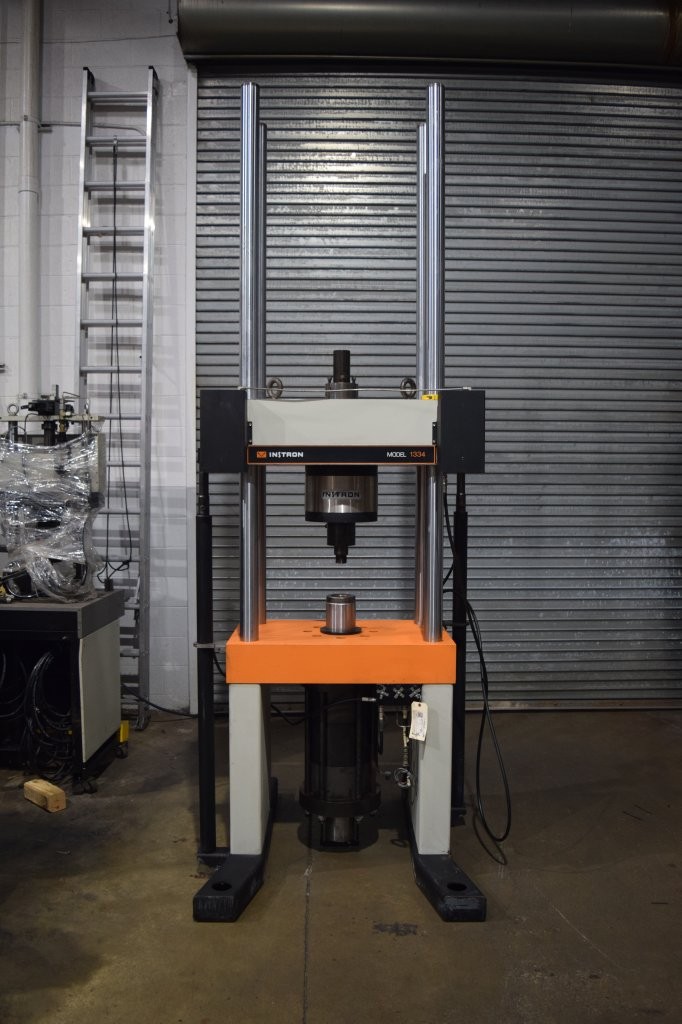

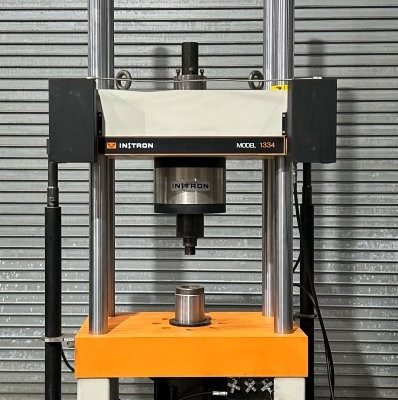

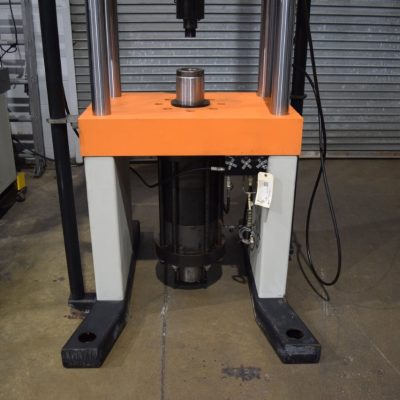

*Actual Images Before Reconditioning
