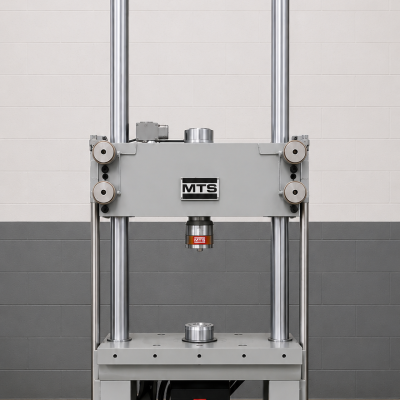

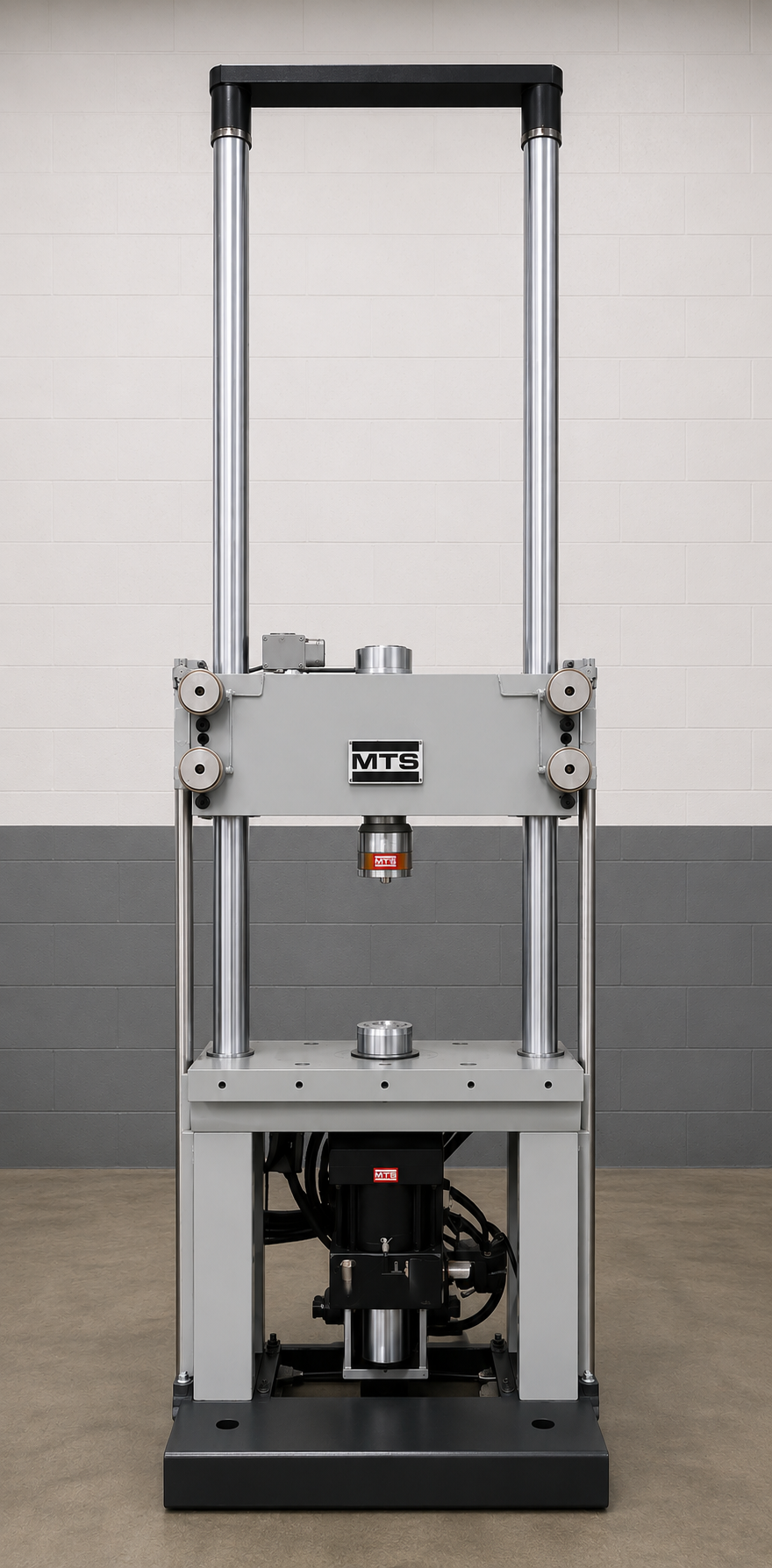

(1) Reconditioned 110 KIP (500 kN) Capacity MTS, Model 312.41, Two Column Material Fatigue Testing Load Frame.

LOAD FRAME SPECIFICATIONS:

Model Number / Serial Number: 312.41 / 275

Load Frame Capacity (KIP): 110

Number Of Columns: 2

Distance Between Columns: 30"

Table Size (W x D x Thickness): 40.5" x 15" x 6.00”

Maximum Test Part Height: 81”

Approximate Overall Dimensions (W x D x H): 48" x 36" x 145"

Approximate Weight (Lbs): 4,000

EQUIPPED WITH:

-Hydraulic Crosshead Lifts, Locks & Controls

-MTS 110 KIP, 3000 PSI Actuator, Model 204.81, S/N 119, with 6" Stroke, LVDT & Area = 38.51 sq. in.

-MTS/MOOG Servo Valve

-110 KIP MTS Model 661.23A-02 Tension & Compression Fatigue Rated Load Cell
