120K (600kN) Satec HVL (MTQ Servo)

Reconditioned 120,000 lbf (600 kN) Capacity Satec, Model HVL, Hydraulic Tension & Compression Testing Machine with Precision Load Cell Indicating System and Adjustable Top Crosshead.
Satec Model HVL

SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 38"
Compression Testing Opening (Less Tooling): 38"
Distance Between Columns/Screws: 20"
Testing Stroke: 6"
Table Size (W x D): 20" X 22"
Testing Speed (IPM): 0 – 3
Crosshead Adjusting Speed (IPM): 12
Approximate Overall Dimensions:

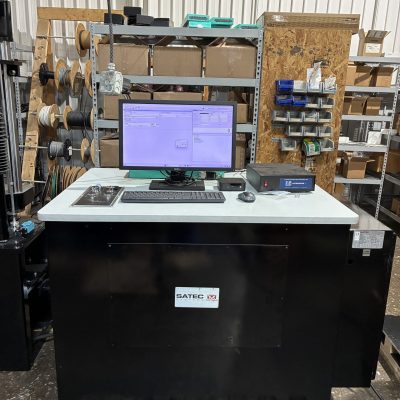

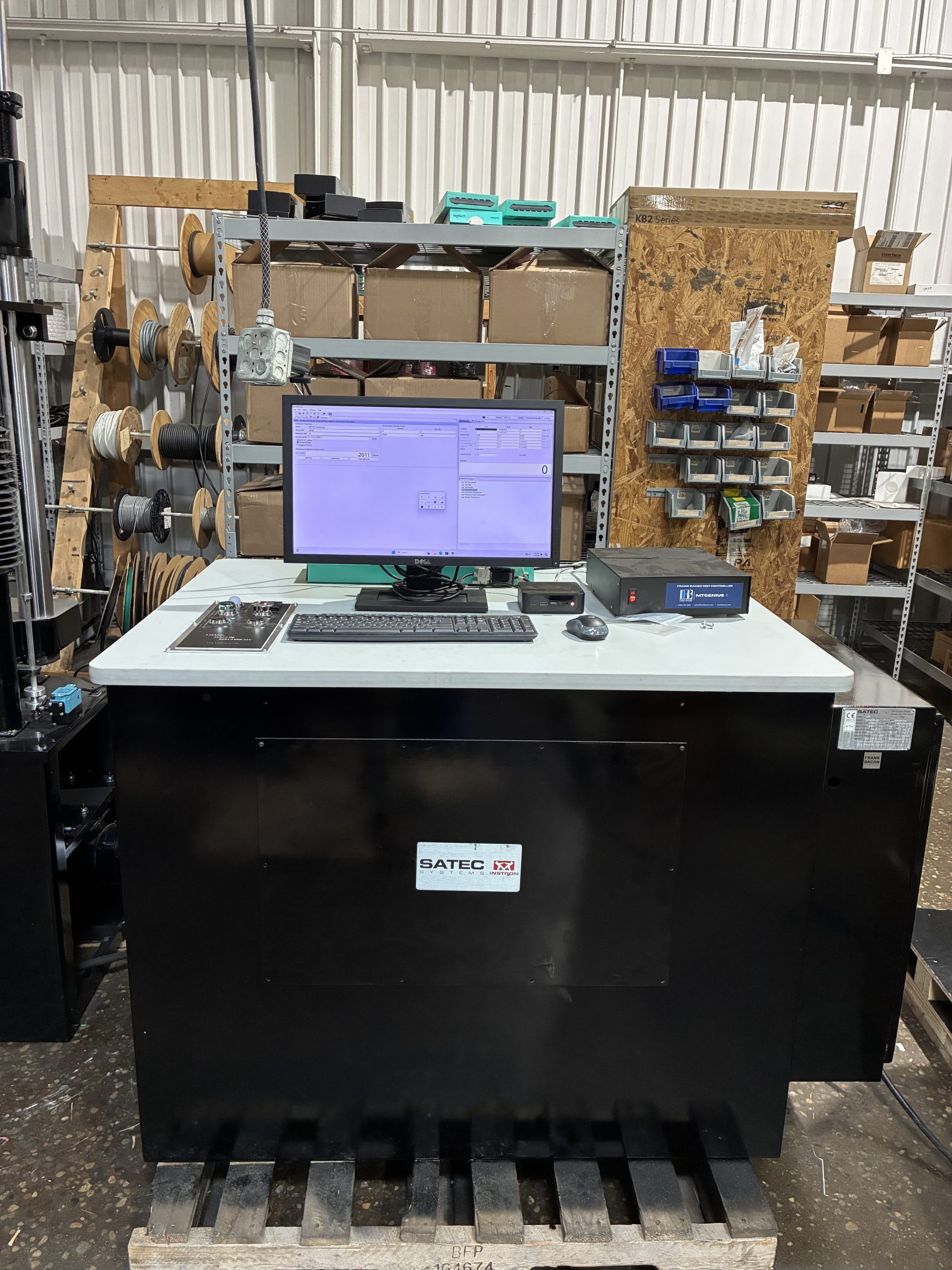

Servo Console (W x D x H): 36" x 24" x 38"

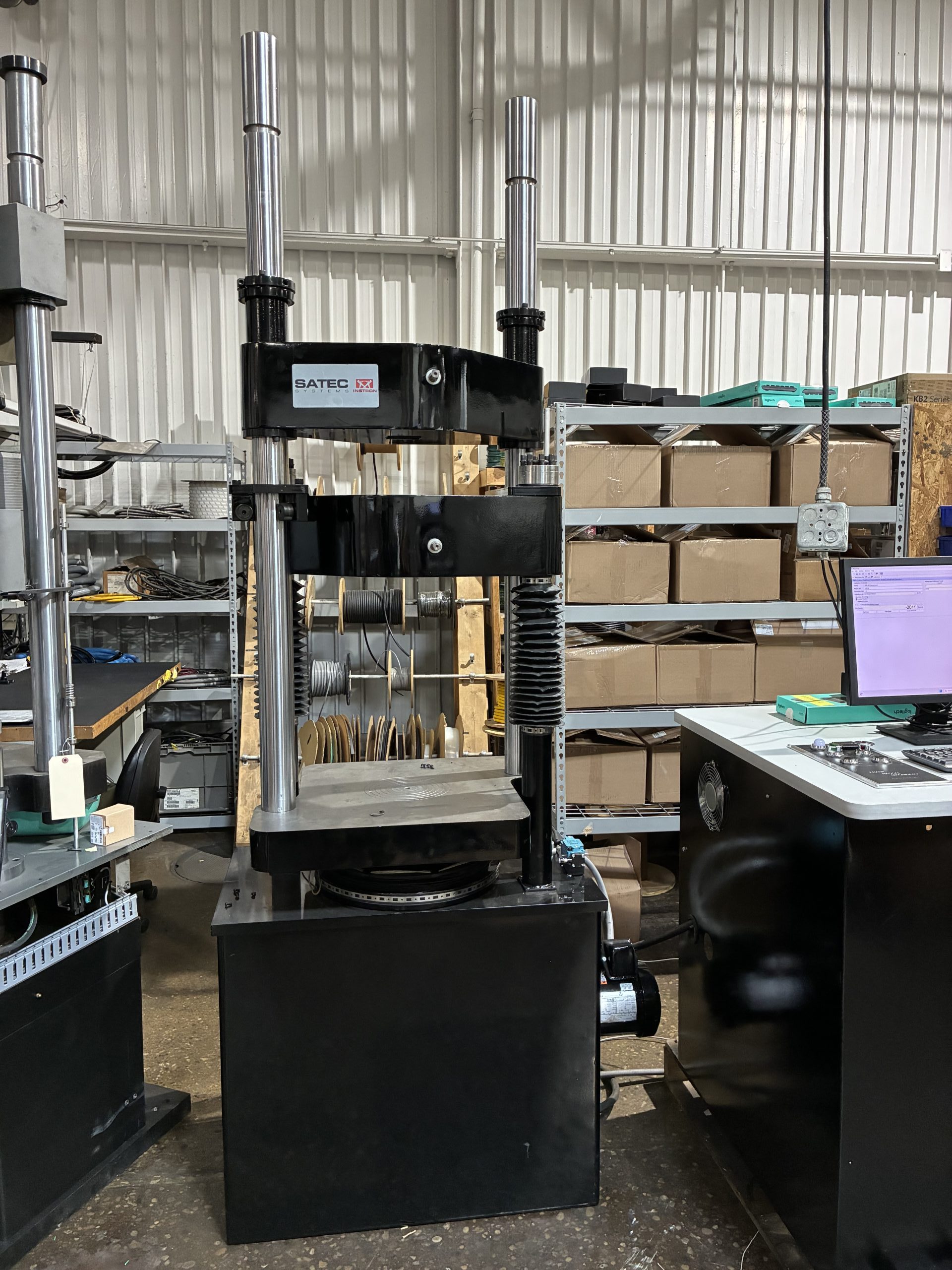

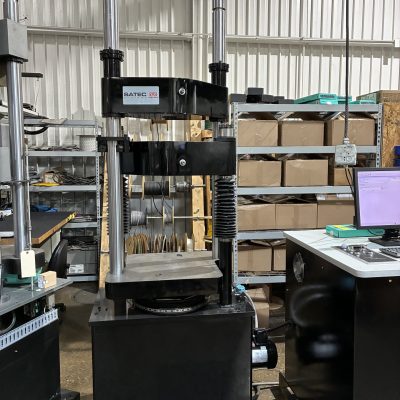

Load Frame (W x D x H): 48" x 28" x 92"
Approximate Weight (lbs.): 4,000
Electrical Requirements (V,Hz,PH): 220/440, 60, 3
EQUIPPED WITH:
• Computer system with keyboard and mouse.
• 24" LED-Backlit LCD Color Monitor
• Microsoft Windows 10 Professional, Workstation
• MTGenius Material Testing Software for Data Acquisition (load, position, 2 strain & aux), Analysis
and Computer Controlled Testing with Manual.
• MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB
Cable.
• Celesco, High Resolution TTL compatible incremental quadrature Encoder for position and
testing speed values with signal cable and mounting hardware.
• Reconditioned Servo Hydraulic Pumping System for Closed Loop Computer Controlled Testing

FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty

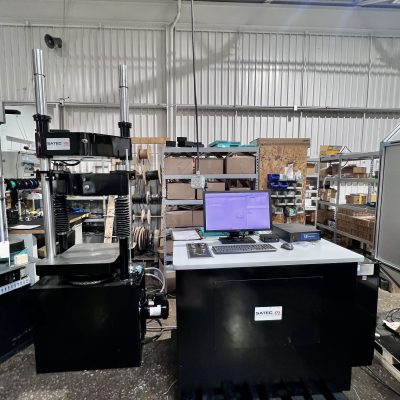

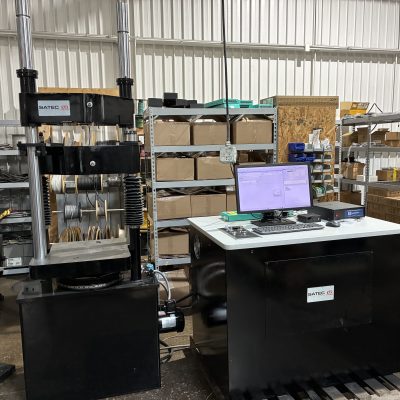

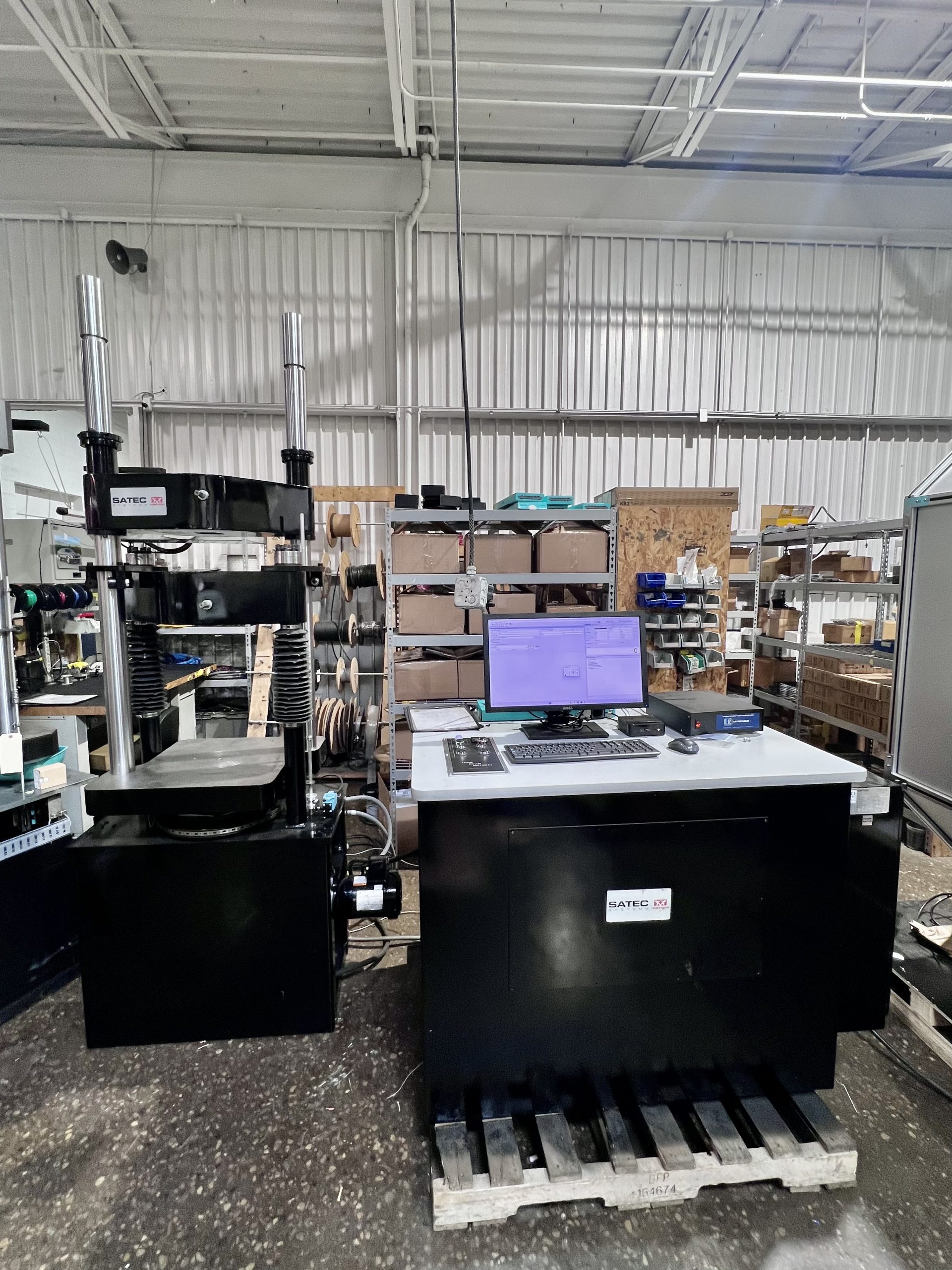

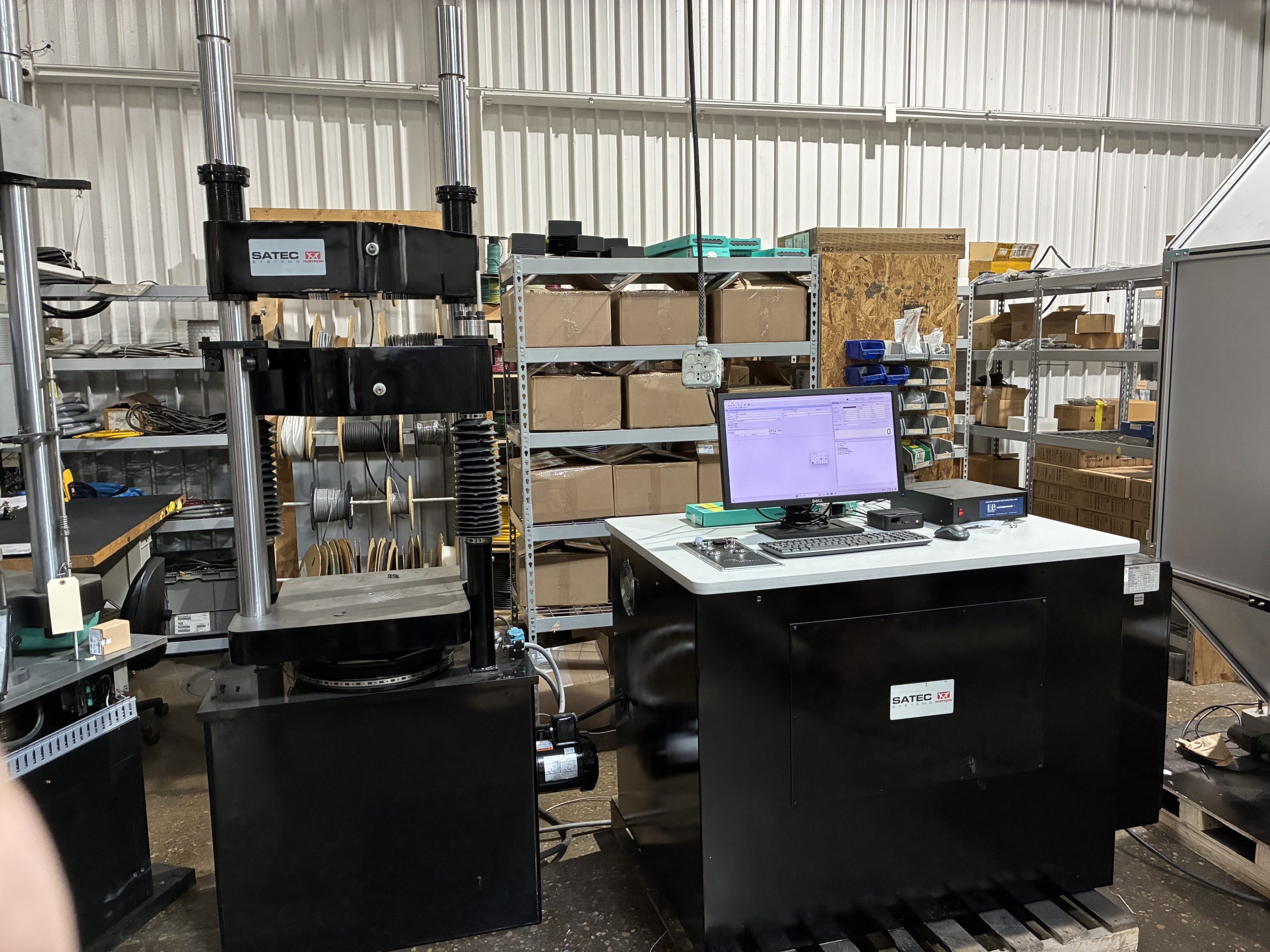

*Representative Image After Reconditioning
