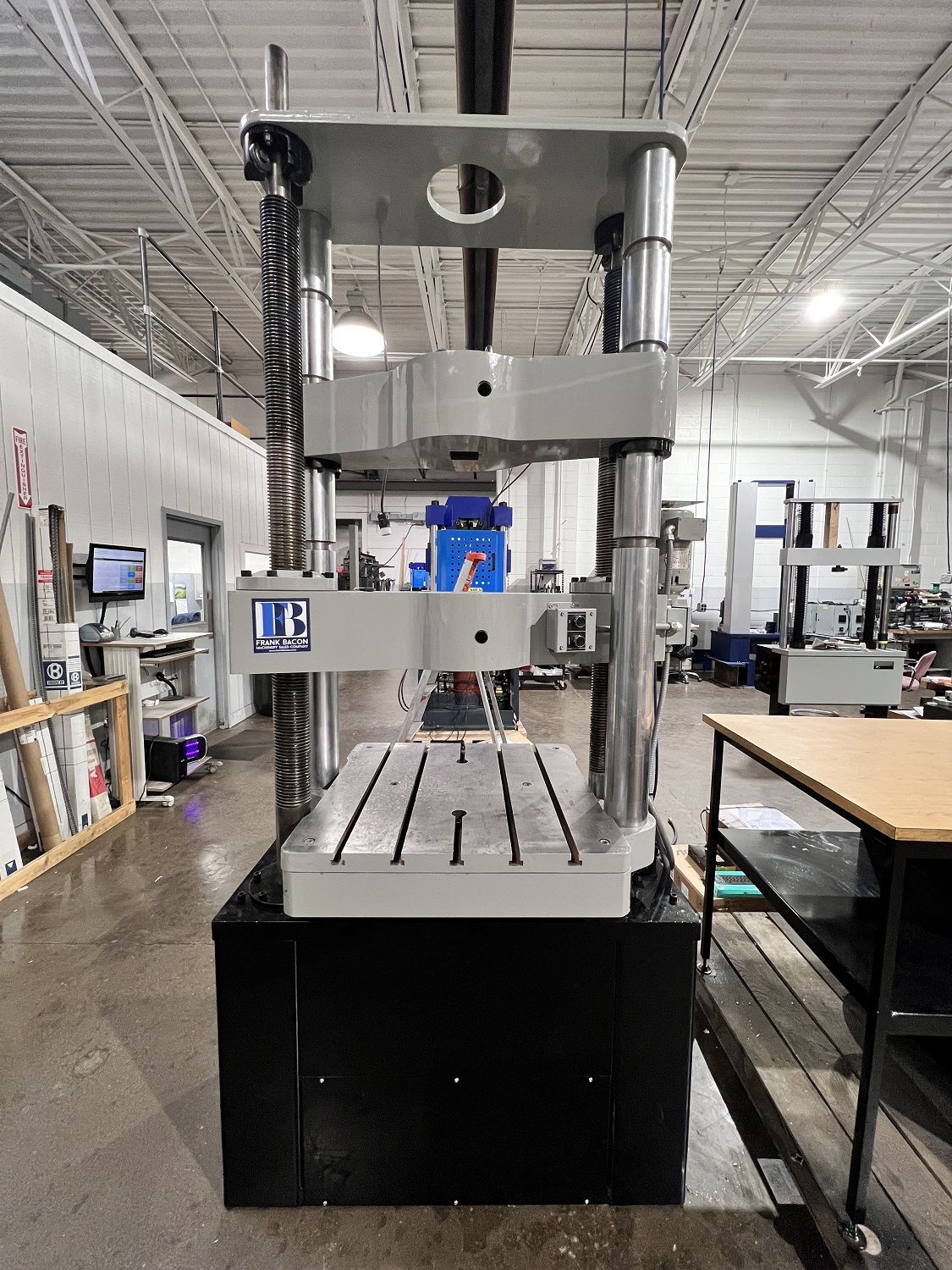

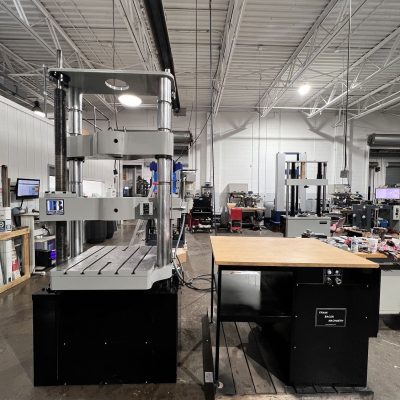

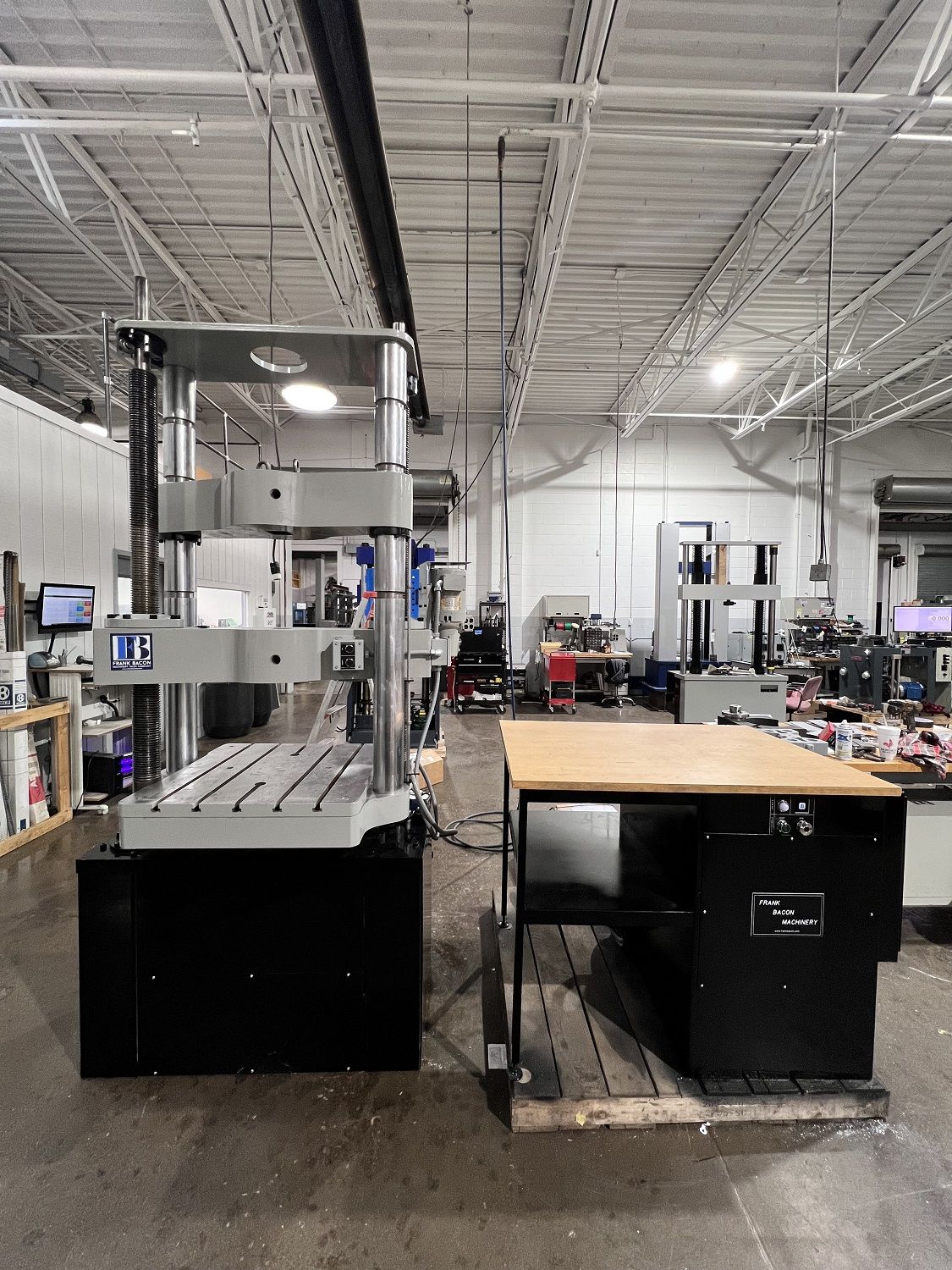

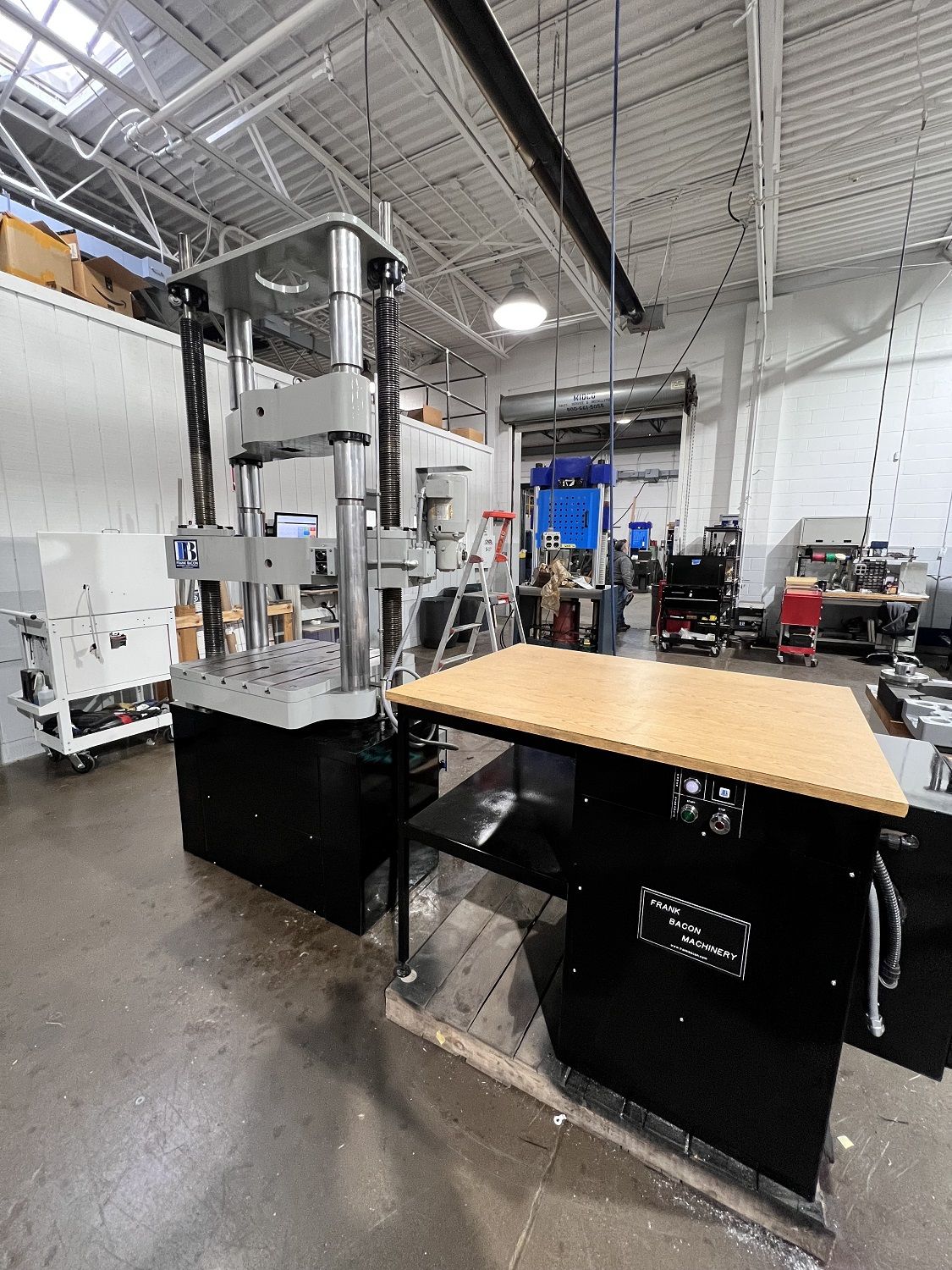

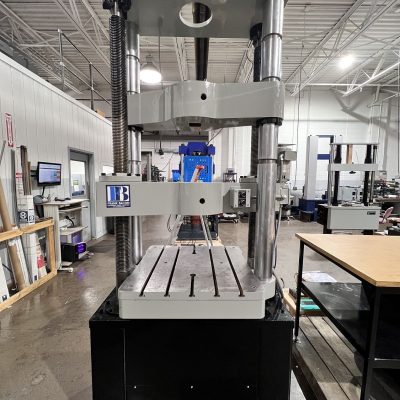

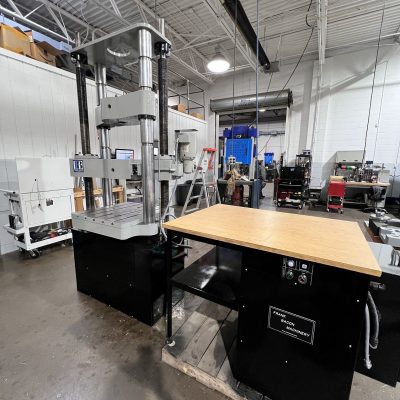

120K (600kN) Satec WHVL (MTQ Servo)

Satec Model WHVL

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 52"

Compression Testing Opening (Less Tooling): 52"

Distance Between Columns/Screws: 30"

Testing Stroke: 9"

Table Size (W x D): 30" x 30"

Testing Speed (IPM): 0 – 3

Crosshead Adjusting Speed (IPM): 12

Approximate Overall Dimensions:

New Servo Console (W x D x H): 36" x 24" x 38"

Load Frame (W x D x H): 48" x 28" x 112"

Approximate Weight (lbs.): 7,000

Electrical Requirements (V,Hz,PH): 220/440, 60, 3

EQUIPPED WITH:

New Windows 11 Pro Computer System with Keyboard and Mouse
24" Flat Screen Monitor
MTGenius, Material Testing Software for Data Acquisition (load, position, 2 strain & aux), Analysis and Computer Controlled Testing with Manual.
MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB Cable.
High Resolution TTL Compatible Incremental Quadrature Encoder for Position and Testing Speed Values with Signal Cable and Mounting Hardware.
Reconditioned Instron Servo Hydraulic Power Supply for Closed Loop Computer Controlled Testing and Space Saving Design
Load Cell Based Force Indicating System
Precision Encoder for Displacement and Speed Feedback
Adjustable Top Crosshead
