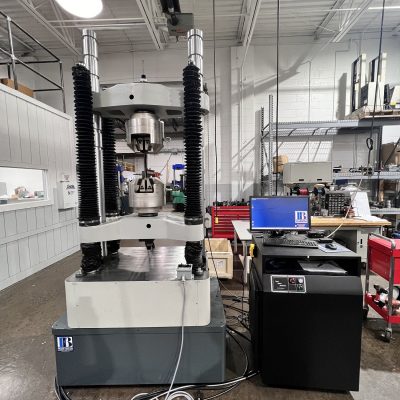

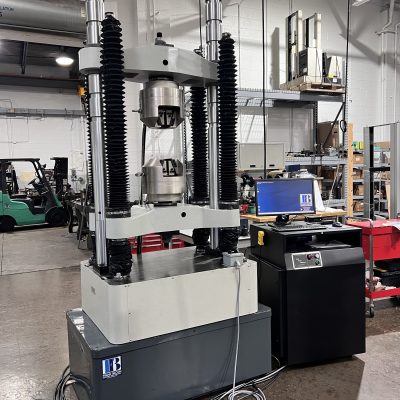

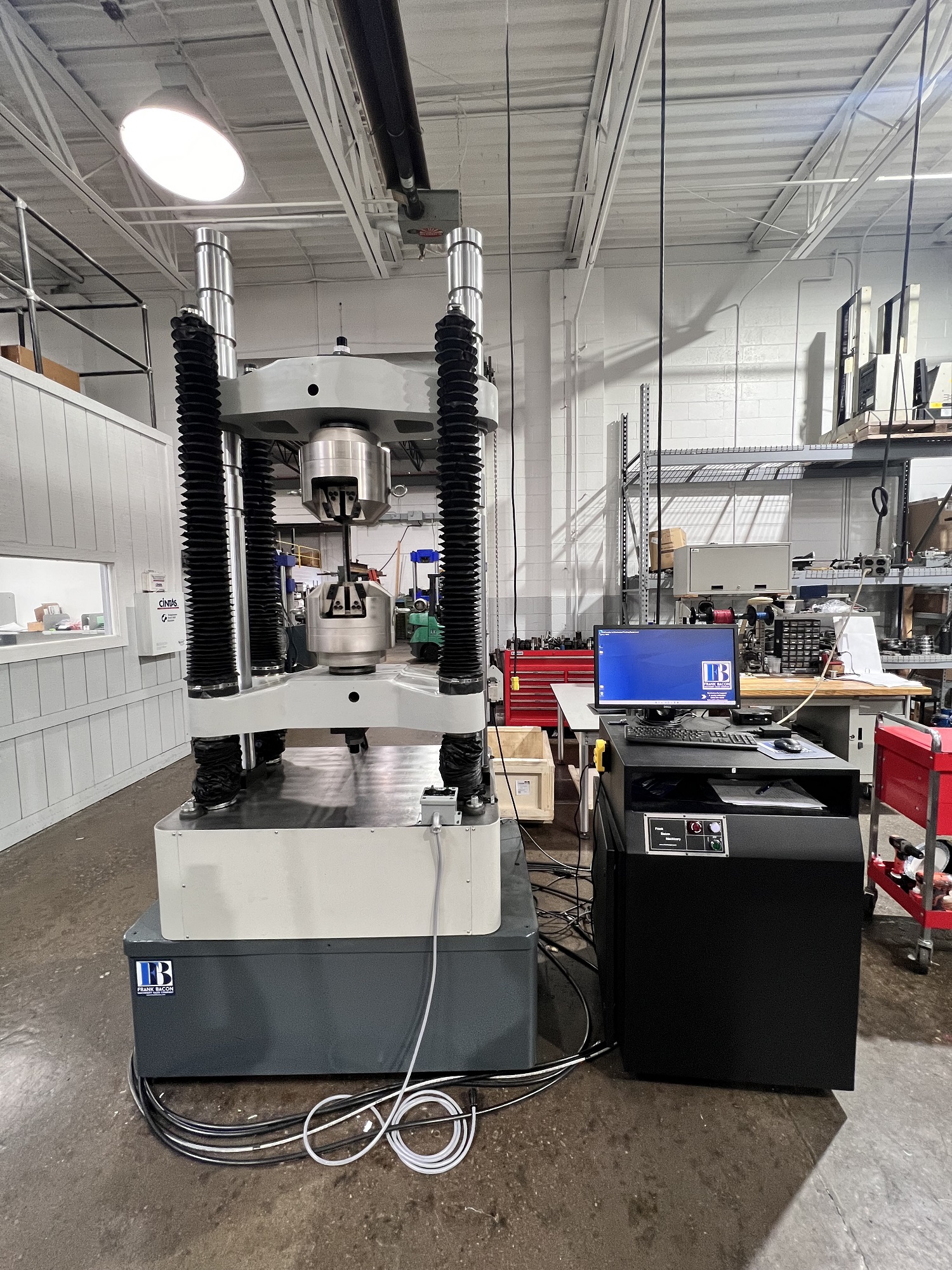

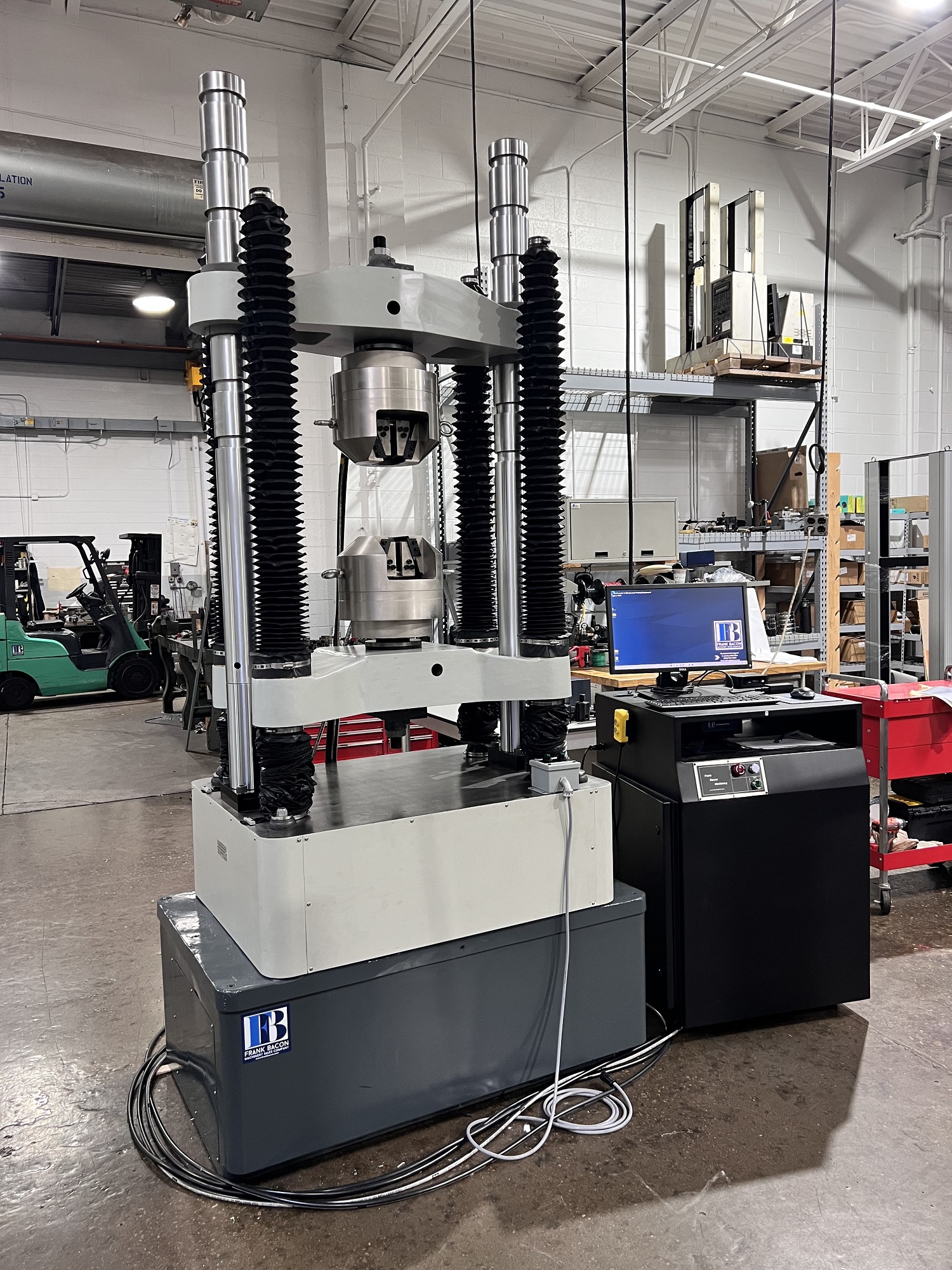

120K (600kN) Tinius Olsen Electomatic 4-Screw Tensile & Compression Test System

(1) Reconditioned 120,000 lbf (600 kN) Capacity Tinius Olsen, Model Electomatic, Four Screw Electro-Mechanical Tension and Compression Testing Machine with New AC Servo Motor & Drive Controller and Precision Load Cell Indicating System

Tinius Olsen Model Electomatic

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 48"

Compression Testing Opening (Less Tooling): 48"

Distance Between Columns/Screws: 30"

Testing Stroke: 48"

Table Size (W x D): 30" x 33½"

Testing Speed (IPM): .0002 - 10

Crosshead Adjusting Speed (IPM): 10

Approximate Overall Dimensions:

New Console (W x D x H): 26" x 27" x 36"

Load Frame (W x D x H): 52" x 34" x 103½"

Weight (lbs.): 9,500

Electrical Requirements (V,Hz,PH): 220/440, 60, 3

EQUIPPED WITH:

• New Windows Computer System with Keyboard and Mouse
• 24" LED-Backlit LCD Color Monitor
• MTGenius Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
• MTGenius Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
• Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
• New Yaskawa AC Servo Motor with Incremental Encoder and Yaskawa Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).

FOB Warren MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty
