Condition: Excellent
SPECIFICATIONS:
Random Force Rating (lbf): 14,837 (66 kN)
Sine Force Rating (lbf): 13,000 (57.83 kN)
Force Rating (Half Sine Shock (lbf)): 26,607 (118.35 kN)
Peak to Peak Displacement: 2.5" (63.5 mm)
Frequency Range (Hz): DC to 2500
Armature Diameter: 17.32" (440 mm)
Max. Armature Weight (lbs.): 92.6 (42 kg)
Acceleration: 140 G Sine / 100 G Random
Velocity (Sine Peak) (in/s): 70.9 (1.8 m/s)
Total Approximate Weight (lbs.): 7,100
Overall Dimensions:
Trunnion Mounted Shaker: 67"W x 45"L x 52"H
Amplifier: 22"W x 32"D x 69"H
Cooling Blower: 26" x 22" x 30"H
Voltage Requirements: 415V, 60Hz, 3PH, 86.9kVA

EQUIPPED WITH:

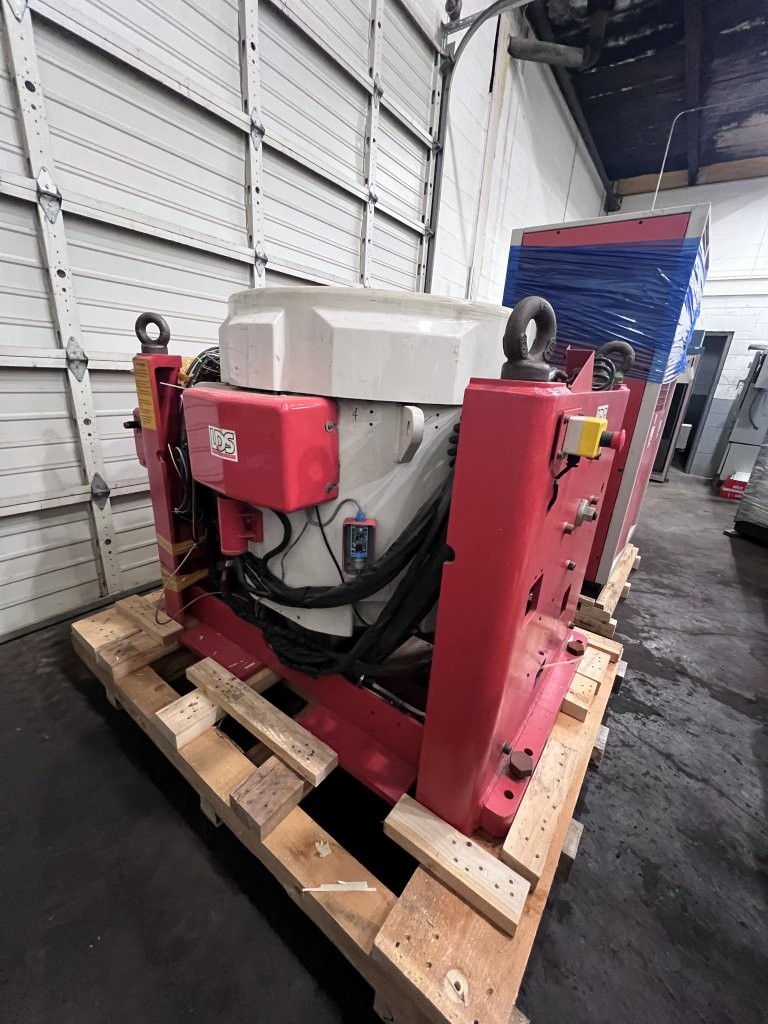

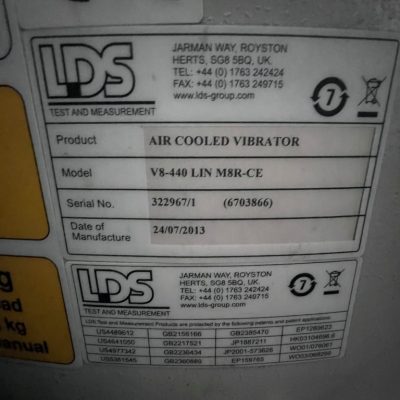

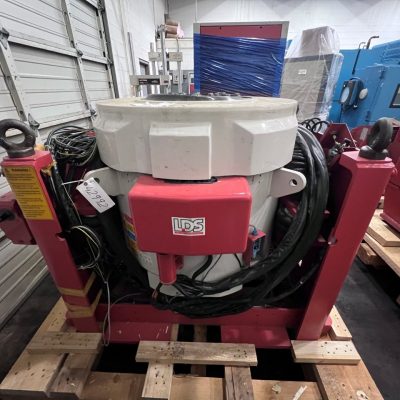

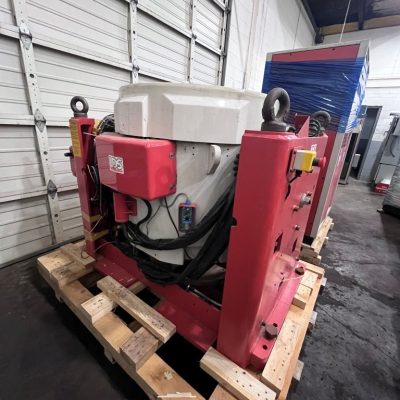

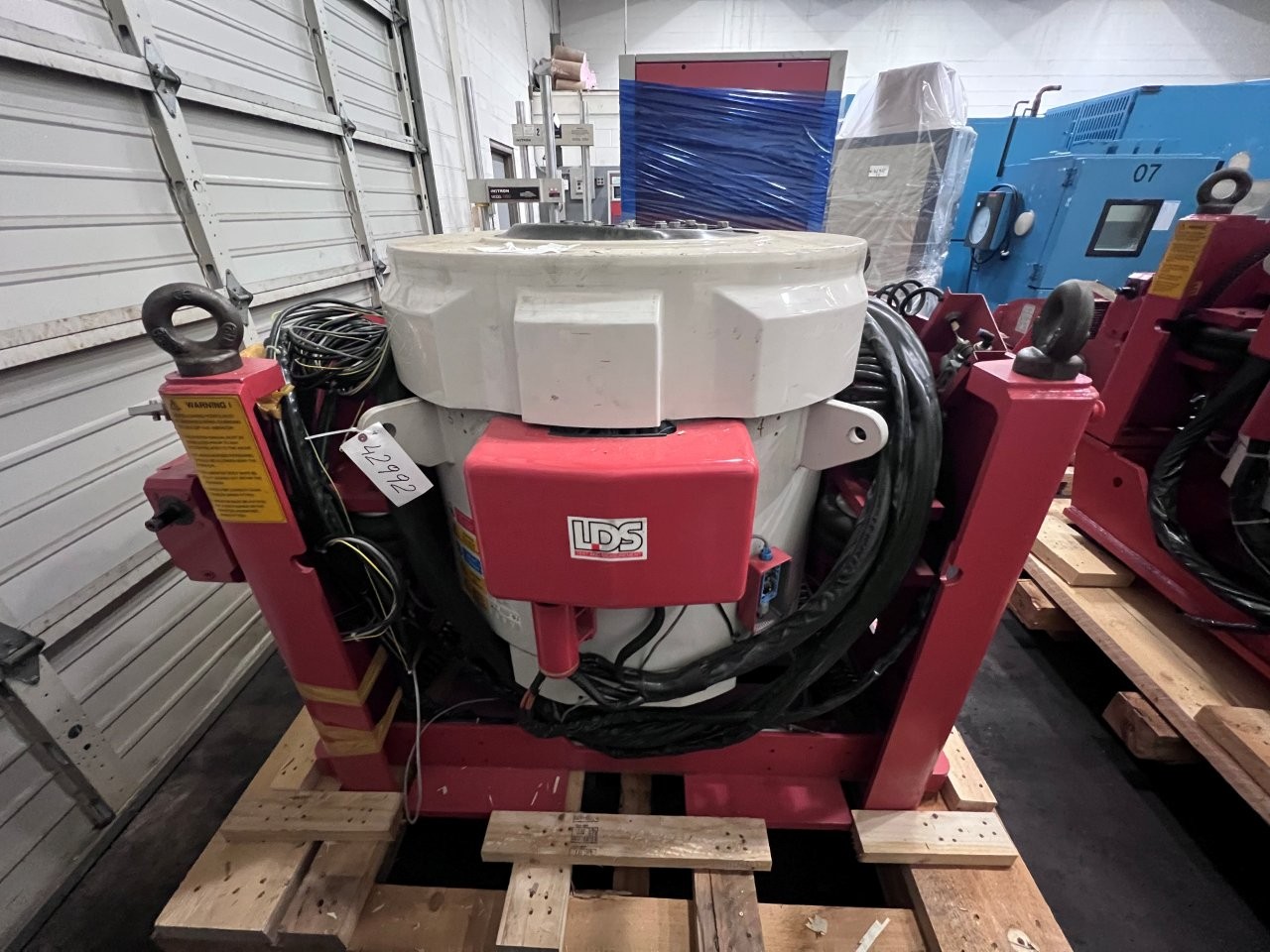

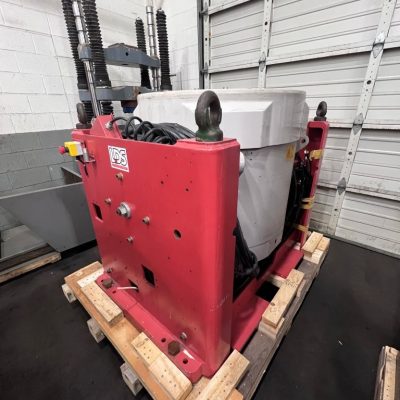

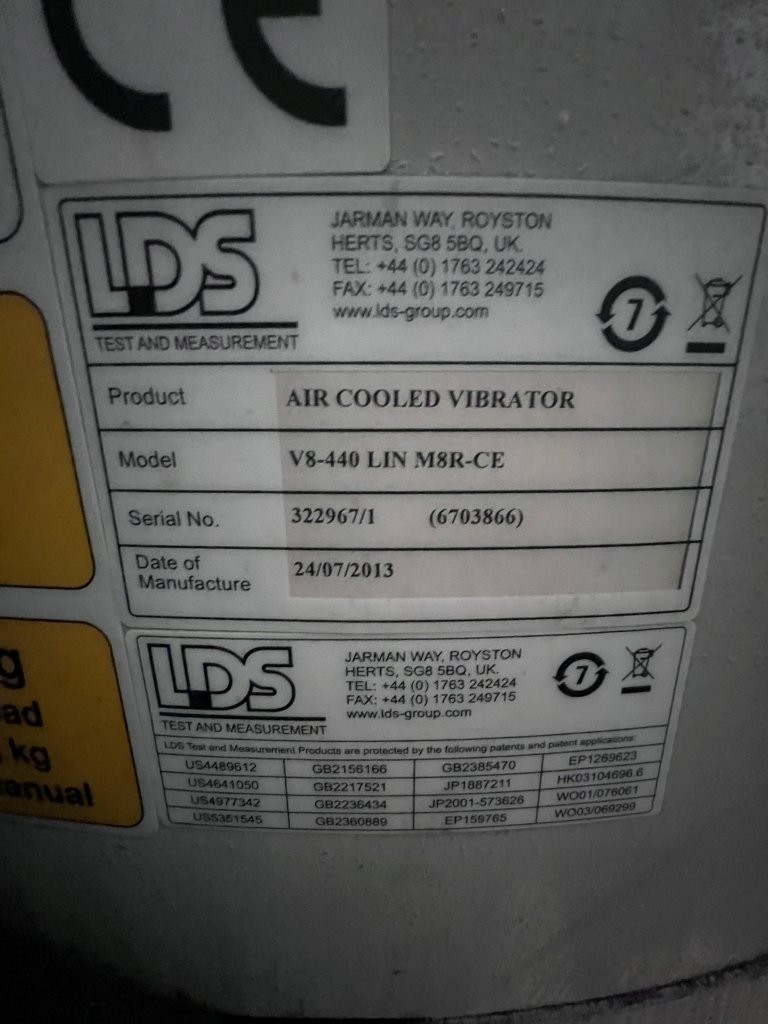

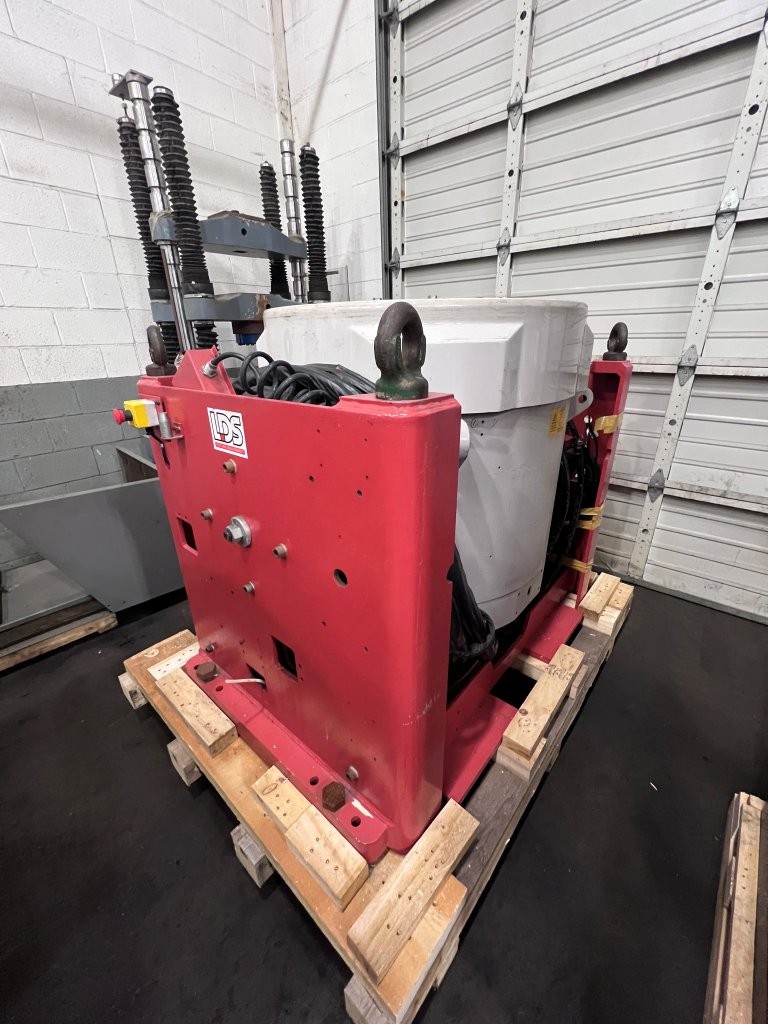

-V8-440 Air Cooled Vibrator S/N 322967/1

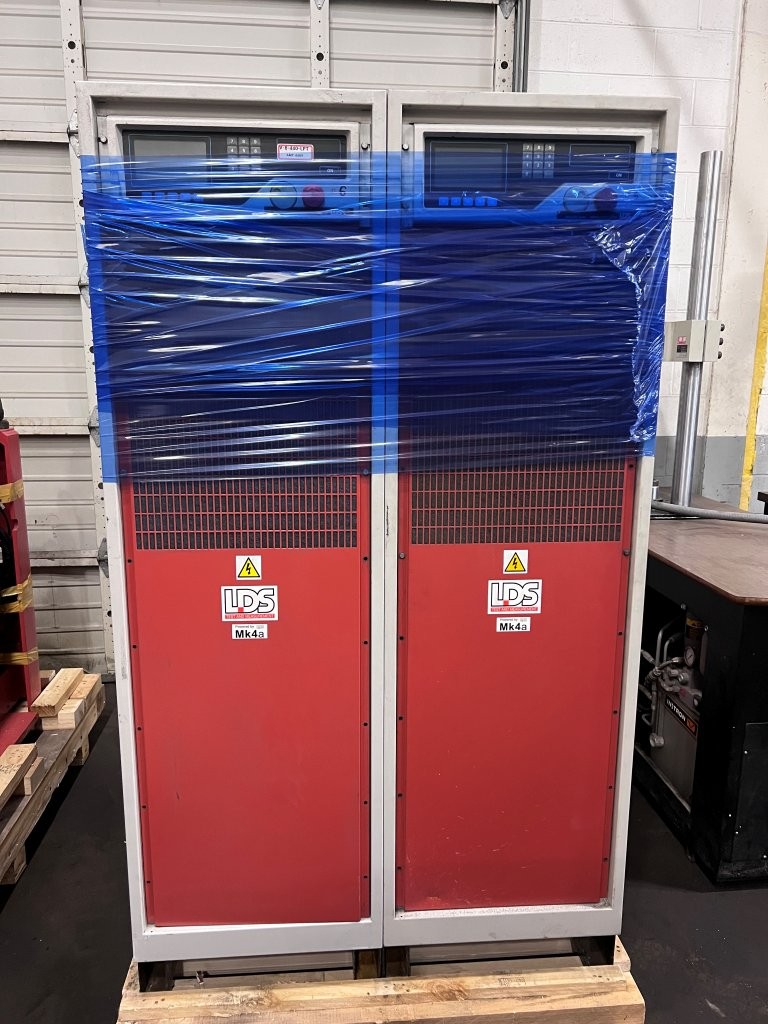

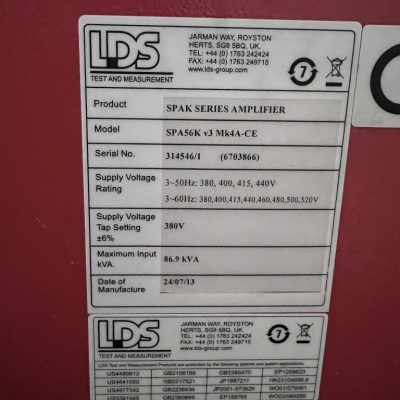

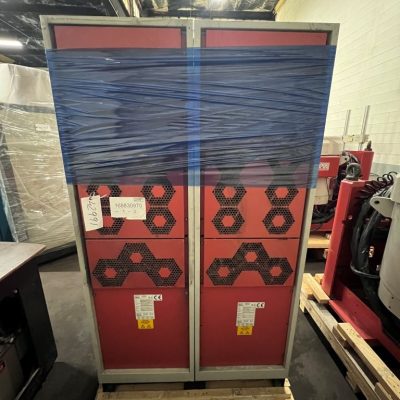

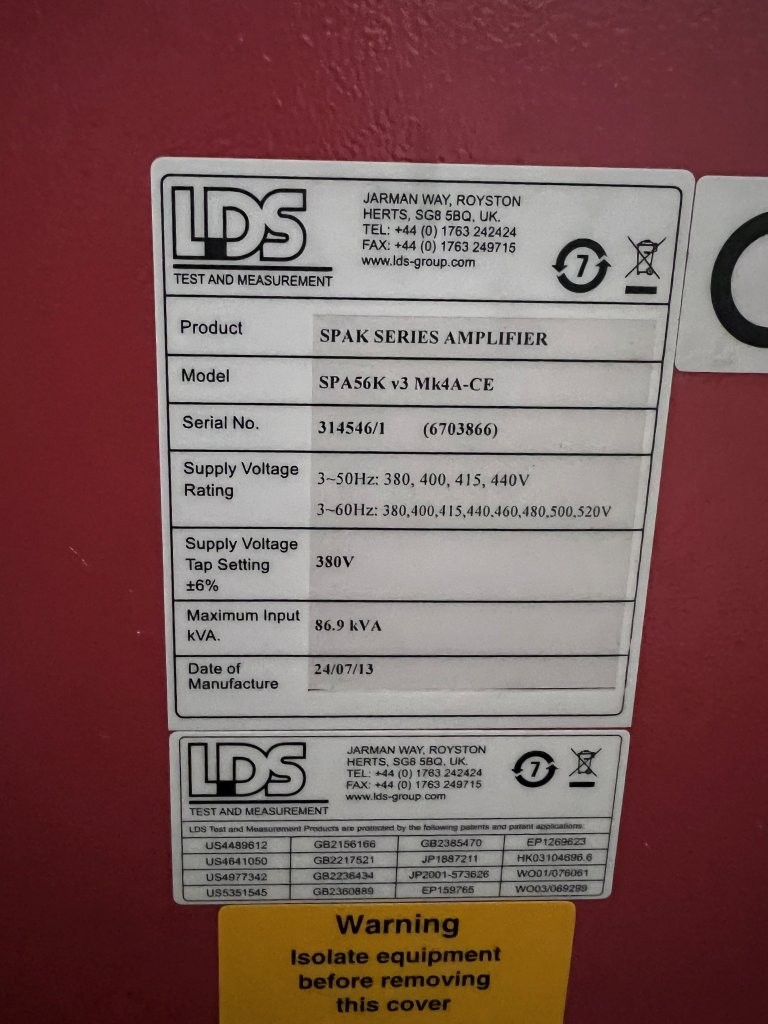

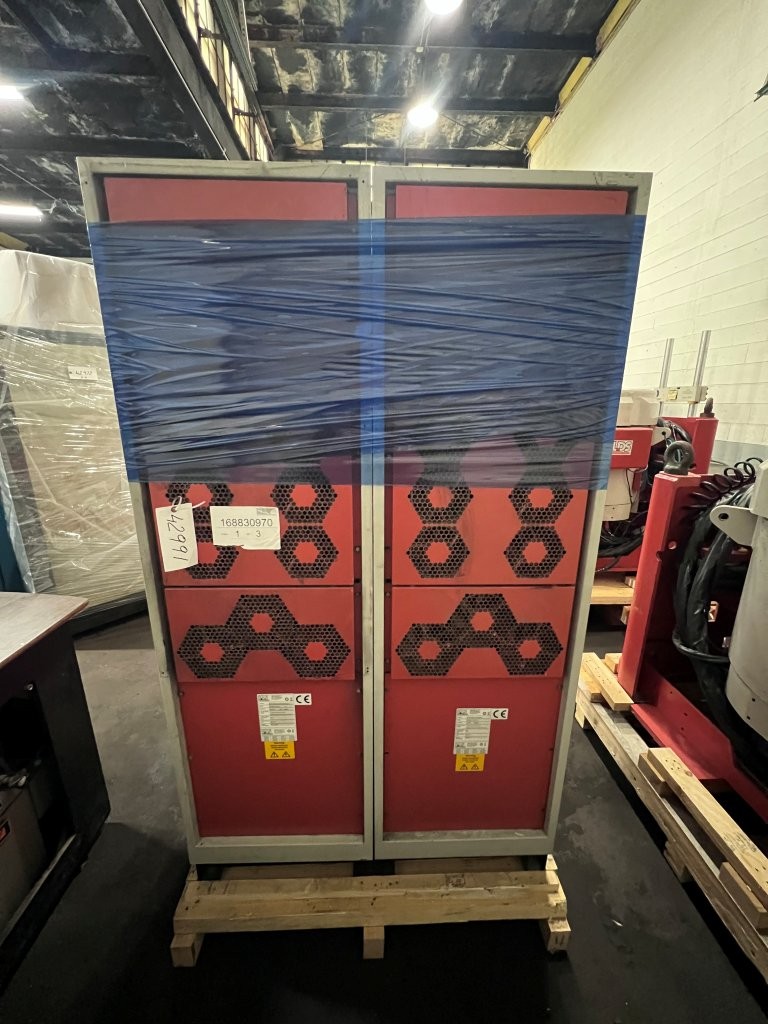

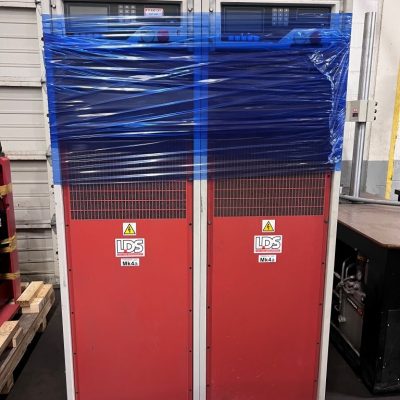

-LDS SPA56Kv3 Mk4a Power Amplifier with Integral Field Power and Blower Power Supplies
-LDS V8 Cooling Blower
-LDS Pneumatic Box
-System Cables
