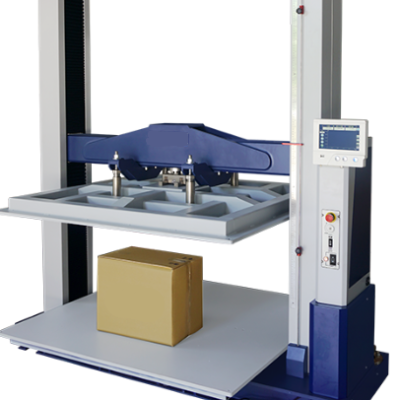

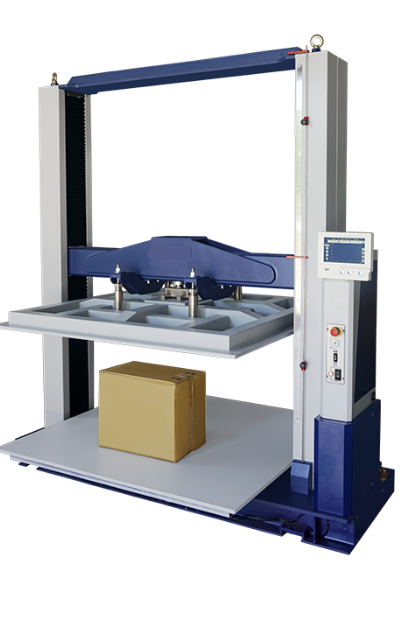

150kN FB-150EM-PC Package Compression Test System

SPECIFICATIONS:

Compression Testing Opening (Less Tooling): 60"

Testing Stroke: 61"

Distance Between Columns: 60.2"

Upper and Lower Platen Size: 60"x 60"

Test Speed: .002 to 10 IPM

Overall Dimensions: 72" x 72" x 88"

Weight: 2,764lbs

Electrical Requirements: 200-230V 60Hz 3Phase

EQUIPPED WITH:

• Computer System with Keyboard & Mouse.
• 24" LED-Backlit LCD Color Monitor
• Microsoft Windows 11 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
• 150kN Compression Load Cell

Conforms to Standards:

• ASTM D4169
• ASTM D642
• ISO 12048
• ISO 2872

FOB Warren, MI

2 Year Parts and Labor Warranty

FOB Warren, MI
Industry Leading 2 Year Parts and Labor Warranty

30 Day Satisfaction Guarantee Return Privilege
ISO 17025 Accredited Certification

Hundreds of Grips, Fixtures, and Accessories Available
