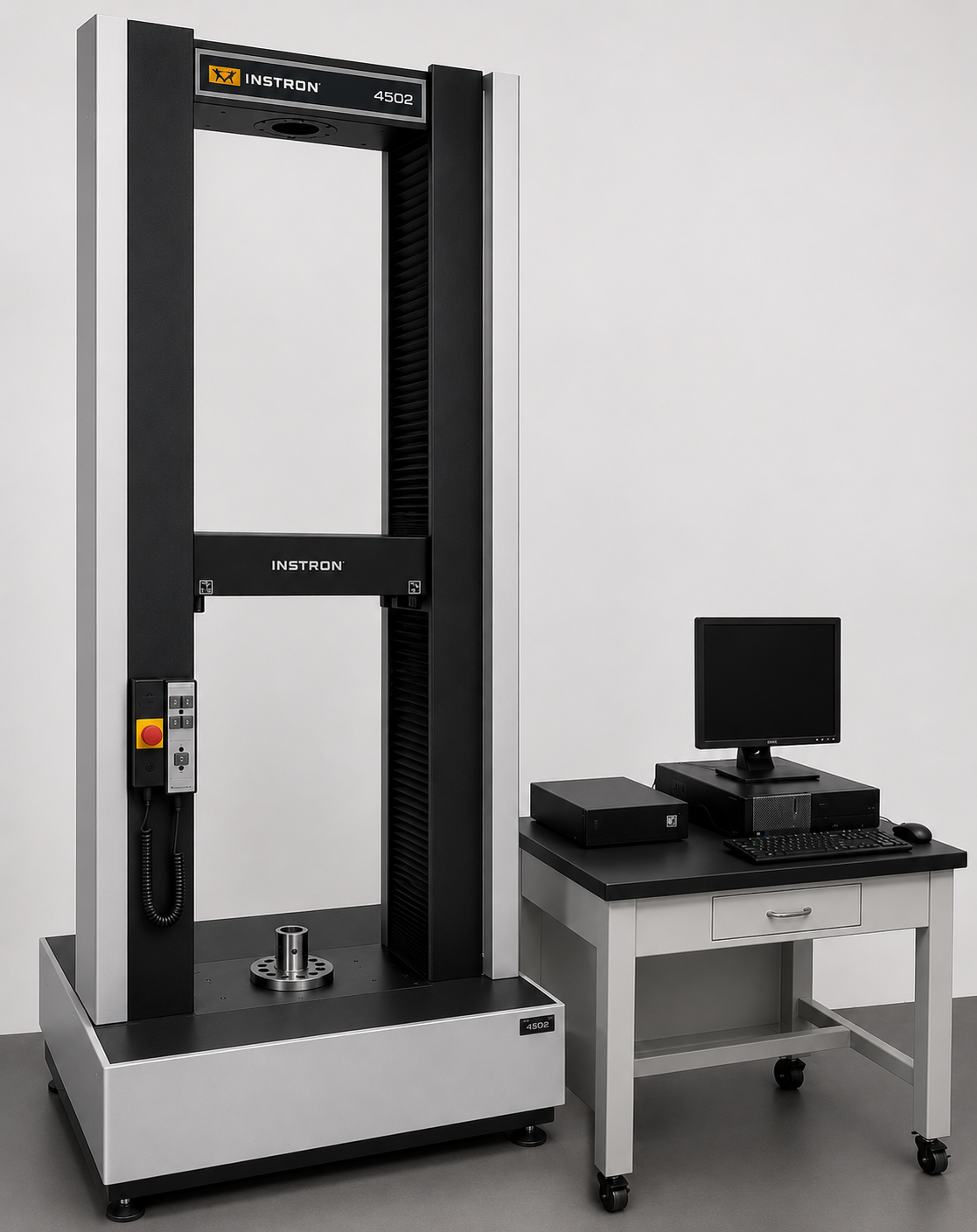

2,250 lbf (10kN) Instron 4502 (Extra Tall)

Instron Model 4502

SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 72"
Compression Testing Opening (Less Tooling): 72"
Distance Between Columns/Screws: 16"
Testing Stroke: 72"
Table Size (W x D): 16" x 8"
Testing Speed (IPM): .00004 to 40
Crosshead Adjusting Speed (IPM): 40
Approximate Overall Dimensions:
New Tabletop Control Console (W x D x H): 16" x 19.5" x 11.5
Load Frame (W x D x H): 29" x 30" x 90"
Weight (lbs.): 600
Electrical Requirements (V, Hz, PH): 230, 50-60, 1

EQUIPPED WITH:
• Computer System with Keyboard & Mouse.
• 24" LED-Backlit LCD Color Monitor
• Microsoft Windows 10 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
• Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
• New AC Servo Motor with Incremental Encoder and Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
• 10kN Tension & Compression Load Cell
• Upper and Lower Quick Release Hubs

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty
