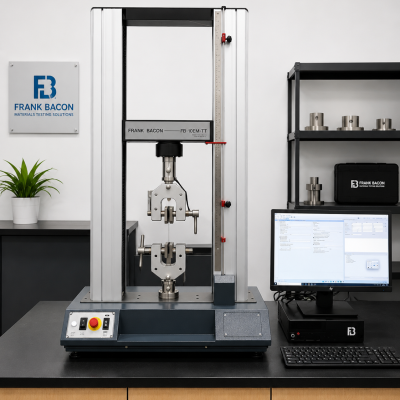

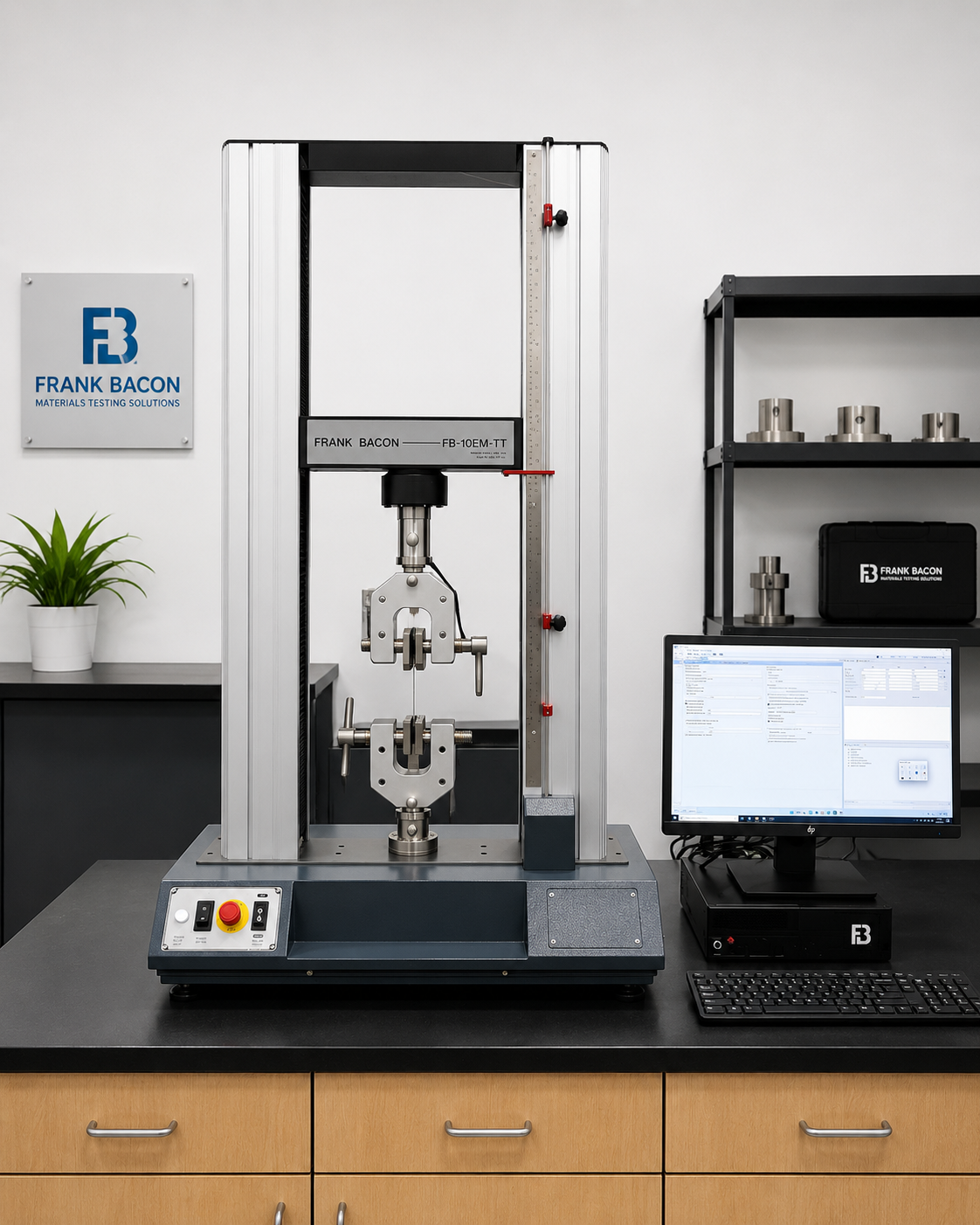

NEW 2,250lbf (10 kN) Capacity, Frank Bacon Machinery Dual-Space Table Top Tension and
Compression Testing Machine with Precision Load Cell.

SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 46"
Compression Testing Opening (Less Tooling): 46"
Distance Between Columns/Screws: 16"
Table Size: 16" x 5.5"
Testing Stroke: 46"
Testing Speed (IPM): .00002 – 20
Crosshead Adjusting Speed (IPM): 20
Load Frame Dimensions: 35" x 23" x 58"
Electrical Requirements (V,Hz,PH): 120, 60, 1

EQUIPPED WITH:
• Computer with Keyboard & Mouse
• 24" LED-Backlit LCD Color Monitor or Better & Manual
• Microsoft Windows 10 Professional, Workstation
• Frank Bacon MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2
Strain), Analysis and Computer Controlled Testing with Manual.
• Frank Bacon MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal
Processing with USB Cable.
• Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and
Crosshead Jog Controller.
• Precision AC Servo Motor and Drive
• 10kN Tension & Compression Load Cell
• Upper and Lower Quick Release Adaptors
