2.2KIP LDS V830-335T Vibration Test System
LDS Model V830-335T
Condition: Excellent
SPECIFICATIONS:
Random Force Rating (lbs.): 1540 rms
Sine Force Rating (lbs.): 2205 Peak
Force Rating (Half Sine Shock): 5602
Peak to Peak Displacement: 2"
Frequency Range (Hz): 3000 Max
Table Diameter: 13"
Max. Armature Weight (lbs.): 26.57
Armature Diameter: 13.2"
Total Approximate Weight (lbs.): 5,500
Overall Dimensions:
Shaker with Slip Table: 42"W x 72"L x 51"H
Amplifier: 22"W x 32"D x 69"H
Cooling Blower: 26" x 22" x 30"H
EQUIPPED WITH:
-

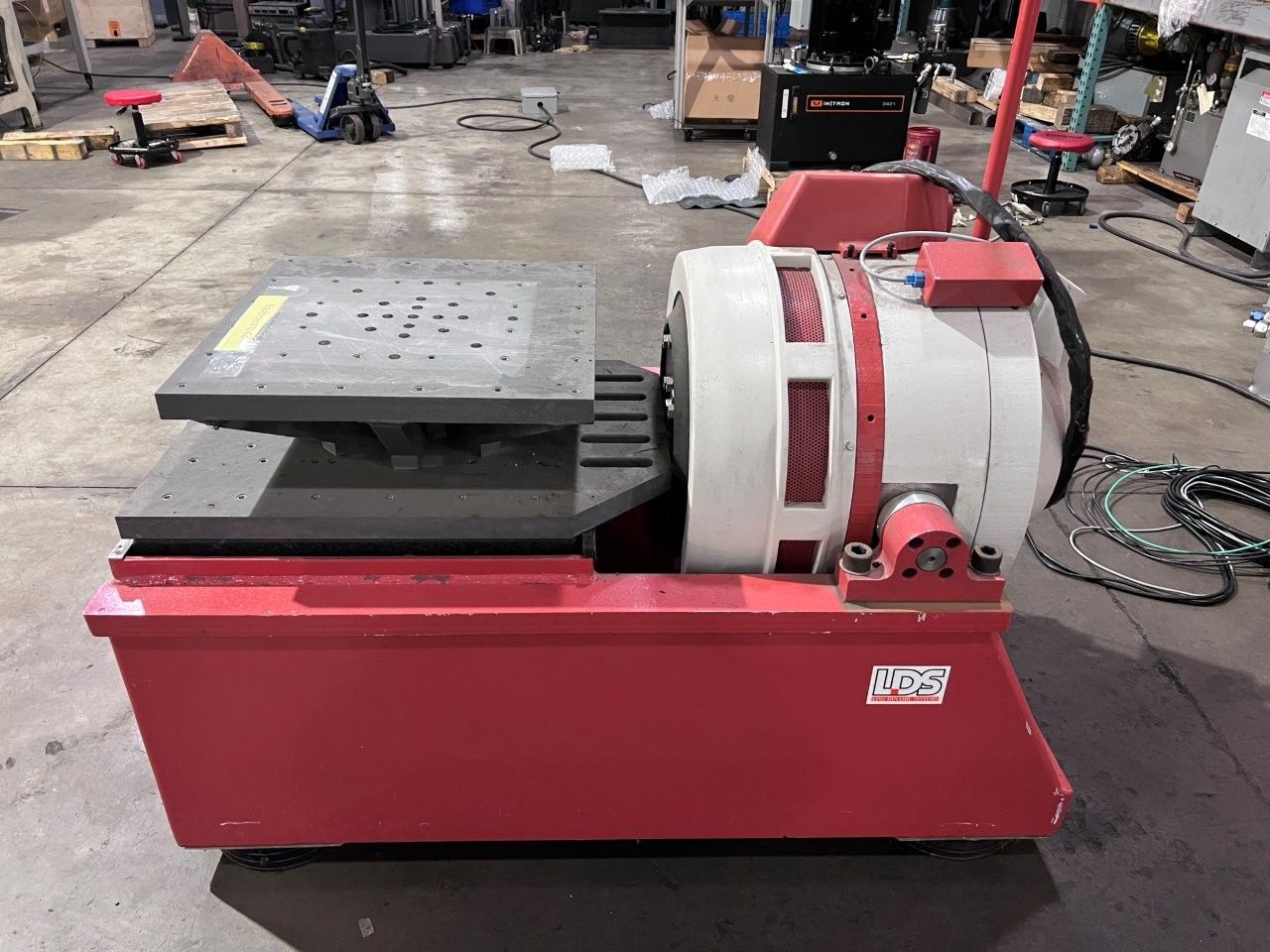

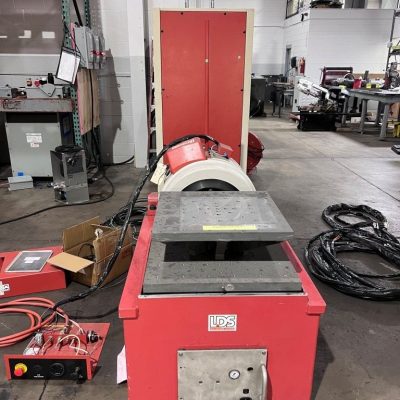

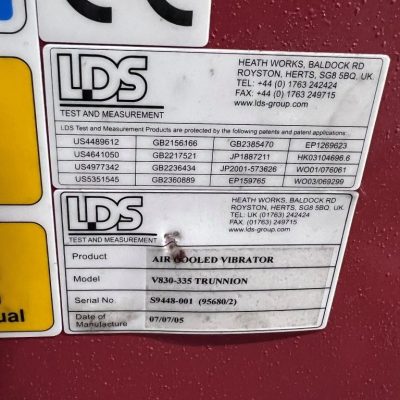

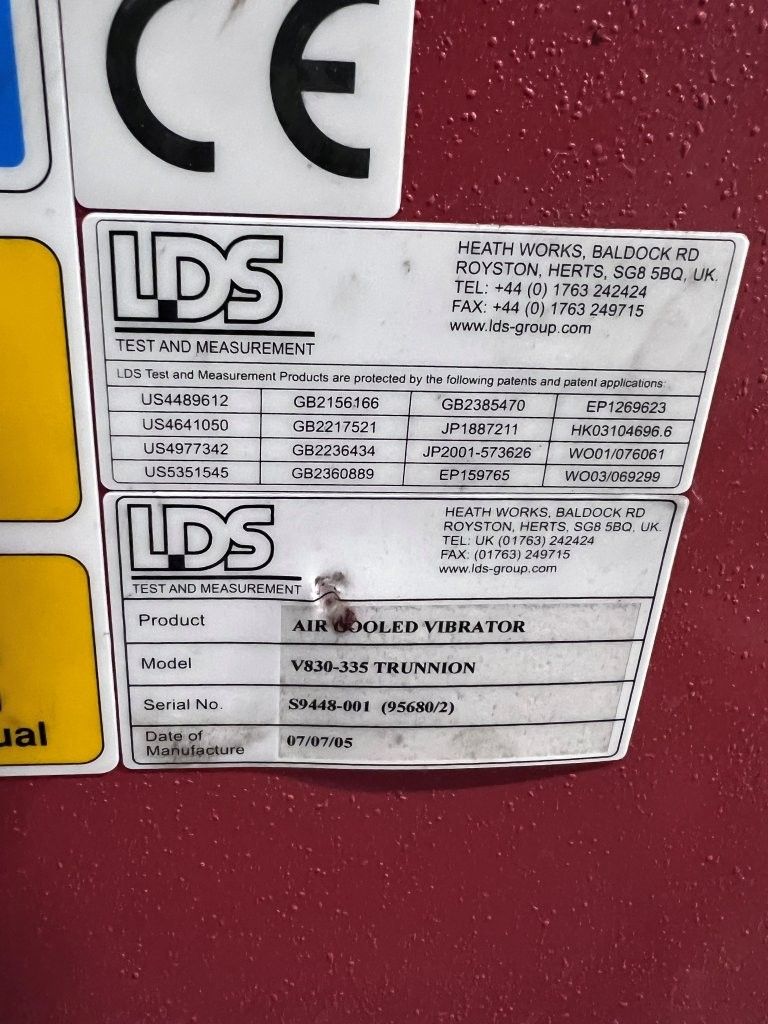

V830-335T Air Cooled Vibrator S/N S9448-001
-

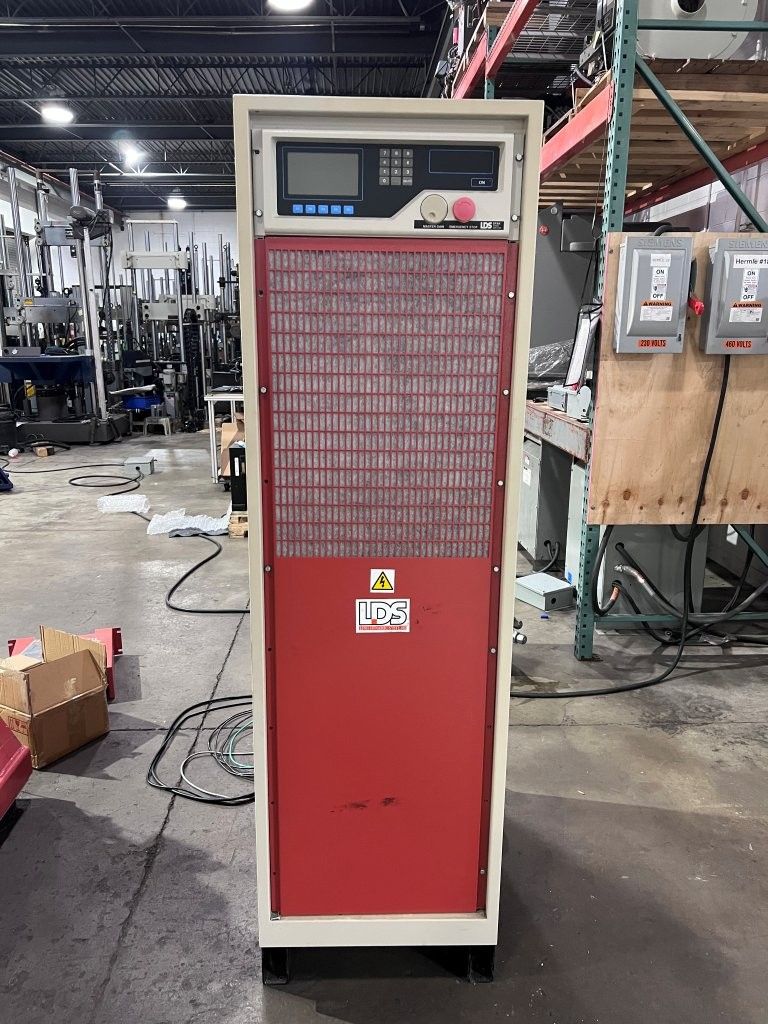

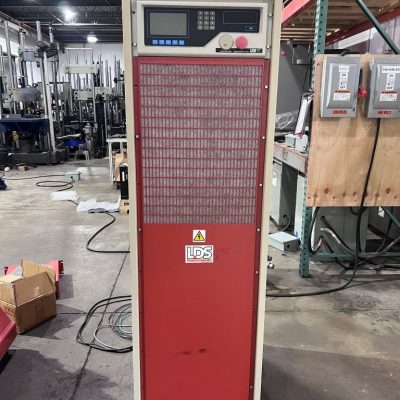

LDS SPA10K Power Amplifier with Integral Field Power and Blower Power Supplies (480V, 60Hz, 3Ph 19.41 kVA)
-

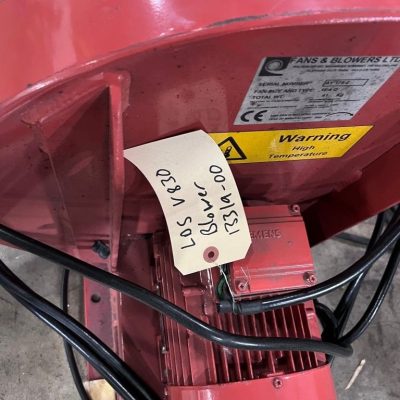

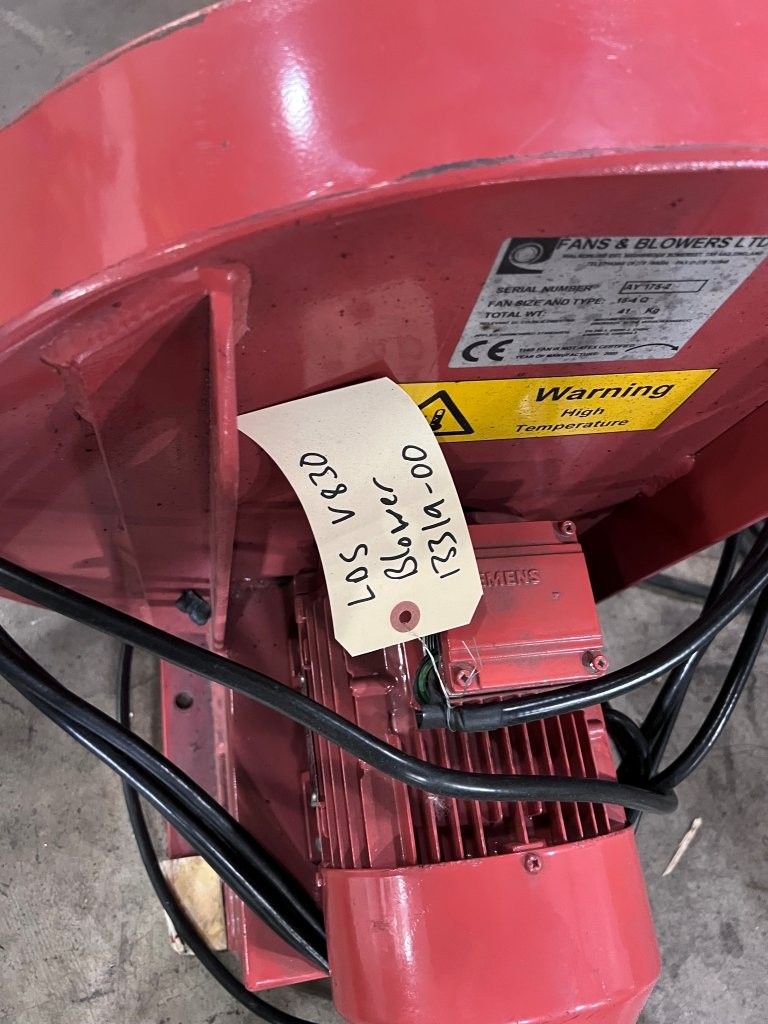

LDS V830 Cooling Blower
-
24” x 24” LDS Horizontal Slip Table
-
22" x 2" LDS Vertical Head Expander
-
LDS Pneumatic Box
-
System Cables
FOB, Warren, MI
Cleaned, Serviced & Cycled
30 Day Satisfaction Guaranteed Return Privilege
90 Day Parts and Labor Warranty
*Actual Images
Click for quote | #13319-00
