2.2KIP Unholtz Dickie S202 Vibration System and Slip Table
Unholtz-Dickie Model S202
SPECIFICATIONS:
Force Rating:
Random: 2,200 lbs. (RMS)
Sine: 2,200 lbs.
Stroke: 2" peak to peak
Frequency Range (Hz): DC to 3,500 Hz Max
Table Diameter: 13.40”
Armature Weight: 22 lbs.
Total Weight (lbs.): 5,500 lbs.
Voltage Requirements: 480V, 60Hz, 3PH, 30Amps
EQUIPPED WITH:
-

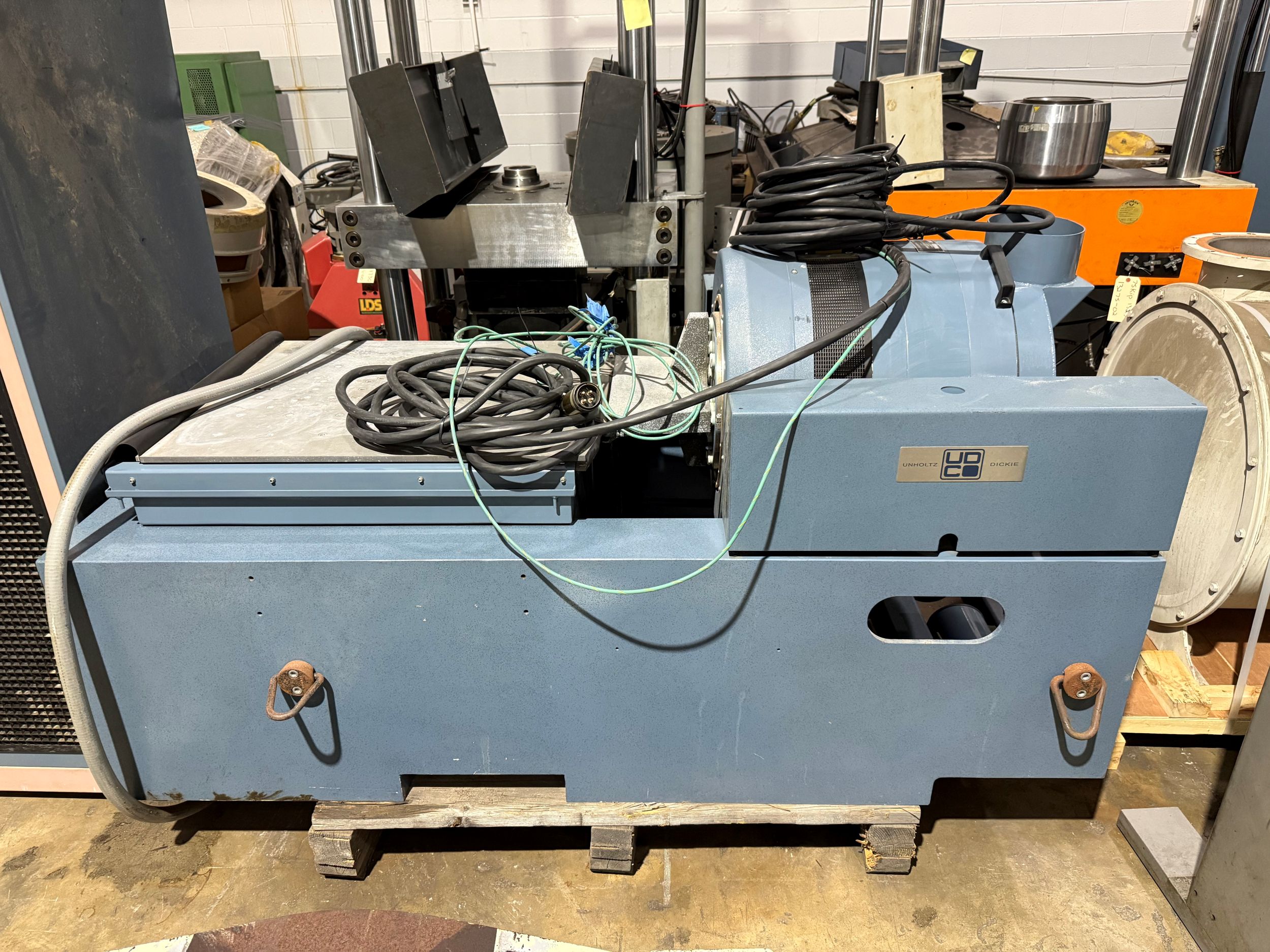

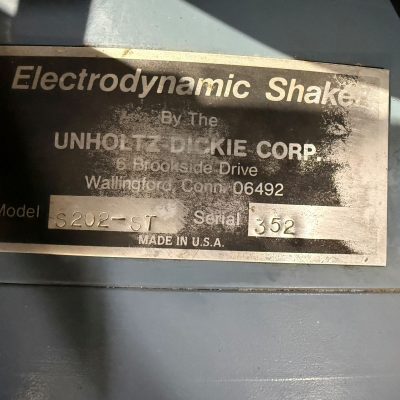

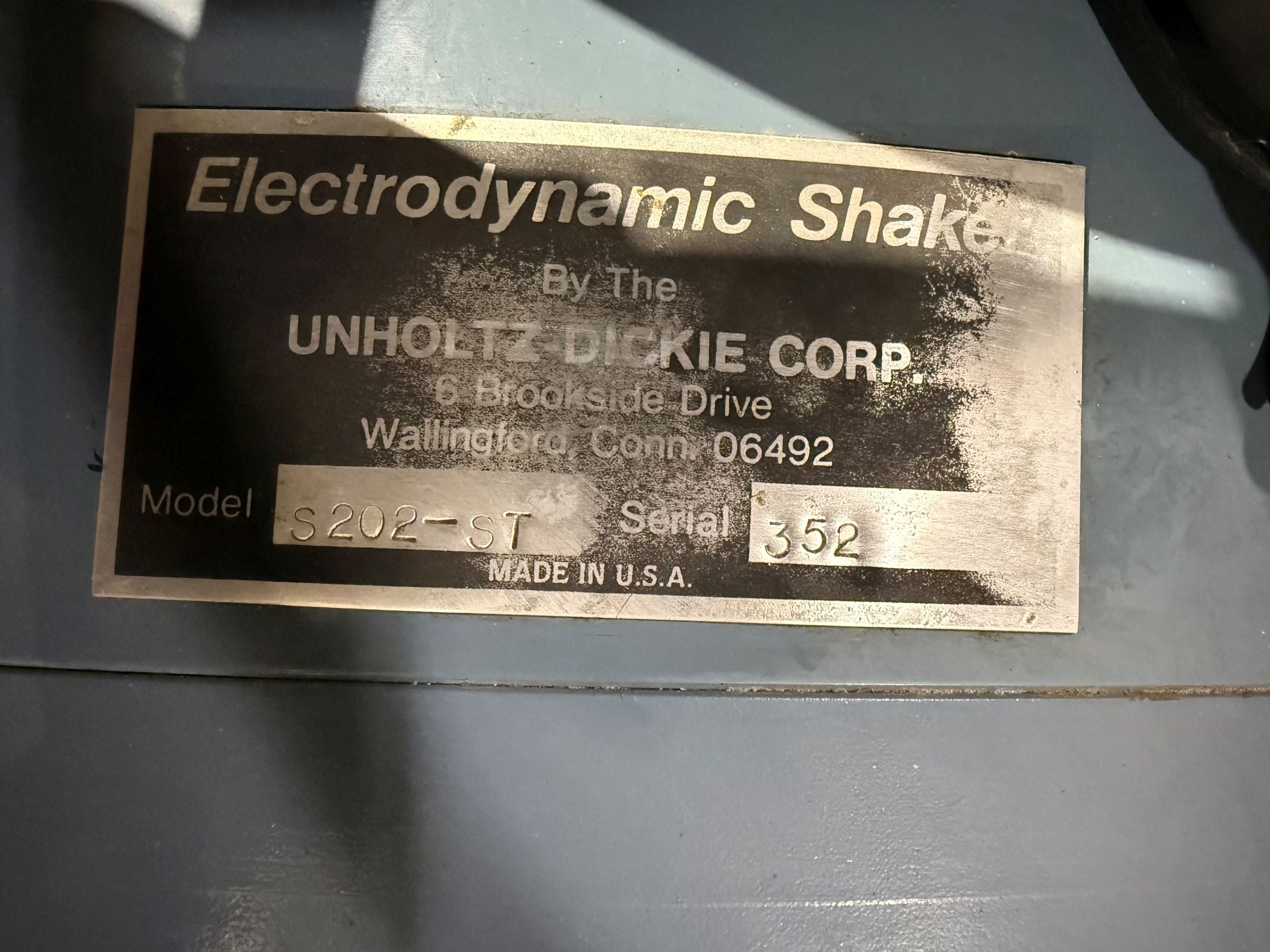

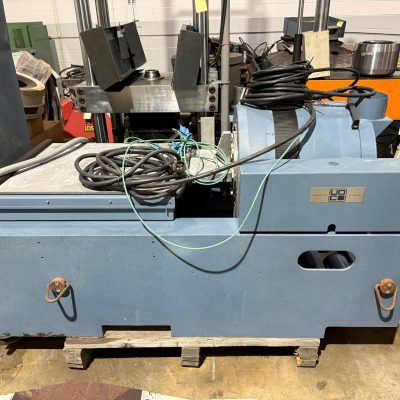

Unholtz-Dickie S202 Shaker S/N 352
-
Unholtz-Dickie 24" x 24" Slip Table System
-

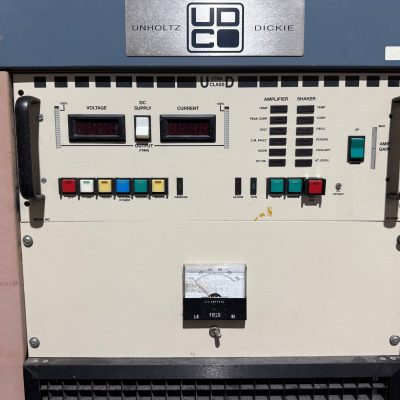

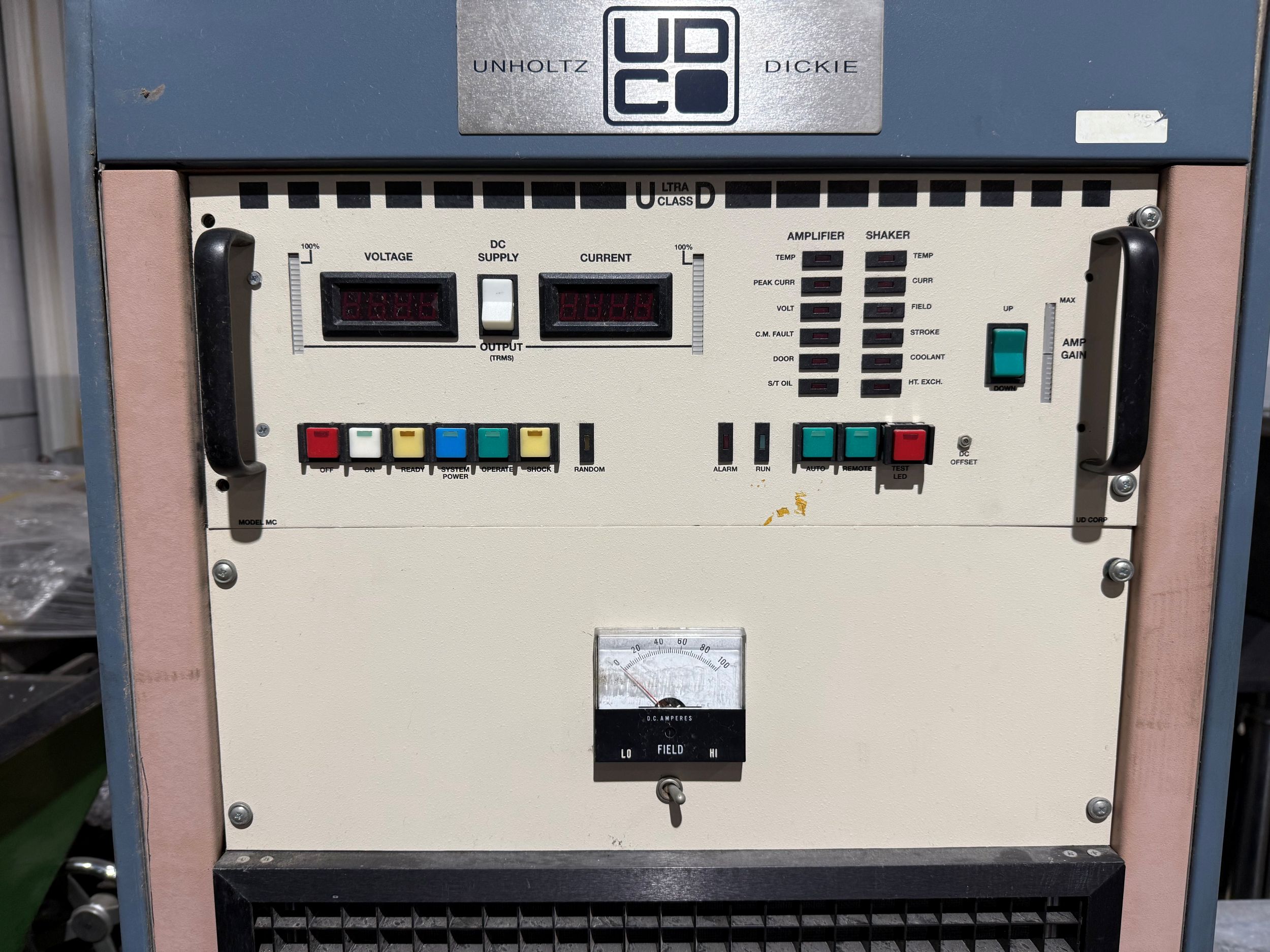

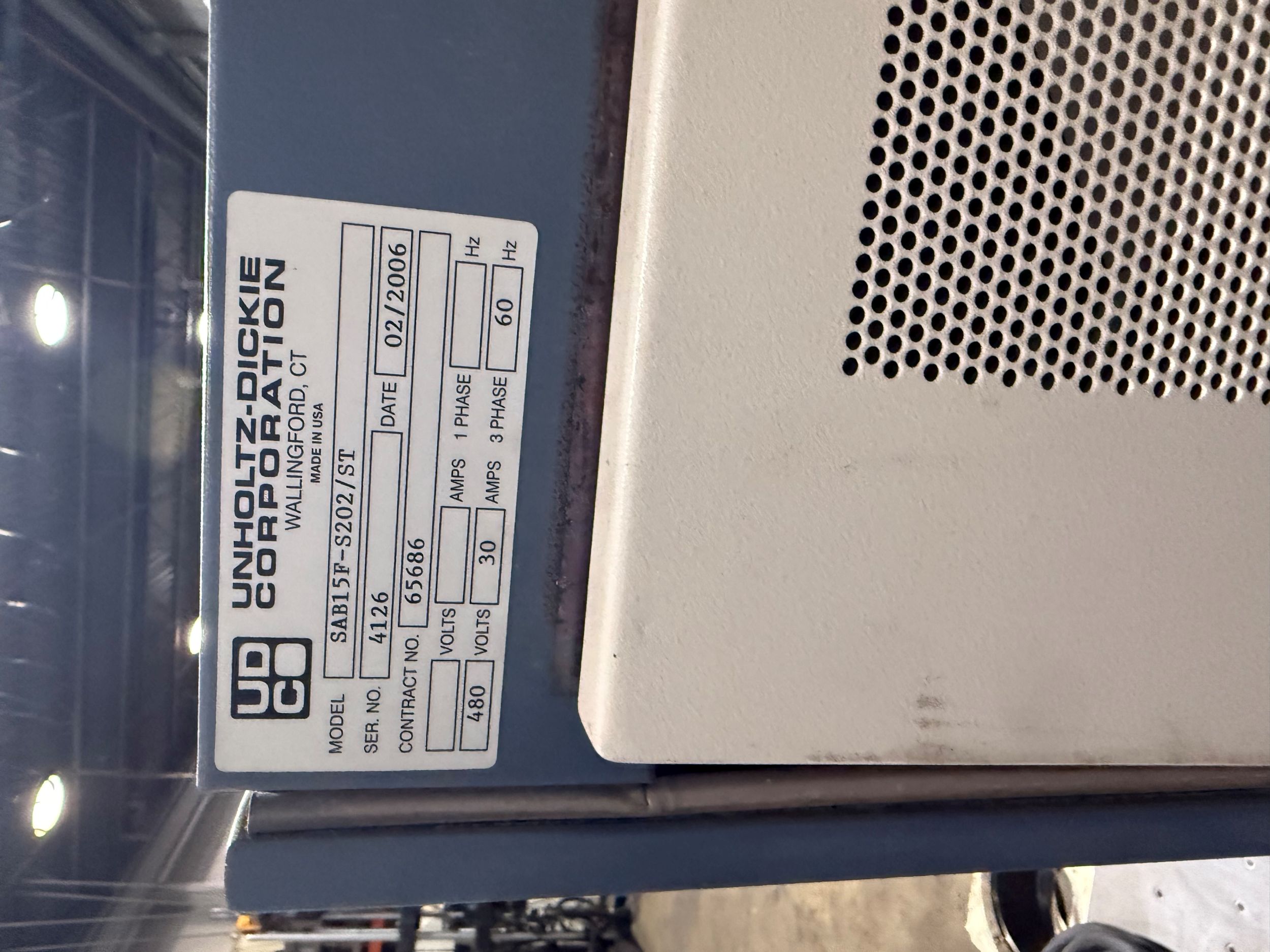

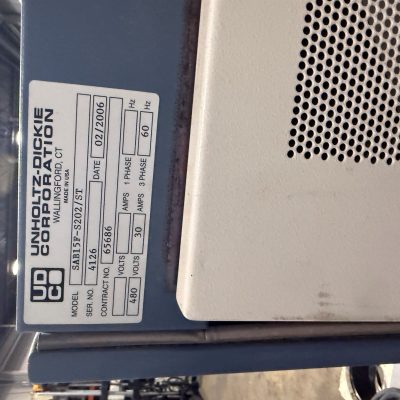

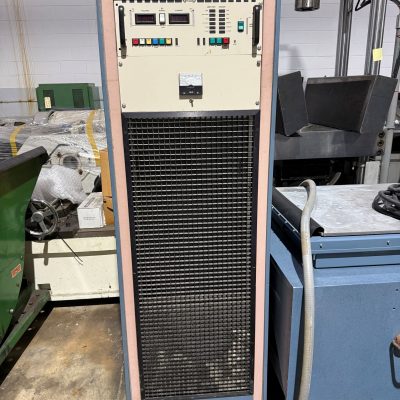

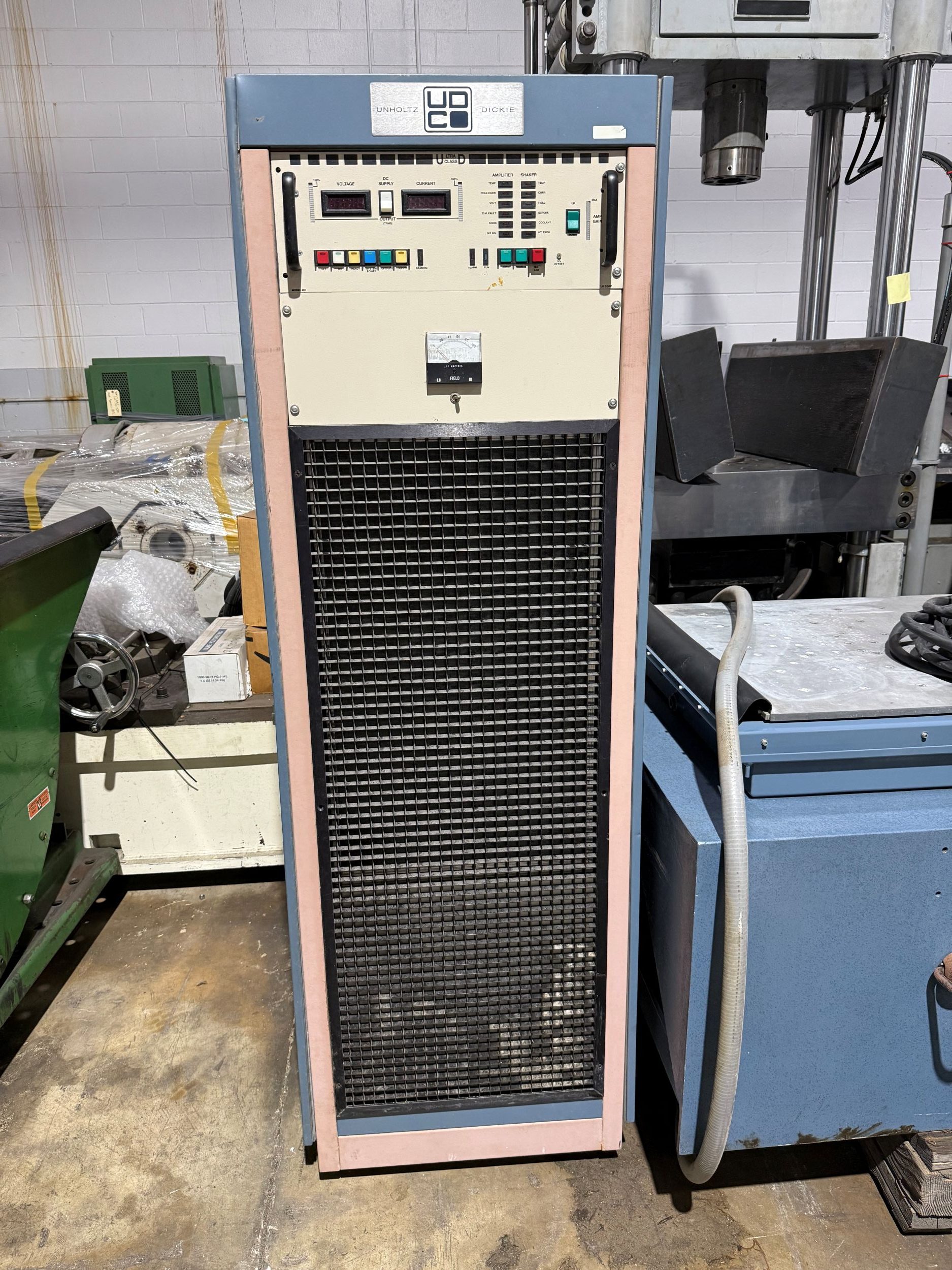

Unholtz-Dickie SAB15F - S202 Power Amplifier
-
Unholtz-Dickie Field Supply
-
Cooling Blower
-
System Cables
FOB Warren, MI
Cleaned, Serviced and Cycled
30 Day Satisfaction Guaranteed Return Privilege
90 Day Parts and Labor Warranty
Click for quote | #13299-00
