200K (1000kN) Satec Instron Model 200HVL
Satec Model HVL
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 20"
Compression Testing Opening (Less Tooling): 20"
Distance Between Columns/Screws: 22"
Testing Stroke: 6"
Table Size (W x D): 22" x 24"
Testing Speed (IPM): 0 – 3
Approximate Overall Dimensions:
Servo Console (W x D x H): 45" x 30" x 40"
Load Frame (W x D x H): 38" x 28" x 93"
Weight (lbs.): 7,500
Electrical Requirements (V,Hz,PH): 230, 60, 3
EQUIPPED WITH:
-
Computer System with Keyboard & Mouse
-
24" LED-Backlit LCD Color Monitor
-
Microsoft Windows 11 Professional, Workstation
-
MTGenius, Material Testing Software for Data Acquisition (Load, Position, 2 Strain & Aux), Analysis and Computer Controlled Testing with Manual.
-
MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB Cable.
-
Celesco, High Resolution TTL compatible incremental quadrature Encoder for position and testing speed values with signal cable and mounting hardware.
-
Reconditioned Satec Servo Pump for Closed Loop Computer Controlled Testing
-
Hydraulic Gripping System
FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty

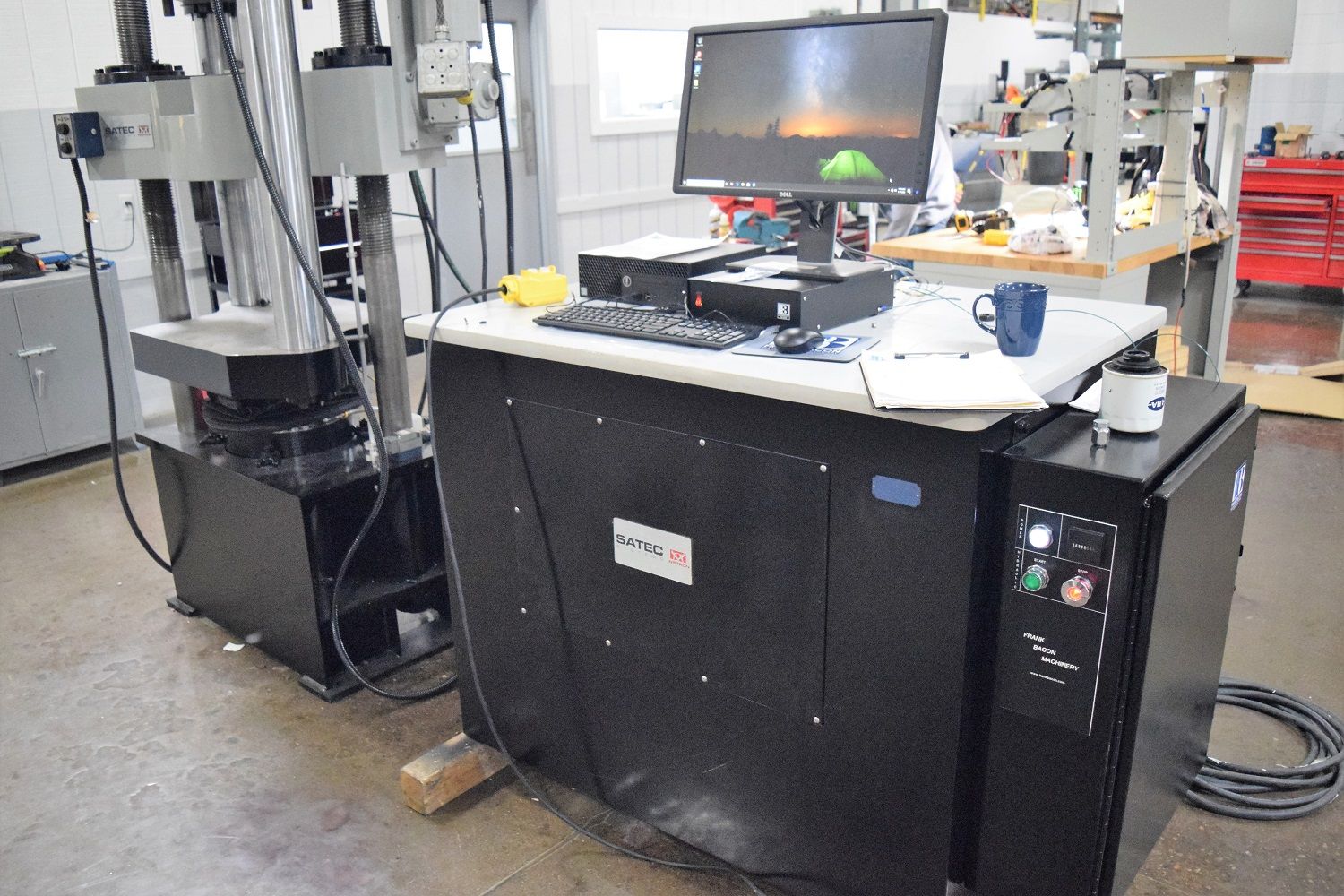

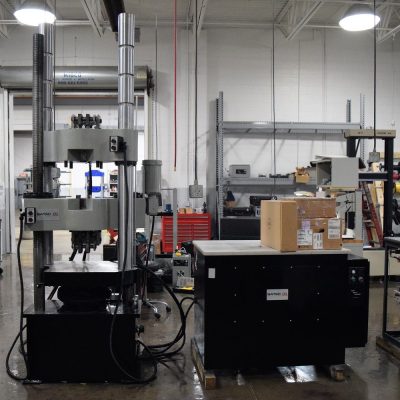

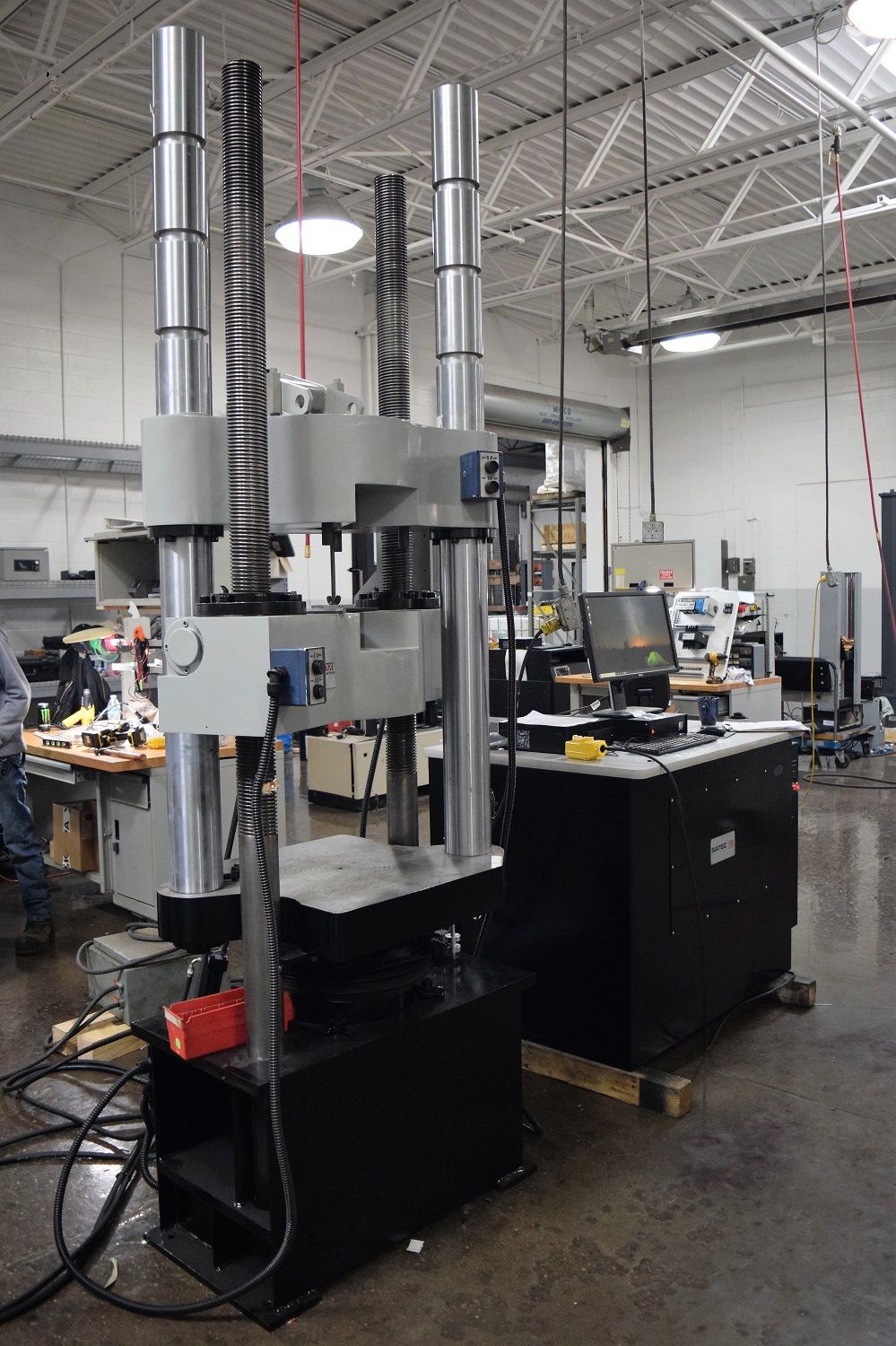

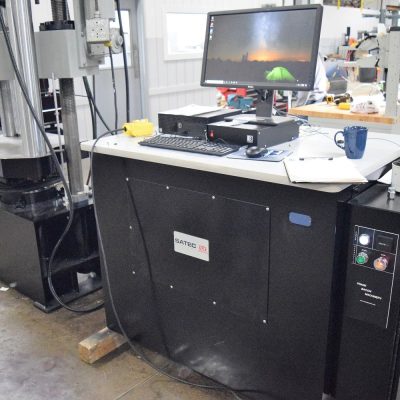

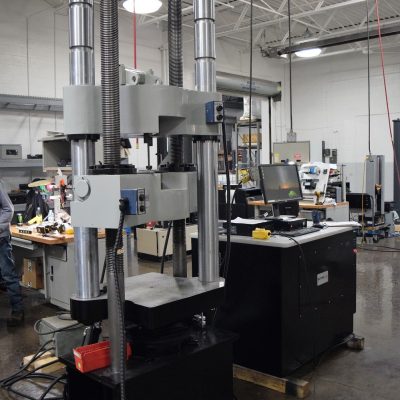

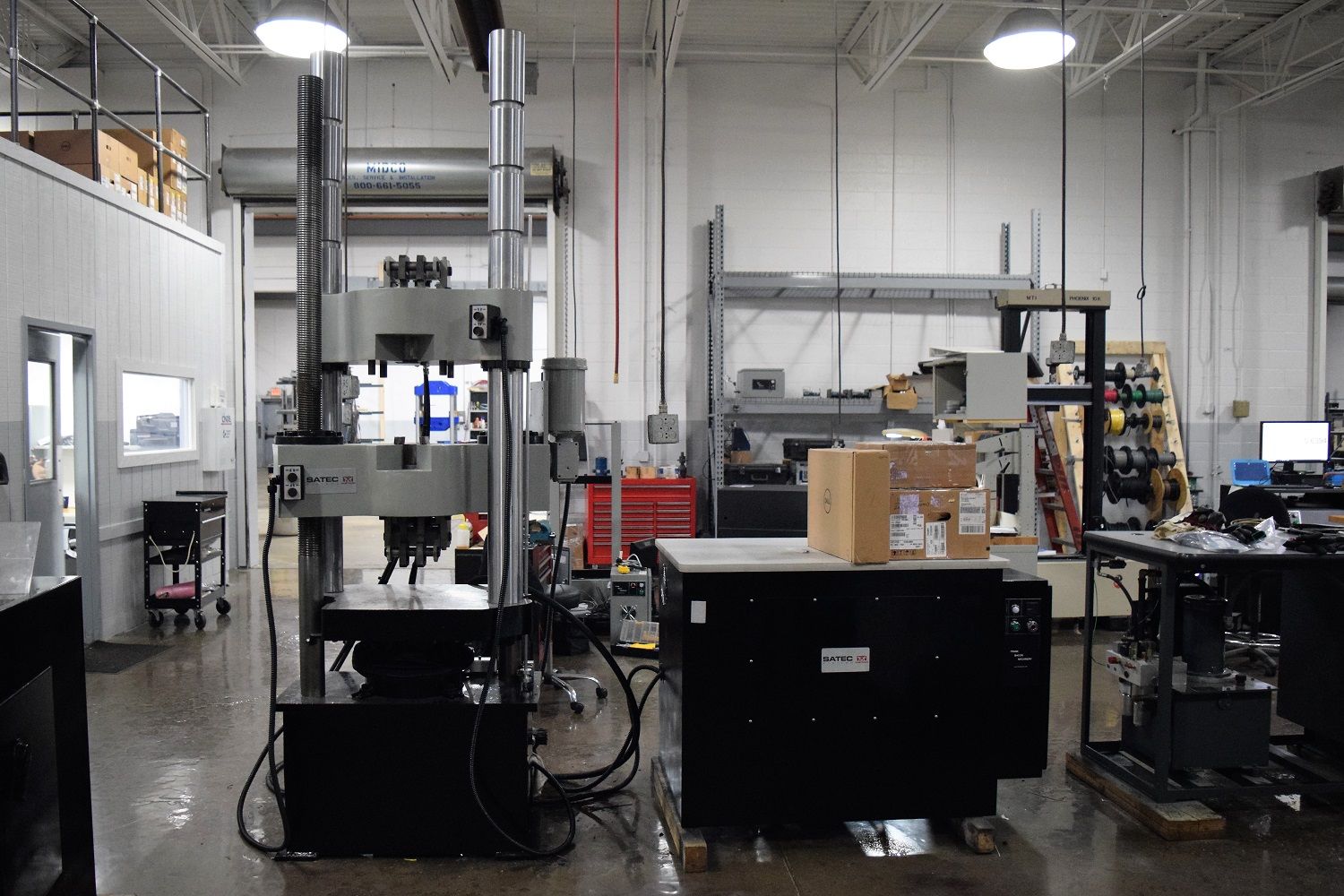

Representative Images After Reconditioning
