20K (100kN) United SFM-100kN Tension and Compression Testing Machine
United Model SFM-100kN
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 60"
Compression Testing Opening (Less Tooling): 60"
Distance Between Columns/Screws: 22"
Testing Stroke: 65"
Testing Speed (IPM): .0002 - 20
Crosshead Adjusting Speed (IPM): 20
Approximate Overall Dimensions:
New Electronic Console (W x D x H): 27" x 27" x 42"
Load Frame (W x D x H): 35" x 27" x 93"
Weight (lbs.): 1600
Electrical Requirements (V, Hz, PH): 230V, 60Hz, 3Phase.
EQUIPPED WITH:
-
Computer System with Key Keyboard & Mouse
-
24" LED-Backlit LCD Color Monitor or Better & Manual
-
Microsoft Windows 10 Professional, Workstation
-
MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
-
MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
-
Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller
-
New AC Servo Motor and AC Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
-
20,000 lbf (100 kN) Tension & Compression Load Cell
FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty

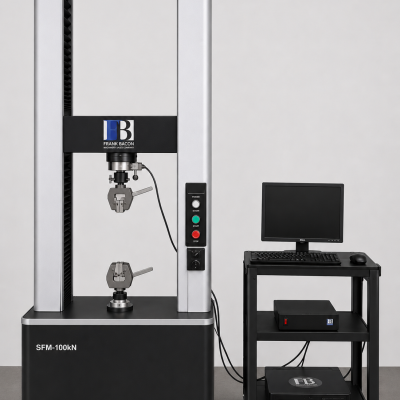

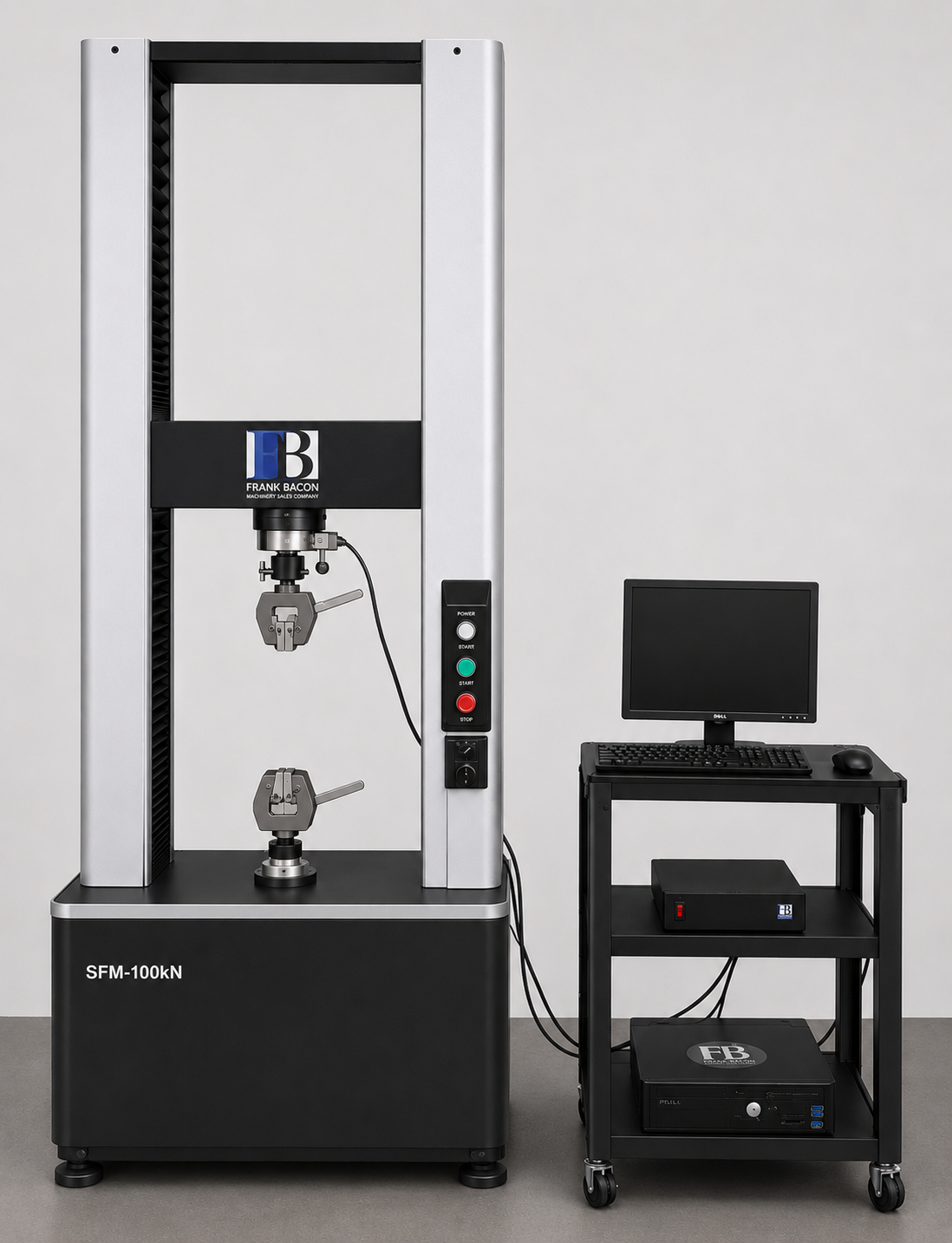

*Representative Image
