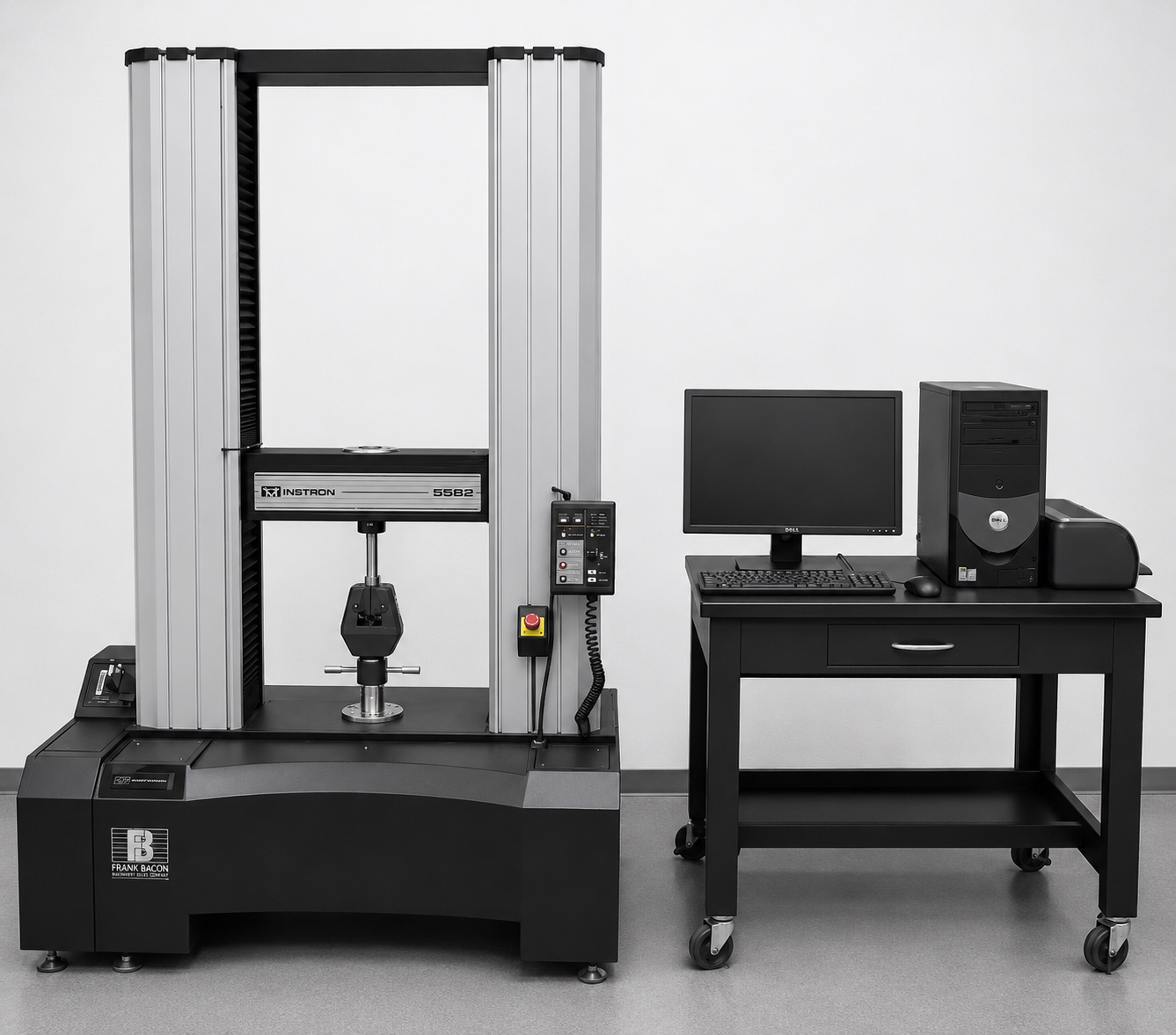

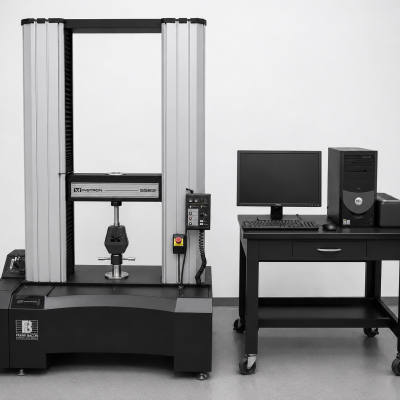

22.5K (100kN) Instron 5582 Tensile and Compression Tester
100kN Instron Model 4482 Tensile & Compression Tester
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 48"
Compression Testing Opening (Less Tooling): 48”
Distance Between Columns/Screws: 22.5"
Testing Stroke: 48"
Table Size (WxD): 22.5" x 8"
Testing Speed (IPM): 0.0002-20
Approximate Overall Dimensions:
New Electronic Console (WxDxH): 27.5" x 27" x 35"
Load Frame (WxDxH): 32" x 44" x 95"
Approximate Load Frame Weight (Lbs): 2,400
Electrical Requirements (V,Hz,PH): 200-240, 60, 1
EQUIPPED WITH:
- Computer System with Keyboard and Mouse.
- Windows 11 Pro Operating System
- MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
- MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
- Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
- New Yaskawa AC Servo Motor with Incremental Encoder and Yaskawa Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
- 100kN Tension & Compression Load Cell
- Upper and Lower Quick Release Hubs
FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty
*Representative Images
