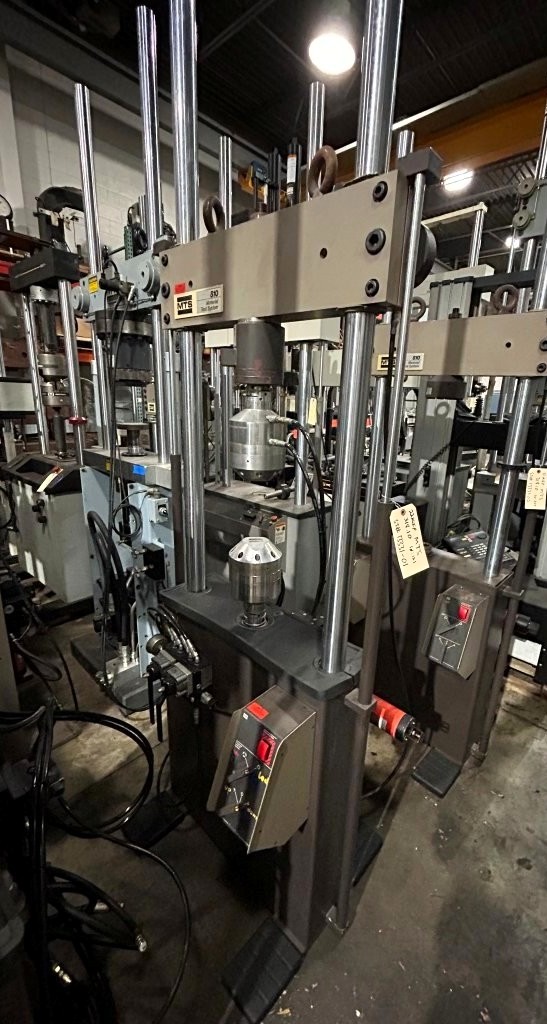

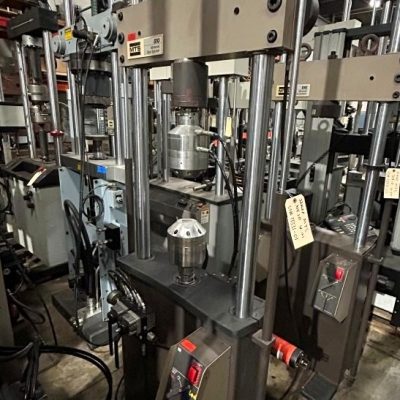

MTS Model 810
SPECIFICATIONS:

SPECIFICATIONS:

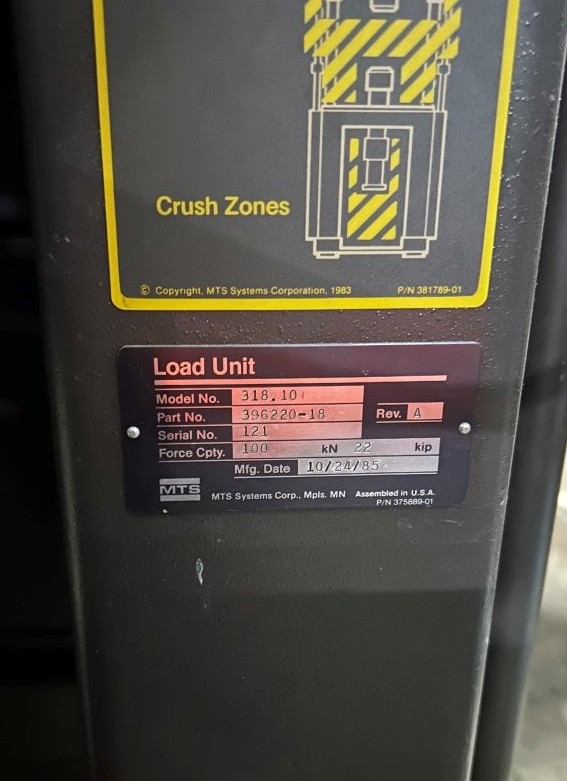

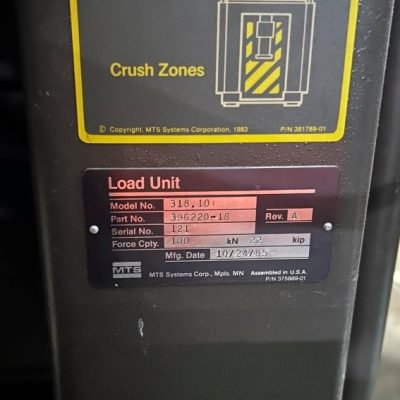

Model Number/Serial Number: 318.10/121
Load Frame Capacity (KIP): 22
Number Of Columns: 2
Distance Between Columns: 20.75"
Test Opening: 54" (Less Tooling & Grips)
Table Size (W x D): 20.75" x 8.25"
Approximate Overall Dimensions (W x D x H): 36" x 24" x 104"
Approximate Weight (lbs.): 2,250

EQUIPPED WITH:
-Hydraulic Crosshead Lifts and Hydraulic Crosshead Locks

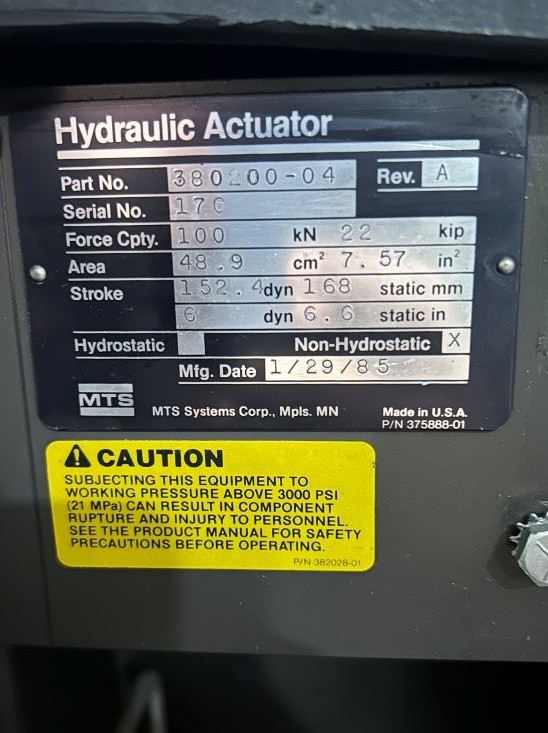

-MTS 22 KIP (100 kN) 3,000 PSI 6" Stroke Actuator, Part # 380200-04, S/N 784 with LVDT & Area = 7.57 in.2
-(1) 15 GPM MTS/MOOG Servo Valve

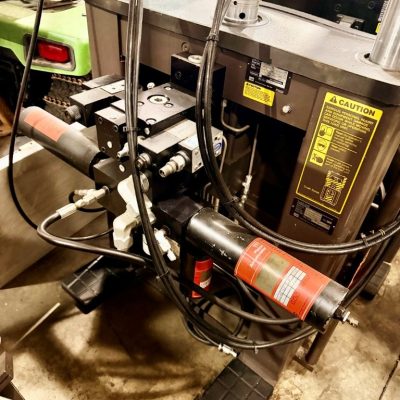

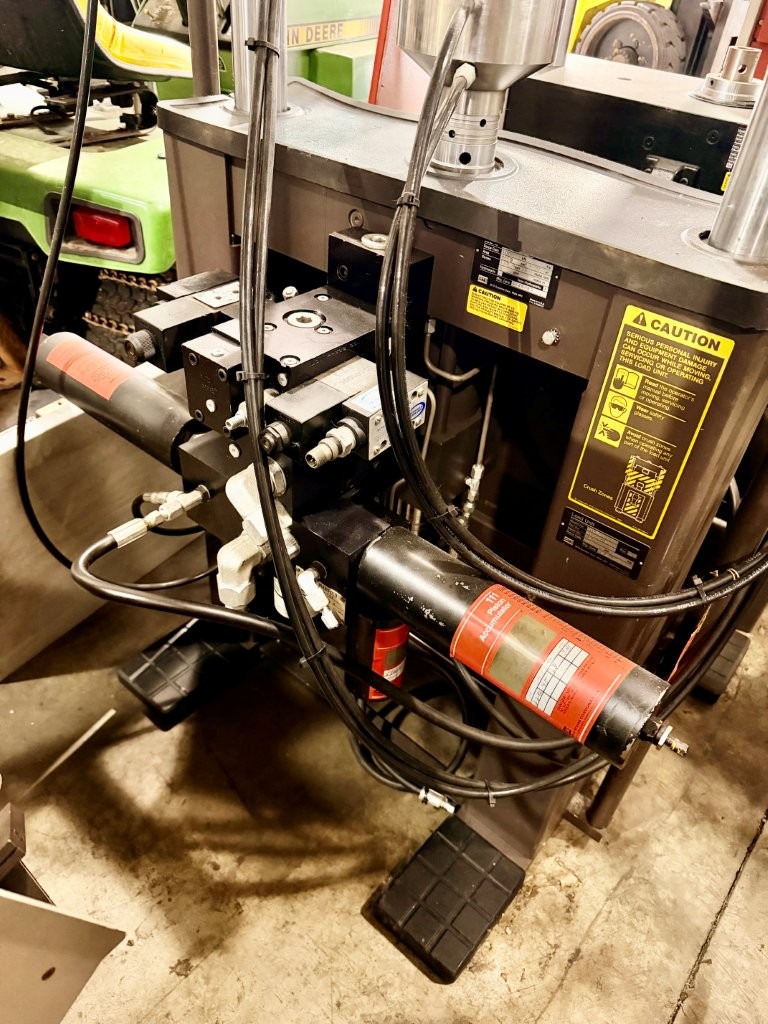

-MTS Hydraulic Serviced Manifold with Hi/Low Pressure Solenoids and Accumulators

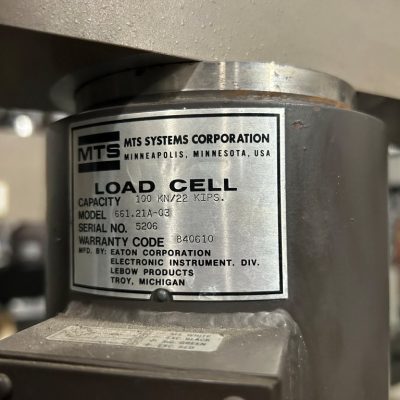

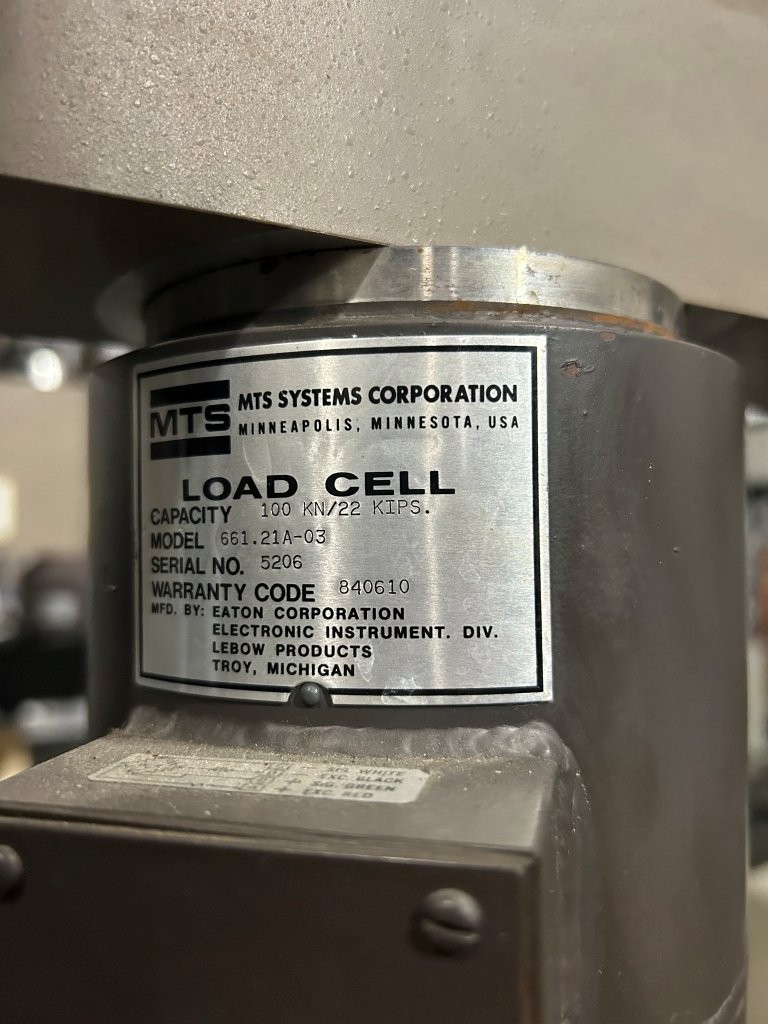

-22KIP (100 kN) MTS Model 661.21A-03 Fatigue Load Cell
-Frame Mounted Hydraulic Grip Controller
-22KIP Fatigue Rated Grips with Flat Faces

FOB Warren, MI
Reconditioned with 90 Day Parts and Labor Warranty
30 Day Satisfaction Guarantee Return Privilege
