225 lbf (1kN) MTS QTest/2L Testing Machine

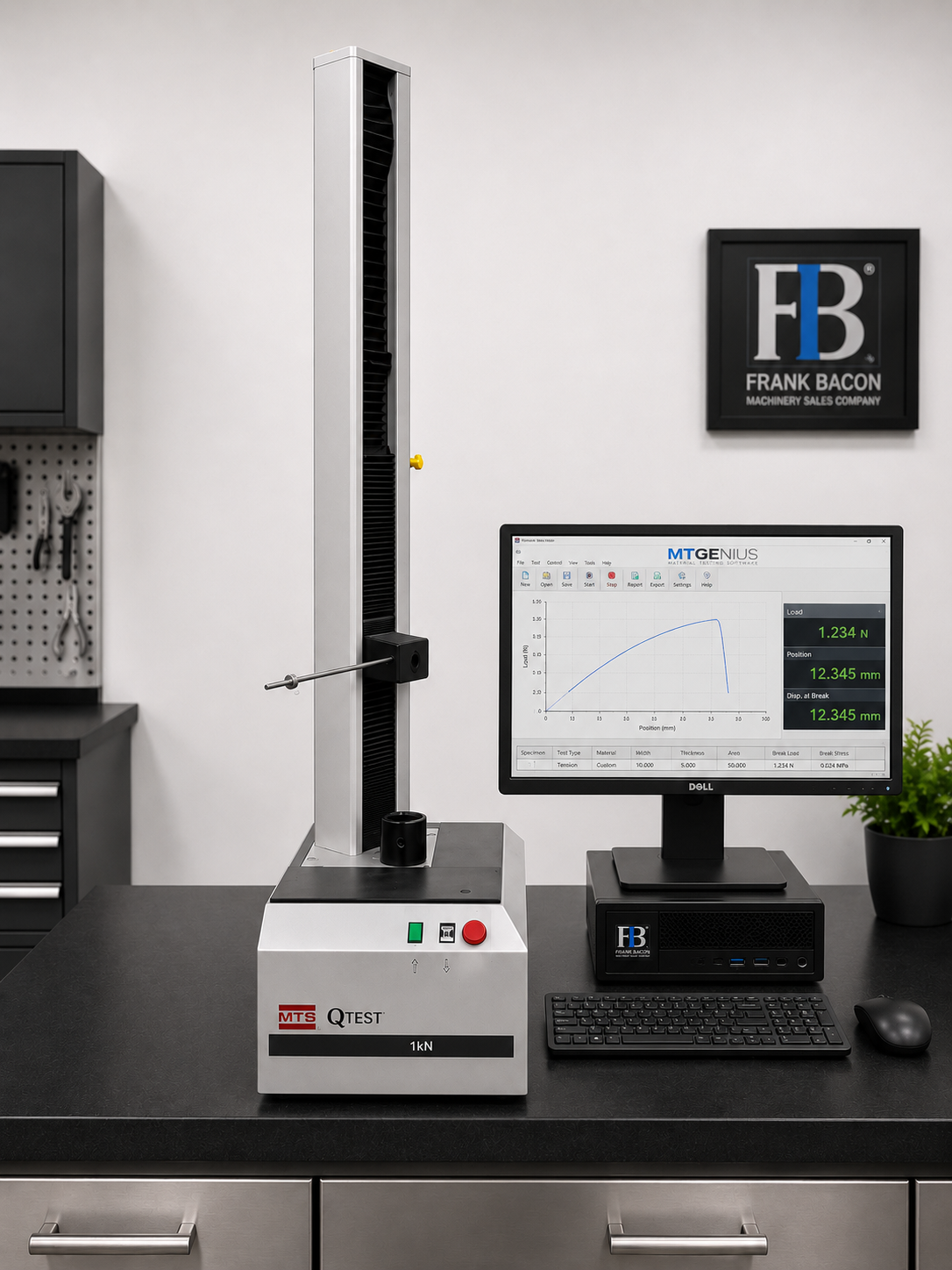

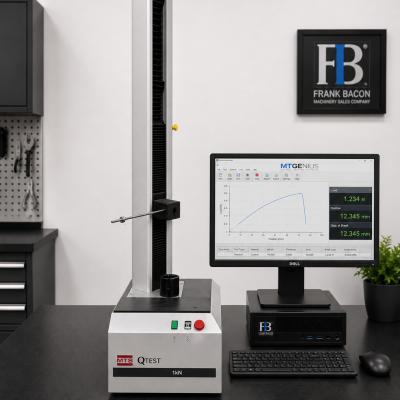

(1) Reconditioned 225 lbf (1 kN) Capacity MTS, Model QTest/2L, Electro-Mechanical Ball Screw Tension and Compression Testing Machine with MTS 250 lbf Capacity Load Cell. S/N QT2-695-032E

MTS Model QTest/2L

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 40"

Compression Testing Opening (Less Tooling): 40"

Testing Stroke: 40"

Center to Back Clearance: 2.5"

Testing Speed (IPM): 0-20

Crosshead Adjusting Speed (IPM): 20

Approximate Overall Dimensions:

     Load Frame (W x D x H): 36" x 28" x 62"

     Weight (lbs.): 150

Electrical Requirements (V,Hz,PH): 120/230, 60, 1

EQUIPPED WITH:

• Computer System with Monitor, Keyboard & Mouse
• Microsoft Windows 11 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (Load, Position & Strain), Analysis and Computer Controlled Testing with Manual.
• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
• Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller
• New AC Servo Motor and Drive System for Precision Control of Testing Rates (Load, Position and Strain)
• 1 kN (225 lbf) Tension & Compression Load Cell

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty
