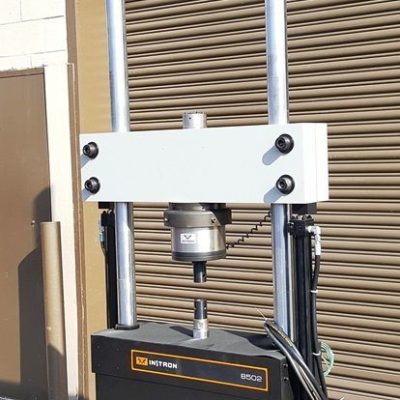

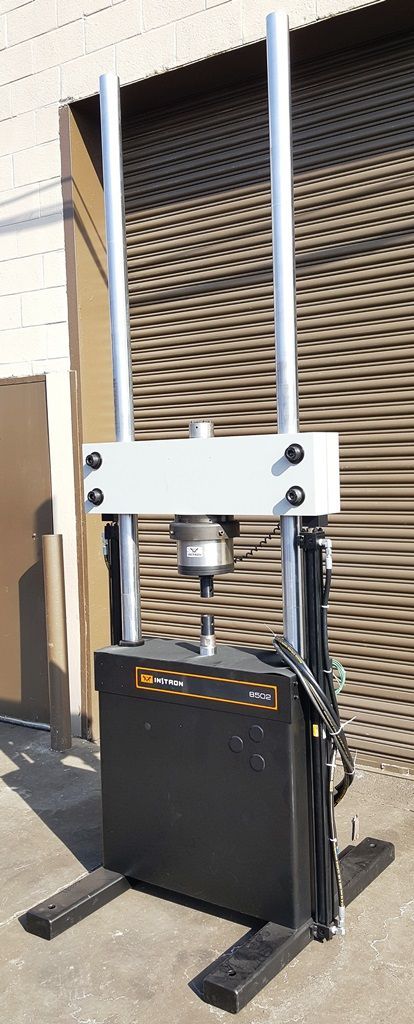

22KIP (100kN) Instron 8502 Fatigue Testing Load Frame
Instron Model 8502
SPECIFICATIONS:
Model Number/Serial Number: 8502/C0267
Load Frame Dynamic Force Capacity (KIP): 55 (250kN)
Number Of Columns: 2
Distance Between Columns: 26"
Test Specimen Max. Length: 77.8"
Table Size (W x D): 26" x 12"
Approximate Overall Dimensions (W x D x H): 42" x 44" x 122"
Approximate Weight (lbs.): 2420
EQUIPPED WITH:
-
Instron 22 KIP (100 kN) Dynamic 27 KIP (124 kN) Static Hydrostatic Bearing Actuator, Model AW 3140-1 with 6" (150mm) Stroke & LVDT S/N 904
-
MOOG Servo Valve
-
Instron 22 KIP (100 kN) Model 2518-611 Dynamic Fatigue Rated Load Cell
-
New Hydraulic Crosshead Lifts with Manifold
-
Manual Crosshead Locks
FOB Warren, MI
Reconditioned with 1 Year Parts and Labor Warranty

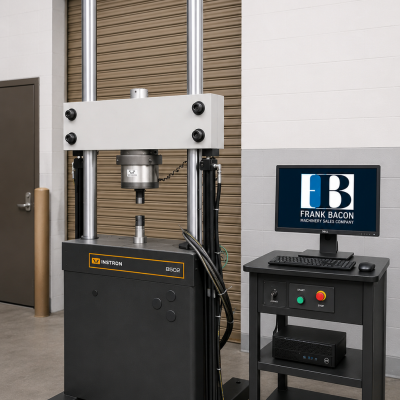

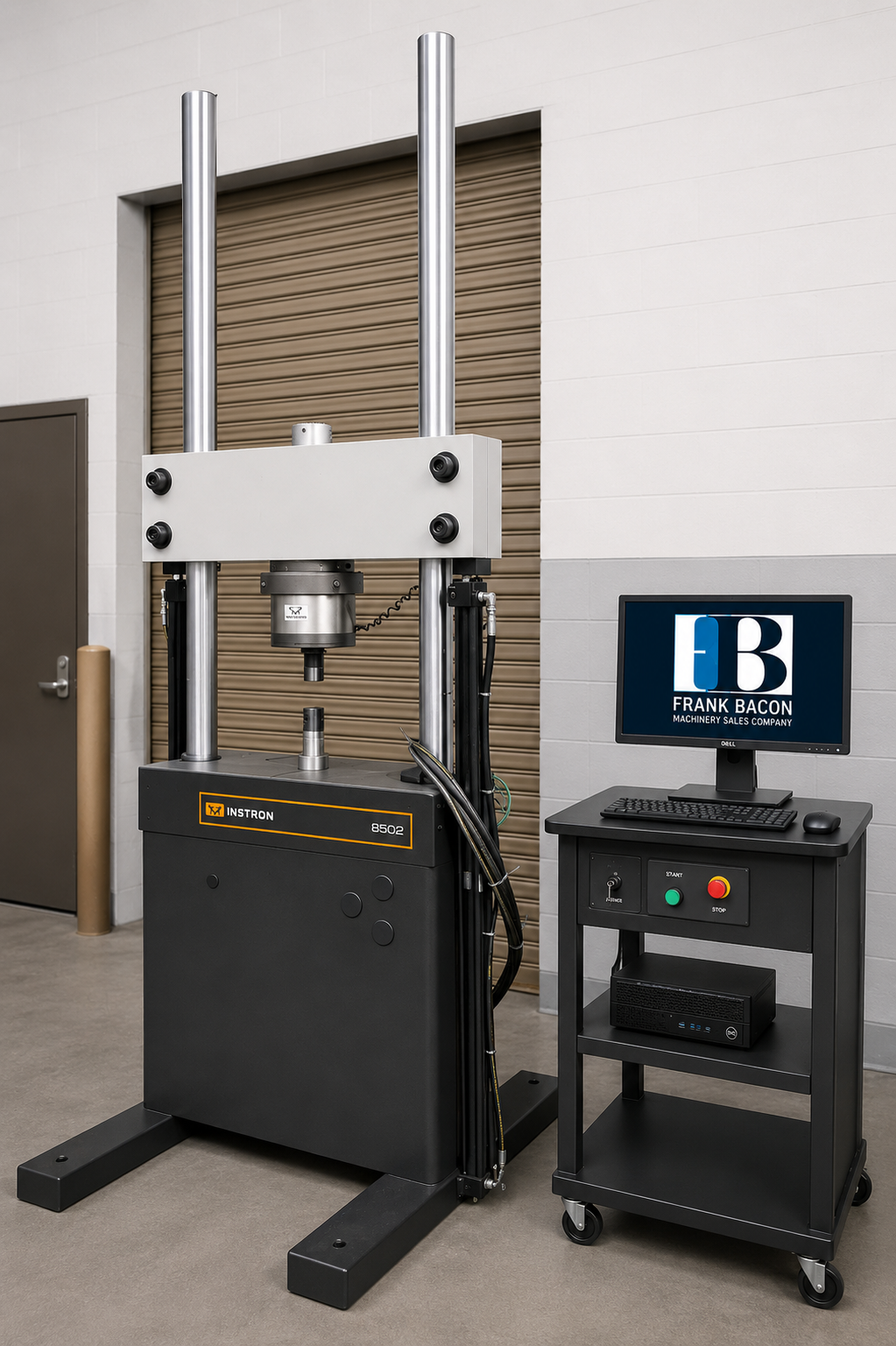

*Representative Images After Reconditioning
