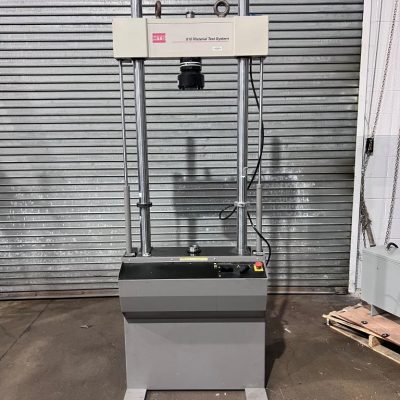

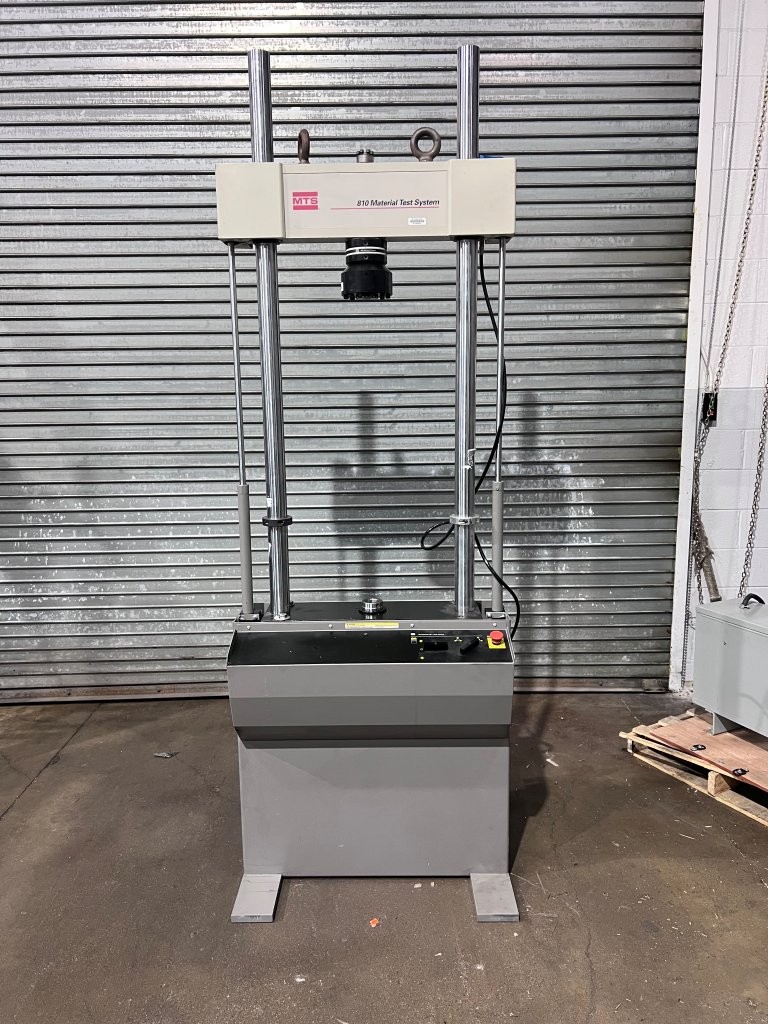

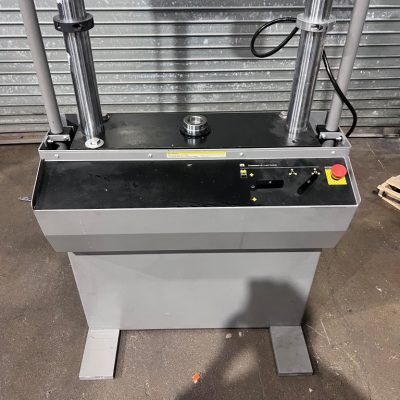

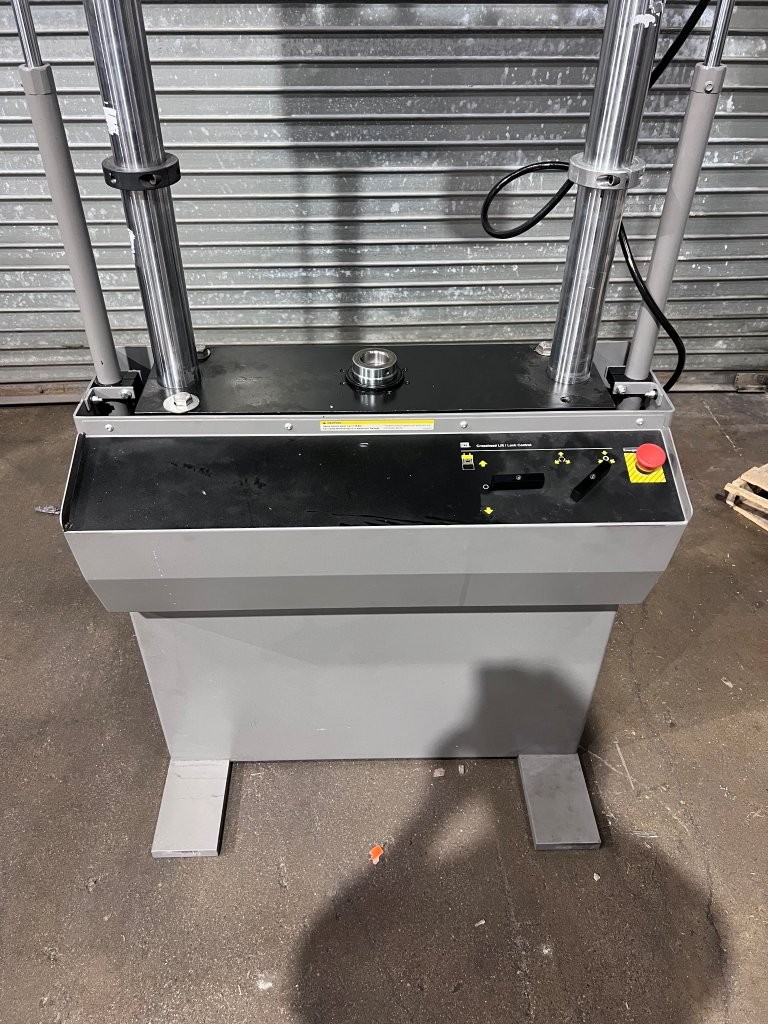

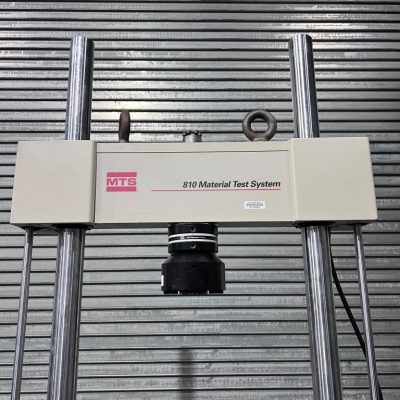

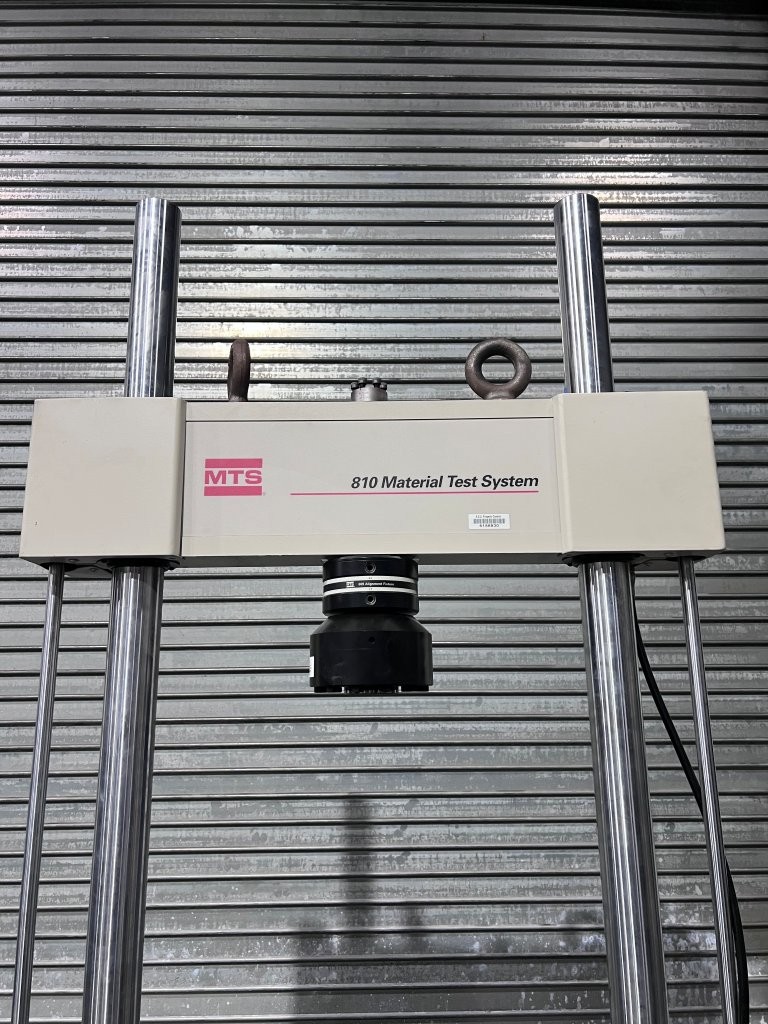

SPECIFICATIONS:

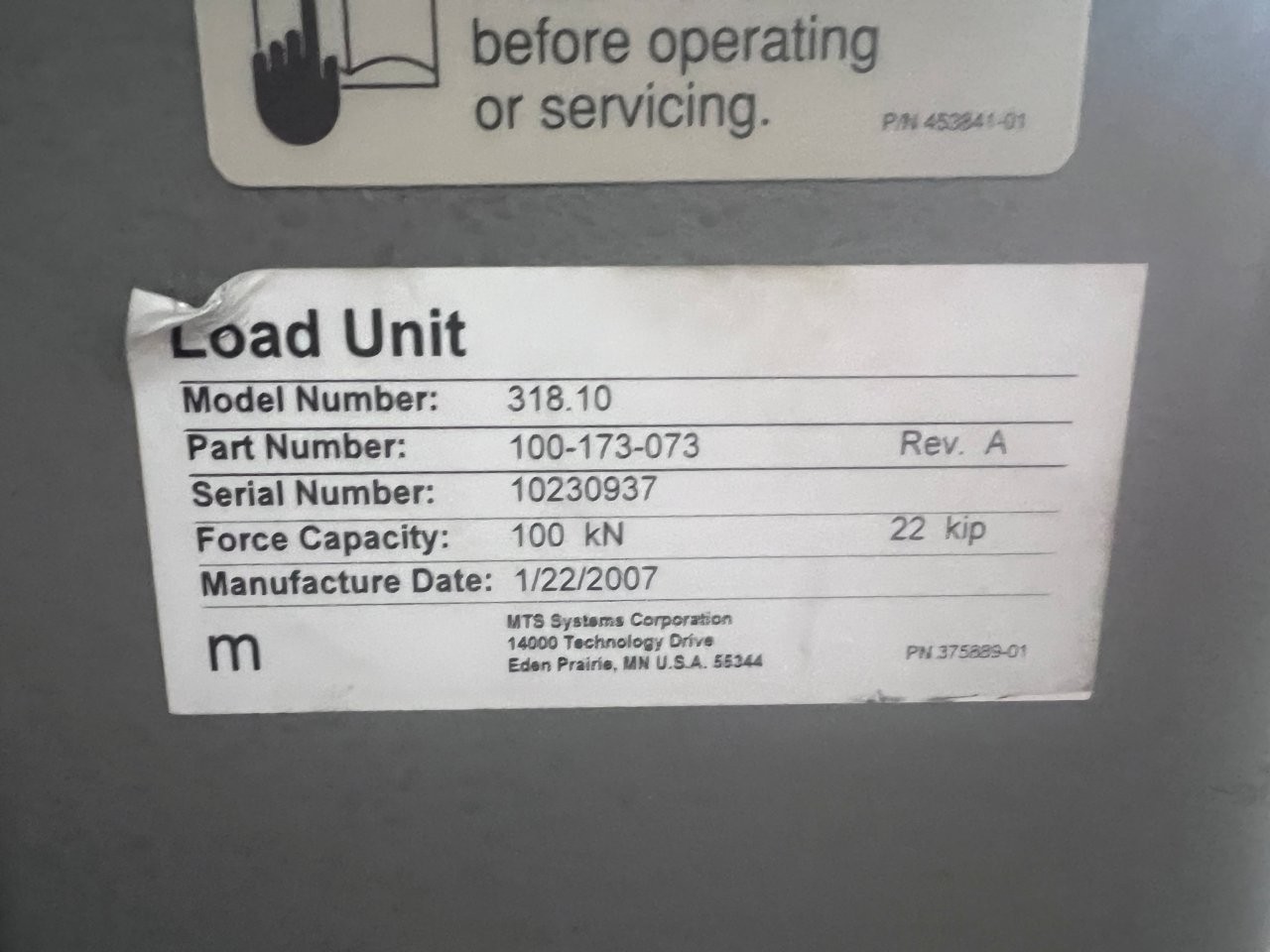

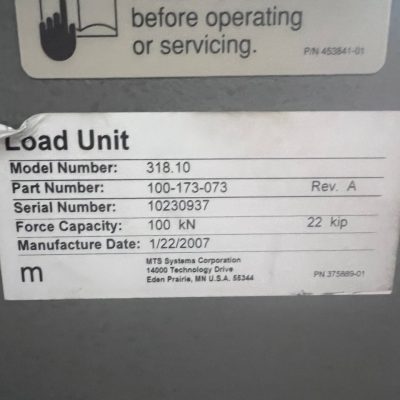

Model Number/Serial Number: 318.10/10230937
Load Frame Capacity (KIP): 22
Number Of Columns: 2
Distance Between Columns: 20.75"
Test Opening: 54" (Less Tooling & Grips)
Table Size (W x D): 20.75" x 8.25"
Approximate Overall Dimensions (W x D x H): 36" x 24" x 104"
Approximate Weight (lbs.): 2,250

EQUIPPED WITH:
-Hydraulic Crosshead Lifts and Hydraulic Crosshead Locks

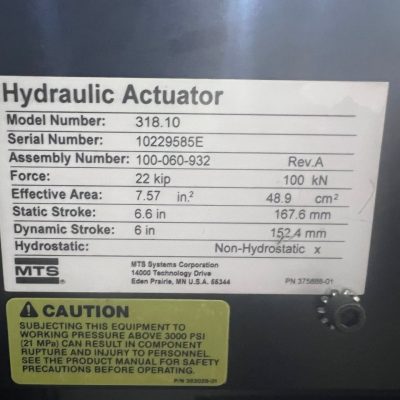

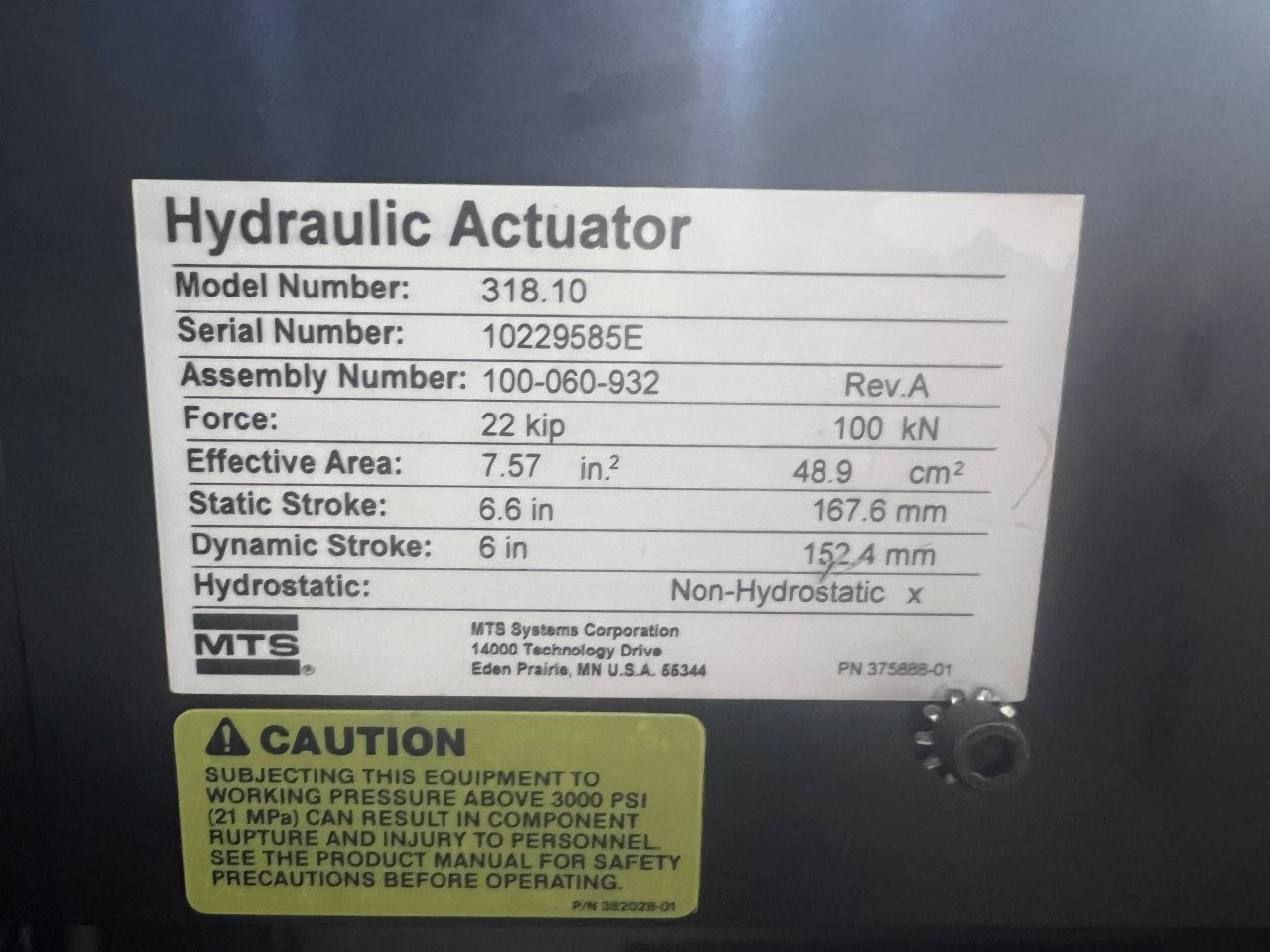

-MTS 22 KIP (100 kN) 3,000 PSI 6" Stroke Actuator, Model 318.10, S/N 10229585E with LVDT & Area = 7.57 in.2

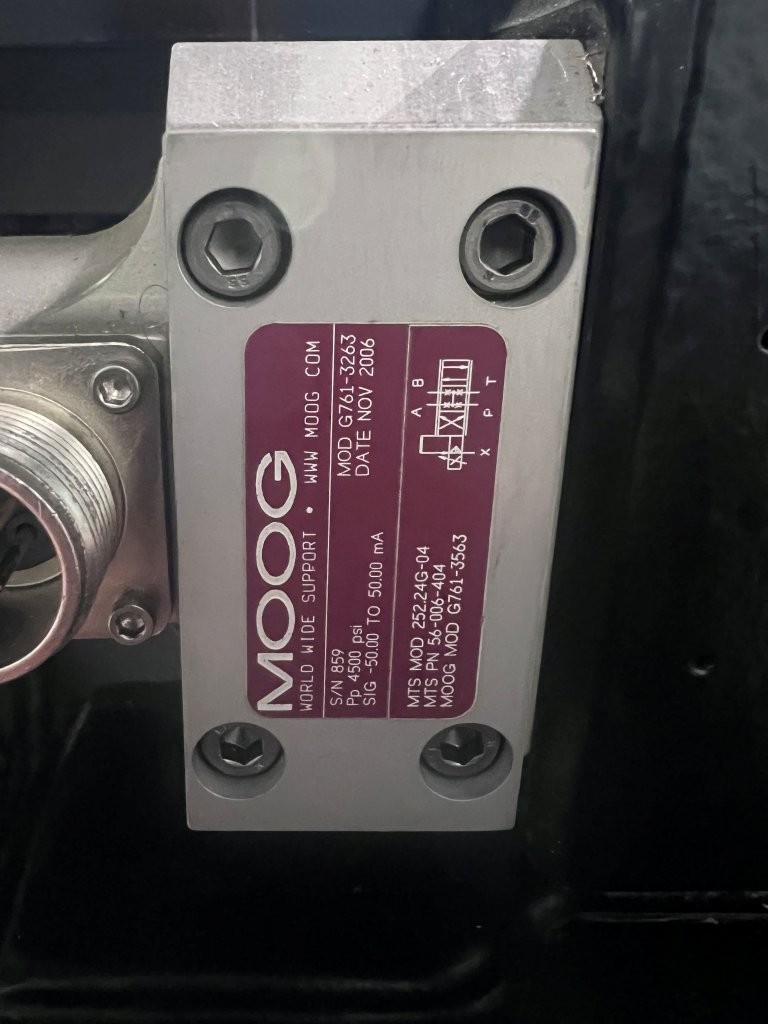

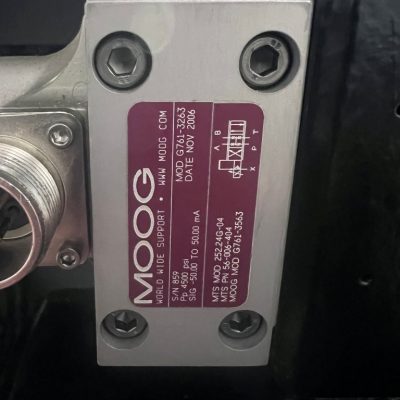

-(1) 10 GPM MTS/MOOG Model 252.24G-04 Servo Valve

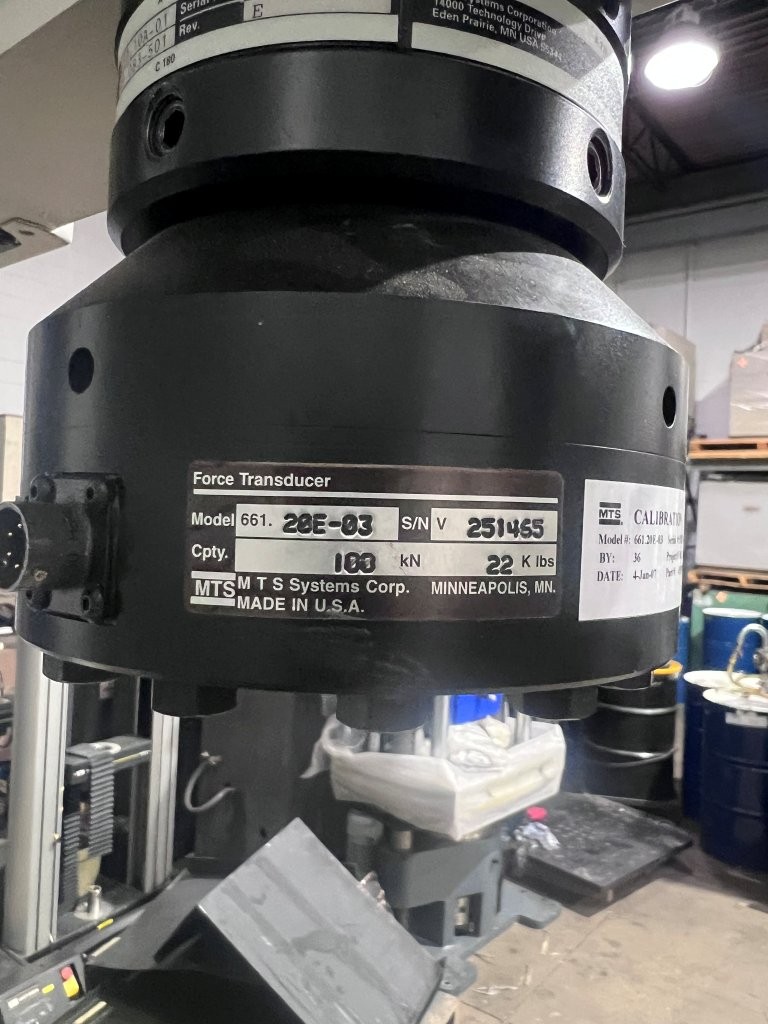

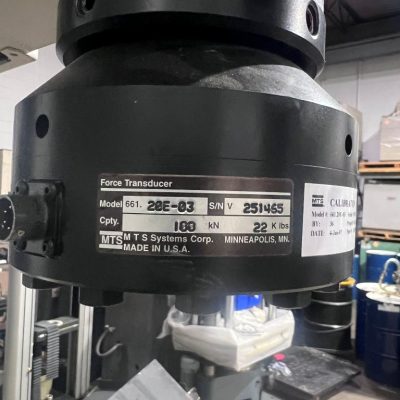

-22KIP (100 kN) MTS Model 661.20E-03 Fatigue Load Cell

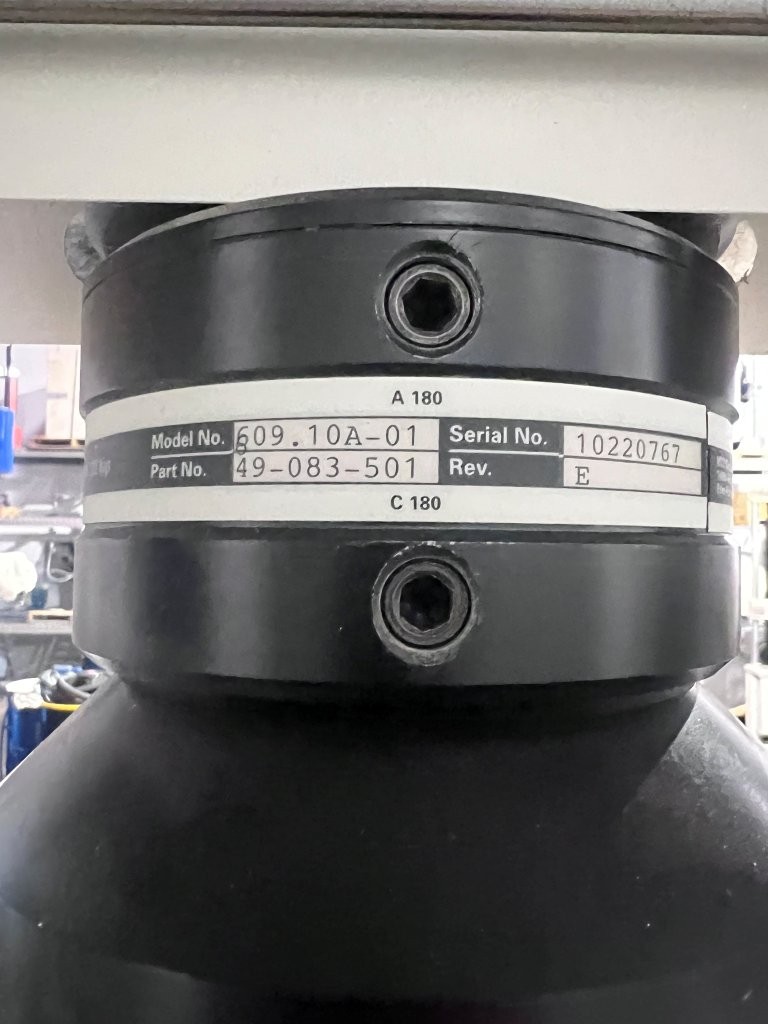

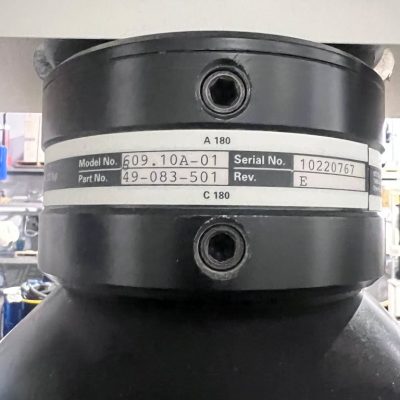

-22KIP (100 kN) MTS Model 609.10A-01 Alignment Fixture

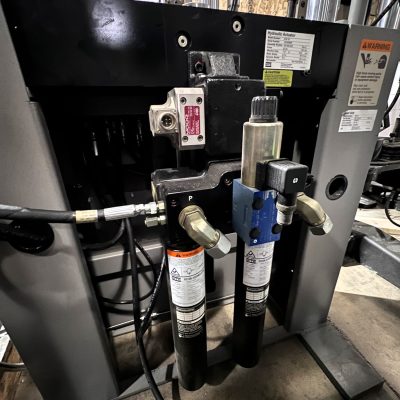

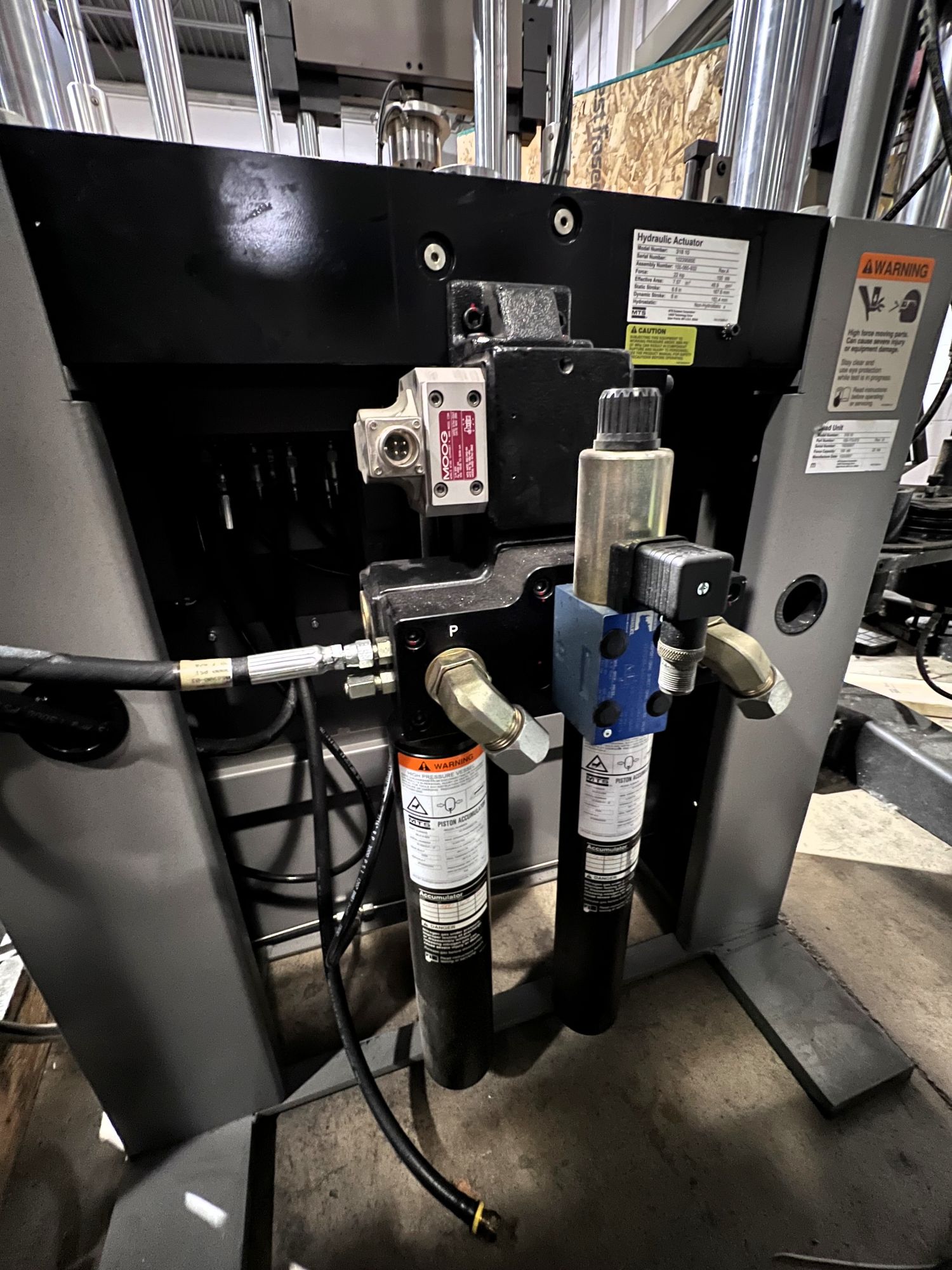

-MTS Hydraulic Service Manifold with Piston Accumulators and On/Off Solenoid
-MTS Frame Mounted Grip Controller

FOB Warren, MI
Cleaned, Serviced and Cycled
90 Day Parts and Labor Warranty
30 Day Satisfaction Guarantee Return Privilege
