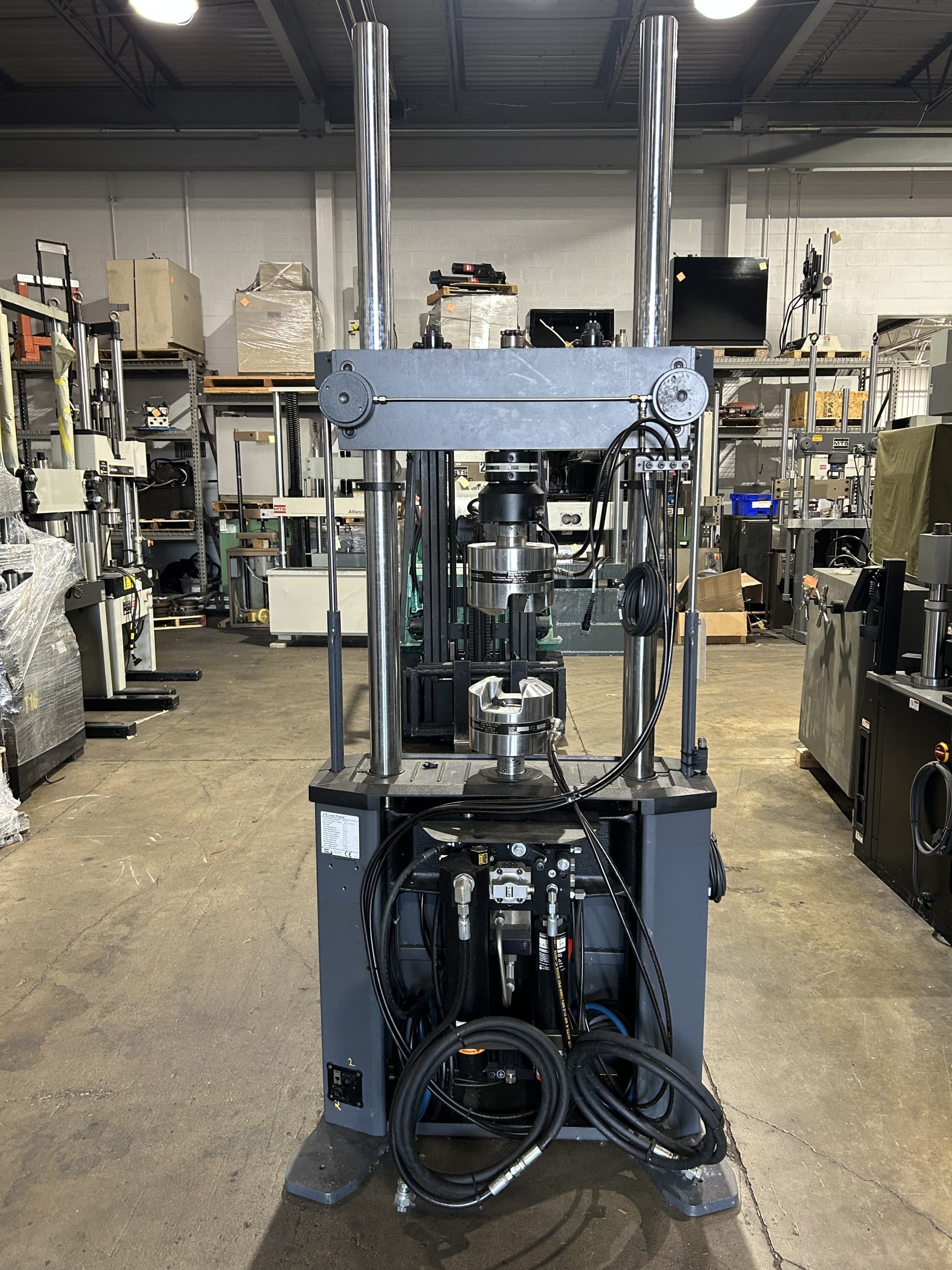

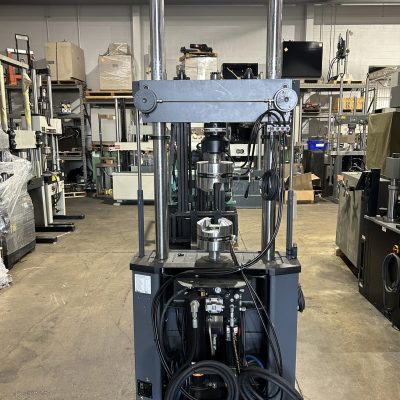

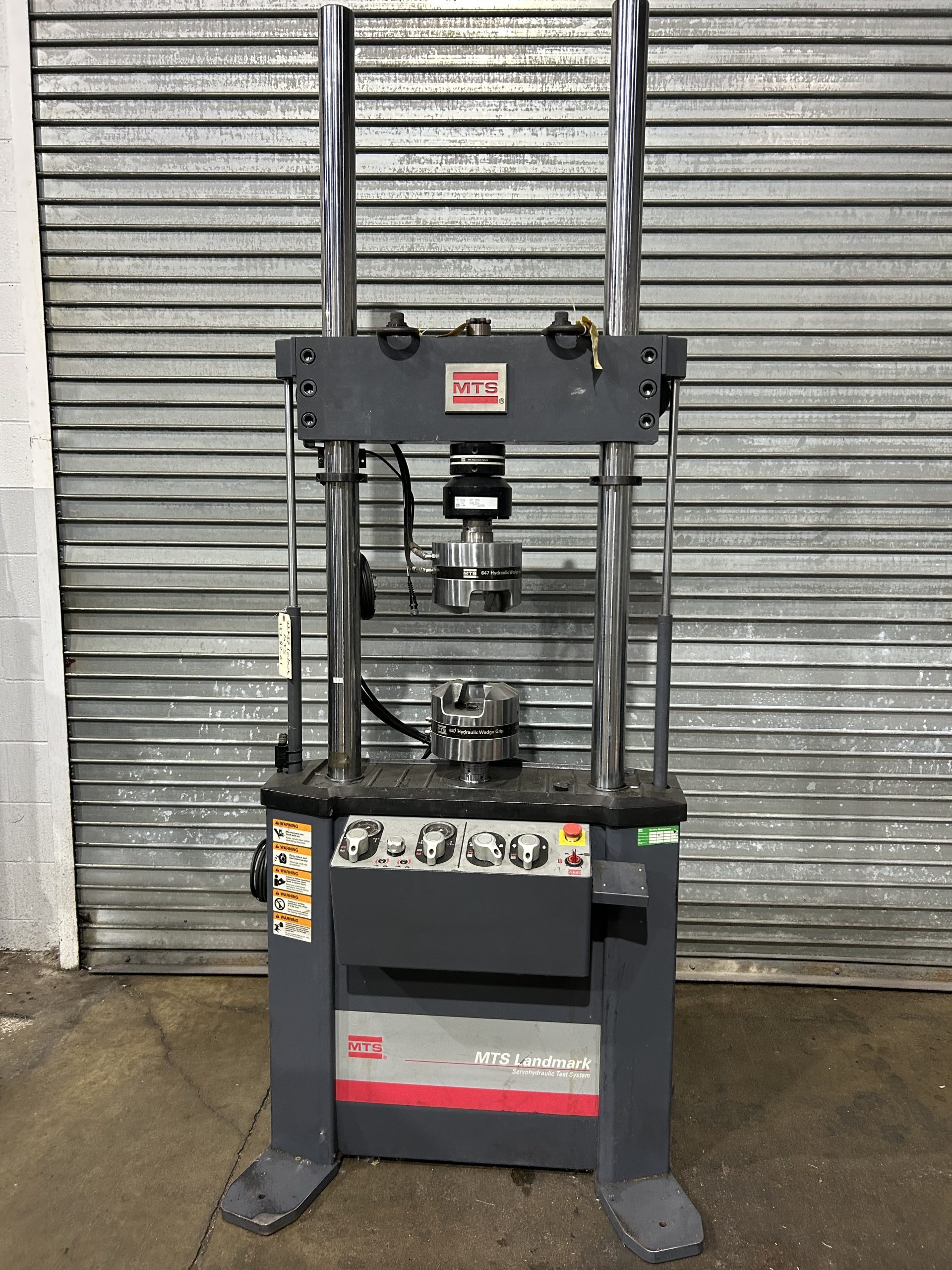

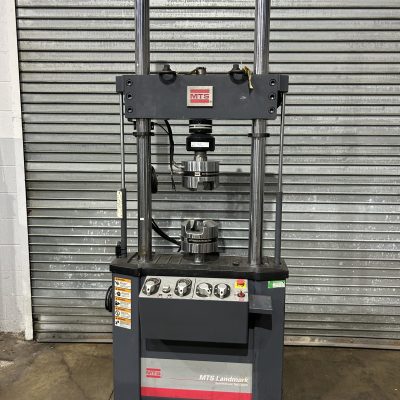

22KIP MTS 370.10 Landmark Fatigue Testing Load Frame

MTS Model 370.10

SPECIFICATIONS:

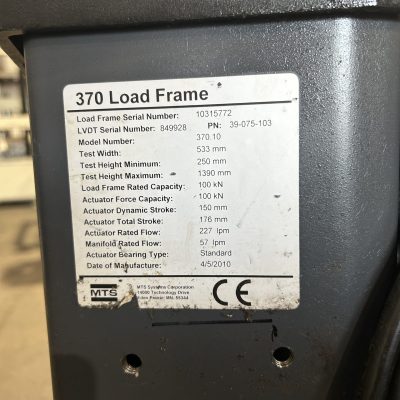

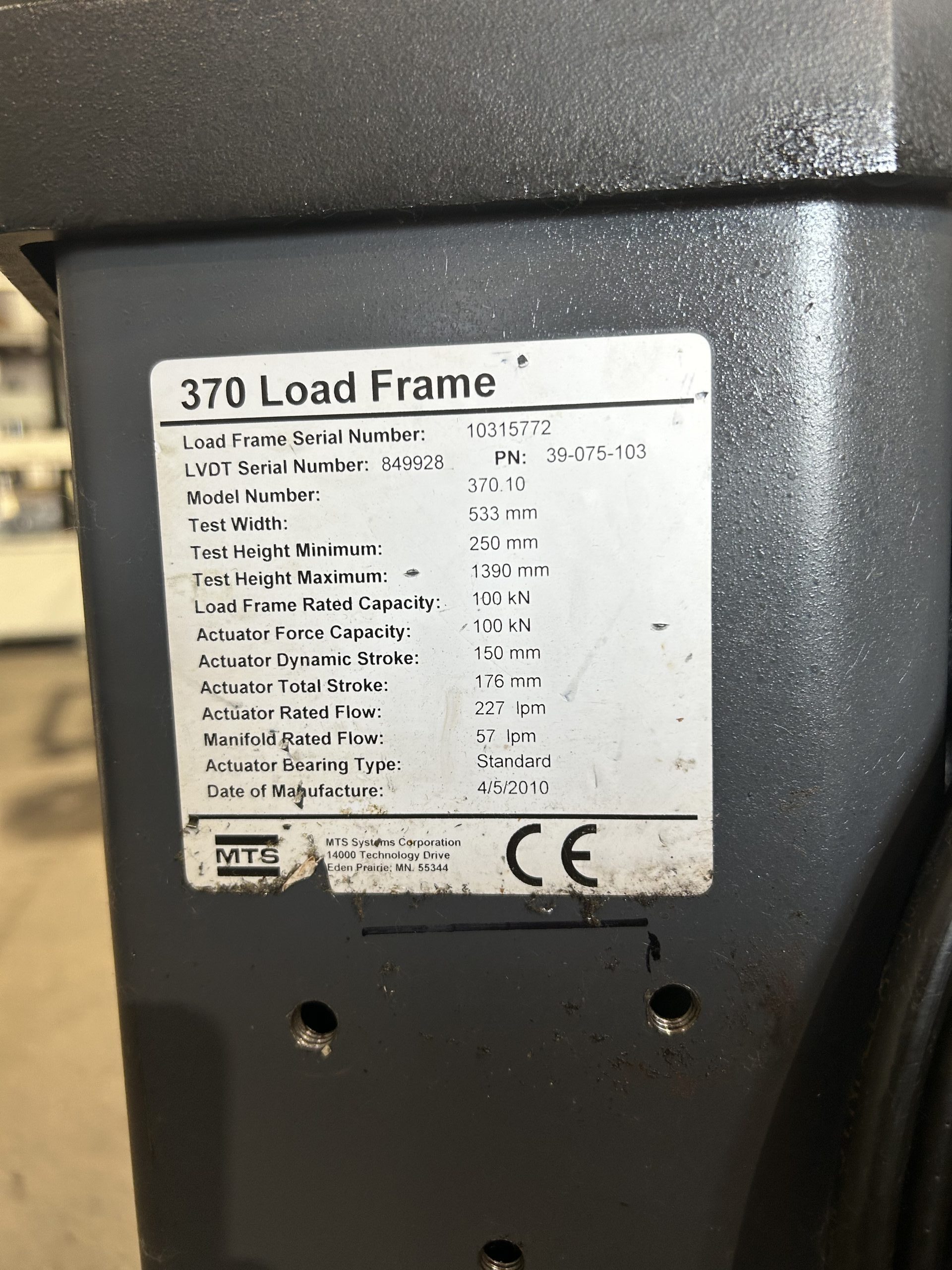

Model Number/Serial Number: 370.10 / 10315772

Load Frame Capacity (KIP): 22

Number Of Columns: 2

Distance Between Columns: 21"

Max Vertical Test Space: 50.5"

Approximate Overall Dimensions (W x D x H): 40" x 28" x 102"

Approximate Weight (lbs.): 1400

DOM: 4/5/2010

EQUIPPED WITH:

Hydraulic Crosshead Lifts & Locks Controls

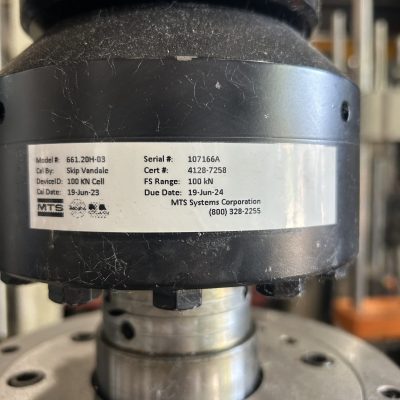

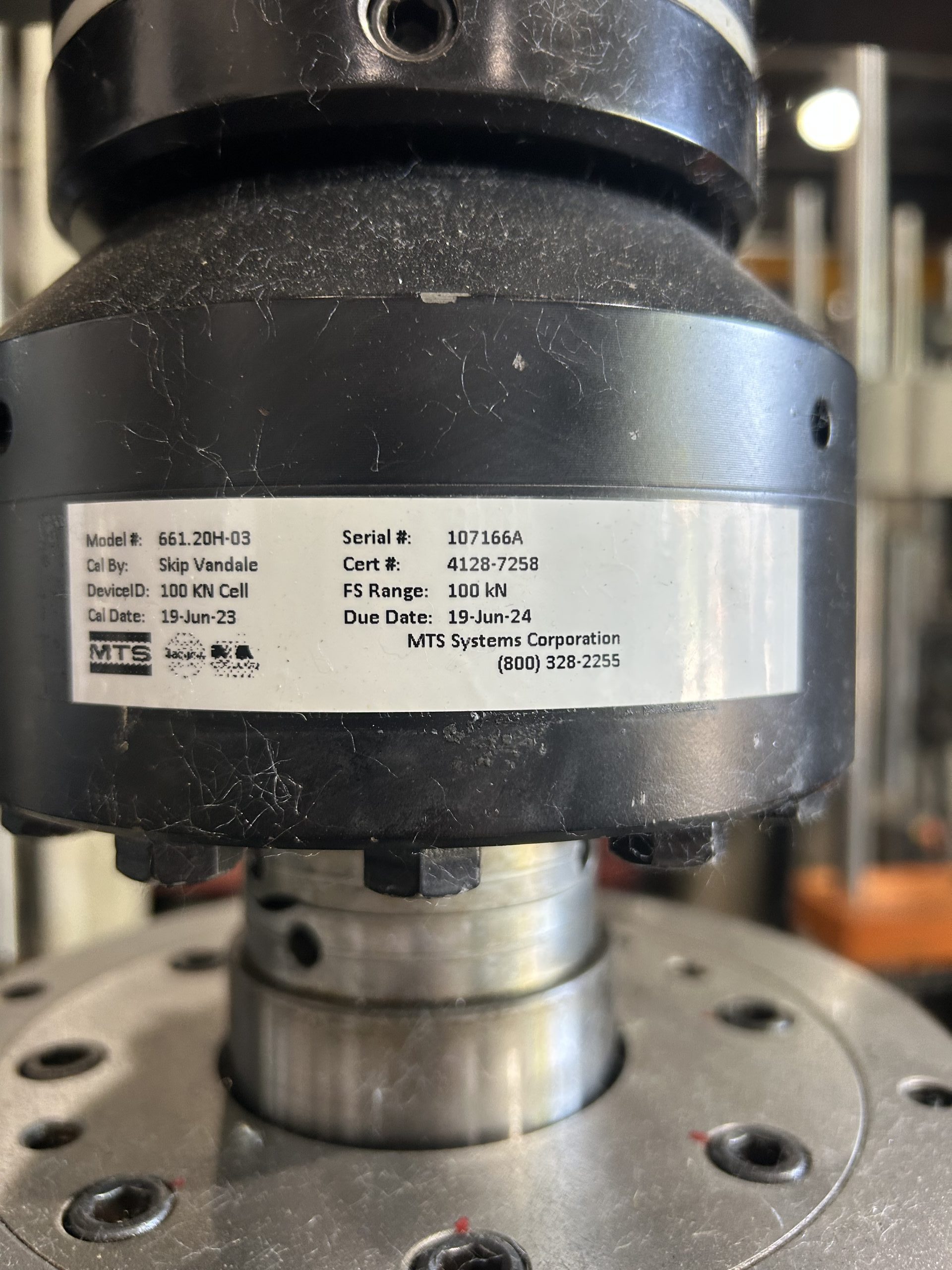

MTS 100 kN 661.20H-03 Fatigue Rated Load Cell S/N 107166A
MTS Model 609.10 Alignment Fixture S/N 10257203J
MTS 100 kN 3,000 PSI Fatigue Rated Linear Actuator with 6" Stroke LVDT. Piston Area: 7.95 in²
(1) MTS Servo Valve with Valve Shut-Off Manifold, (1) MTS Servo Valve with Valve Shut-Off Manifold, (2) MTS 111 Piston Accumulators and Hi/Low HSM.

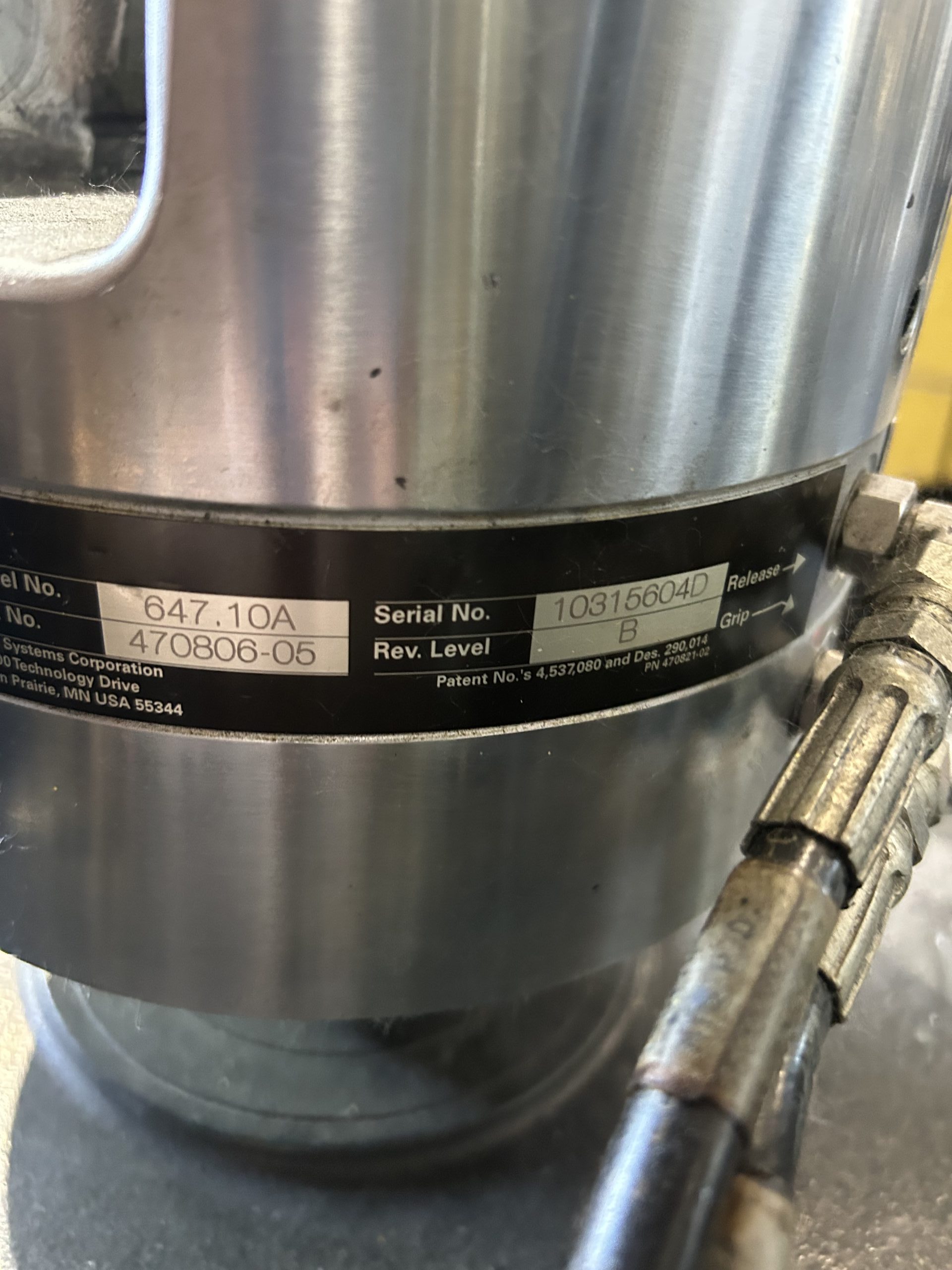

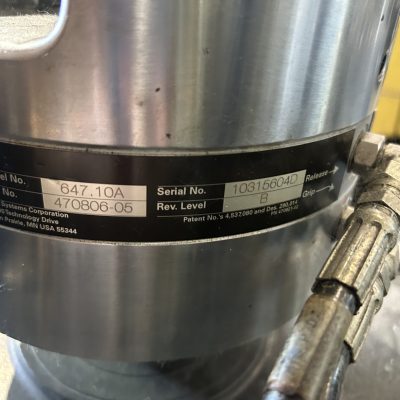

22KIP MTS 647.10 Hydraulic Grips with Water Cooled Vee Faces
Built-in Hydraulic Grips Controls

FOB Warren, MI

Cleaned, Serviced & Cycled

30 Day Satisfaction Guaranteed Return Privilege

*Actual Images Before Cleaning Servicing and Cycling

DOWNLOAD SPEC SHEET
