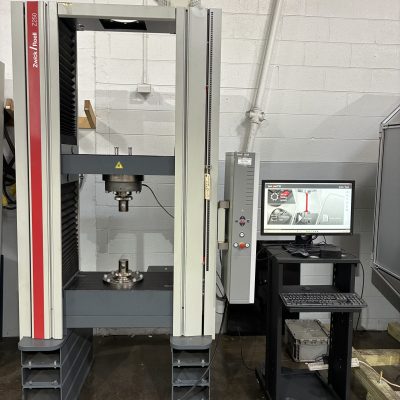

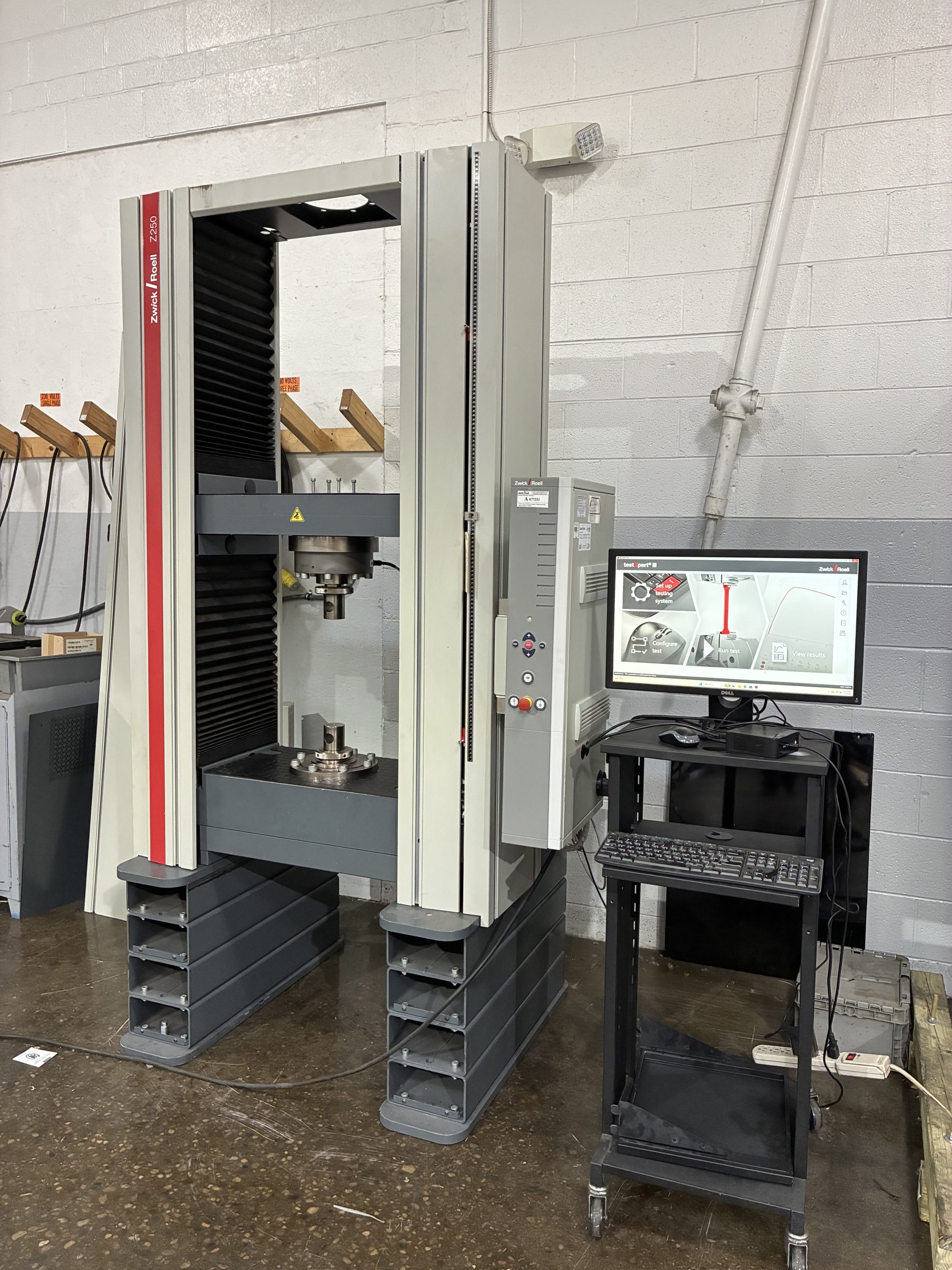

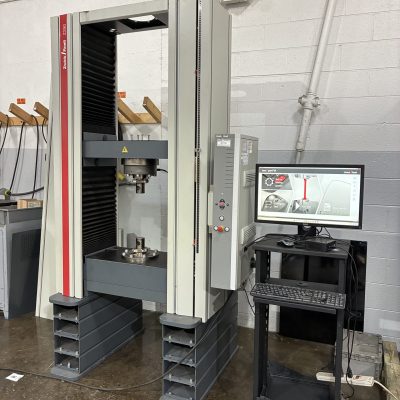

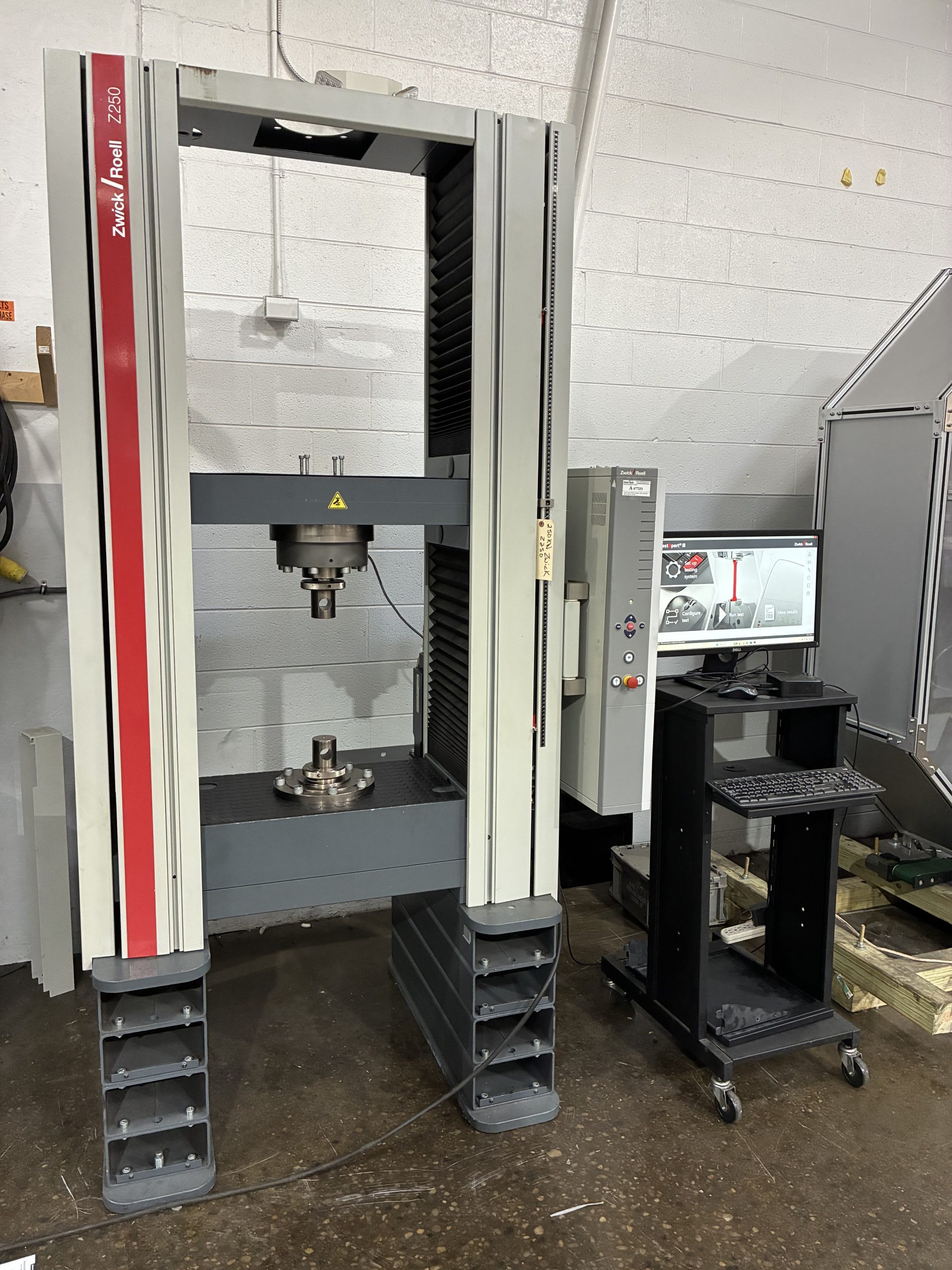

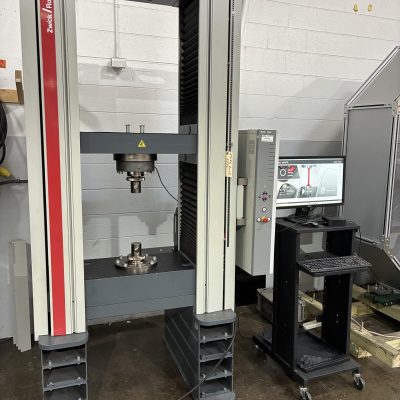

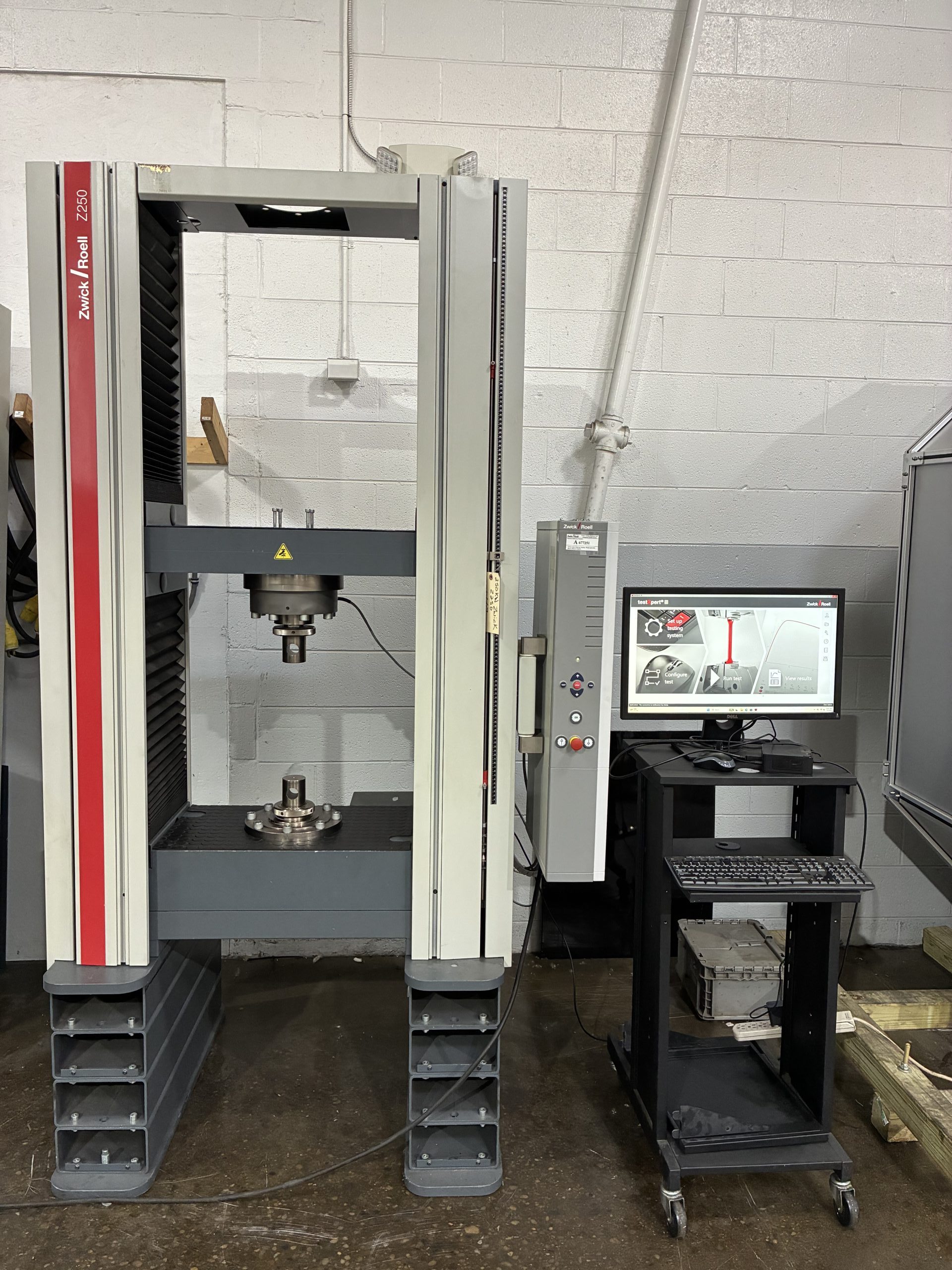

250kN (56,500lbf) ZwickRoell Materials Testing Machine Upgraded with TestXpert 3 Software. SN:174741/2007/E

SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 50"
Compression Testing Opening (Less Tooling): 50"
Distance Between Columns/Screws: 25"
Testing Stroke: 50"
Table Size (W x D): 25" x 14.5"
Testing Speed (IPM): .00002 – 20
Crosshead Adjusting Speed (IPM): 20
Overall Dimensions:
Load Frame (W x D x H): 54" x 38" x 94"
Load Frame Weight (lbs.): 3,500
Electrical Requirements: 400V 3phase with neutral

EQUIPPED WITH:

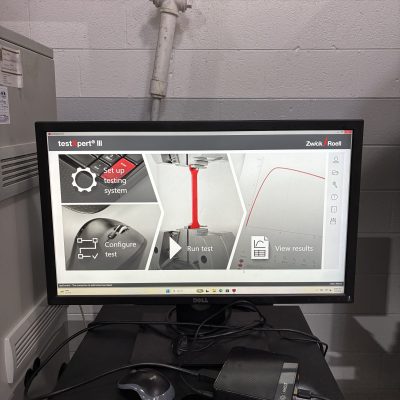

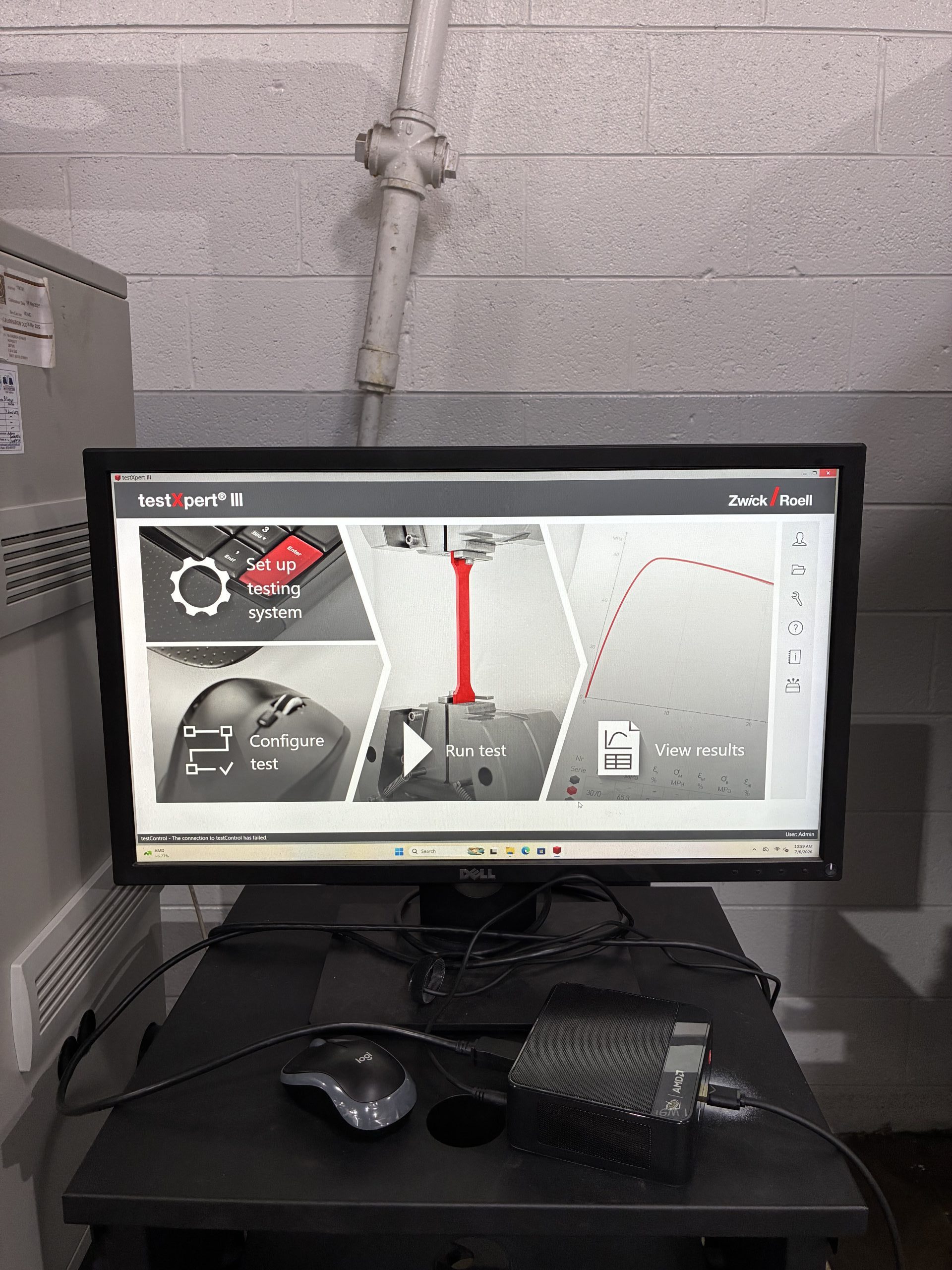

-Upgraded with TestXpert 3 Material Testing Software
-New Windows 11 Computer
-ASTM E4 Calibration (Performed June 4th 2026)
-250kN Tension & Compression Load Cell
-Upper and Lower Quick Release Hubs for Quick Tooling Changes
- (2) 250kN Wedge grips
- Transformer to run 480V 3phase power
