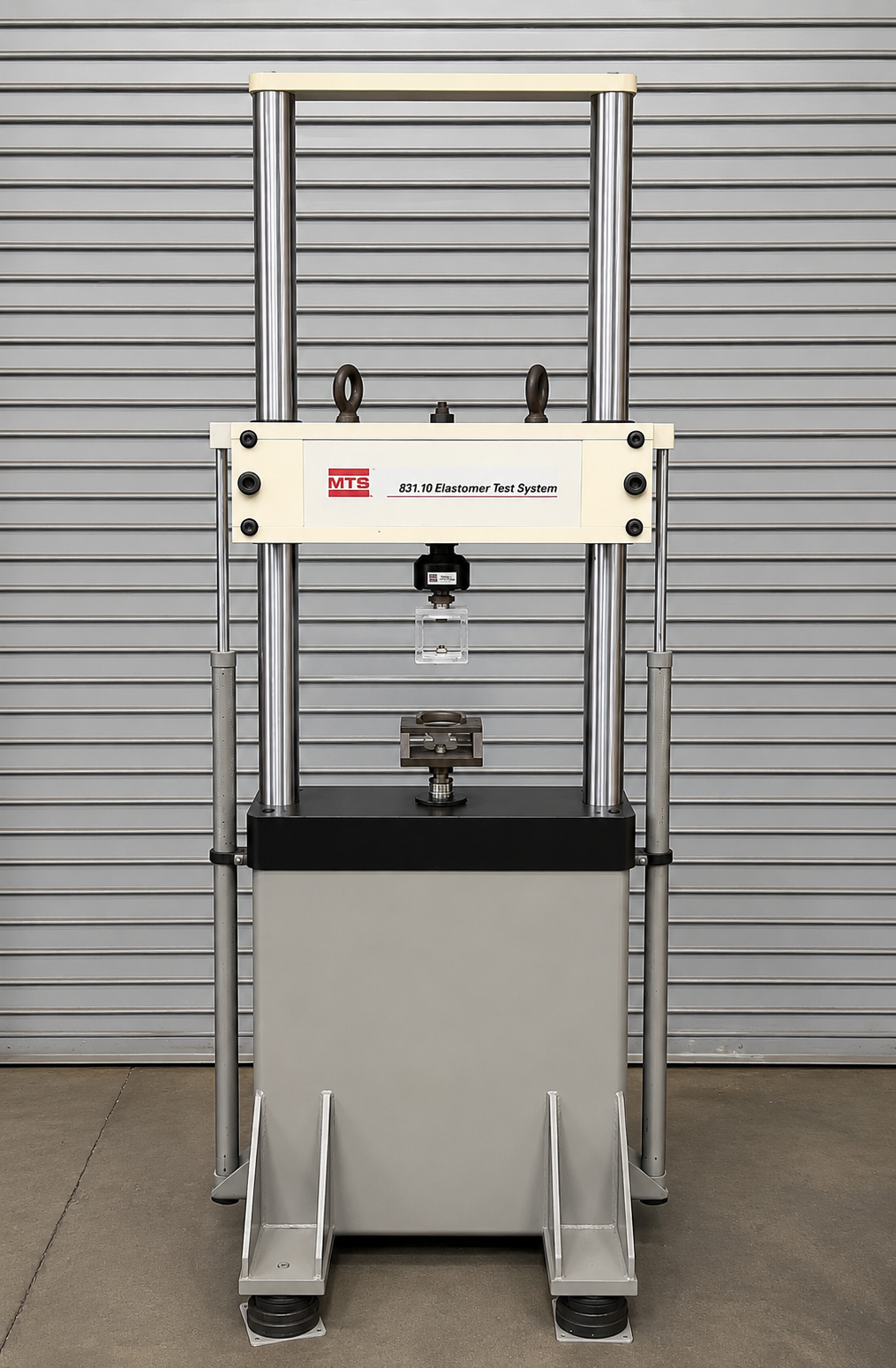

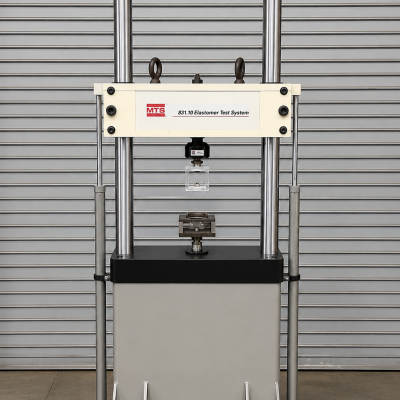

3.3KIP (15kN) MTS 831.10 Elastomer Fatigue Test System

MTS 831.10 Elastomer Fatigue Load Frame

SPECIFICATIONS:

Model Number/Serial Number: 831.10/10239162

Load Frame Capacity (KIP): 100kN

Actuator Capacity (KIP): 3.3 KIP (15 kN) @ 3,000 PSI

Number Of Columns: 2

Distance Between Columns: 21"

Test Opening: 45"

Overall Dimensions (W x D x H): 42" x 27" x 95" Max Height

Approximate Weight (lbs.): 1500 lbs

EQUIPPED WITH:

MTS 3000 PSI 3.3 KIP (15 kN) 4" Stroke Actuator, Model 831.10, LVDT, Manifold, Accumulators, MTS Model 2525.23G-04 Servo Valve.
15kN Fatigue Rated Tension & Compression Load Cell
Hydraulic Crosshead Lifts and Locks with Controls

FOB Warren, MI

Reconditioned with 90 Day Parts and Labor Warranty

30 Day Satisfaction Guaranteed Return Privilege

*Actual Images Before Reconditioning
