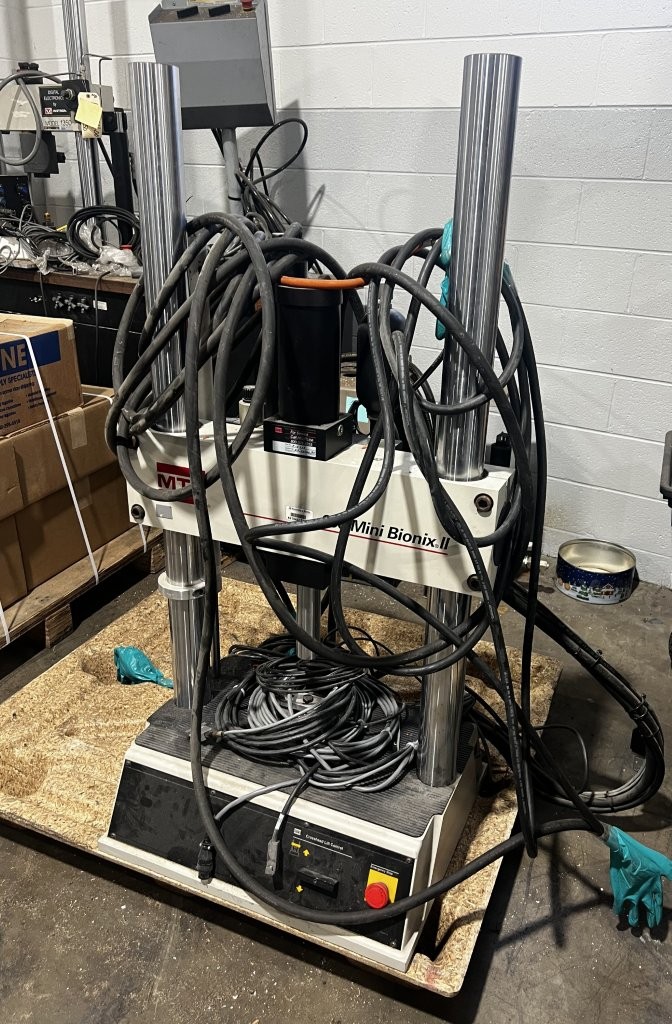

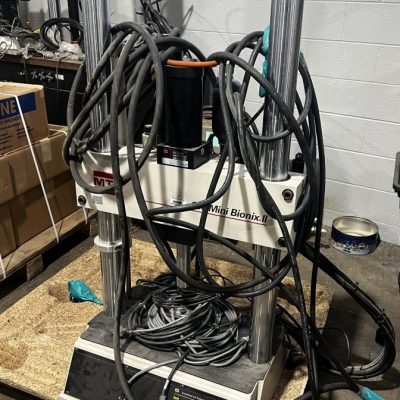

3.3KIP (15kN) MTS Model 858 Mini Bionix II Table Top Fatigue Frame

3.3 KIP (15 kN) MTS 858 Mini Bionix II

SPECIFICATIONS:

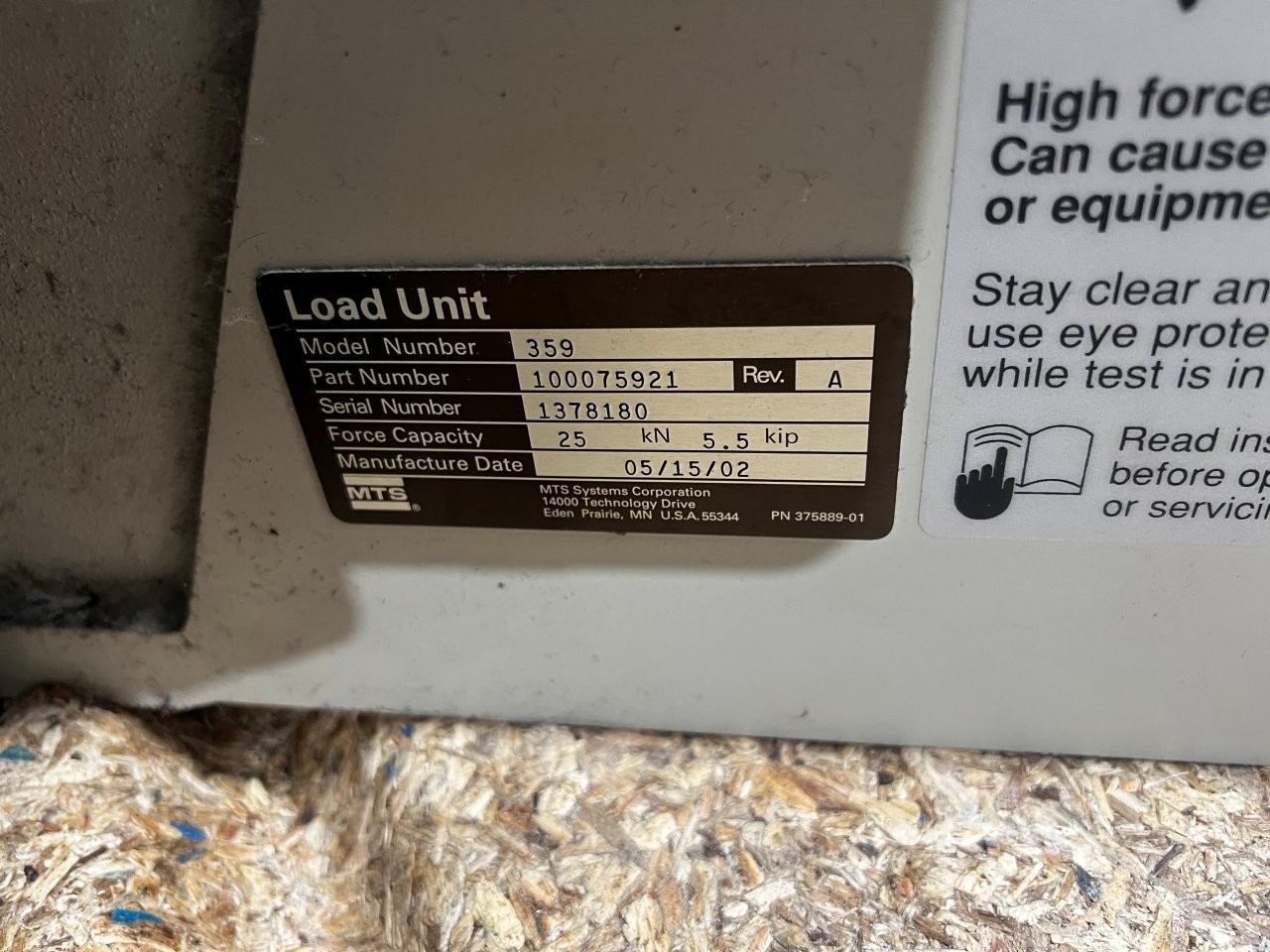

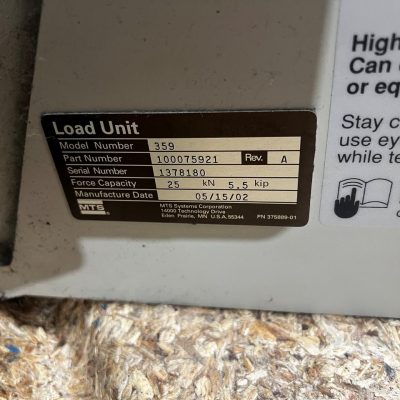

Model Number/Serial Number: 359 / 1378180
Load Frame Capacity (KIP): 5.5 (25 kN)
Actuator Capacity (KIP): 3.3 KIP 3,000 PSI
Number Of Columns: 2
Distance Between Columns: 17½"
Test Specimen Max. Length: 24" less tooling
Table Size (W x D): 9.25" x 6.75"
Approximate Overall Dimensions (W x D x H): 26½" x 20" x 79" Max Height
Approximate Weight (lbs.): 950

EQUIPPED WITH:

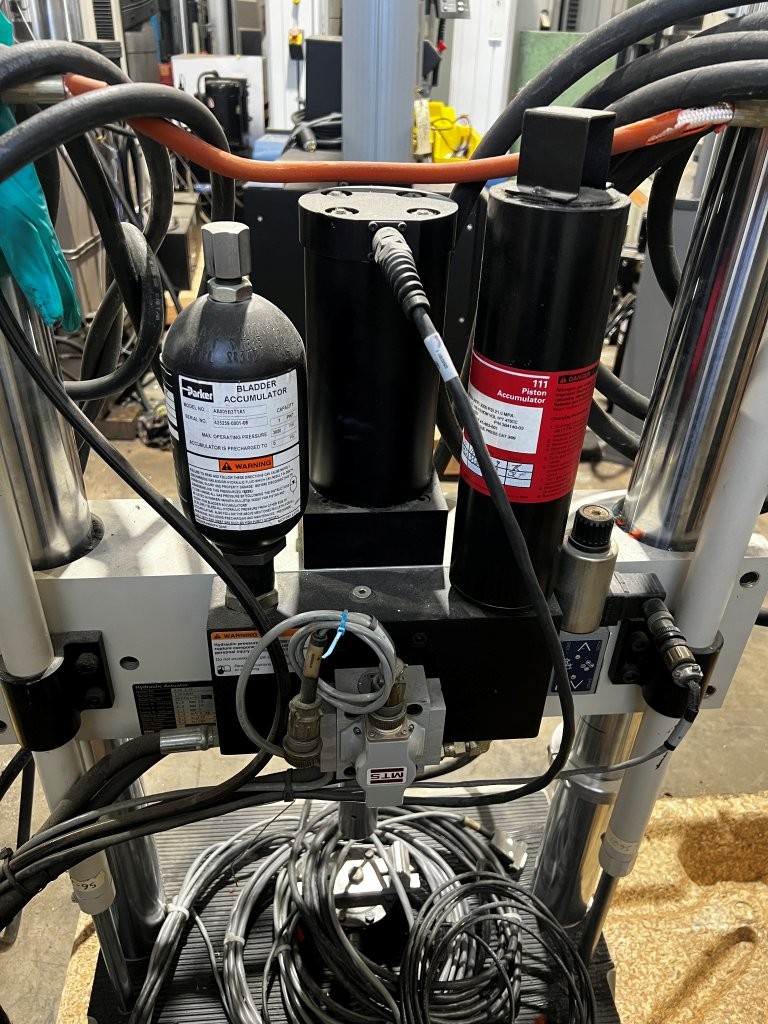

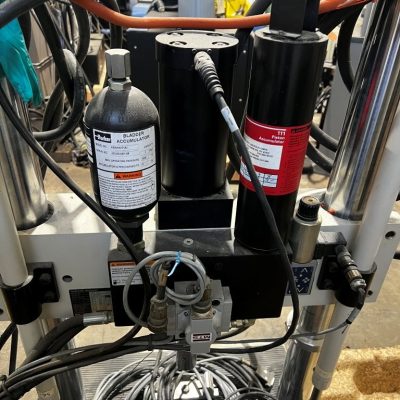

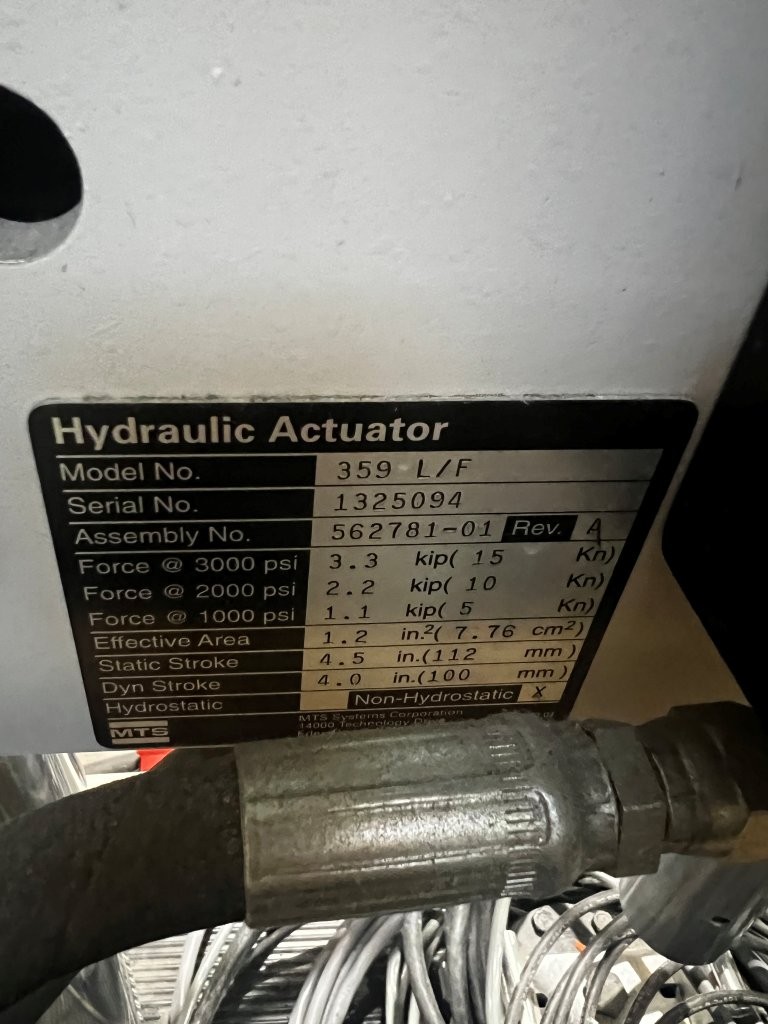

-MTS 3.3 KIP 4" Stroke Actuator, Model 359 L/F, LVDT, S/N 1325094, Area = 1.2 in² with: Manifold, Proportional Pressure Control Valve (On/Off)
-MTS MOOG 5 GPM Model 252.23G-04 Servo Valve
-MTS 3.3KIP (15 kN) Model 661.19F-03 Fatigue Rated Load Cell
-Hydraulic Crosshead Lifts with Frame Mounted Controls

FOB Warren, MI
Cleaned, Serviced and Cycled
90 Day Parts and Labor Warranty
30 Day Satisfaction Guaranteed Return Privilege

*Actual Images Before Cleaning & Servicing
