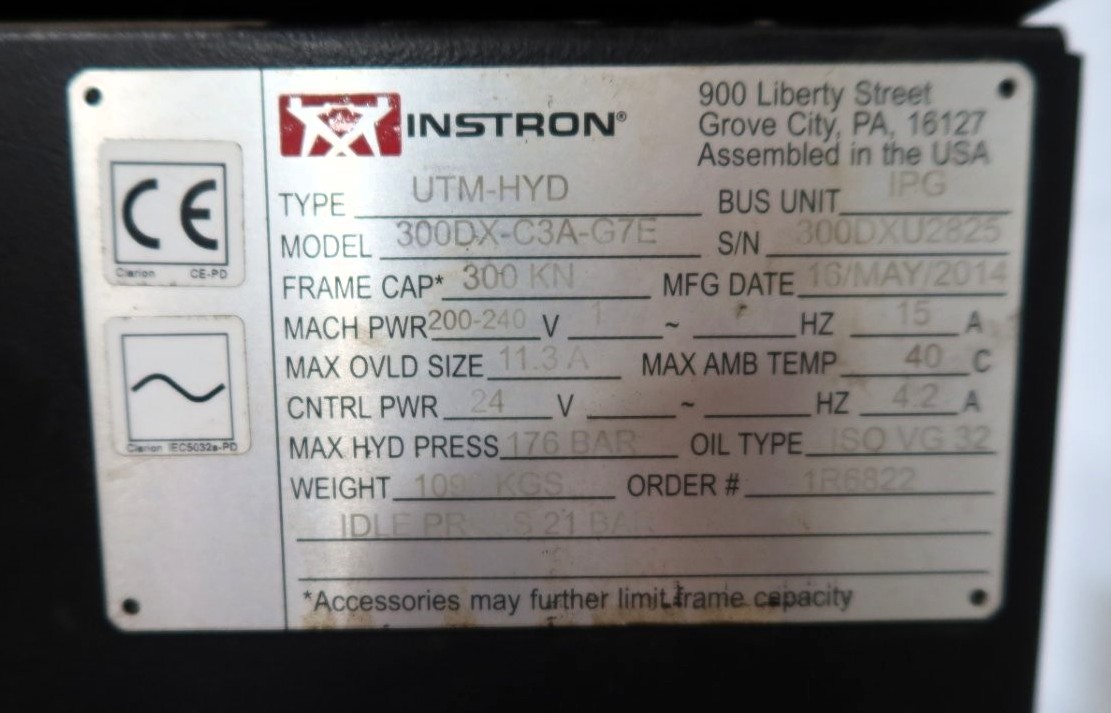

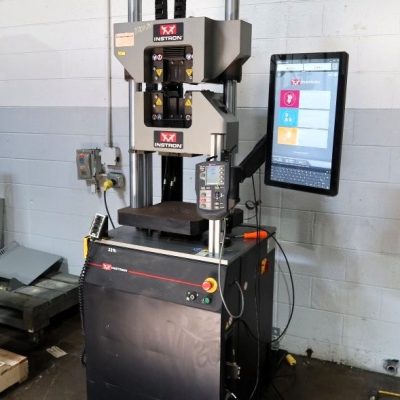

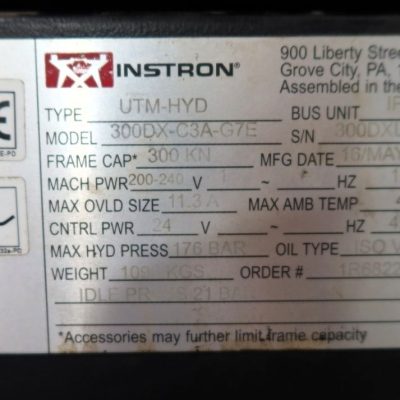

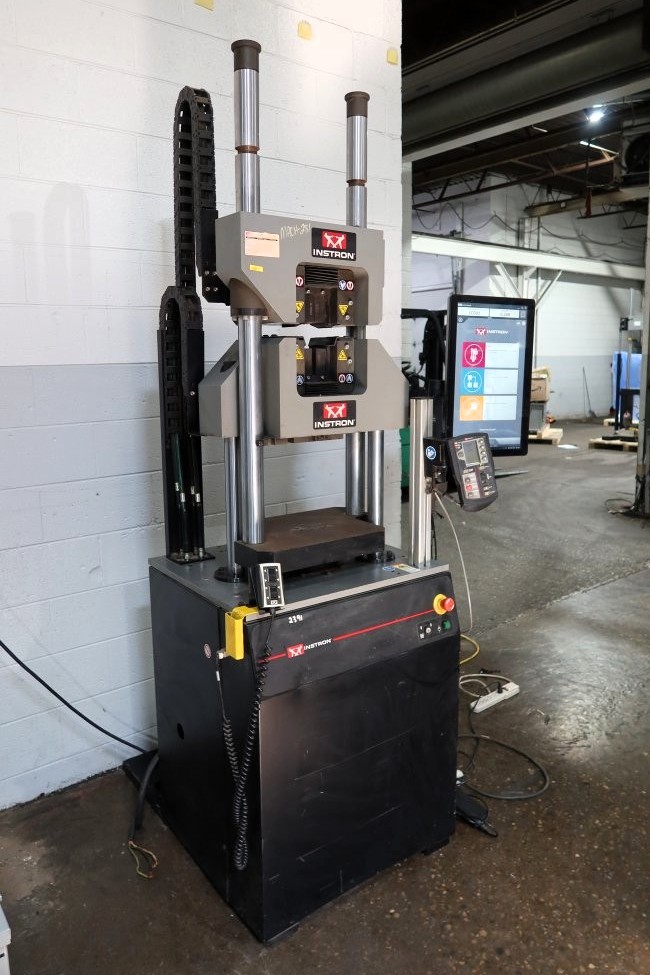

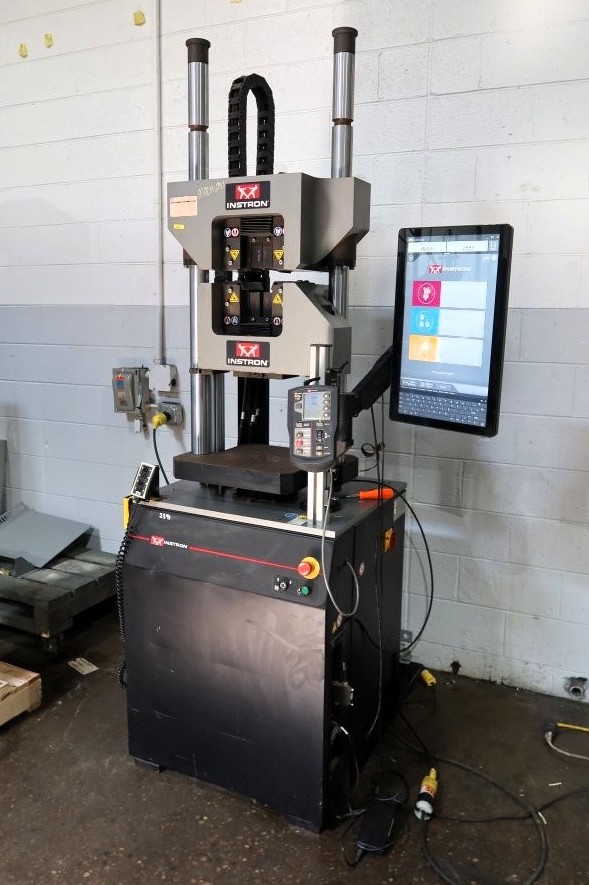

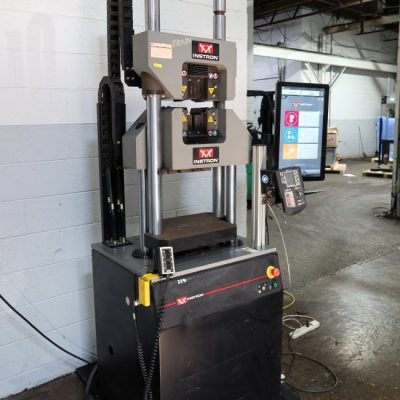

Instron Model 300DX
SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 20"
Compression Testing Opening (Less Tooling): 20"
Distance Between Columns/Screws: 15"
Testing Stroke: 6"
Table Size (W x D): 14" x 14"
Testing Speed (IPM): 0 – 6
Crosshead Adjusting Speed (IPM): 15
Approximate Overall Dimensions:
Load Frame (W x D x H): 30" x 42" x 93"
Weight (lbs.): 2,404
Electrical Requirements (V, Hz, PH, AMP): 200-240, 60, 1, 15
Max Specimen Size (in.):
Flat Specimen: 2” x 2.75” (Thickness x Width)
Round Specimen: .118" to 1.57"

EQUIPPED WITH:

-Instron BlueHill Universal Software

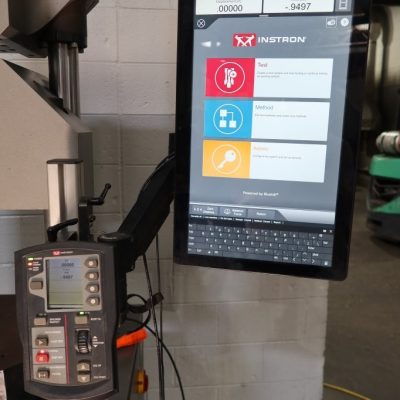

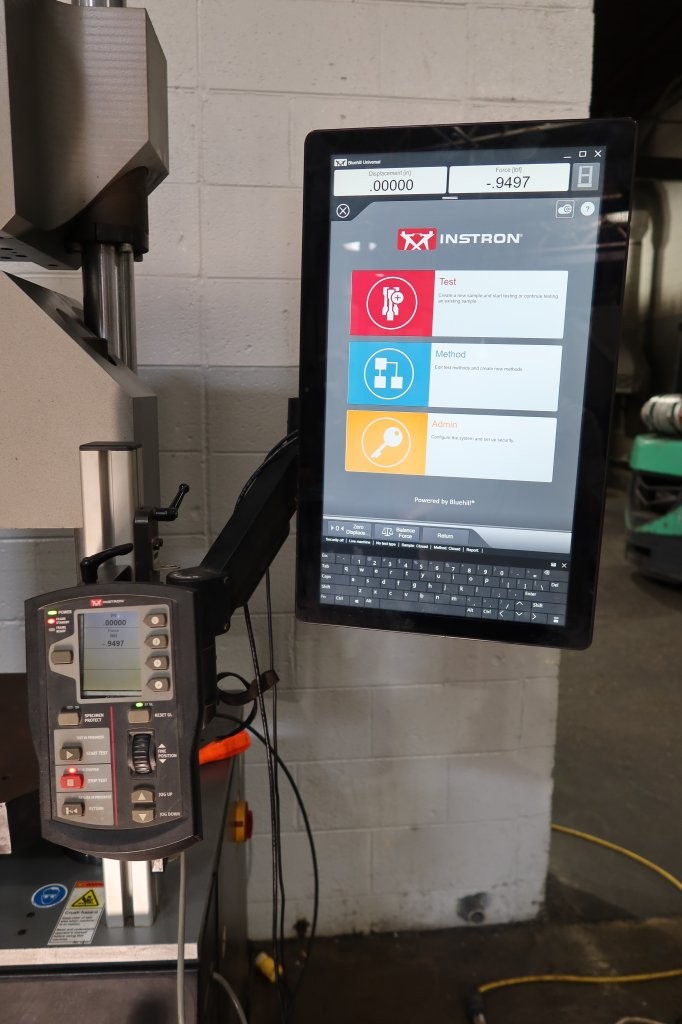

-Touch Screen Tablet for Computer Controlled Testing
-Open Front Crosshead
-Handset Controller
-Grip control Pendant
-300kN Load Cell

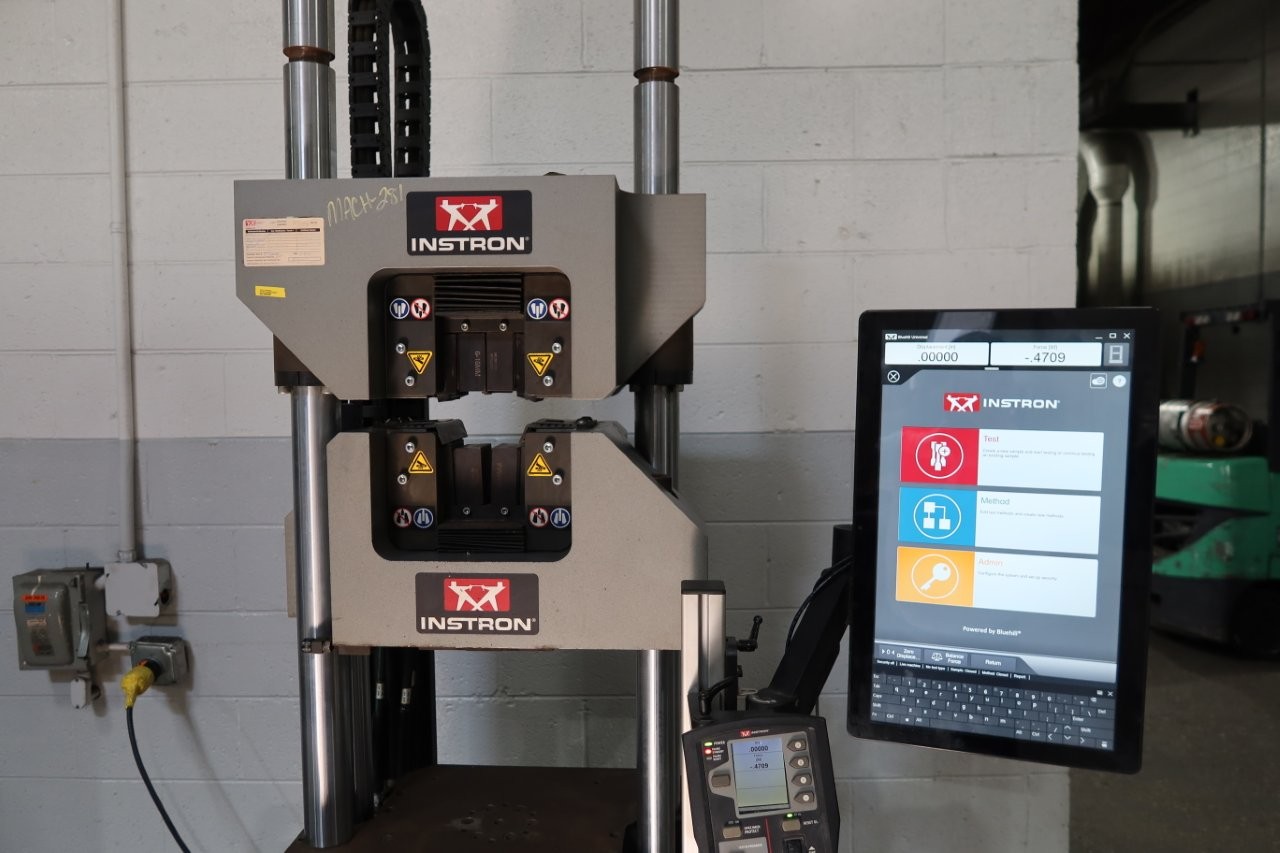

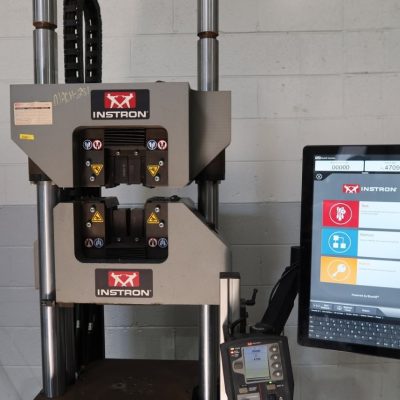

-Hydraulic Gripping System
-set of (4) 0-16mm Flat Grips Faces

FOB Warren, MI

30 Day Satisfaction Guarantee Return Privilege

Cleaned, Serviced and Cycled
