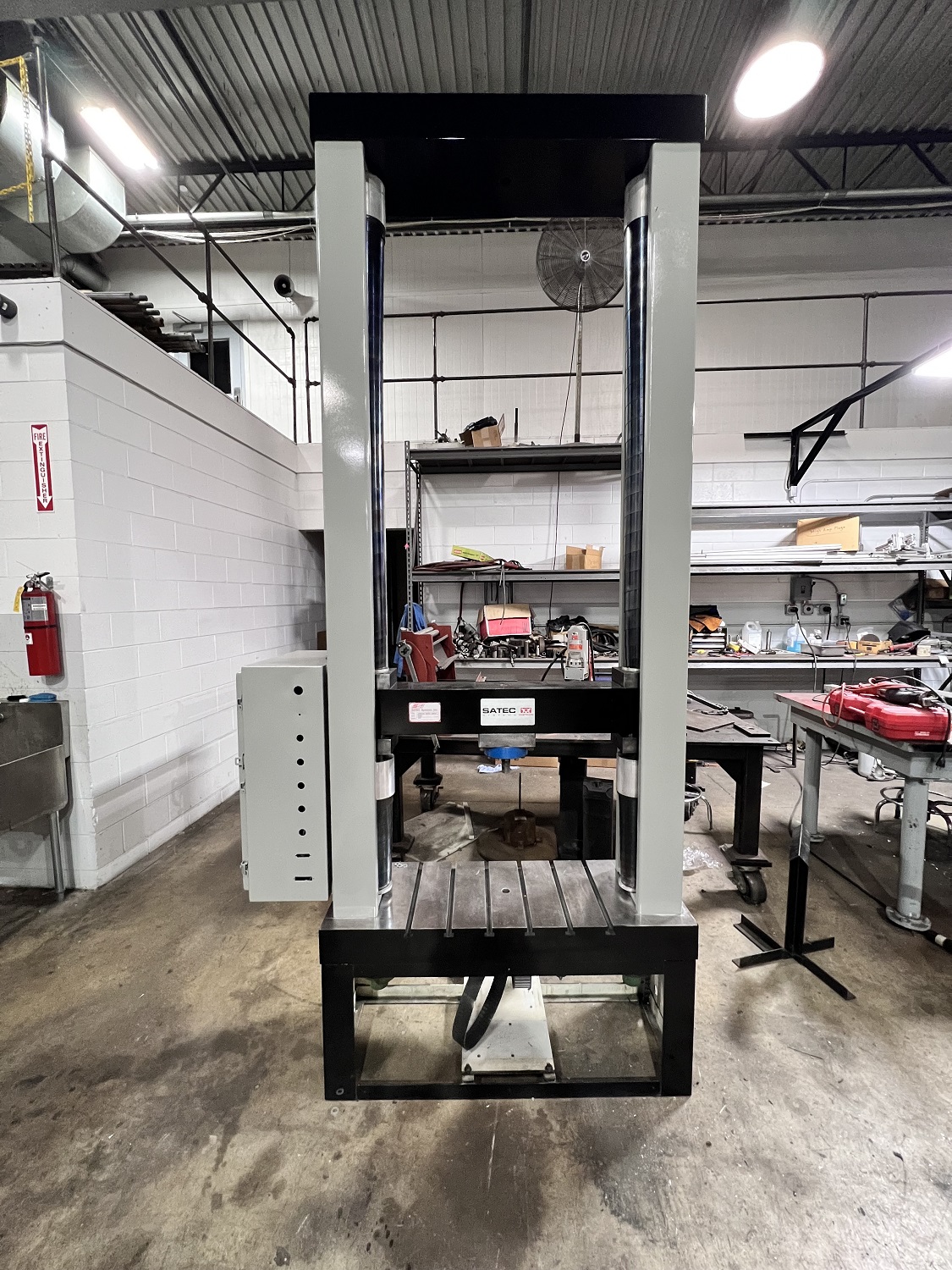

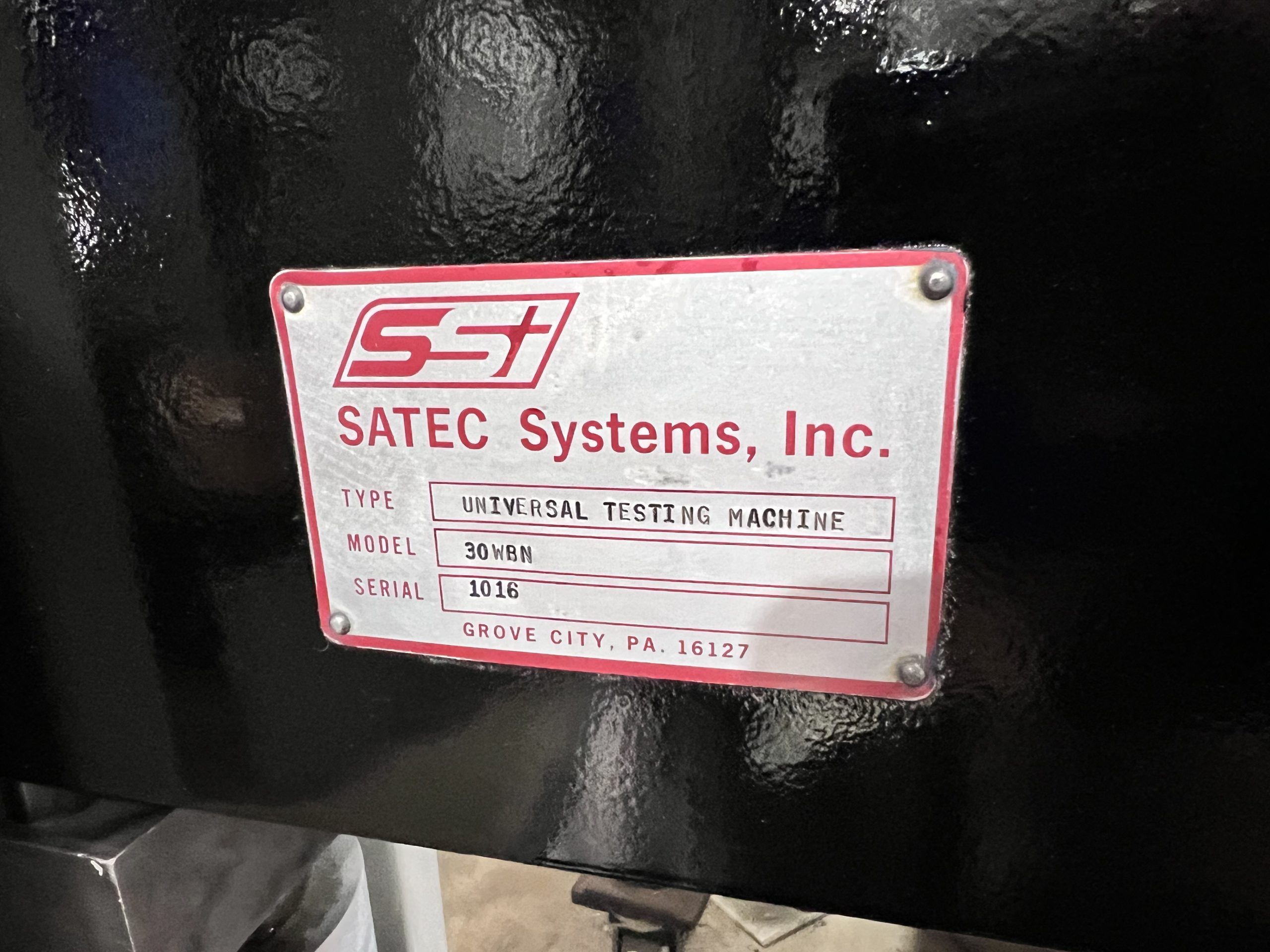

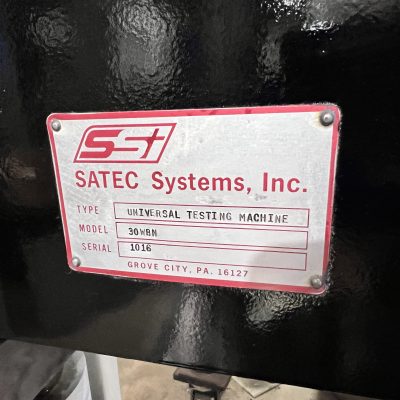

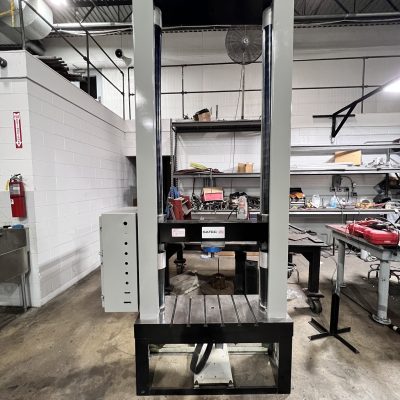

30K (150kN) Satec Model WBN (Extra Tall & Extra Wide)

Satec WBN

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 78"

Compression Testing Opening (Less Tooling): 78"

Distance Between Columns/Screws: 32"

Table Size (W x D): 32" x 16" (T-Slotted)

Testing Speed (IPM): .0002 - 12

Crosshead Adjusting Speed (IPM): 12

Approximate Overall Dimensions:

Load Frame (W x D x H): 58" x 34" x 121"

Approximate Weight (Lbs): 3,500

Electrical Requirements (V,Hz,PH): 230, 60, 3

EQUIPPED WITH:

New Computer System with Keyboard & Mouse
24" LED-Backlit LCD Color Monitor
Microsoft Windows 11 Professional, Workstation
MTGenius, Material Testing Software for Data Acquisition (load, position & 2 strain), Analysis and Computer Controlled Testing
MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB cable.
Electronic Material Testing Control System in custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
New AC Servo Motor and AC Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
30K (150 kN) Tension & Compression Load Cell

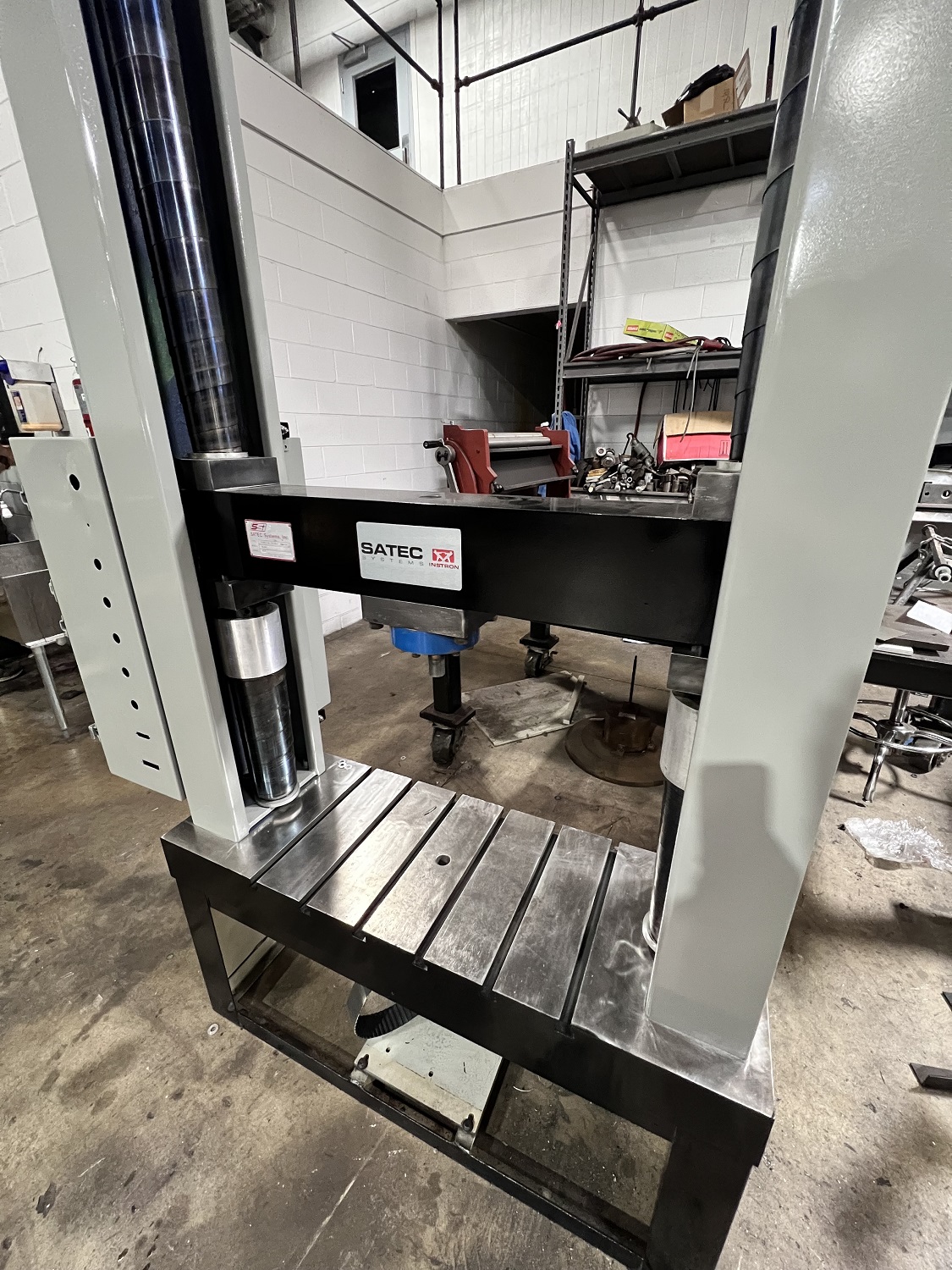

T-Slotted Table

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty

(Ready for Immediate Shipment)

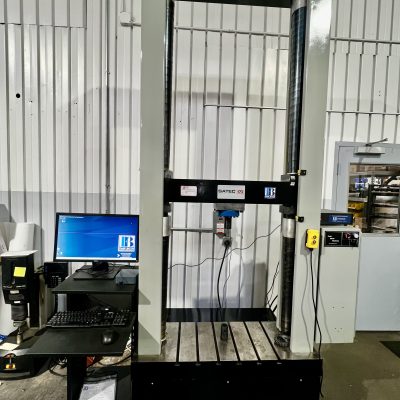

*Representative Image After Reconditioning
