30kN MTS Insight Model 30-SL Universal Testing Machine
MTS Insight 30-SL
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 47"
Compression Testing Opening (Less Tooling): 47"
Distance Between Columns/Screws: 16.5"
Testing Stroke: 47"
Testing Speed (IPM): .0002-20
Crosshead Adjusting Speed (IPM): 20
Position Resolution: .00024"
Approximate Overall Dimensions:
Load Frame (W x D x H): 33" x 31" x 65"
Approximate Weight (lbs): 600
Electrical Requirements: 230V 1Phase
EQUIPPED WITH:
-
Computer System with Keyboard & Mouse.
-
24" LED-Backlit LCD Color Monitor
-
Microsoft Windows 10 Professional, Workstation
-
MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
-
MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
-
Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
-

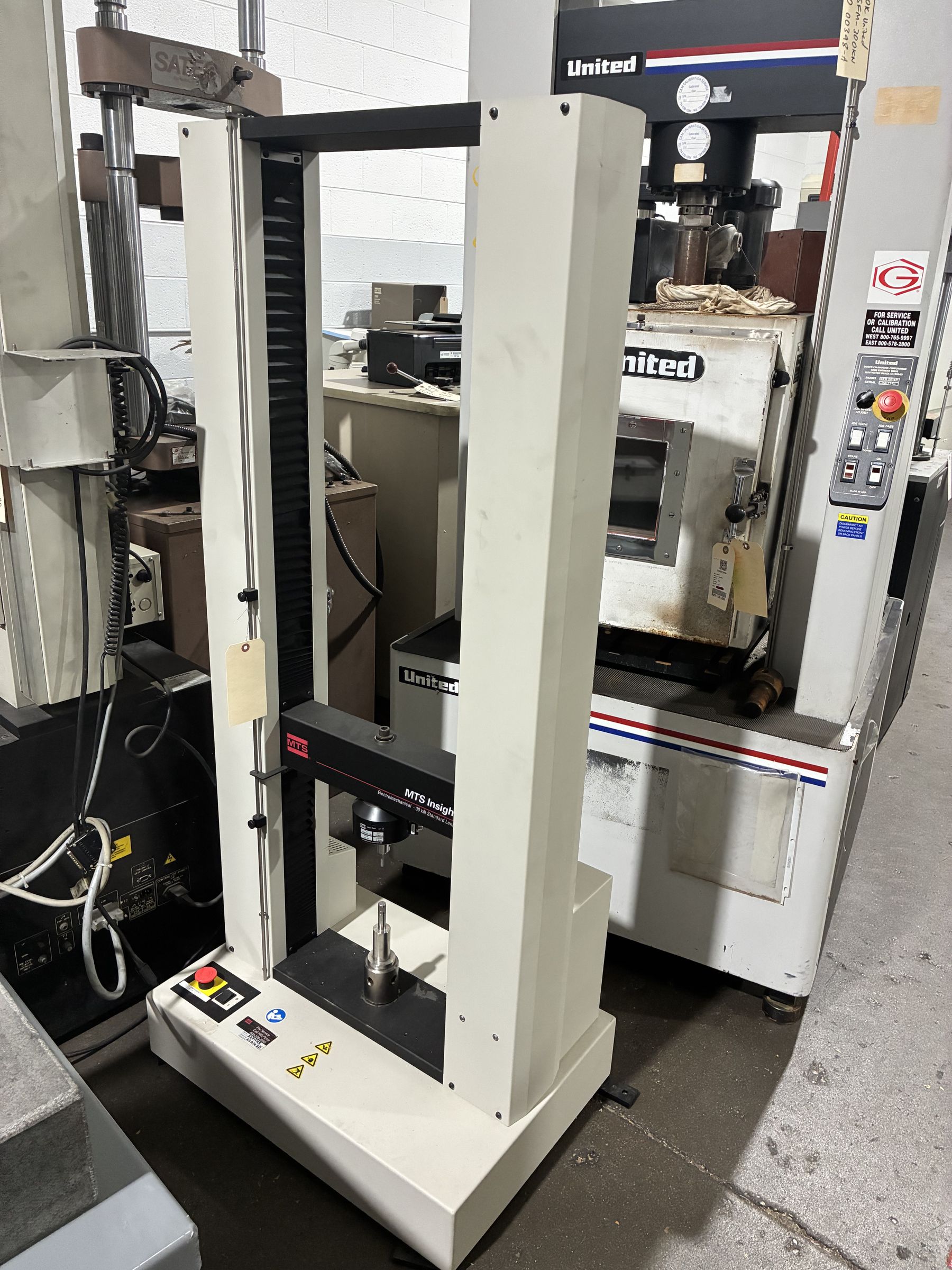

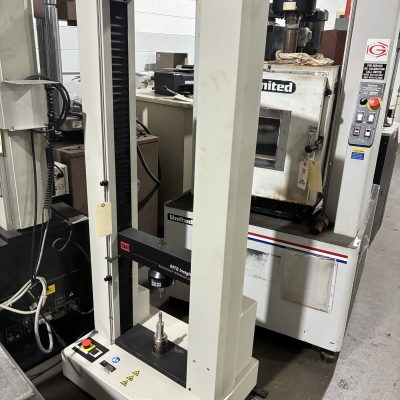

New Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).FOB Warren, MIReconditioned/Retrofitted & Certified1 Year Parts and Labor Warranty*Actual Image Before Reconditioning
#13144-00 | Click for quote
