400K (2,000kN) Satec 400HVL (MTQ Servo)

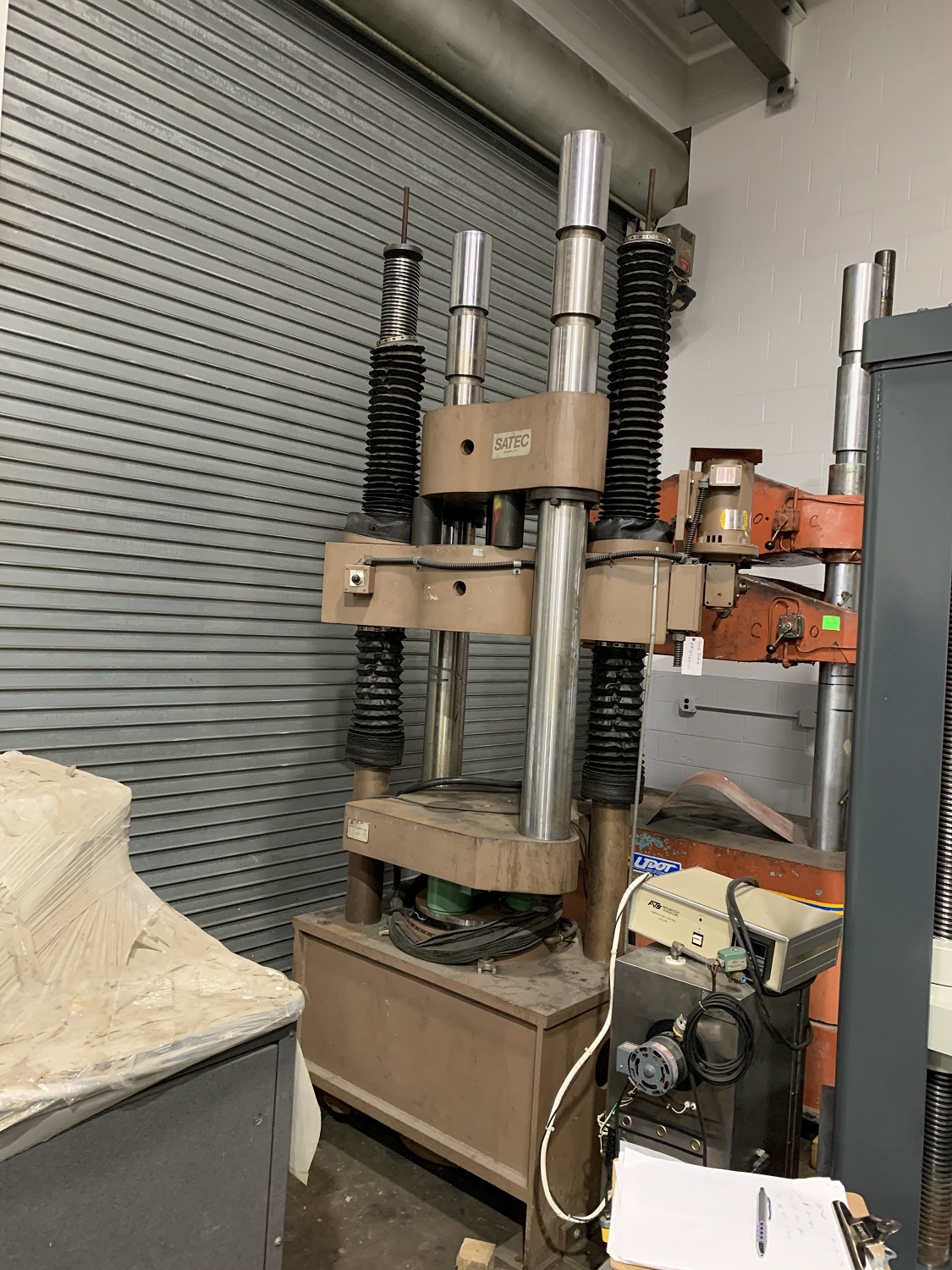

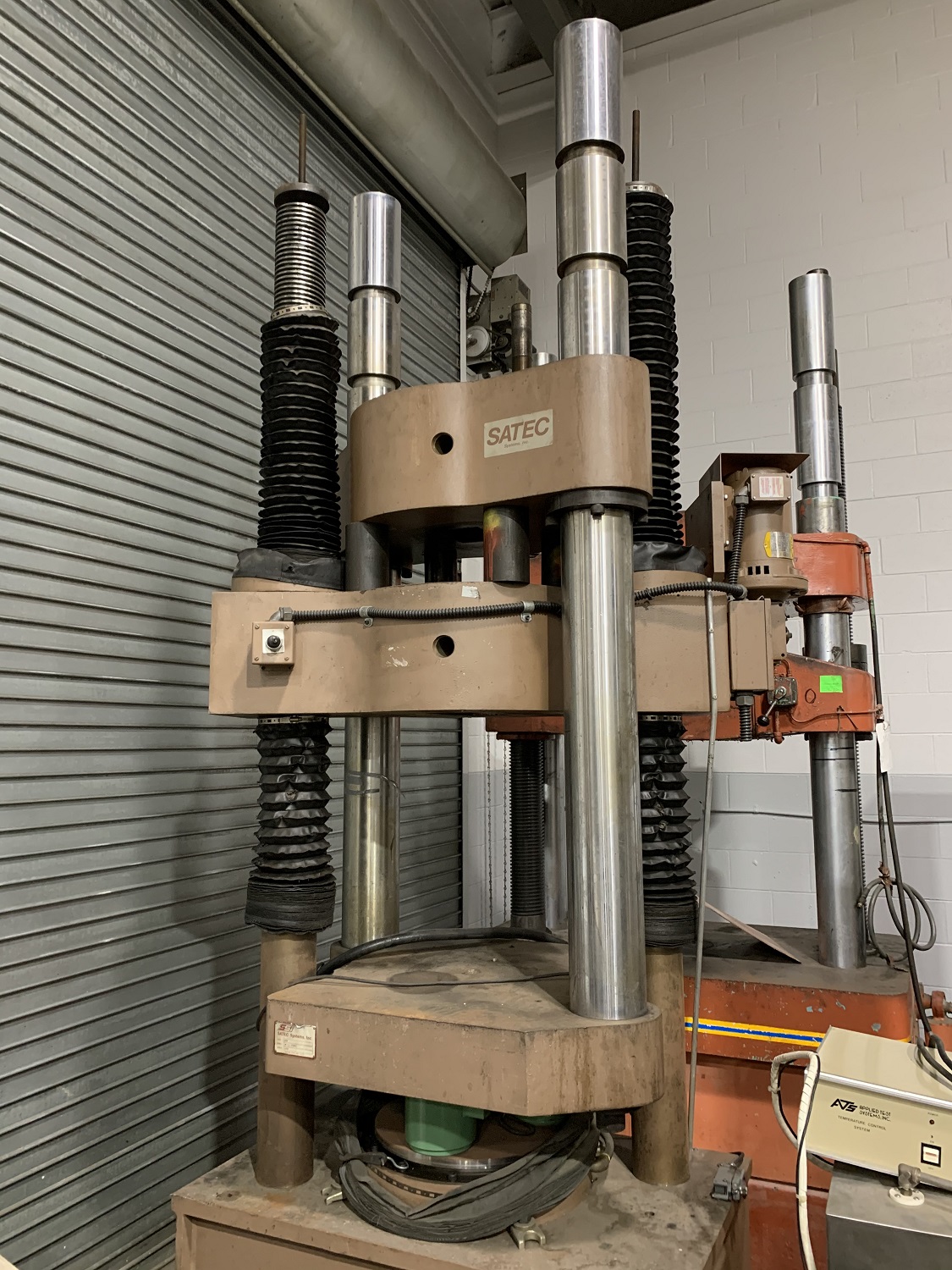

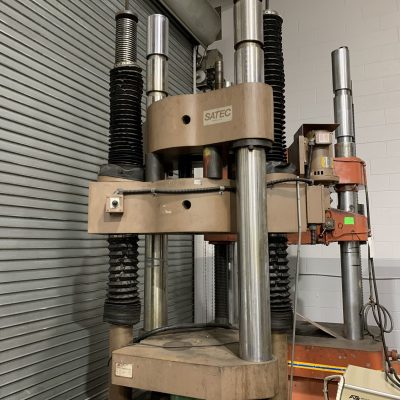

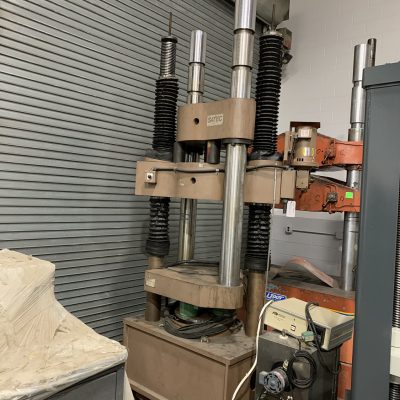

(1) Reconditioned 400,000 lbf (2,000 kN) Capacity Satec Model 400HVL, Hydraulic Tension and Compression Testing Machine with Adjustable Top Crosshead.

Satec Model 400HVL

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 52"

Compression Testing Opening (Less Tooling): 48"

Distance Between Columns/Screws: 24"

Testing Stroke: 12"

Table Size (W x D): 24" x 30"

Testing Speed (IPM): 0 – 3

Crosshead Adjusting Speed (IPM): 12

Approximate Overall Dimensions/Weight:

     New Hydraulic Console (W x D x H): 36" x 24" x 42"

     Load Frame (W x D x H): 50" x 30" x 130"

     Weight (lbs.): 20,000

Electrical Requirements (V,Hz,PH): 220/440, 60, 3

EQUIPPED WITH:

• Dell, OpiPlex 3050 Intel i5-7500 CPU 3.41GHz Computer (500 GB H.D., 4.0 GB Ram), 16X DVD+/-RW SATA Drive, Dell Wireless Key Keyboard & Mouse
• 24" LED-Backlit LCD Color Monitor or Better & Manual
• Microsoft Windows 10 Professional, Workstation
• MTESTQuattroTM, Material Testing Software for Data Acquisition (Load, Position, 2 Strain & Aux), Analysis and Computer Controlled Testing with Manual.
• MTESTQuattroTM, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
• High Resolution TTL Compatible Incremental Quadrature Encoder for Position and Testing Speed Values with Signal Cable and Mounting Hardware.
• Three Strain Gauge Load Cells Indicating System
• New Closed Loop Hydraulic Pumping System in custom "Silent" Console With: Hydraulic Reservoir, Submerged Pump, P. Valve, Custom Aluminum Hydraulic Circuit Manifold, 1200 RPM 7.5 HP Motor, Thermal Transfer Heat Exchanger, PC Controls & More.

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty
