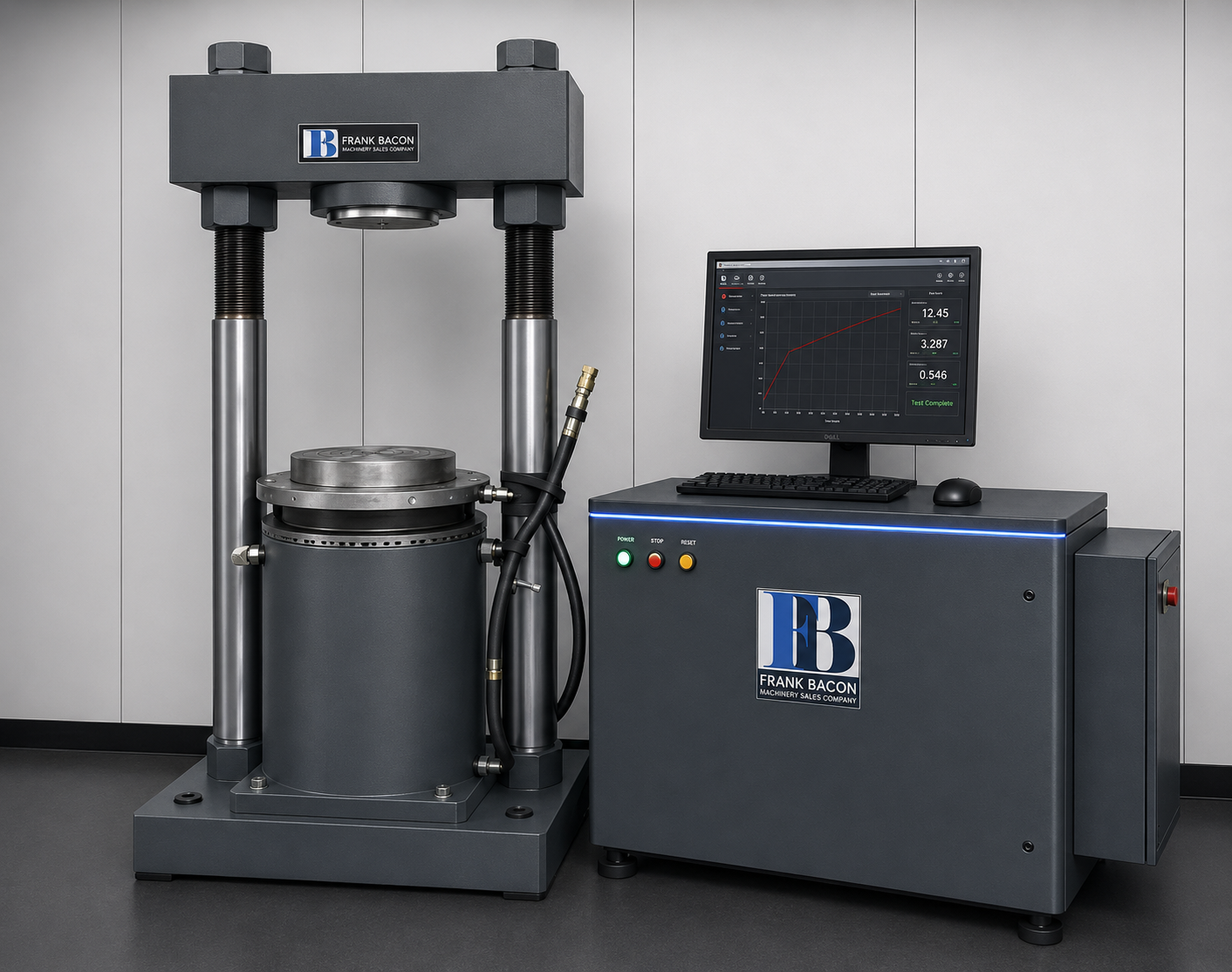

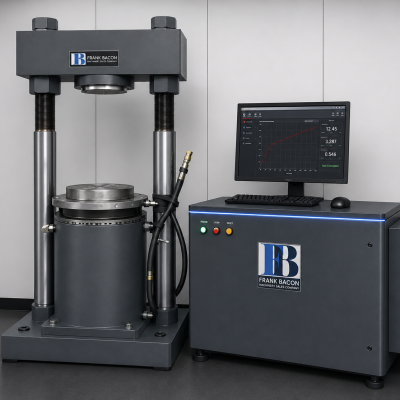

400K (2,000kN) Tinius Olsen Compression Only
400K Tinius Olsen Super L
SPECIFICATIONS:
Compression Testing Opening (Less Tooling): 18"
Distance Between Columns/Screws: 22"
Testing Stroke: 6"
Testing Speed (IPM): 0 – 3
Crosshead Adjusting Speed (IPM): 12
Approximate Overall Dimensions: 36" x 30" x 83"
Standard Console (W x D x H): 69" x 24" x 55"
Approximate Weight (Lbs): 3,500
Electrical Requirements (V,Hz,PH): 230, 60, 3
EQUIPPED WITH:
-
New Computer System with Keyboard & Mouse
-
Microsoft Windows 11 Professional, Workstation
-
eP2-DA Controller, with GageSafe Live Material Testing Software for Data Acquisition (load, position & strain), Analysis and Test Reporting
-
Reconditioned Tinius Olsen Manually Controlled Hydraulic Power Supply with Load and Unload Valves
Optional: Fully Computer Controlled Servo Hydraulic Power Supply for Closed Loop Testing: + $20,000
FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty

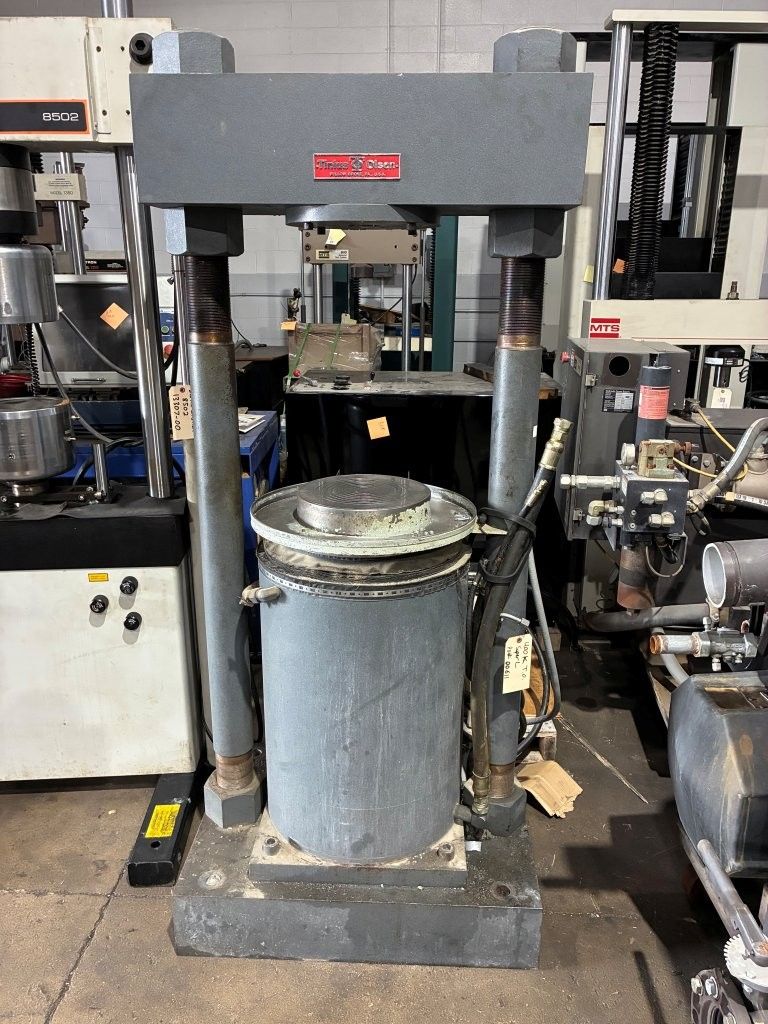

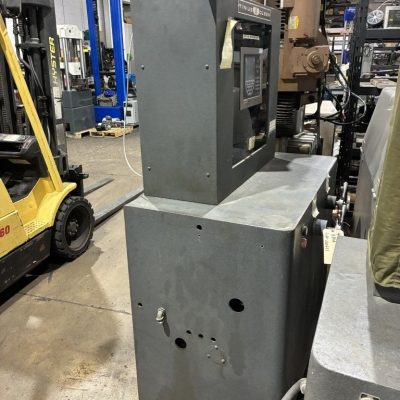

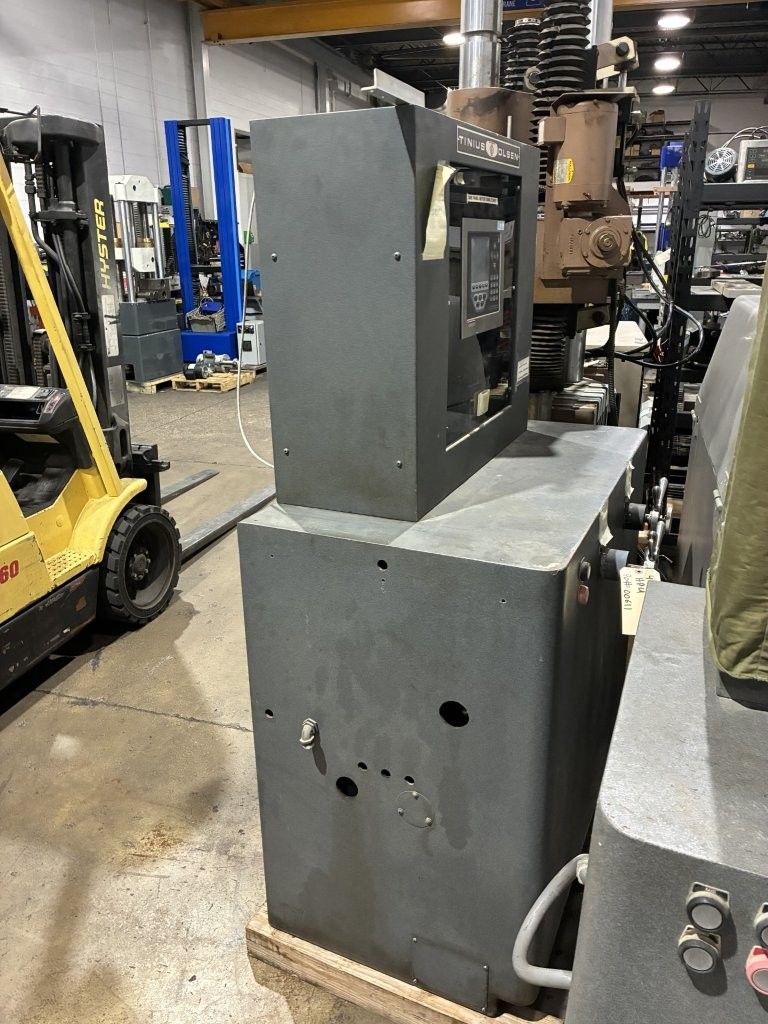

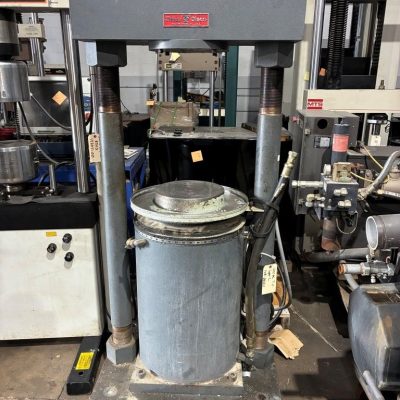

*Actual Images Before Reconditioning
Click for quote | 400K TO Compression
