400K (2,000kN) Tinius Olsen Super L (MTQ Servo)

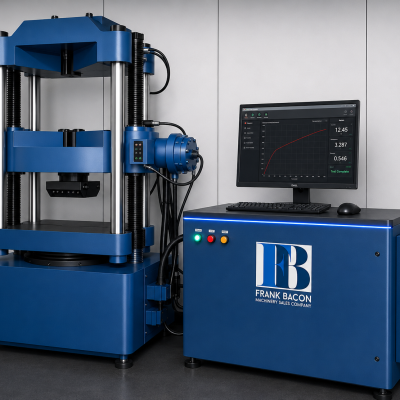

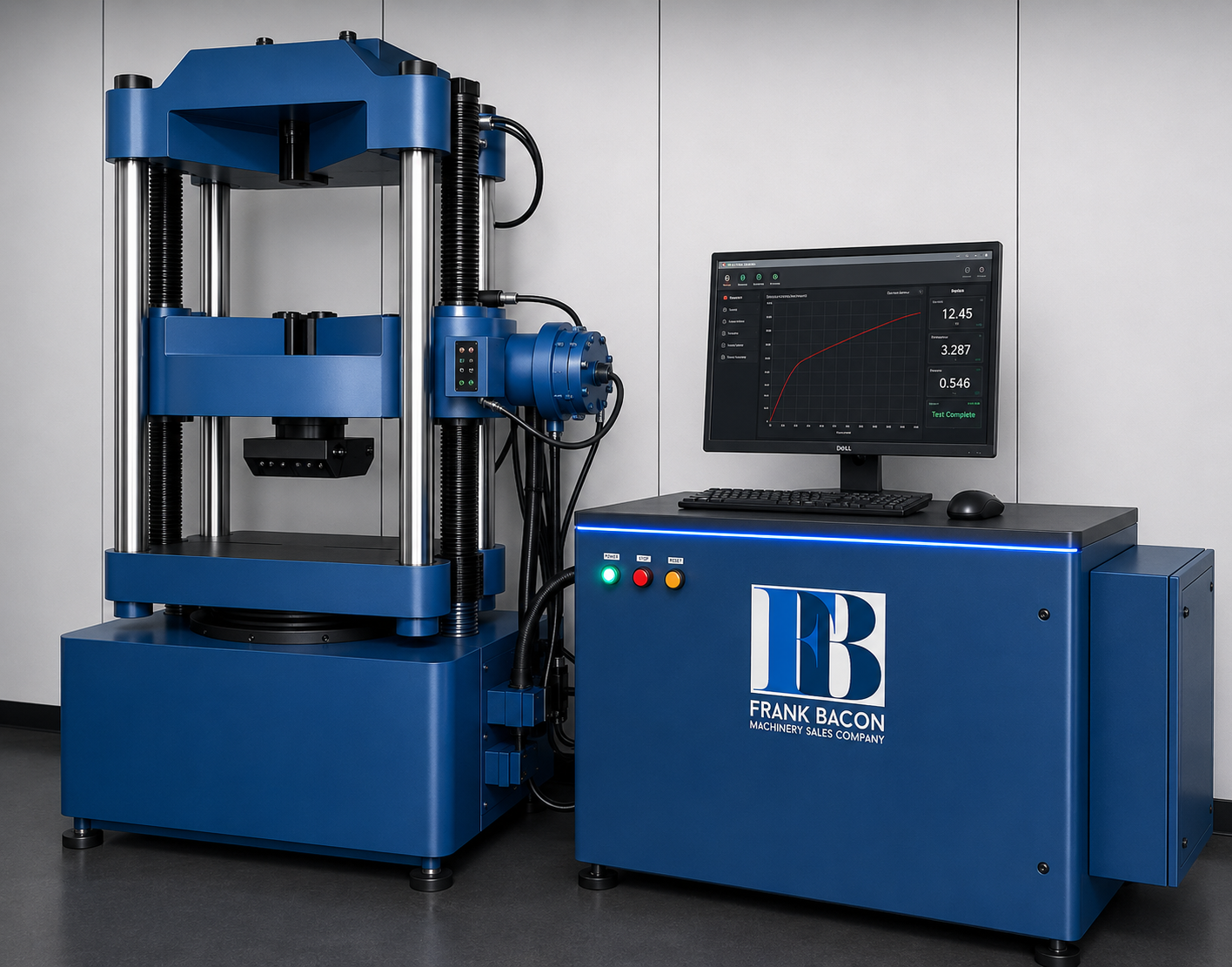

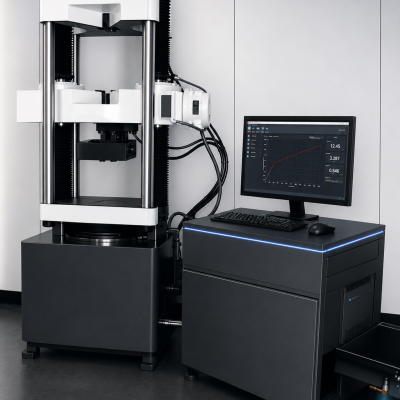

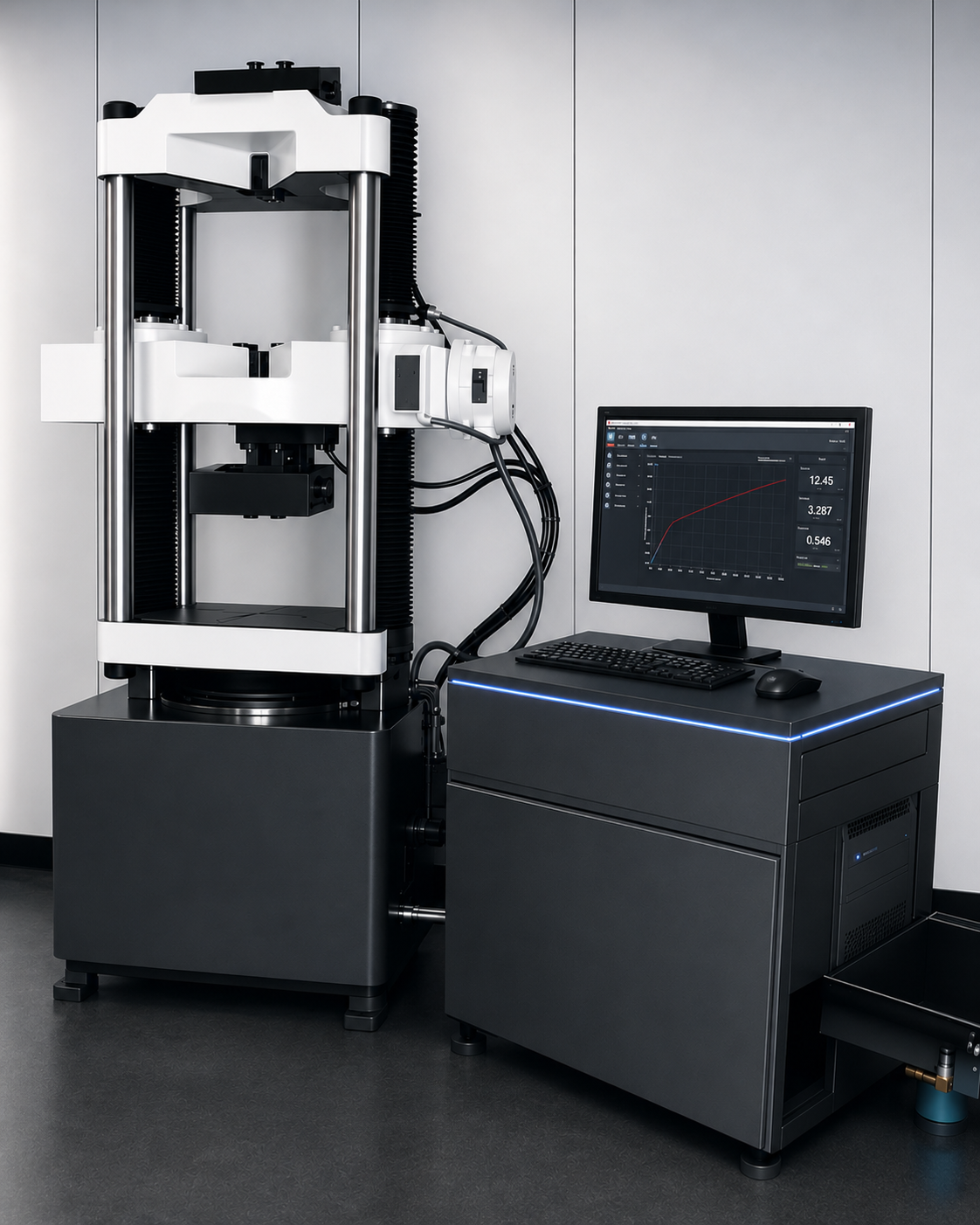

(1) Reconditioned 400,000 lbf (2000 kN) Capacity Tinius Olsen Model Super L, Hydraulic Tension and Compression Testing Machine with Semi-Open Front Crossheads and Hydraulic Gripping.

Tinius Olsen Model Super L

SPECIFICATIONS:

Tension Opening (Less Tooling): 38" (28" w/Gripping)

Compression Opening (Less Tooling): 38"

Distance Between Columns/Screws: 23"

Testing Stroke: 6"

Table Size (W x D): 22" x 25.5"

Testing Speed (IPM): 0 – 3

Crosshead Adjusting Speed (IPM): 12

Approximate Overall Dimensions:

     Servo Hydraulic Console (W x D x H): 51" x 32" x 45"

     Load Frame (W x D x H): 55" x 36" x 101"

     Weight (lbs.): 9,500

Electrical Requirements (V,Hz,PH): 220/440, 60, 3

EQUIPPED WITH:

• Dell Computer System with Dell Key Keyboard & Mouse
• 24" LED-Backlit LCD Color Monitor or Better & Manual
• Microsoft Windows 10 Professional, Workstation
• MTESTQuattro, Material Testing Software for Data Acquisition (Load, Position, 2 Strain & Aux), Analysis and Computer Controlled Testing with Manual.
• MTESTQuattro, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
• Celesco, High Resolution TTL compatible incremental Quadrature Encoder for Position and Testing Speed Values with Signal Cable and Mounting Hardware.
• Precision Pressure Transducer for Load Values with Signal Cable and Mounting Hardware.
• Reconditioned Tinius Olsen Servo Hydraulic Pumping System with New Electronics.

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty
