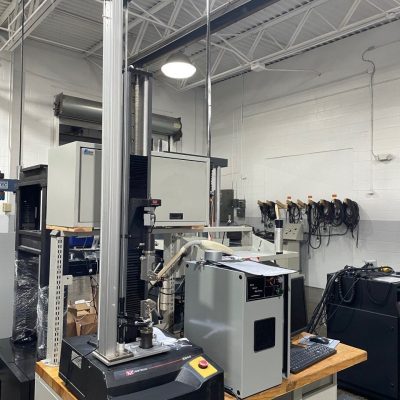

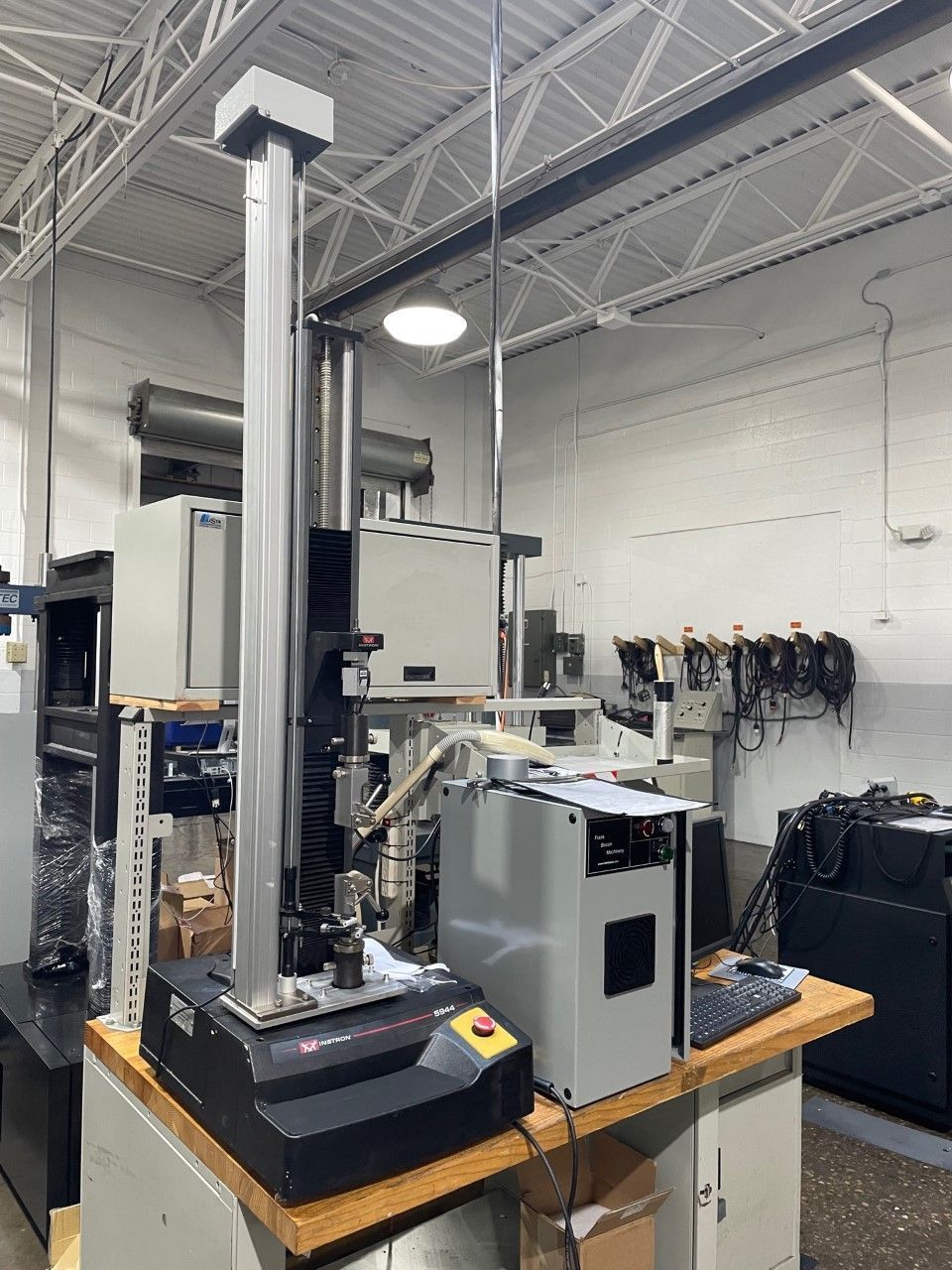

450lbf (2kN) Instron 4444/5544 Single Column Tensile & Compression Testing System
Instron 4444/5544
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 42”
Compression Testing Opening (Less Tooling): 42”
Testing Stroke: 36”
Testing Speed (IPM): .00002 – 40
Approximate Overall Dimensions:
Load Frame (W x D x H): 20" x 19.7" x 65"
Approximate Weight (lbs): 150
Electrical Requirements (V,Hz,PH): 200-240, 60, 1
EQUIPPED WITH:
-
Computer System with Monitor, Keyboard & Mouse
-
Microsoft Windows 11 Professional, Workstation
-
MTGenius, Material Testing Software for Data Acquisition (Load, Position & Strain), Analysis and Computer Controlled Testing with Manual.
-
MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
-
Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller
-
New AC Servo Motor and Drive System for Precision Control of Testing Rates (Load, Position and Strain)
-
2 kN (450 lbf) Tension & Compression Load Cell
FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty

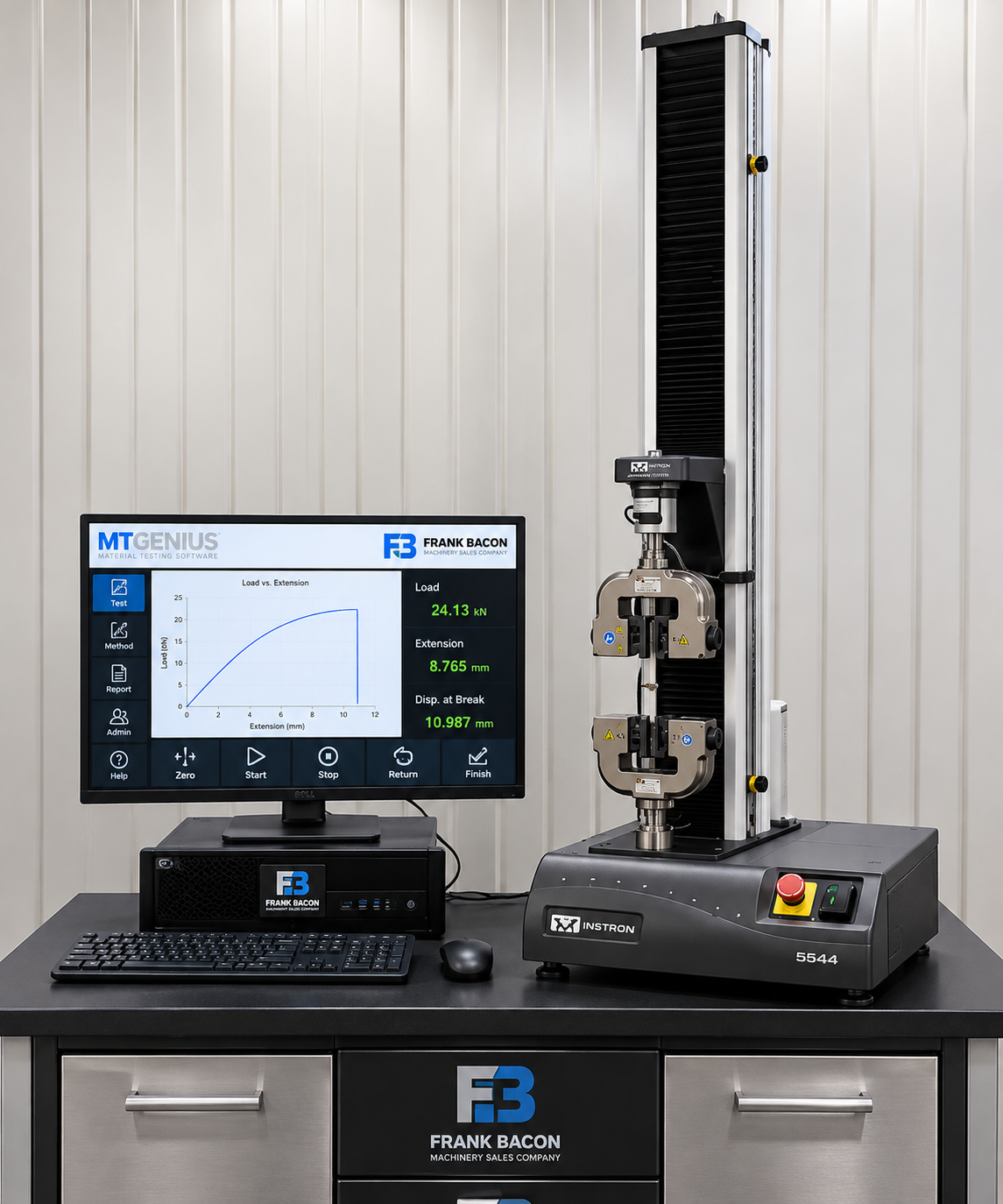

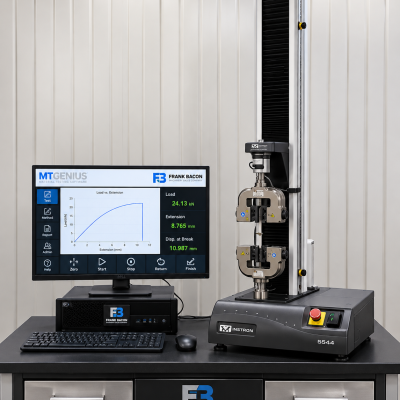

*Representative Images
Click for quote | #12942-00
