45K (200kN) Instron 5585

Instron Model 5585

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 50"

Compression Testing Opening (Less Tooling): 50"

Distance Between Columns/Screws: 22"

Testing Stroke: 50"

Testing Speed (IPM): .00002 – 20

Crosshead Adjusting Speed (IPM): 20

Approximate Overall Dimensions:

Load Frame (W x D x H): 48" x 32 x 98"

Weight (lbs.): 2,100

Electrical Requirements (V, Hz, PH): 230, 60, 3

EQUIPPED WITH:

Computer System with Keyboard & Mouse
24" LED-backlit LCD Color Monitor
Microsoft Windows 11 Professional, Workstation.
MTGenius, Material Testing Software for Data Acquisition (Load, Position, 2 Strain & AUX), Analysis and Computer Controlled Testing with Manual.
MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB cable.
Electronic Material Testing Control System in Custom Cabinet/Desk with PC/Manual Controls.
New AC Servo Motor with Incremental Encoder and Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
200kN Tension & Compression Load Cell

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty

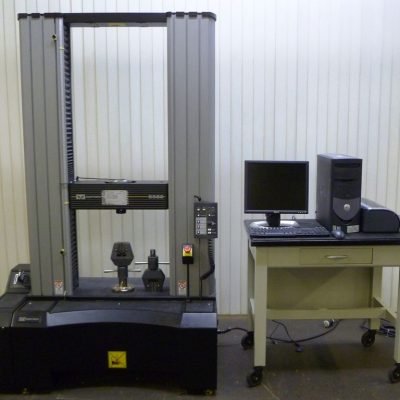

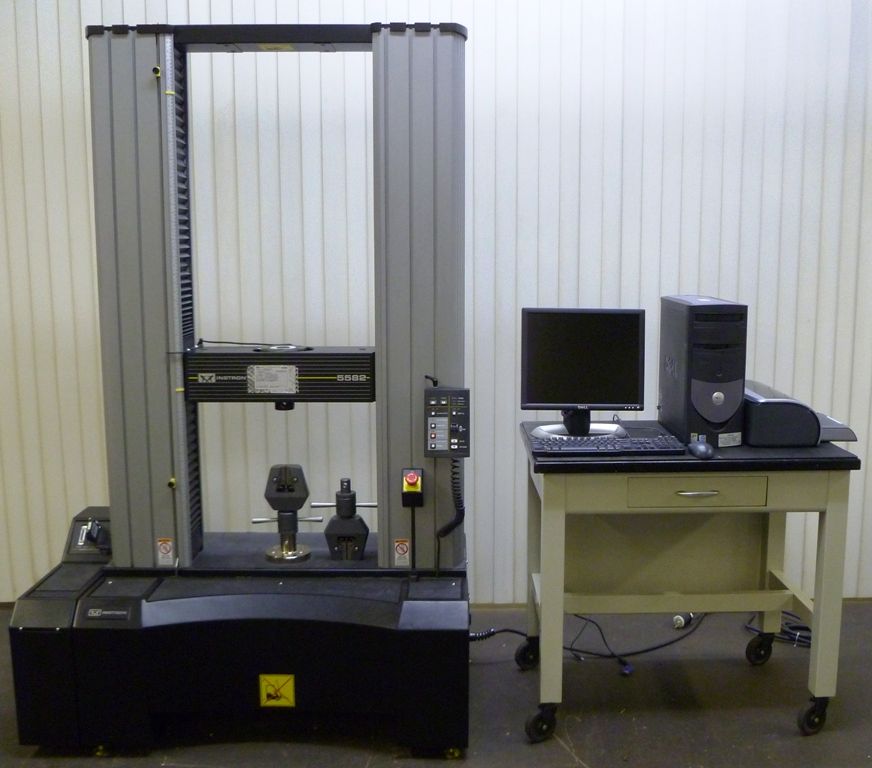

*Representative Images

DOWNLOAD SPEC SHEET
